Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

10 part groups · 5 illustrations

Illustrations

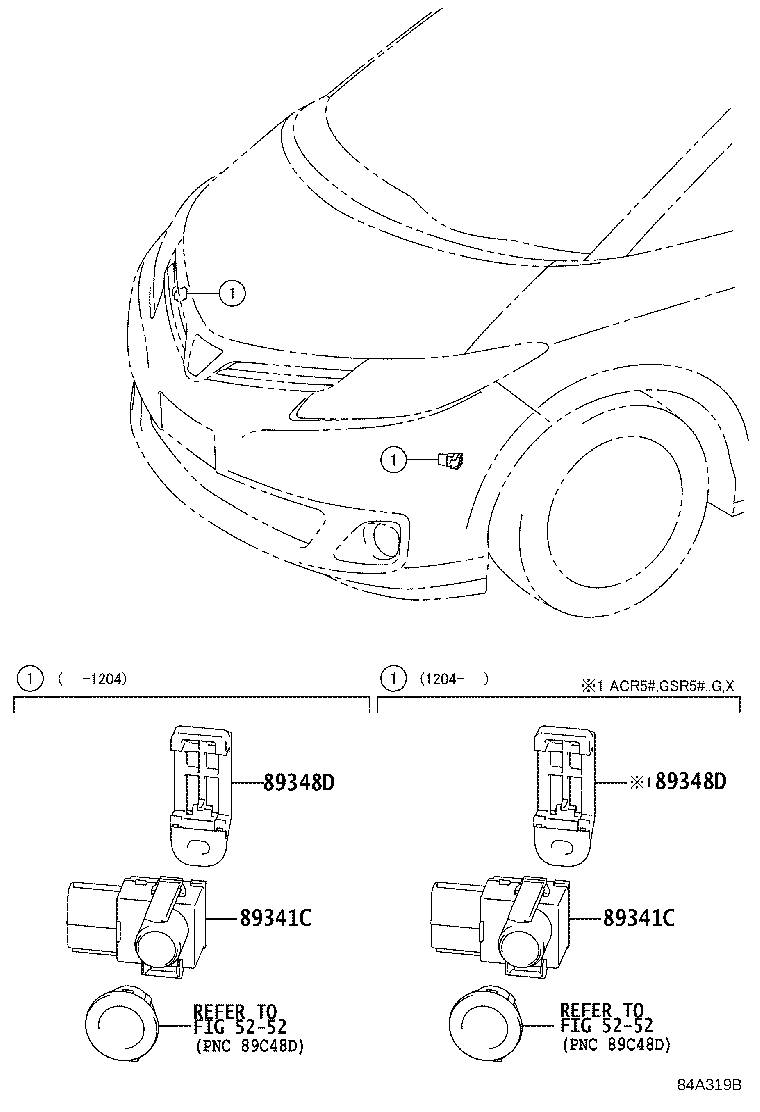

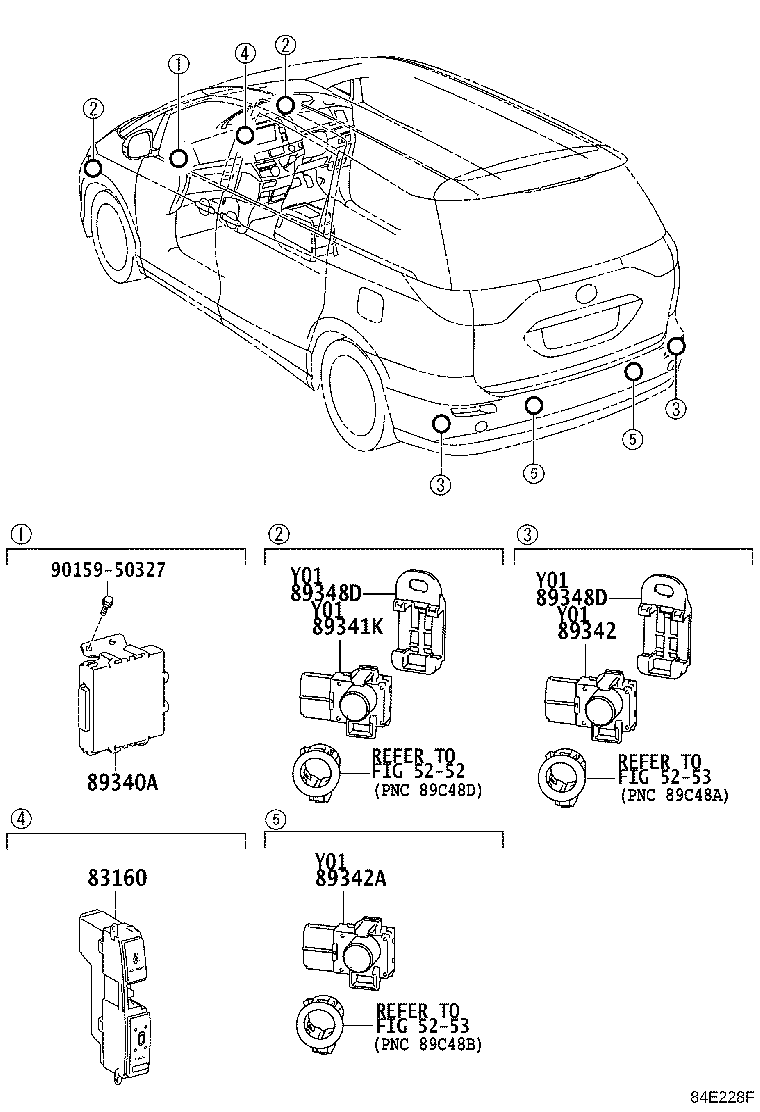

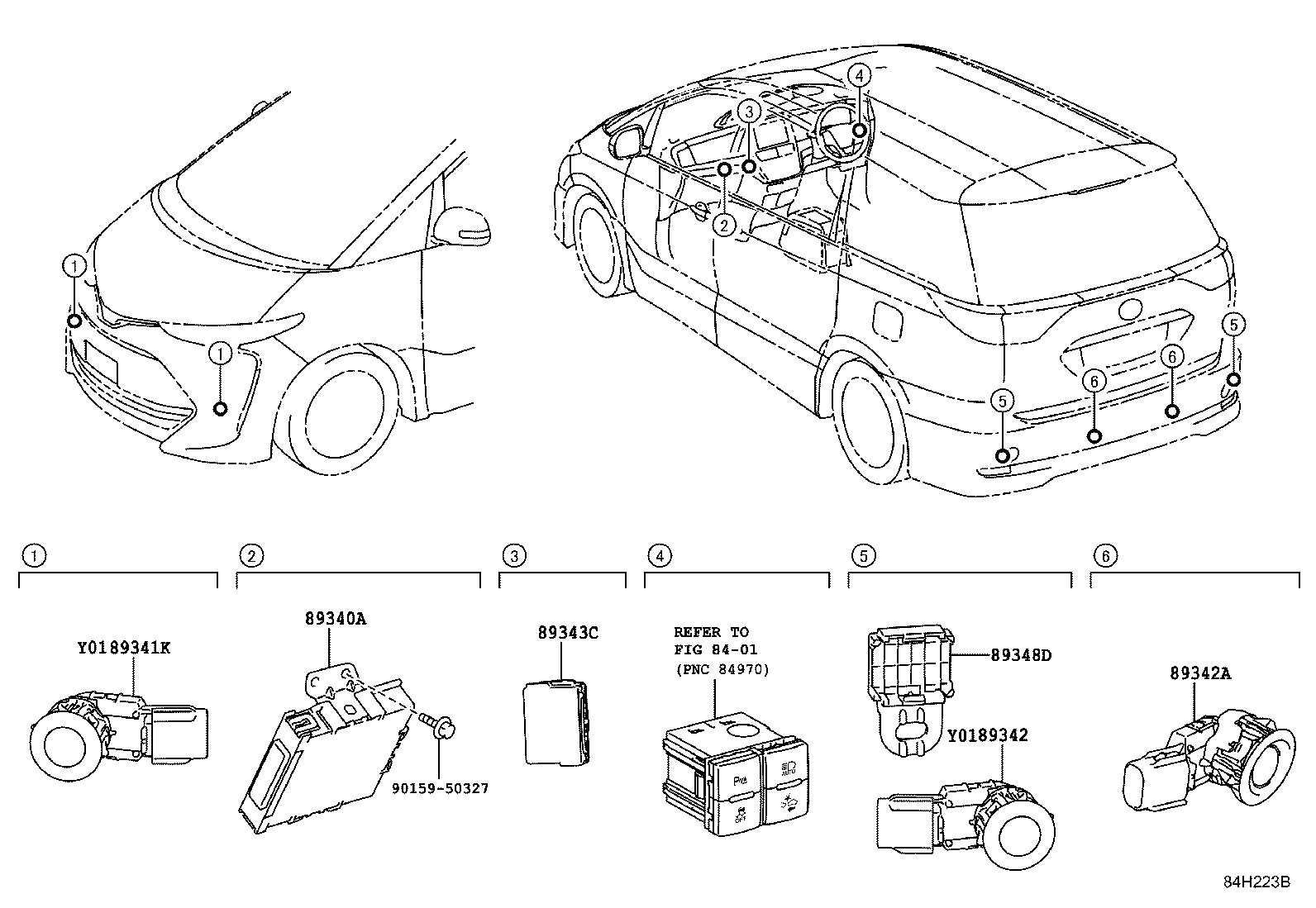

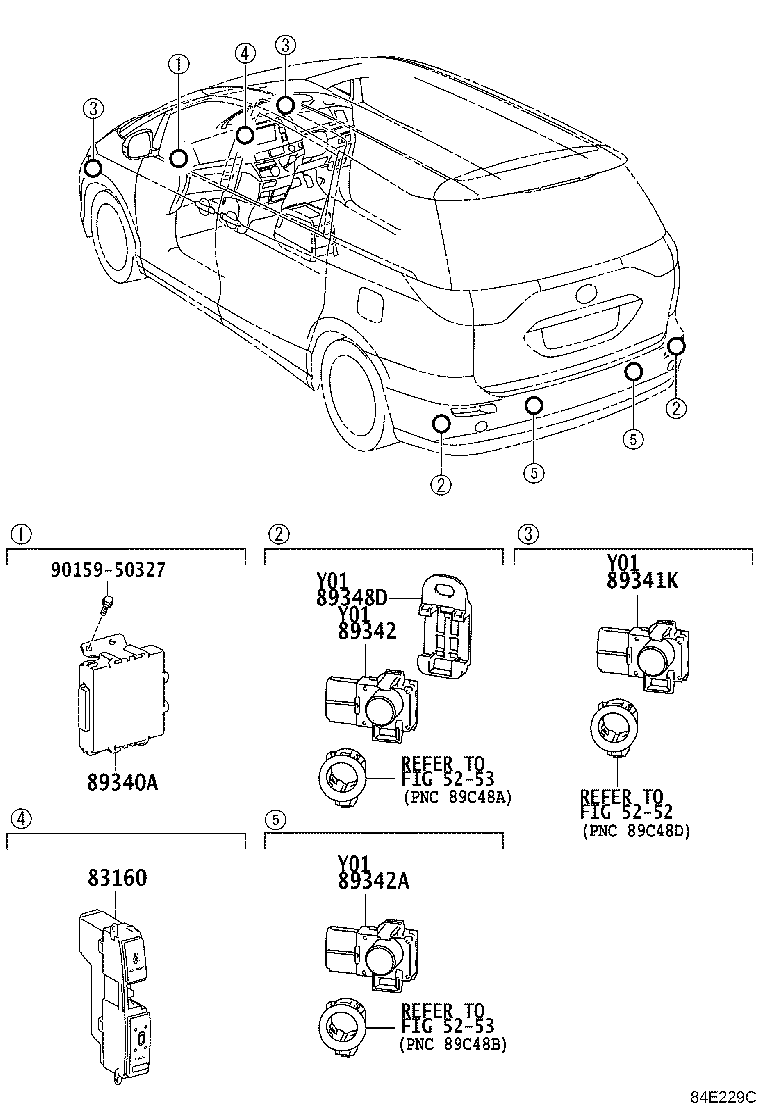

Figure 847654D 847654D 2006-01 → 2008-12 Figure 84A319C 84A319C 2008-12 → 2013-04 Figure 84E229C 84E229C 2013-04 → 2016-05 Figure 84E228F 84E228F 2013-04 → 2016-05 Figure 84H223B 84H223B 2016-05 → —

Part groups

PNCDescription
83160 Indicator Assy, Clearance Warning
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89341K Sensor, Ultrasonic, Front Corner
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
