Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 5 illustrations

Illustrations

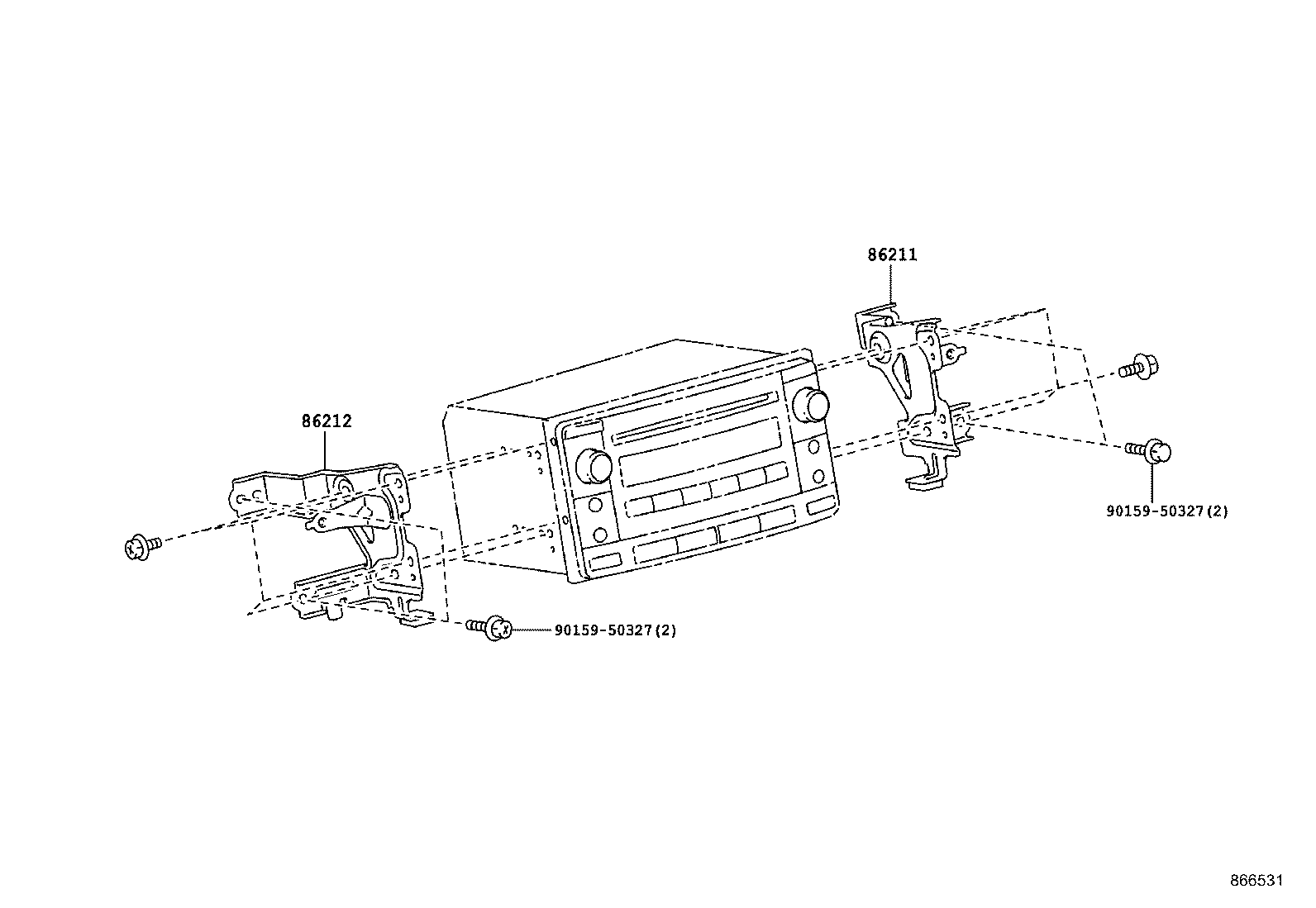

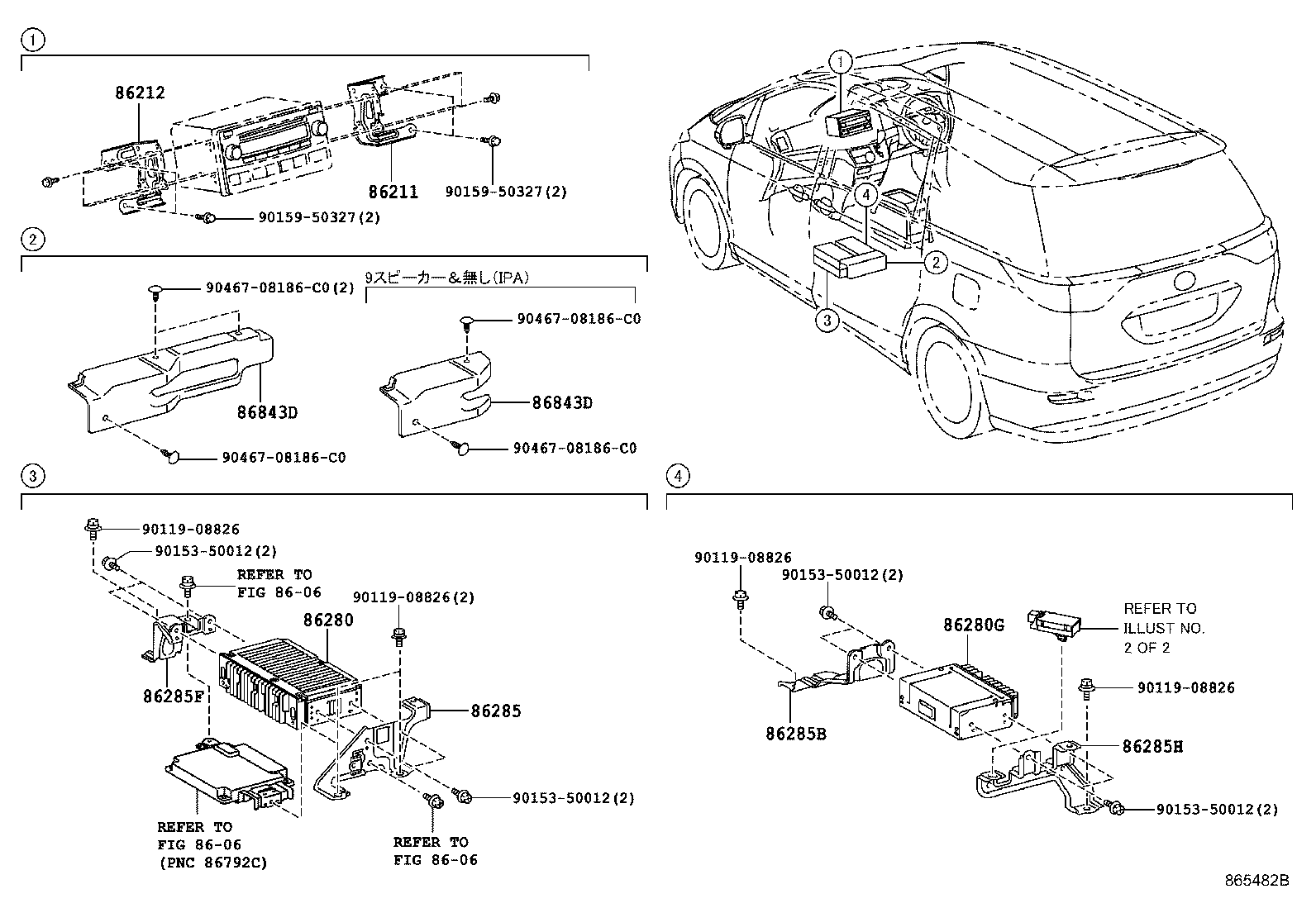

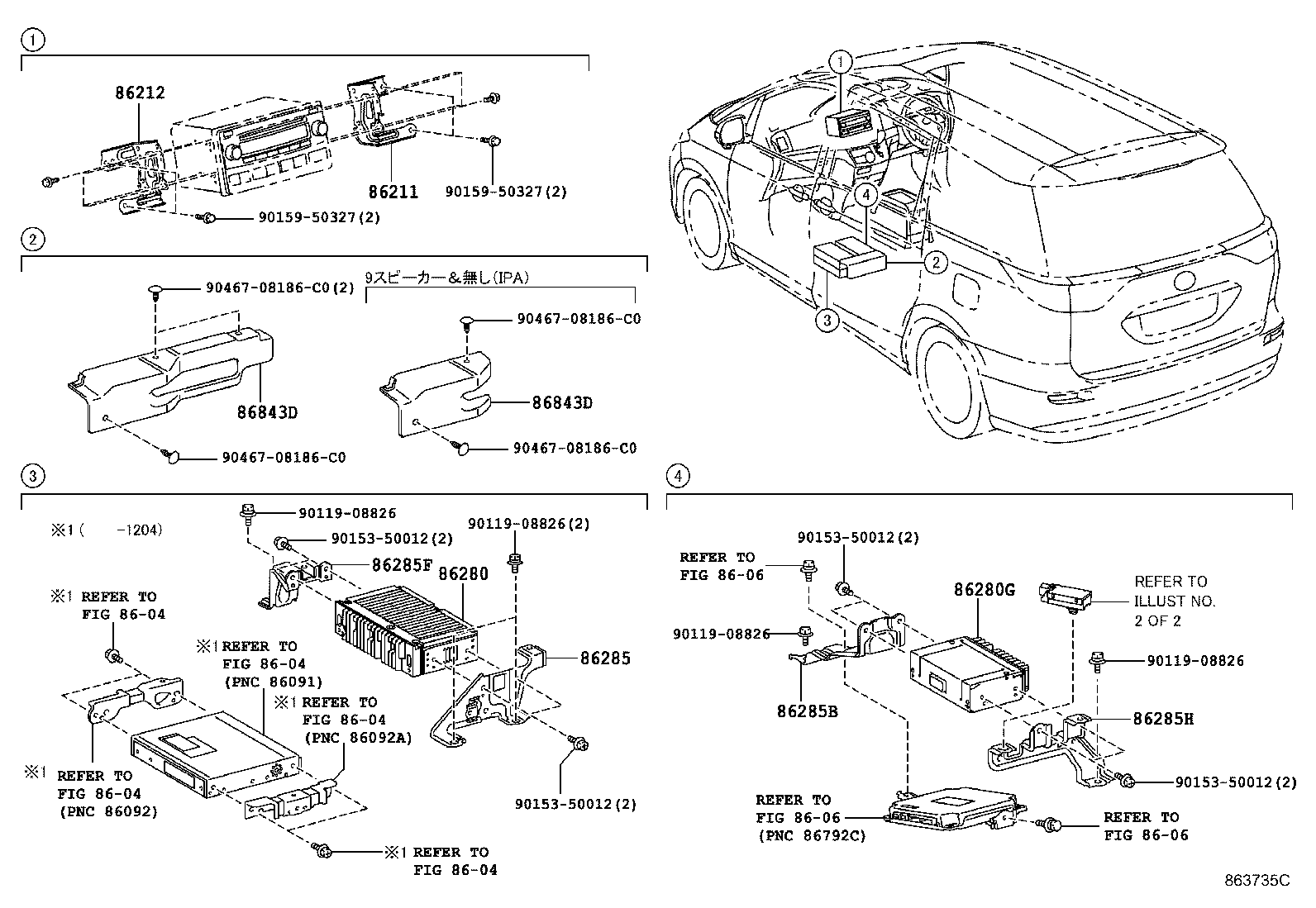

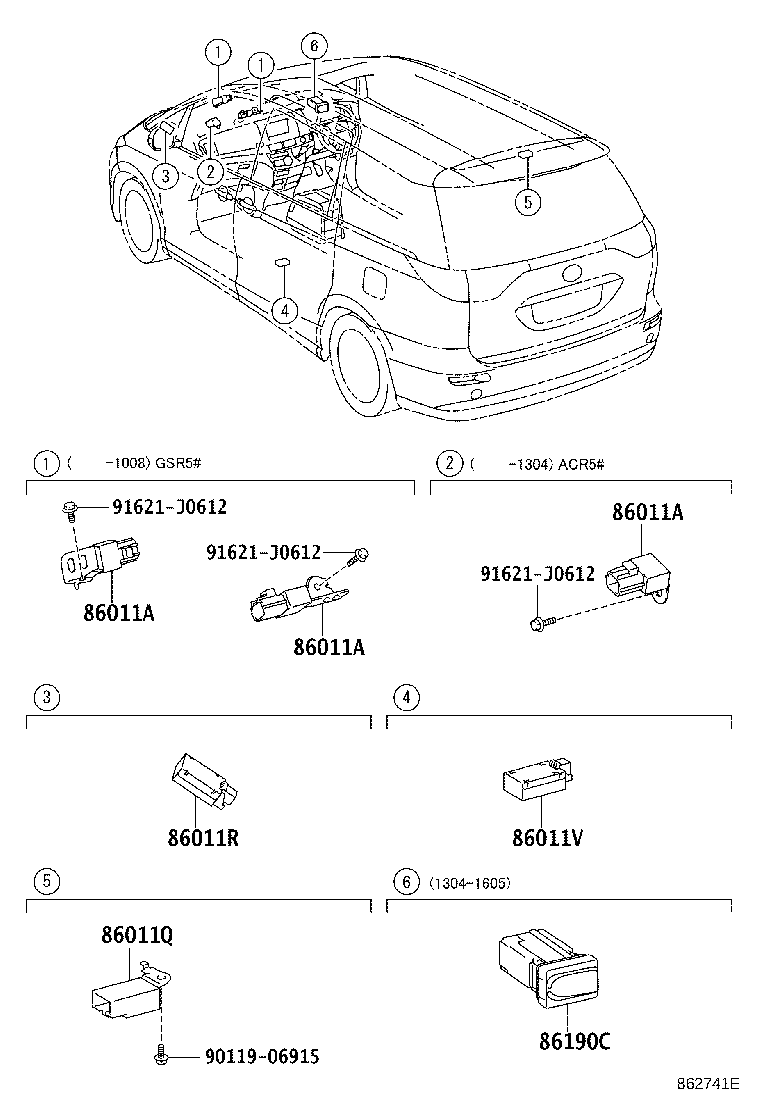

Figure 862740C 862740C 2006-01 → 2008-12 Figure 863735C 863735C 2008-12 → 2013-04 Figure 865482B 865482B 2013-04 → 2016-05 Figure 866531 866531 2016-05 → — Figure 862741E 862741E 2006-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86280G Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86285F Bracket, Amplifier, NO.2
86285H Bracket, Amplifier, NO.2
86843D Cover,Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
