Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10
Antenna

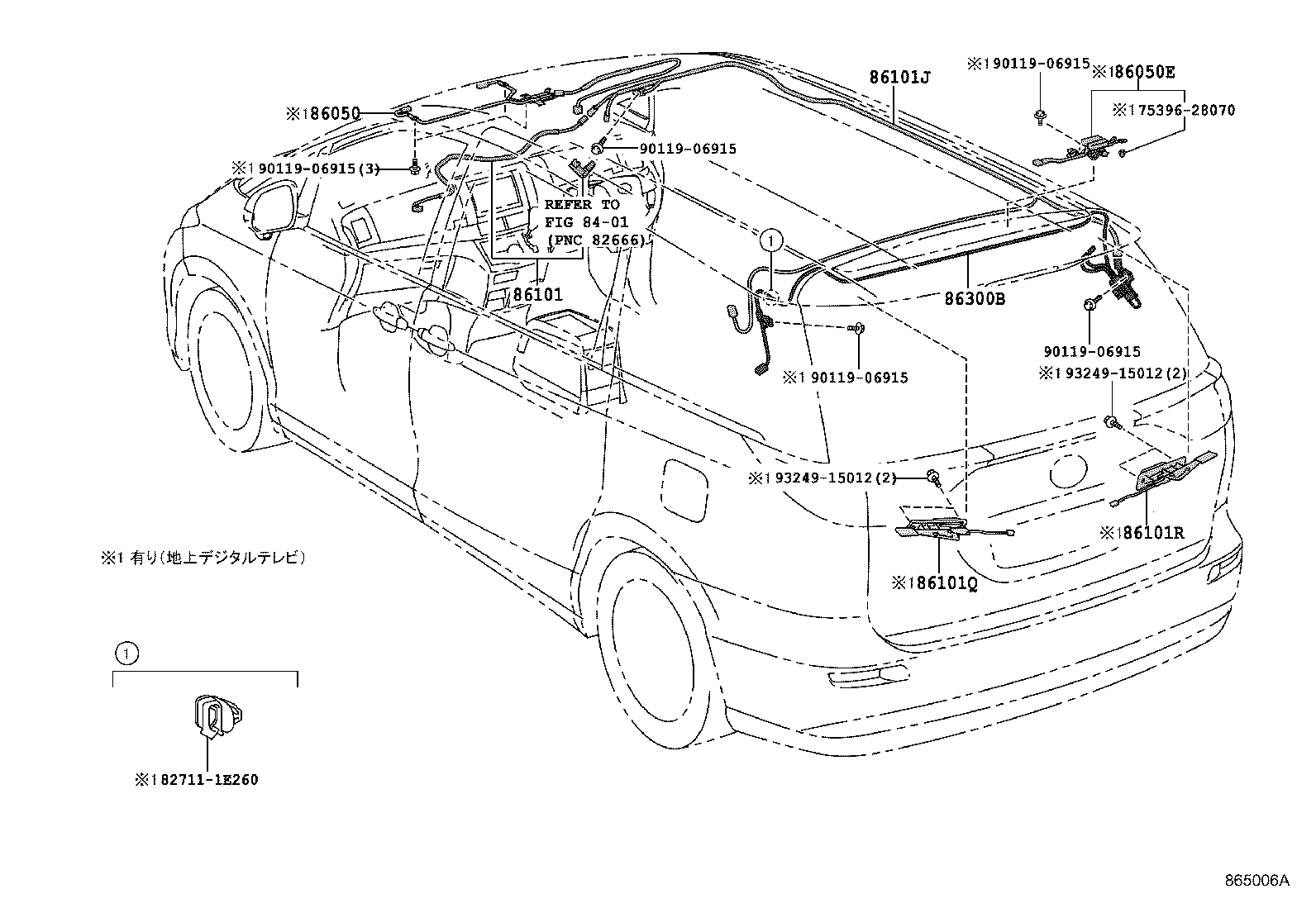

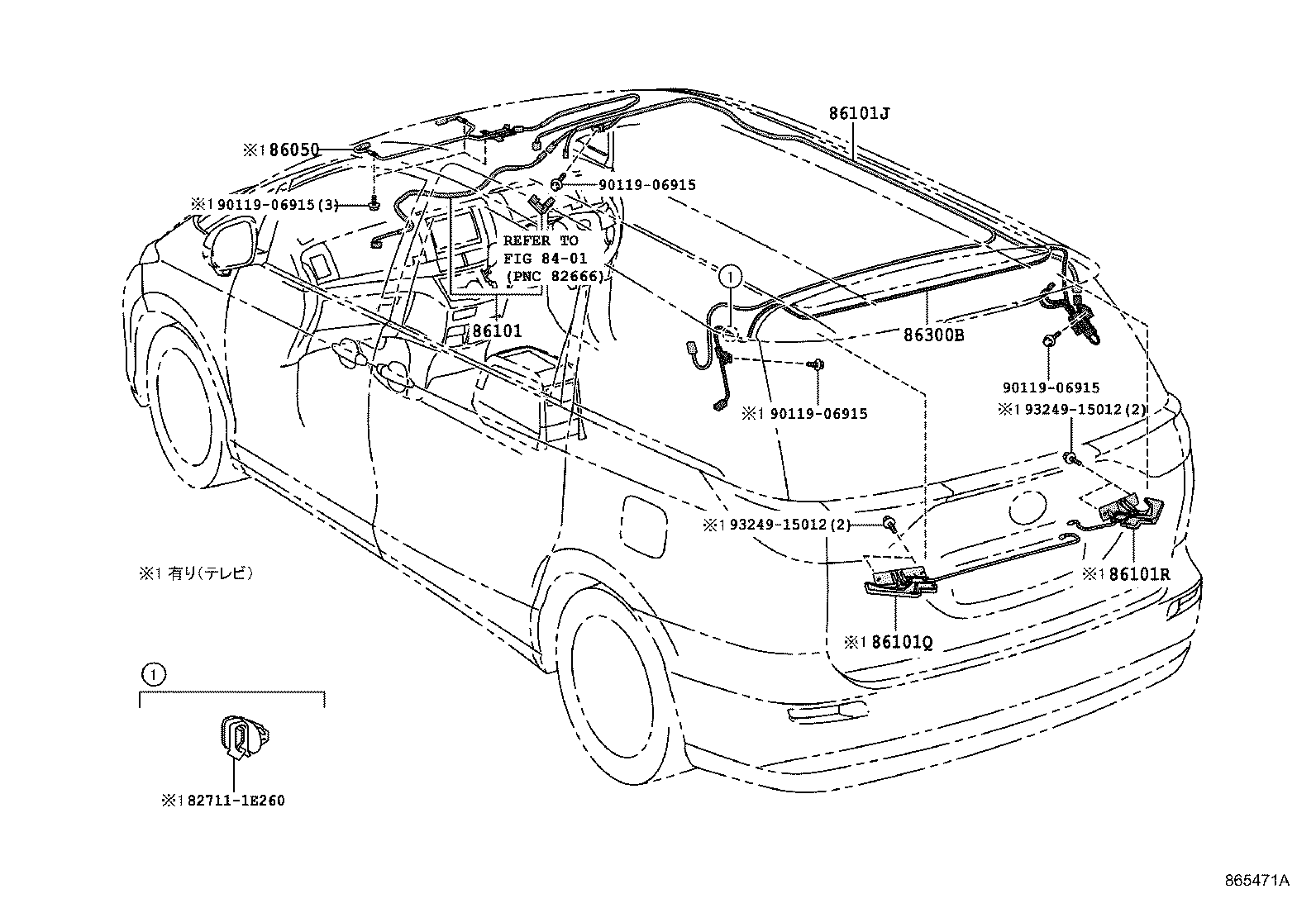

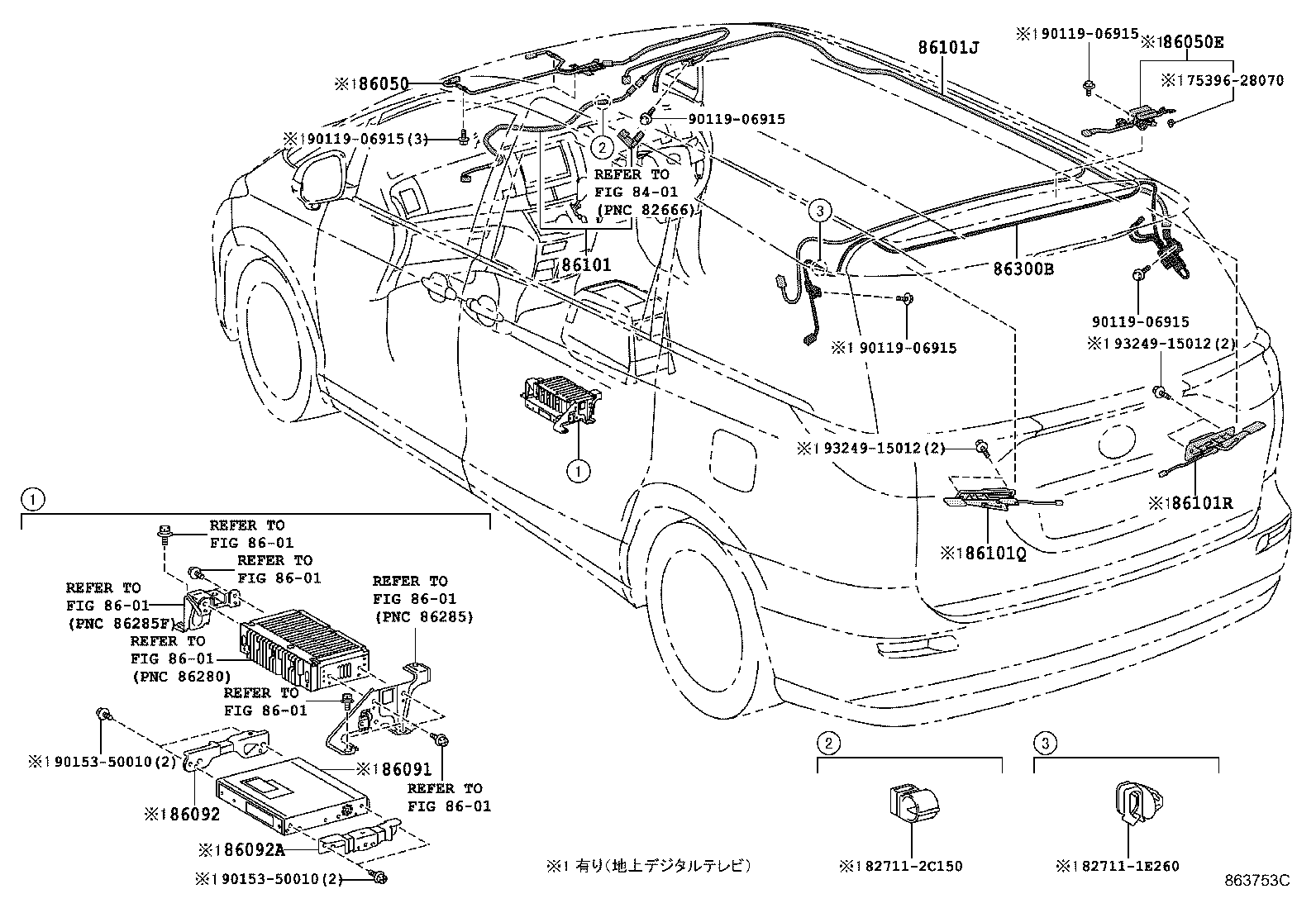

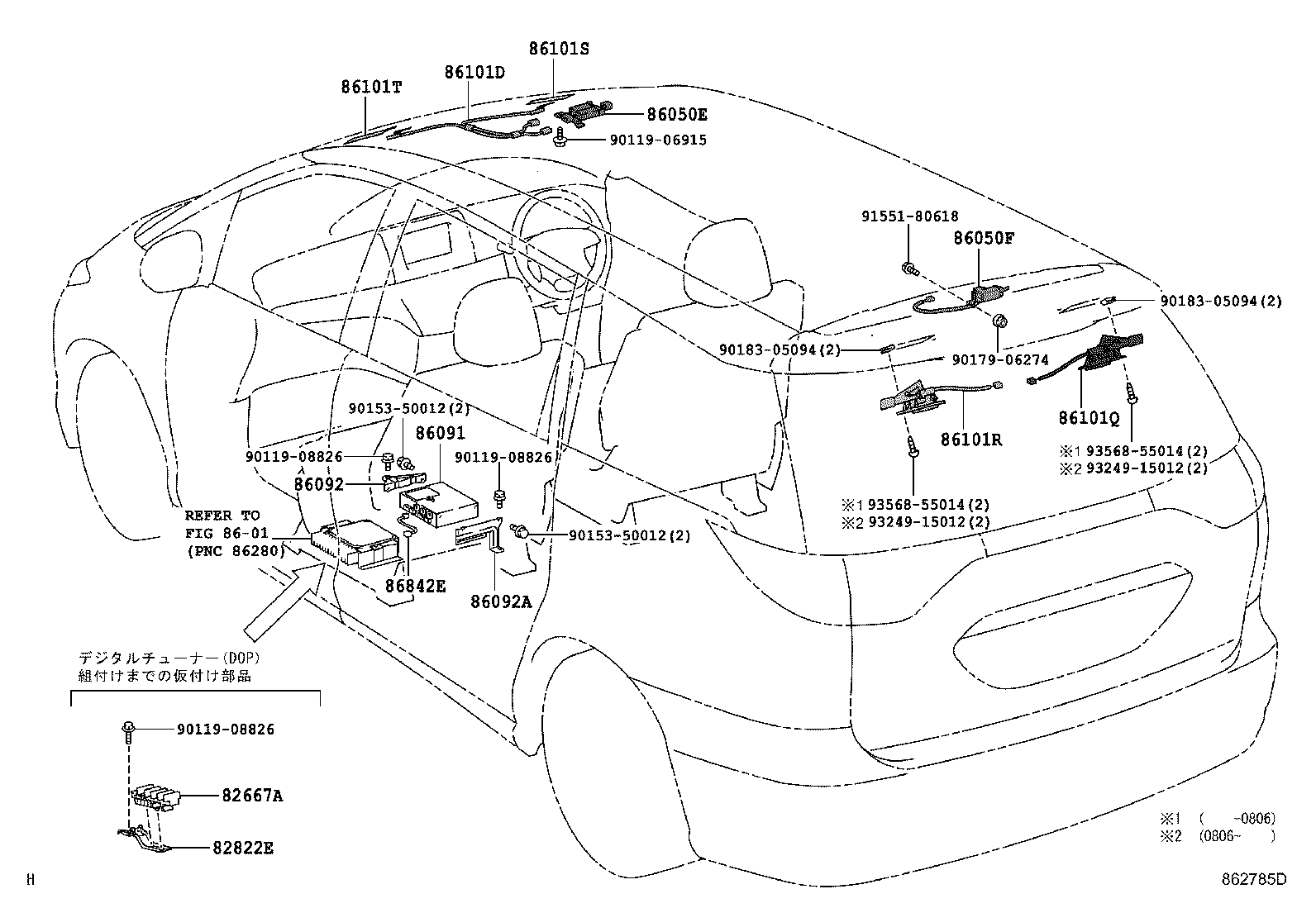

17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82667A | Holder, Connector |
| 82822E | Bracket,Connector Block |
| 86050 | Antenna Assy, Television |
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86091 | Parts Set, Digital Television |
| 86092 | Bracket, Digital Television, Front |
| 86092A | Bracket, Digital Television, Rear |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86101S | Cord Sub-assy, Antenna |
| 86101T | Cord Sub-assy, Antenna |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86842E | Cable, Digital Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
