Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10
Camera & Rear Monitor Display
14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86170B | Switch & Volume Assy, Television |
| 86174B | Case, Switch & Volume |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86285A | Bracket, Amplifier, NO.2 |

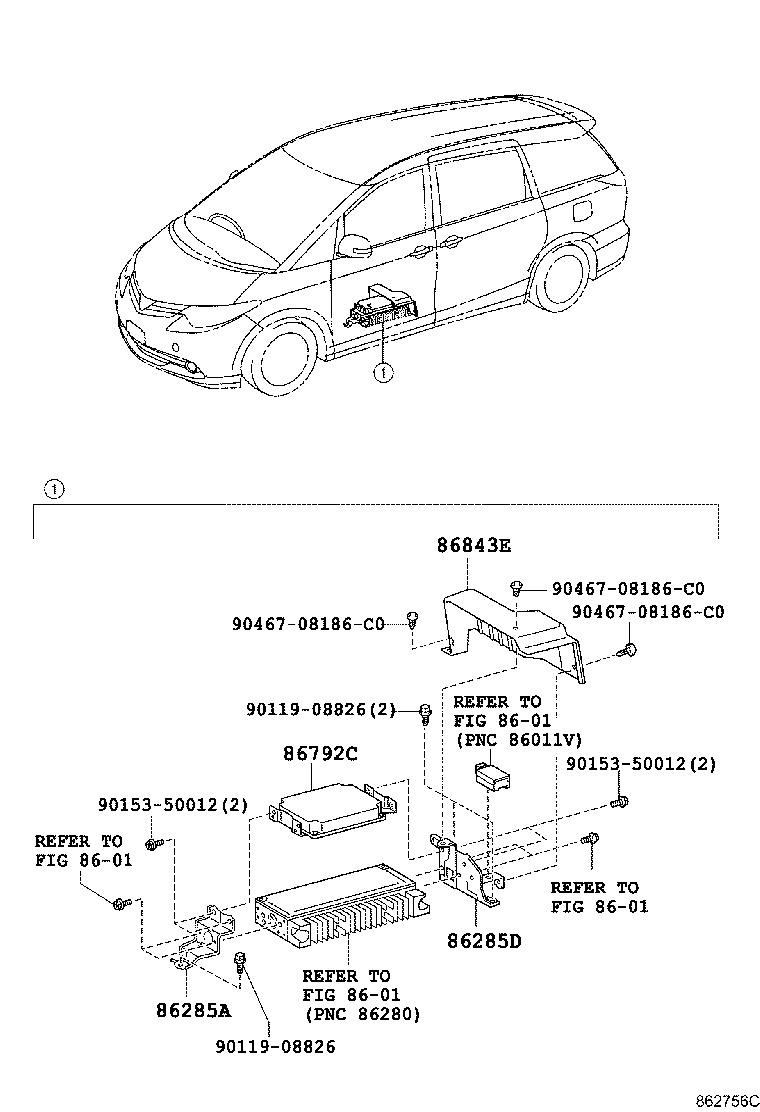

| 86285D | Bracket, Amplifier, NO.1 |

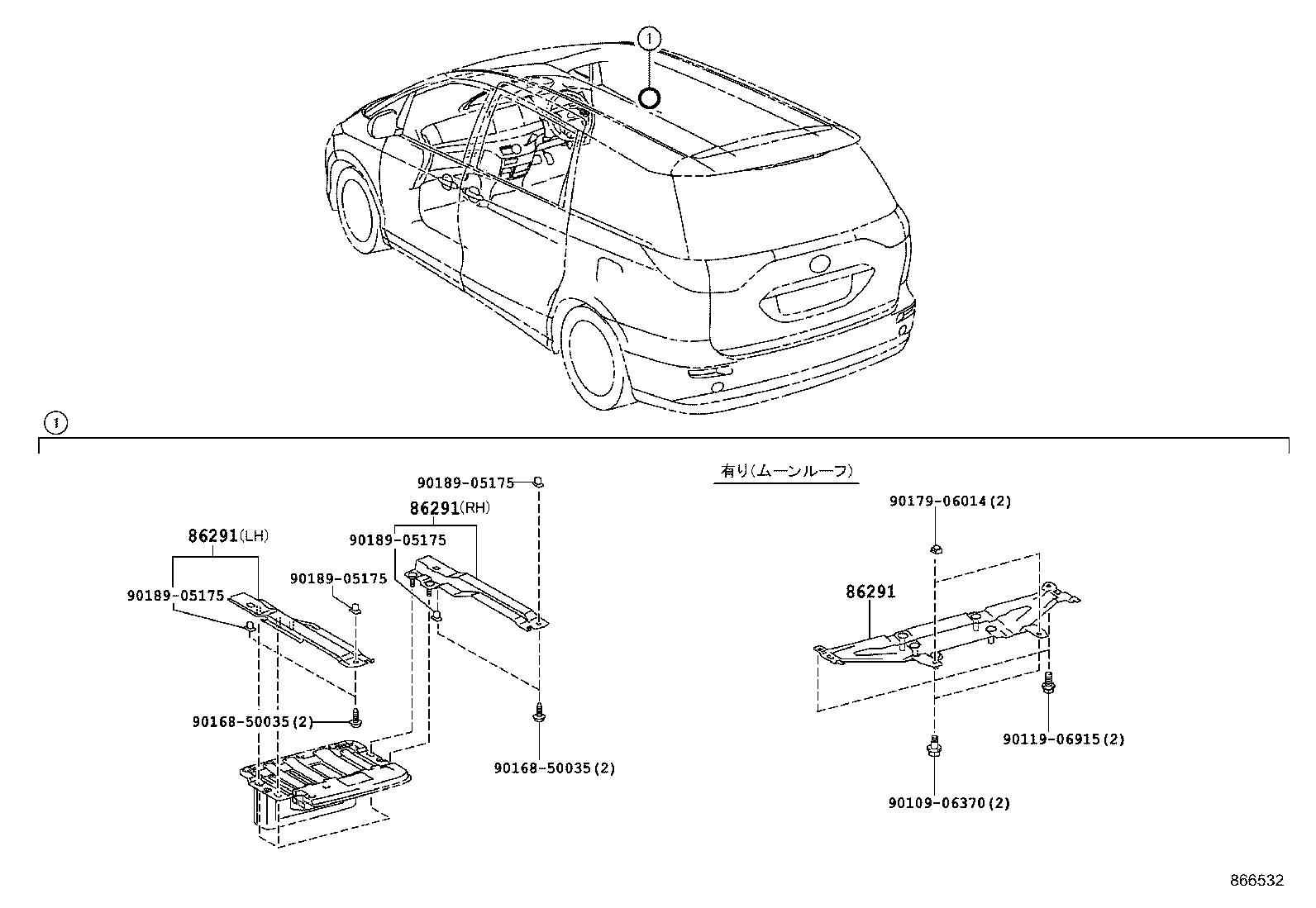

| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790C | Camera Assy, Television, Side |
| 86790D | Camera Assy, Television, RR |

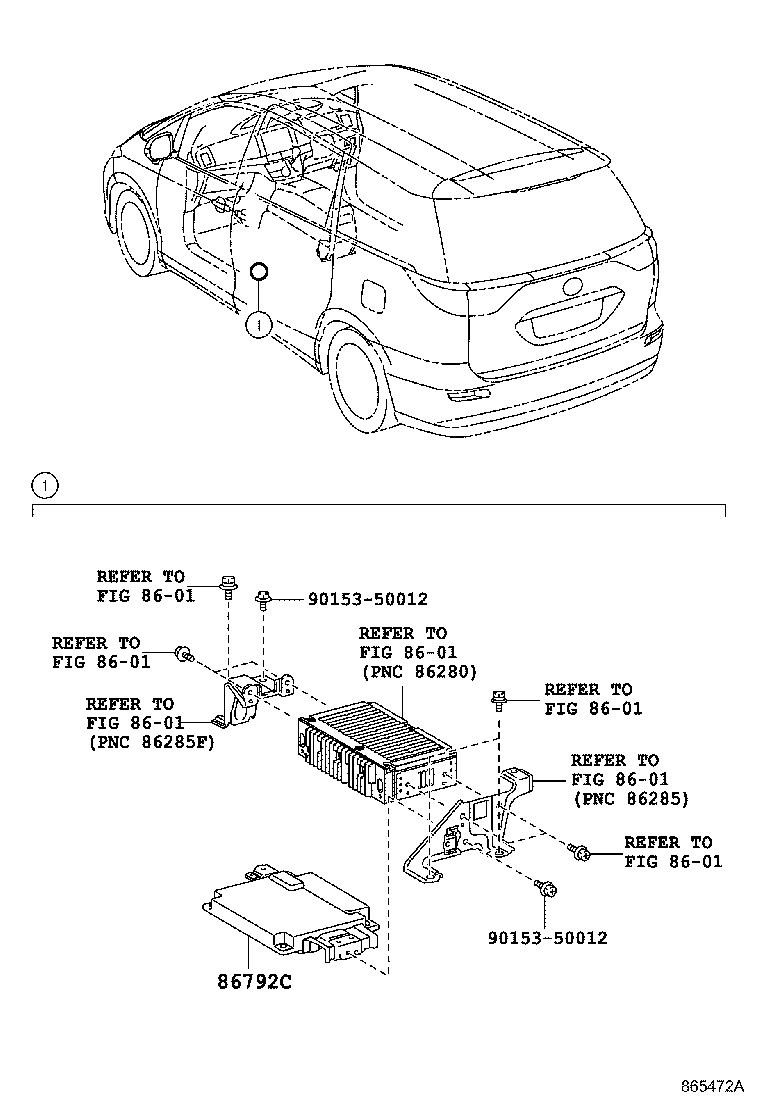

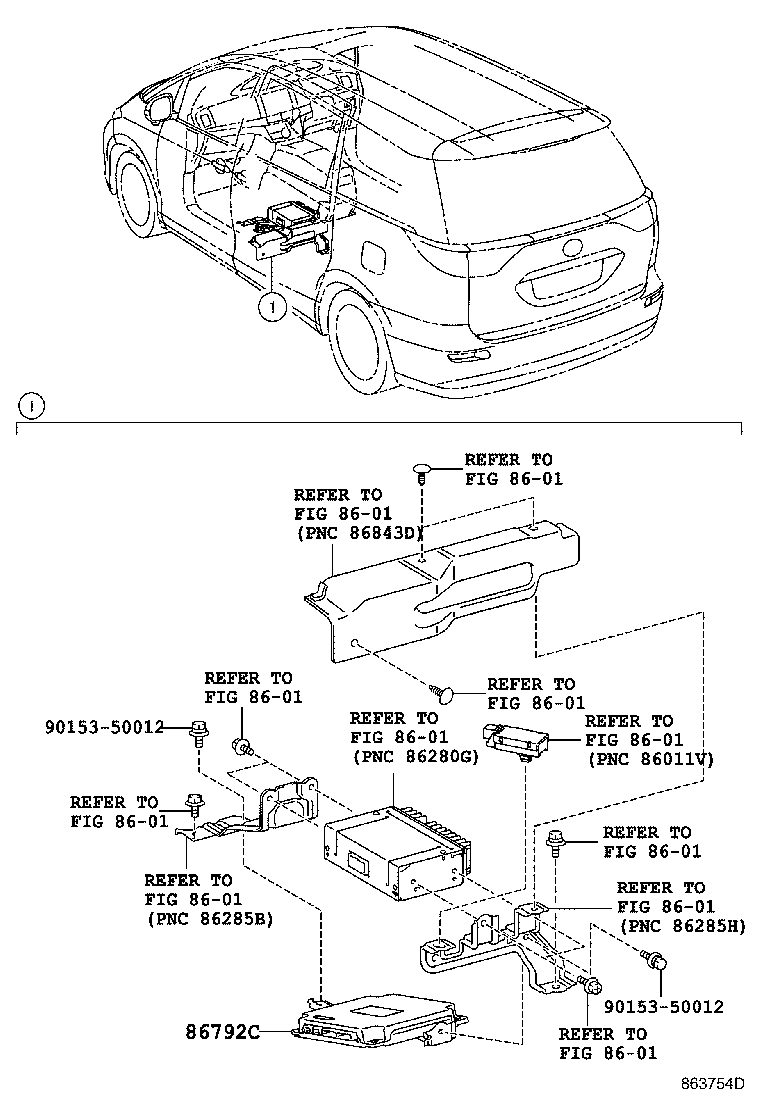

| 86792C | Computer, Parking Assist |
| 86794 | Cover, Television Camera Wire |
| 86843E | Cover, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
