Toyota Estima
2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan
Supported model
Data version 2019-10
Mirror

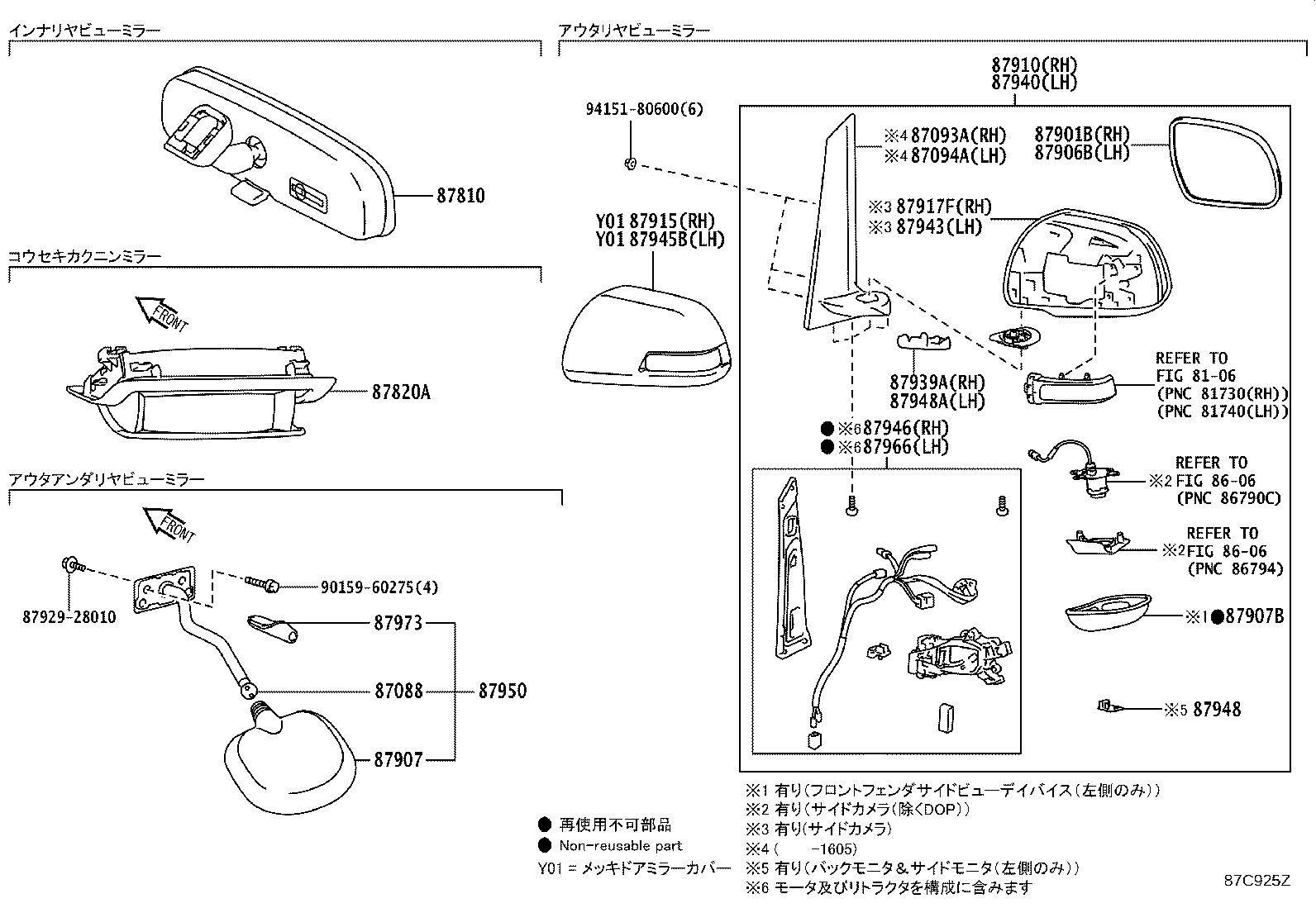

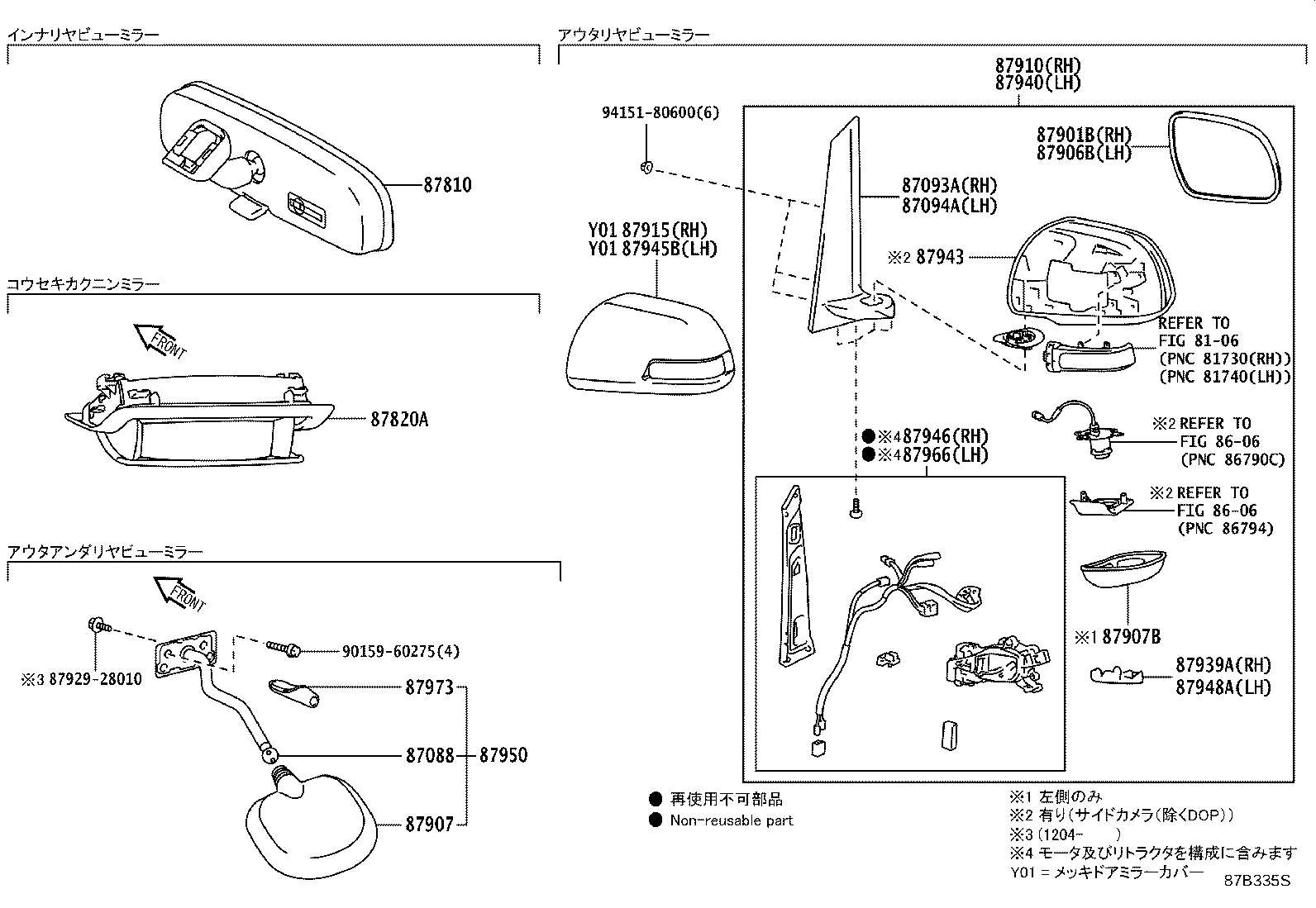

22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87088 | Arm Sub-assy, Outer Under Rear View Mirror |
| 87093A | Stay Sub-assy, Outer Rear View Mirror, RH |
| 87094A | Stay Sub-assy, Outer Rear View Mirror, LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87820A | Mirror Assy, Inner Rear Conversation |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87907B | Device Sub-assy,Front Fender Side View,LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87917F | Body, Outer Mirror, RH |
| 87939A | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87943 | Body, Outer Mirror, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87948A | Cover, Outer Mirror Hole, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87966 | Retractor, Outer Mirror, LH |
| 87973 | Cover, Outer Under RR View Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
