Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 3 illustrations

Illustrations

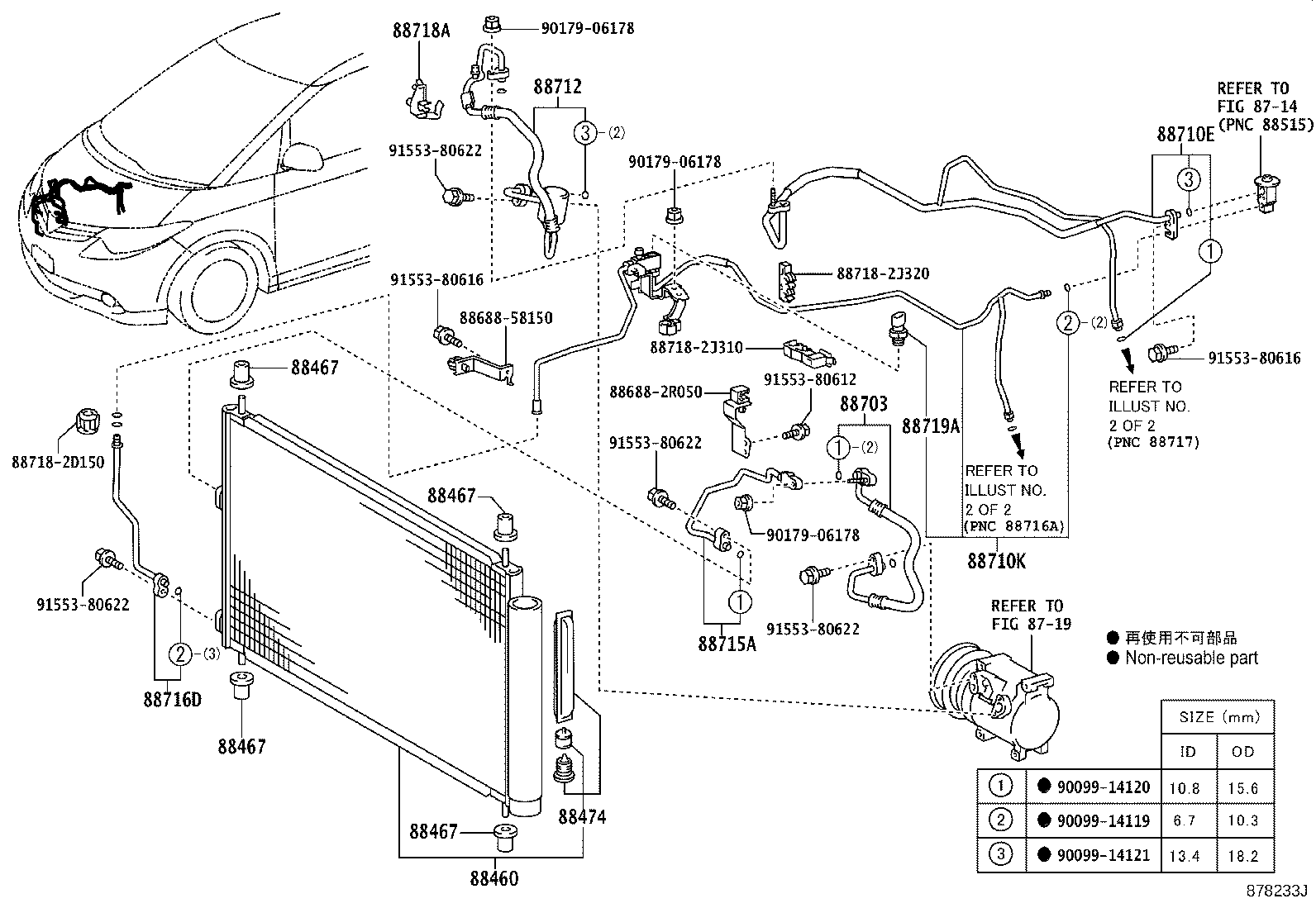

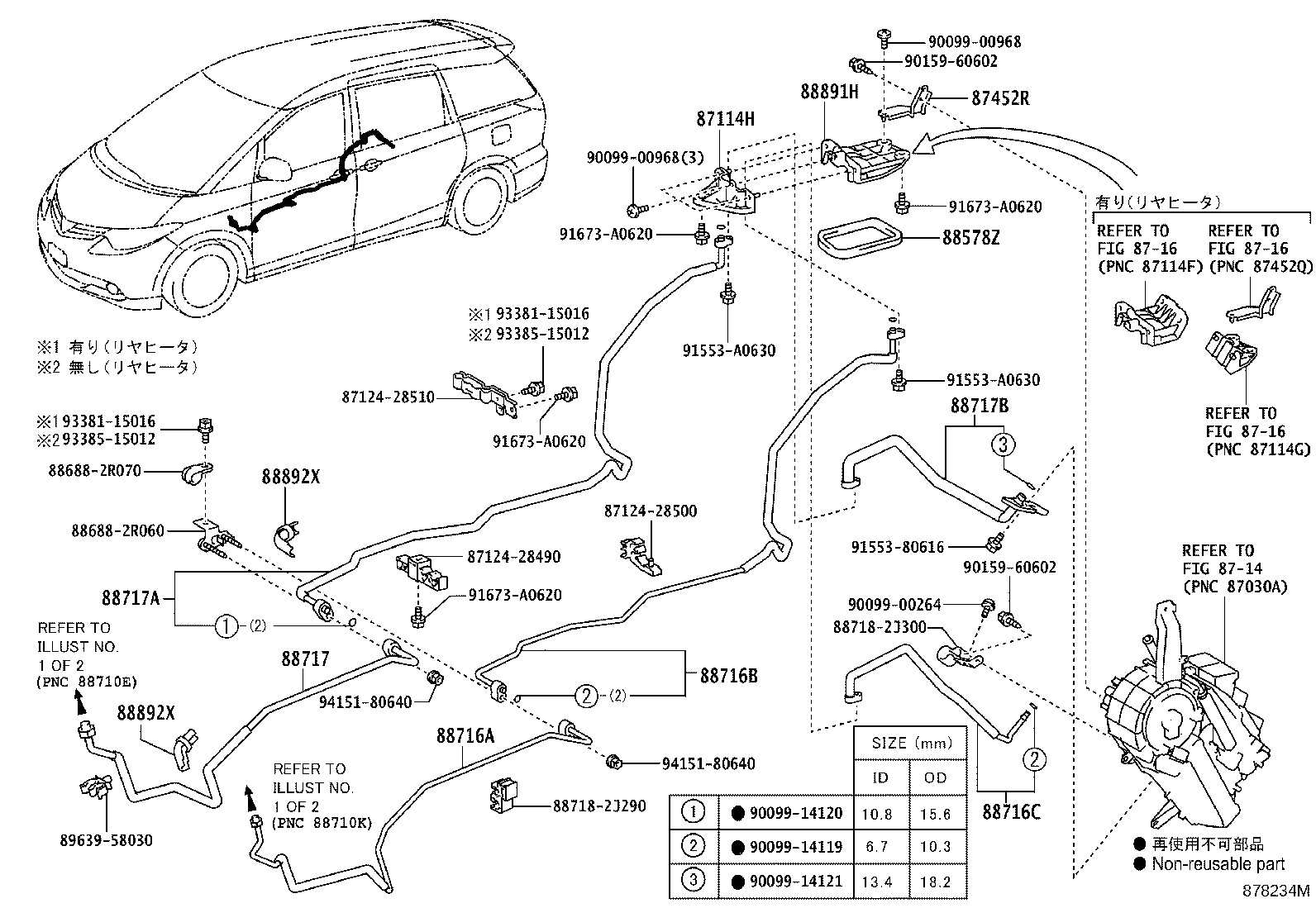

Figure 878232I 878232I 2006-01 → — Figure 878233J 878233J 2006-01 → — Figure 878234M 878234M 2006-01 → —

Part groups

PNCDescription
87114H Cover, Heater
87452R Bracket, Heater, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88578Z Packing, Cooler, NO.1
88703 Hose Sub-assy, Discharge
88710E Tube & Accessory Assy, Air Conditioner
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
