Toyota Estima

2006-01 → 2019-10 · chassis ACR5#,GSR5# · catalogue 652160 · Japan

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

5 part groups · 3 illustrations

Illustrations

Figure 878204B

878204B 2006-01 → 2012-04

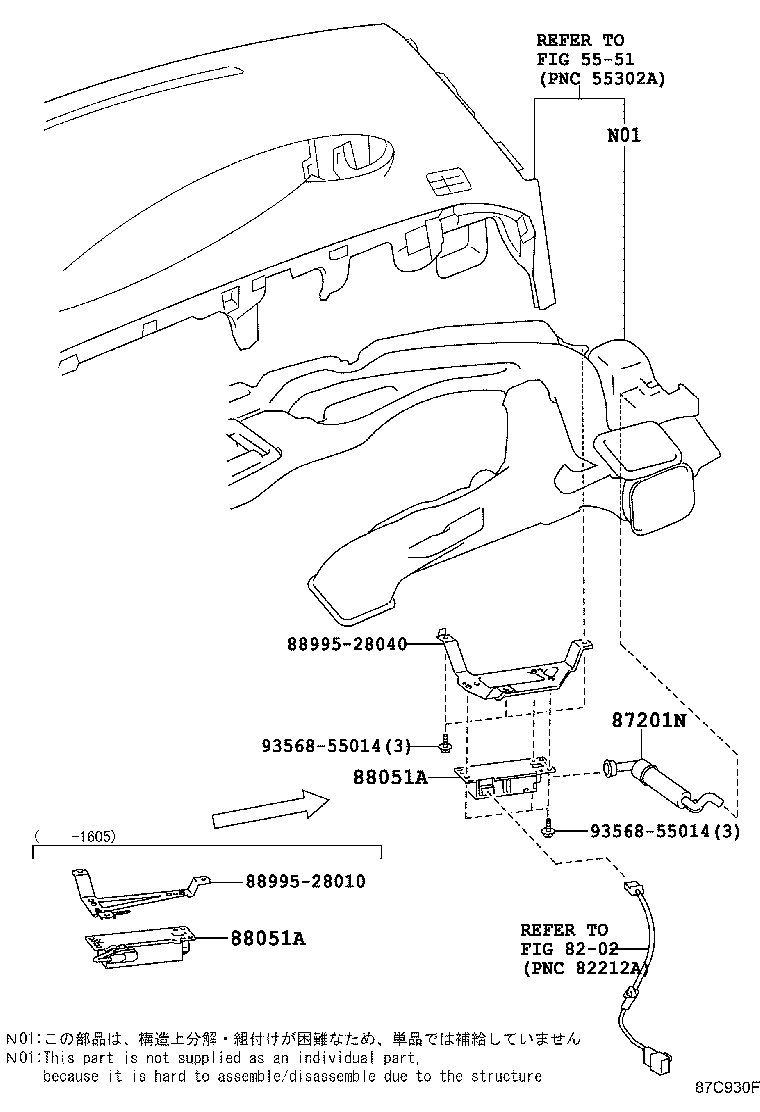

Figure 87C930F

87C930F 2012-04 → —

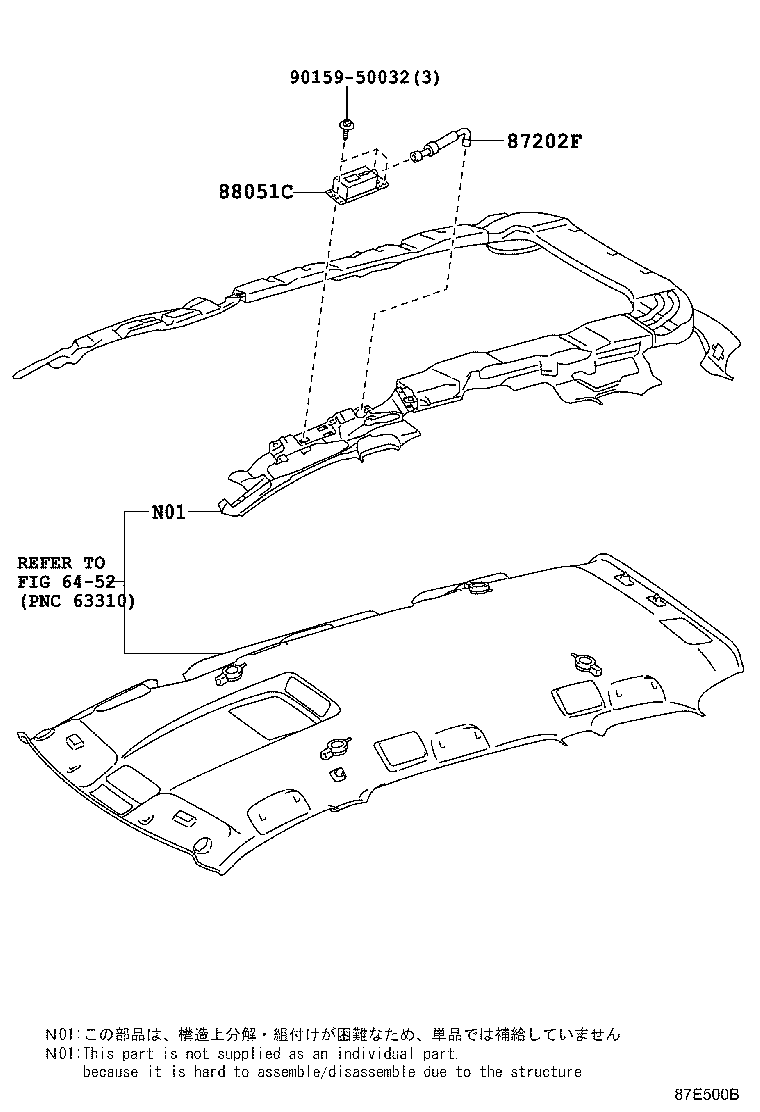

Figure 87E500B

87E500B 2014-09 → —

Part groups

PNC	Description
87201N	Duct Sub-assy, Air
87202F	Duct Sub-assy, Air, Rear
88051A	Generator Sub-assy,Ion
88051C	Generator Sub-assy, Ion, NO.2
88648Q	Wire, Air Conditioner NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
