Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

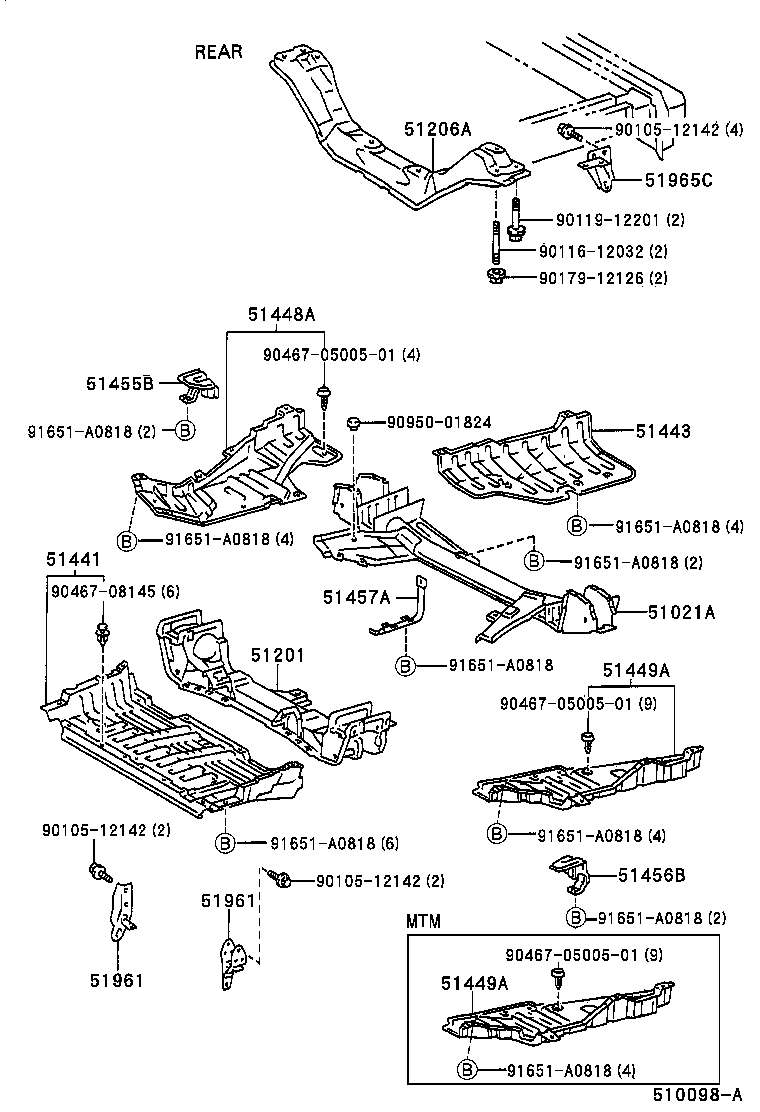

Exploded illustration 510098A 51206A — MEMBER SUB-ASSY, REAR SUSPENSION (1 parts) 9010512142 — not listed in this catalogue 51965C — HOOK, REAR (1 parts) 9011912201 — not listed in this catalogue 9011612032 — not listed in this catalogue 9017912126 — not listed in this catalogue 51448A — COVER, ENGINE SIDE UNDER, RH (5 parts) 904670500501 — not listed in this catalogue 51455B — BRACKET, ENGINE UNDER COVER, REAR RH (1 parts) 9095001824 — not listed in this catalogue 51443 — COVER, ENGINE UNDER, REAR RH (2 parts) 91651A0818 — not listed in this catalogue 91651A0818 — not listed in this catalogue 91651A0818 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (6 parts) 91651A0818 — not listed in this catalogue 9046708145 — not listed in this catalogue 51457A — BRACKET, ENGINE UNDER COVER, NO.3 (2 parts) 51021A — MEMBER SUB-ASSY, ENGINE FRONT SUPPORT (8 parts) 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (4 parts) 91651A0818 — not listed in this catalogue 51449A — COVER, ENGINE SIDE UNDER, LH (7 parts) 904670500501 — not listed in this catalogue 9010512142 — not listed in this catalogue 91651A0818 — not listed in this catalogue 91651A0818 — not listed in this catalogue 51456B — BRACKET, ENGINE UNDER COVER, REAR LH (1 parts) 9010512142 — not listed in this catalogue 51961 — HOOK, NO.1 (10 parts) 91651A0818 — not listed in this catalogue 904670500501 — not listed in this catalogue 51961 — HOOK, NO.1 (10 parts) 51449A — COVER, ENGINE SIDE UNDER, LH (7 parts) 91651A0818 — not listed in this catalogue
510098A · 14 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
51021A — Member Sub-assy, Engine Front Support
51021-28010 Member Sub-assy, Engine Front Support
1992-01 → 1996-08 ended
TCR1# ¥47,300
51021-28020 Member Sub-assy, Engine Front Support
1992-01 → 1996-08 ended
TCR2# ¥47,300
51021-28030 Member Sub-assy, Engine Front Support
1992-01 → 1992-07 ended
CXR1# ¥47,300
51021-28031 Member Sub-assy, Engine Front Support
1992-07 → 1996-08 ended
CXR1# ¥47,300
51021-28040 Member Sub-assy, Engine Front Support
1992-01 → 1992-07 ended
CXR2# ¥47,300
51021-28041 Member Sub-assy, Engine Front Support
1992-07 → 1996-08 ended
CXR2# ¥47,300
51021-28080 Member Sub-assy, Engine Front Support
1996-08 → 1999-12 ended
CXR1#,TCR1# ¥47,500
51021-28090 Member Sub-assy, Engine Front Support
1996-08 → 1999-12 ended
CXR2#,TCR2# ¥47,500
51201 — Crossmember Sub-assy, Front Suspension
51201-28020 Crossmember Sub-assy, Front Suspension
1992-01 → 1996-08 ended
CXR1#,TCR1# ¥36,400
51201-28030 Crossmember Sub-assy, Front Suspension
1992-01 → 1996-08 ended
CXR2#,TCR2# ¥36,400
51201-28040 Crossmember Sub-assy, Front Suspension
1996-08 → 1999-12 ended
CXR1#,TCR1# ¥38,100
51201-28110 Crossmember Sub-assy, Front Suspension
1996-08 → 1999-12 ended
CXR2#,TCR2# ¥38,100
51206A — Member Sub-assy, Rear Suspension
51206-28050 Member Sub-assy, Rear Suspension
1992-01 → 1999-12 ended
CXR11,21,TCR11,21 ¥41,100
51441 — Cover, Engine Under, NO.1
51410-28010 Cover, Engine Under, NO.1
1992-01 → 1999-08 ended
CXR1#,2# ¥16,700
51410-28020 Cover, Engine Under, NO.1
1992-01 → 1996-08 ended
TCR1#,2# ¥15,000
51410-28030 Cover, Engine Under, NO.1
1996-08 → 1999-12 ended
TCR1#,2# ¥13,800
51441-28040 note Cover, Engine Under, NO.1
1992-01 → 1993-08 ended
CXR1#,2# ¥15,100
51441-28040 note Cover, Engine Under, NO.1
1993-08 → 1993-12 ended
CXR1#,2# ¥15,100
51441-28040 note Cover, Engine Under, NO.1
1993-12 → 1996-08 ended
CXR1#,2# ¥15,100
51443 — Cover, Engine Under, Rear RH
51443-28020 Cover, Engine Under, Rear RH
1993-12 → 1999-08 ended
CXR1#,2# ¥8,100
51460-28030 Cover, Engine Under, Rear RH
1992-01 → 1993-12 ended
CXR1#,2# ¥11,200
51448A — Cover, Engine Side Under, RH
51440-28030 Cover, Engine Side Under, RH
1992-01 → 1992-07 ended
CXR1#,2# ¥19,200
51440-28031 Cover, Engine Side Under, RH
1992-07 → 1996-08 ended
CXR1#,2# ¥19,100
51440-28080 Cover, Engine Side Under, RH
1996-08 → 1999-08 ended
CXR1#,2# ¥13,200
51448-28030 Cover, Engine Side Under, RH
1992-01 → 1996-08 ended
TCR1#,2# ¥11,700
51448-28050 Cover, Engine Side Under, RH
1996-08 → 1999-12 ended
TCR1#,2# ¥5,200
51449A — Cover, Engine Side Under, LH
51449-28040 note Cover, Engine Side Under, LH
1992-01 → 1993-12 ended
CXR1#,2#,TCR1#,2# EFI,TDEFI ¥15,100
51449-28040 note Cover, Engine Side Under, LH
1993-12 → 1996-08 ended
TCR1#,2#;CXR10,20 MTM ¥15,100
51449-28050 Cover, Engine Side Under, LH
1996-08 → 1999-12 ended
TCR1#,2#;CXR10,20 MTM ¥8,100
51450-28020 note Cover, Engine Side Under, LH
1992-01 → 1992-07 ended
CXR1#,2# ¥19,200
51450-28021 note Cover, Engine Side Under, LH
1992-07 → 1993-08 ended
CXR1#,2# ¥19,100
51450-28021 note Cover, Engine Side Under, LH
1993-12 → 1996-08 ended
CXR1#,2# ATM ¥19,100
51450-28040 Cover, Engine Side Under, LH
1996-08 → 1999-08 ended
CXR1#,2# ATM ¥13,200
51455B — Bracket, Engine Under Cover, Rear RH
51047-28010 Bracket, Engine Under Cover, Rear RH
1996-08 → 1999-12 ended
CXR1#,2#,TCR1#,2# ¥1,610
51456B — Bracket, Engine Under Cover, Rear LH
51048-28010 Bracket, Engine Under Cover, Rear LH
1996-08 → 1999-12 ended
CXR1#,2#,TCR1#,2# ¥1,480
51457A — Bracket, Engine Under Cover, NO.3
51407-28020 Bracket, Engine Under Cover, NO.3
1992-01 → 1992-10 ended
CXR1#,2# ¥6,700
51407-28031 Bracket, Engine Under Cover, NO.3
1992-10 → 1999-08 ended
CXR1#,2# ¥6,700
51961 — Hook, NO.1
51970-28010 note Hook, NO.1
1992-01 → 1999-12 ended
CXR1#,2#,TCR1#,2# ¥3,440
51970-28020 note Hook, NO.1
1994-05 → 1995-01 ended
CXR20,TCR20 ATM X ¥3,810
51970-28020 note Hook, NO.1
1994-05 → 1995-01 ended
CXR10,TCR10 ATM X ¥3,810
51970-28020 note Hook, NO.1
1995-01 → 1996-08 ended
CXR20,TCR20 XLUX ¥3,810
51970-28020 note Hook, NO.1
1995-01 → 1996-08 ended
CXR10,TCR10 XLUX ¥3,810
51980-28010 note Hook, NO.1
1992-01 → 1999-12 ended
CXR1#,2#,TCR1#,2# ¥5,500
51980-28030 note Hook, NO.1
1994-05 → 1995-01 ended
CXR20,TCR20 ATM X ¥5,300
51980-28030 note Hook, NO.1
1994-05 → 1995-01 ended
CXR10,TCR10 ATM X ¥5,300
51980-28030 note Hook, NO.1
1995-01 → 1996-08 ended
CXR20,TCR20 XLUX ¥5,300
51980-28030 note Hook, NO.1
1995-01 → 1996-08 ended
CXR10,TCR10 XLUX ¥5,300
51965C — Hook, Rear
51965-28020 Hook, Rear
1992-01 → 1999-12 ended
CXR1#,2#,TCR1#,2# ¥4,850
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
