Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

28 part groups · 3 illustrations

Illustrations

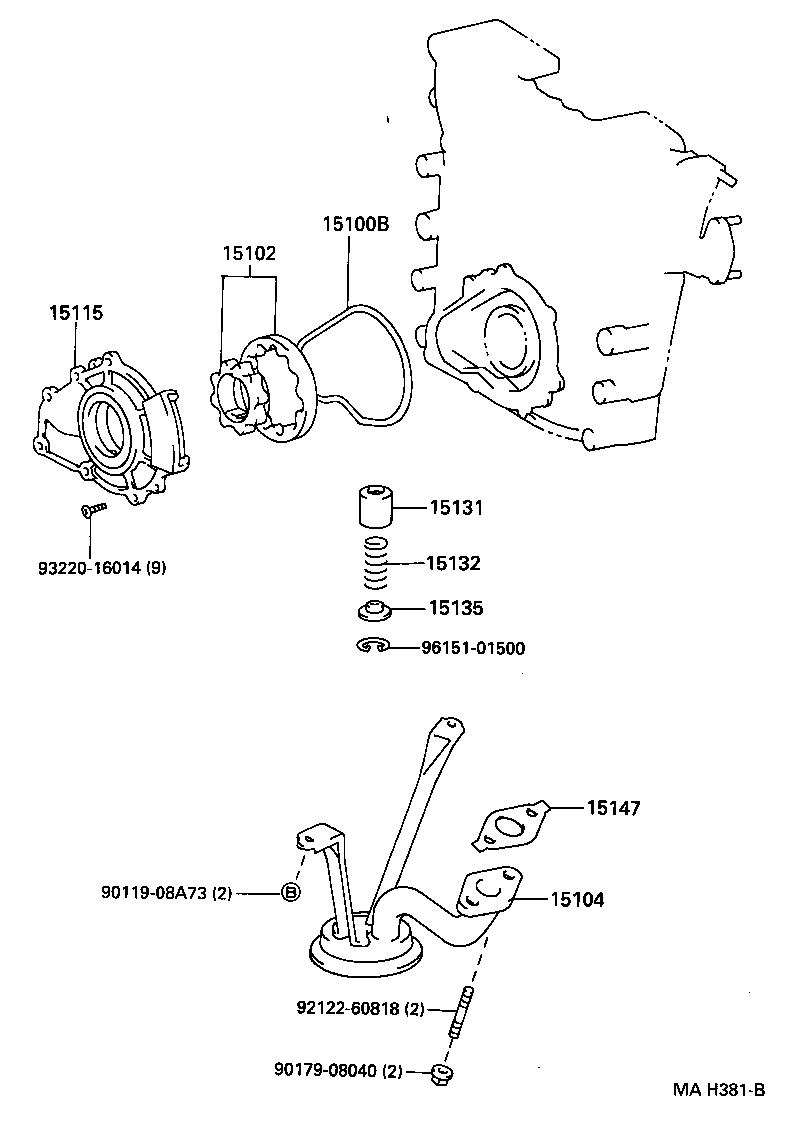

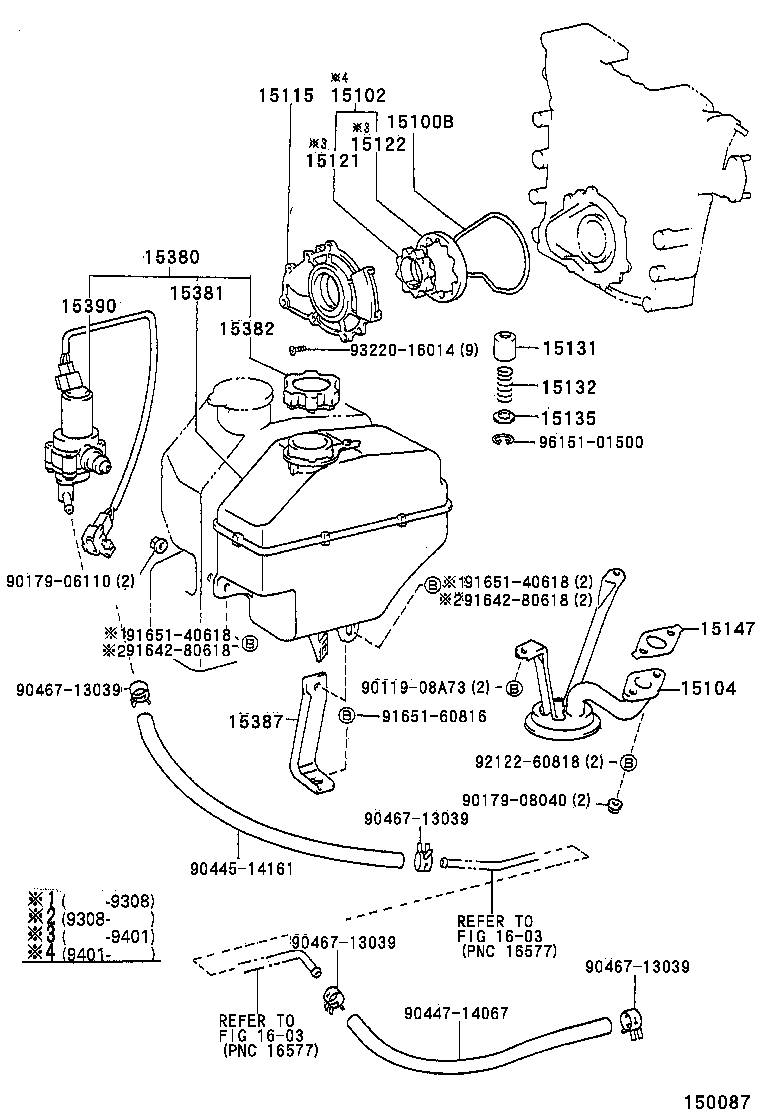

Figure 150091D 150091D 1992-01 → — Figure 150087 150087 1992-01 → 1995-01 Figure MAH381B MAH381B 1995-01 → —

Part groups

PNCDescription
04151 Rotor Kit, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100H Bolt, Seal
15100P Pulley, Oil Pump Drive Shaft
15101A Seal(FOR CRANKSHAFT)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15155 Pipe, Oil Strainer, NO.2
15193 Gasket, Oil Pump
15380 Tank & Motor Assy, Oil
15381 Tank, Oil
15382 Cap, Oil Tank
15387 Bracket, Oil Tank
15390 Motor & Pump Assy, Oil Tank
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
