Toyota Estima Emina/Lucida
1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan
Discontinued model
Data version 2000-07

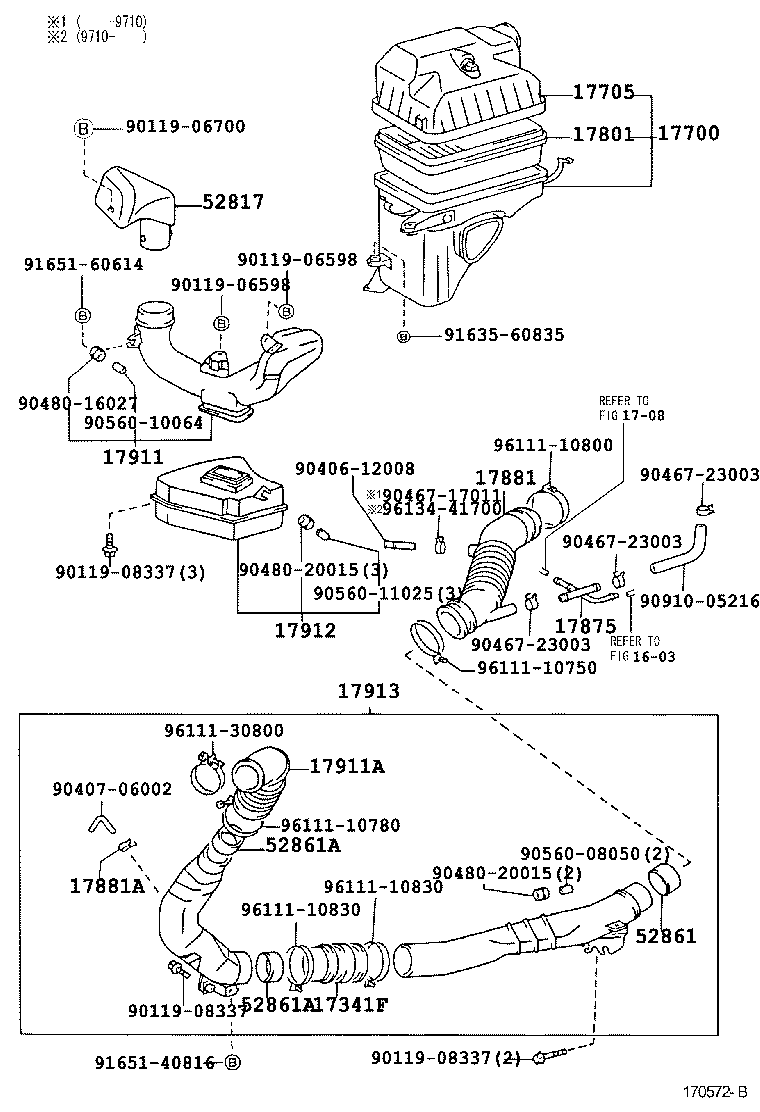

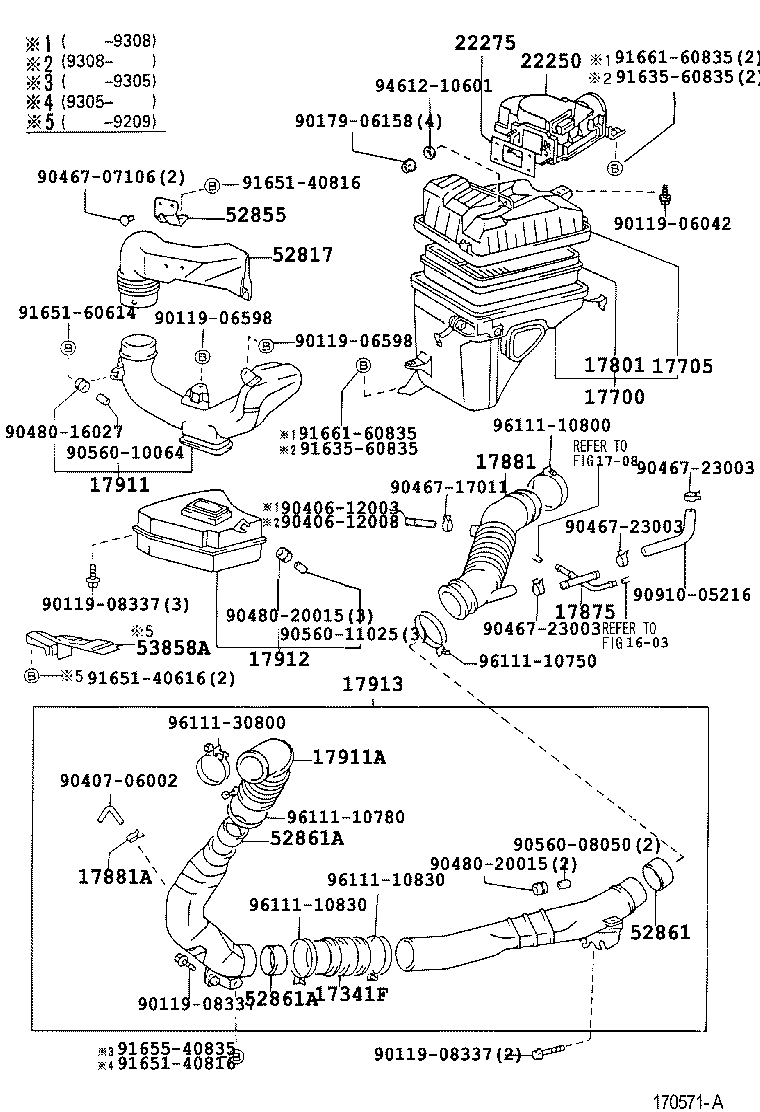

Air Cleaner
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17345F | Hose, Air, NO.5 |
| 17345G | Clamp OR Clip(FOR AIR HOSE, NO.5) |
| 17346C | Hose, NO.6 |
| 17346D | Clamp OR Clip(FOR AIR HOSE NO.6) |
| 17360A | Tube Assy, Air |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17875 | Pipe, Intake Air Connector |
| 17880 | Hose Assy, Air Cleaner |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17893 | Resonator, Intake Air |
| 17911 | Duct, Cool Air Intake, NO.1 |
| 17911A | Hose, Cool Air Intake, NO.1 |
| 17912 | Duct, Cool Air Intake, NO.2 |
| 17913 | Duct, Cool Air Intake, NO.3 |
| 17940D | Intercooler Assy |
| 17940G | Ring, O(FOR INTERCOOLER) |
| 17941 | Guide, Intercooler Air, NO.1 |
| 17942 | Guide, Intercooler Air, NO.2 |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
| 52817 | Duct, Cool Air Intake, NO.7 |
| 52828 | Pad, Cool Air Intake Grille |
| 52851 | Bracket, Cool Air Intake Duct Mounting, NO.1 |
| 52852 | Bracket, Cool Air Intake Duct Mounting, NO.2 |
| 52853 | Bracket, Cool Air Intake Duct Mounting, NO.3 |
| 52855 | Bracket, Cool Air Intake Duct Mounting, NO.5 |
| 52859 | Support, Cool Air Intake Duct |
| 52861 | Collar, Cool Air Intake |
| 52861A | Collar, Cool Air Intake |
| 53736H | Seal, Fender Apron |
| 53857A | Plate, Air Cleaner Waterproof, RH |
| 53858A | Plate, Air Cleaner Waterproof, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
