Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 6 illustrations

Illustrations

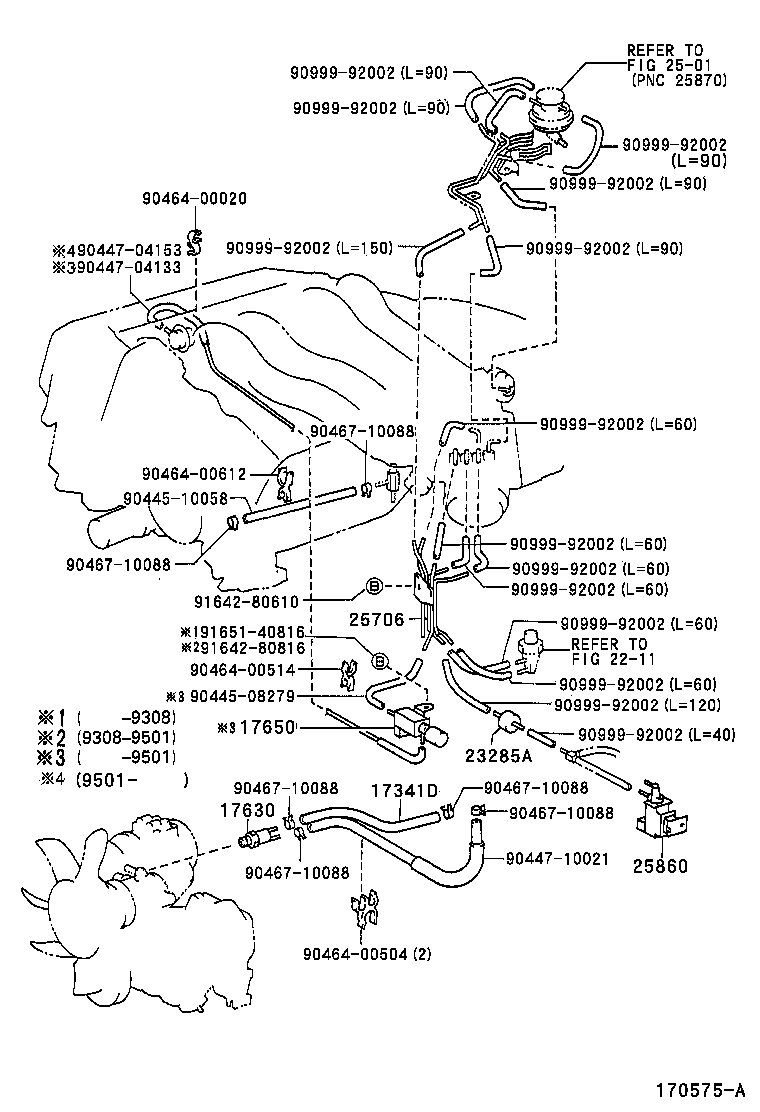

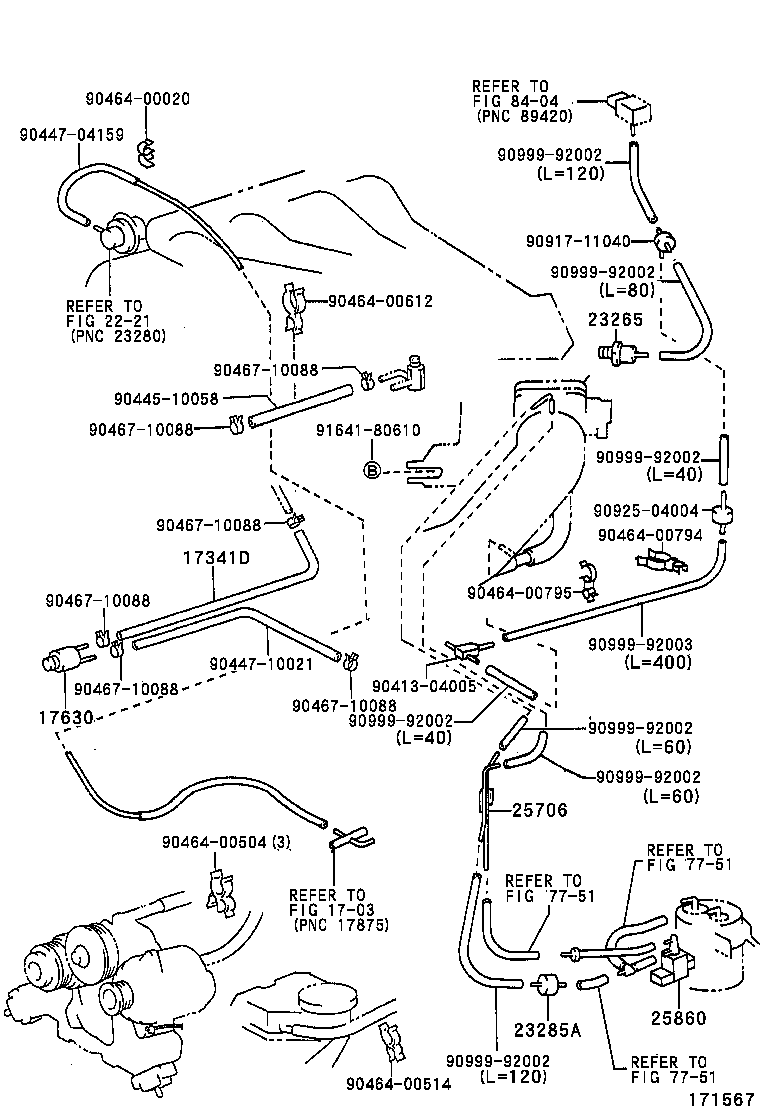

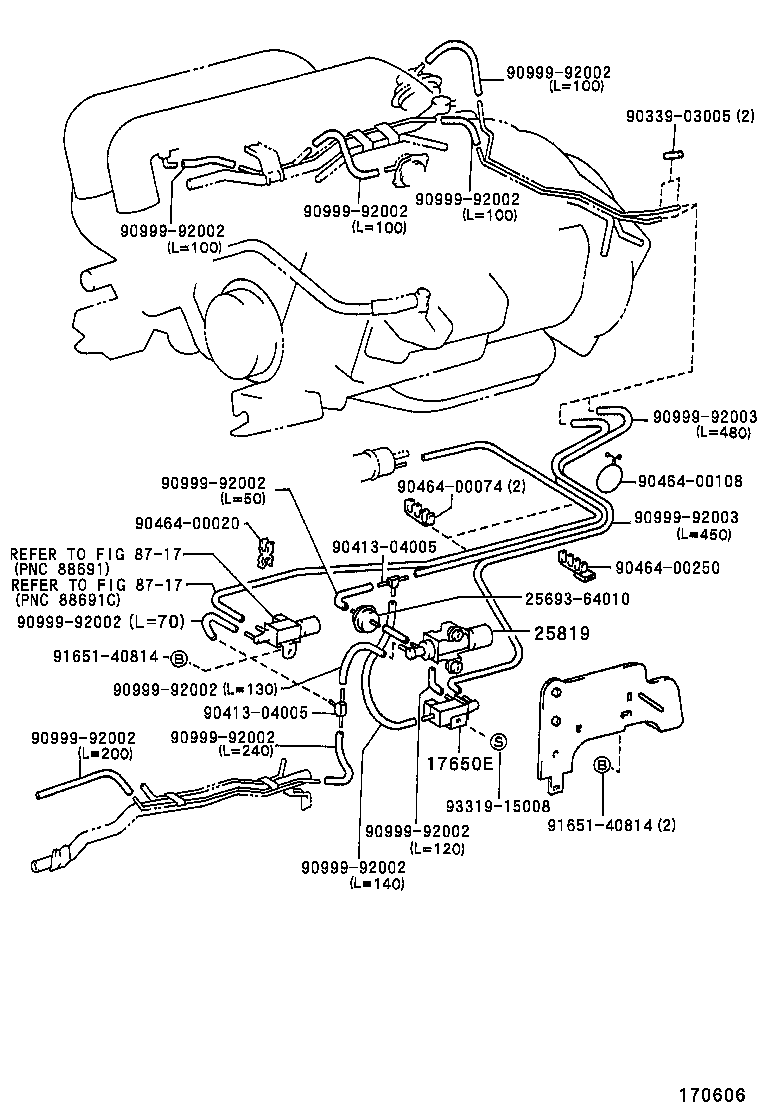

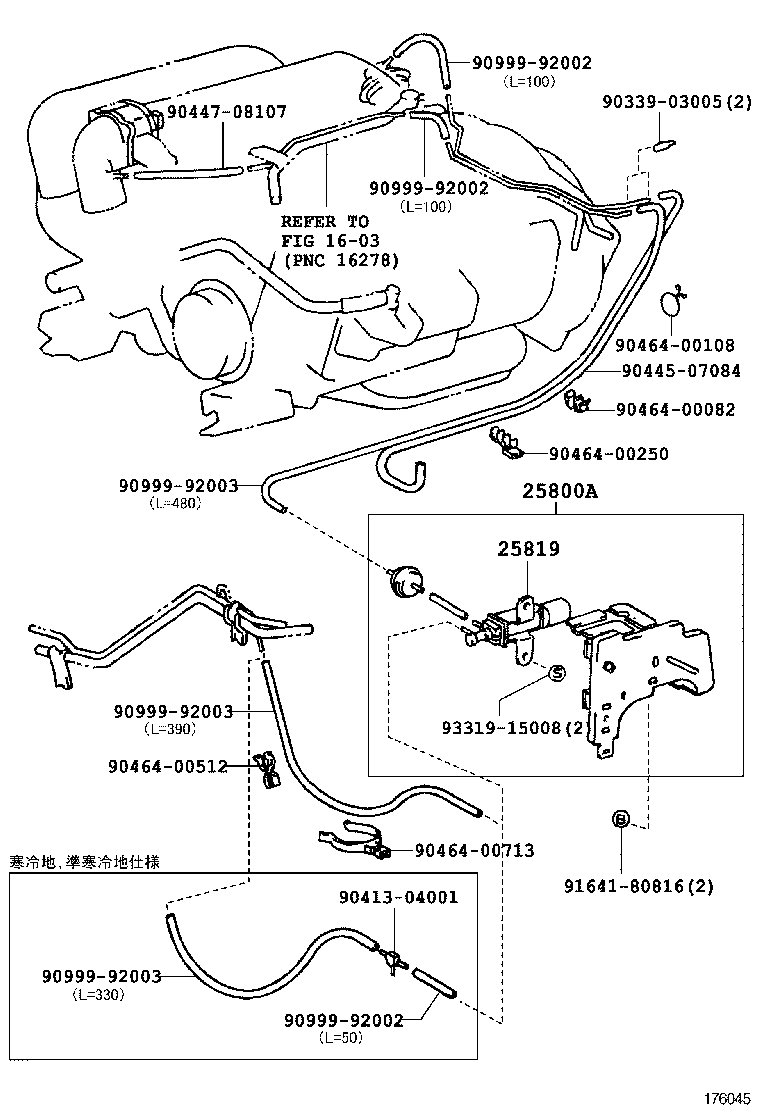

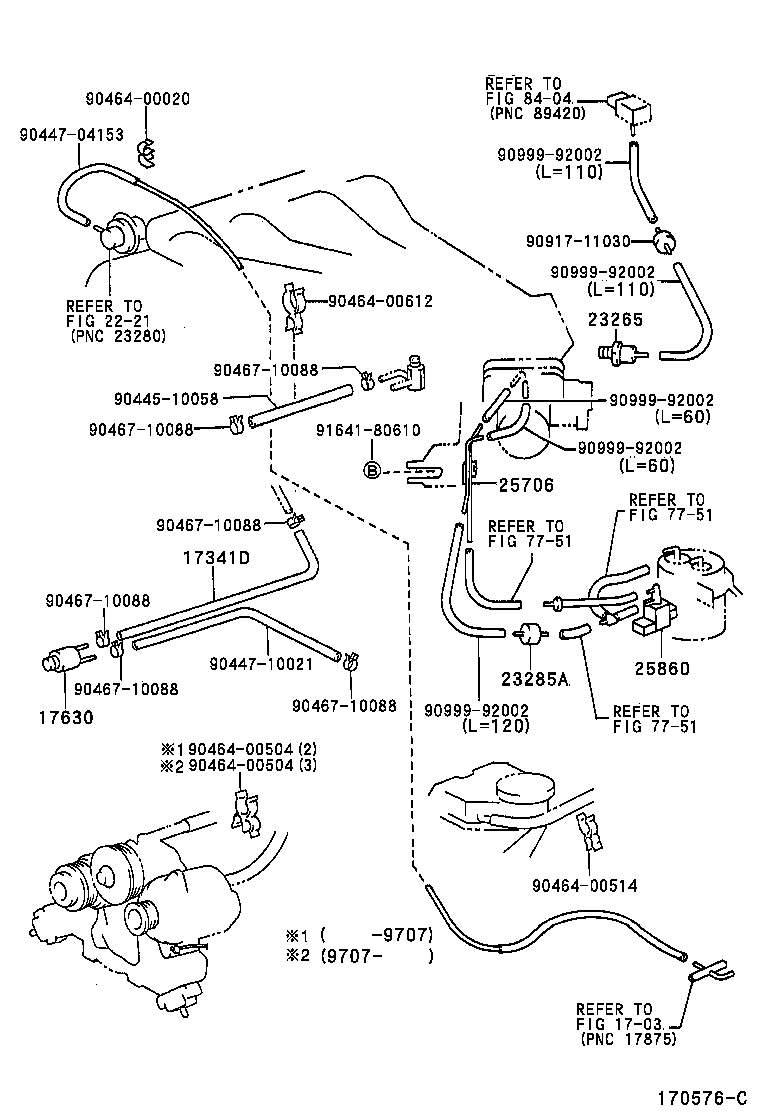

Figure 170020 170020 1992-01 → — Figure 170606 170606 1992-01 → 1993-08 Figure 176045 176045 1993-08 → — Figure 170575A 170575A 1992-01 → 1996-08 Figure 170576C 170576C 1996-08 → 1998-01 Figure 171567 171567 1998-01 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25800A Valve Assy, Electric Egr Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
