Toyota Estima Emina/Lucida
1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan
Discontinued model
Data version 2000-07

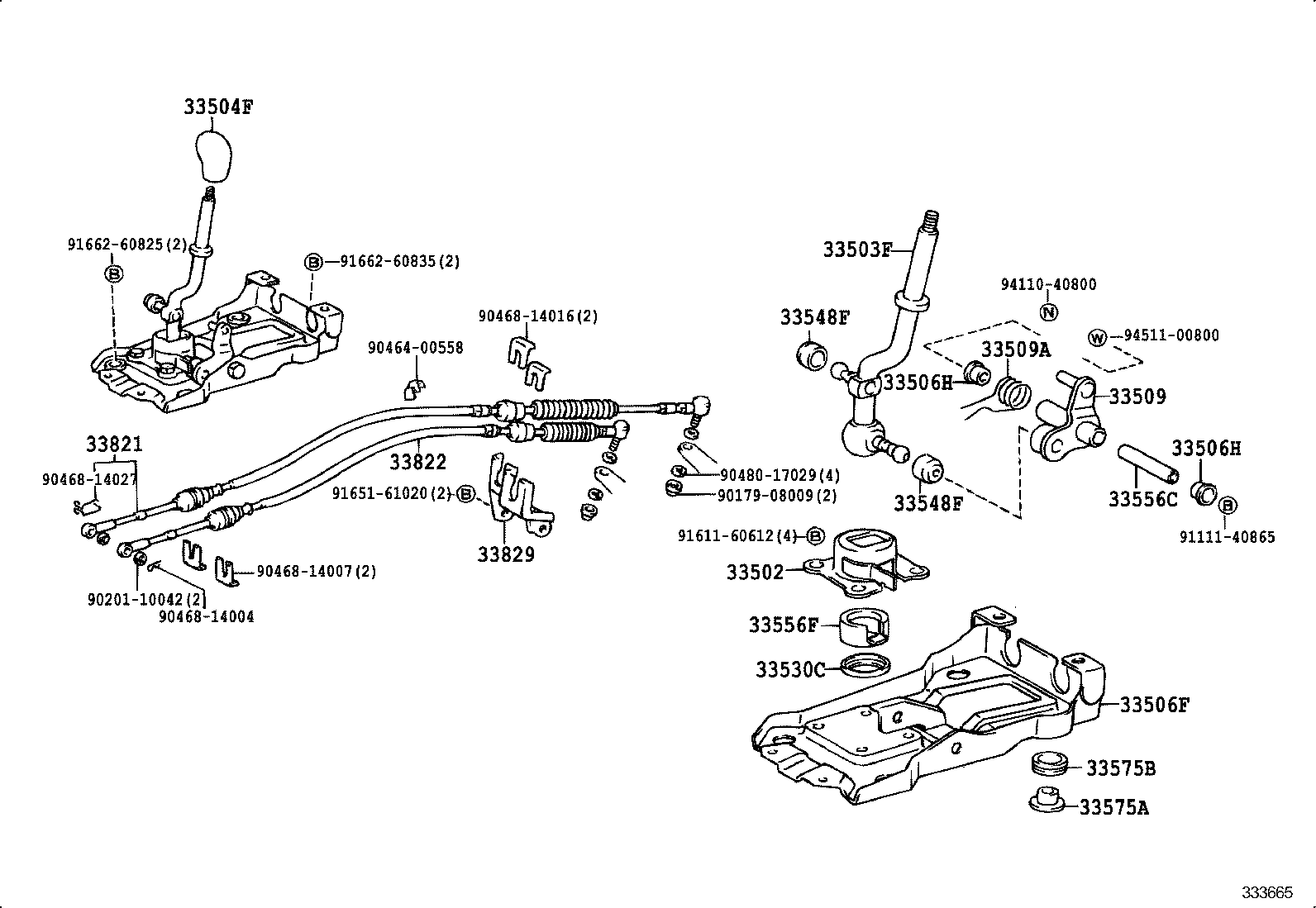

Shift Lever & Retainer
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33506H | Bush (FOR SHIFT LEVER RETAINER) |
| 33506S | Collar, NO.1(FOR CONTROL SHIFT LEVER RETAINER) |
| 33509 | Crank Sub-assy, Selecting Bell, NO.1 |
| 33509A | Spring, Torsion (FOR SELECTING BELL CRANK) |
| 33529A | Plate, Shift Lever Housing, NO.2 |
| 33530C | Bush (FOR SHIFT LEVER) |
| 33534R | Cushion (FOR SELECTING BELLCRANK NO.1) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33552 | Arm, Shift Lever |
| 33556C | Collar (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33573A | Cover, Control Shaft Dust, Lwr |
| 33574F | Retainer, Dust Seal (FOR FLOOR SHIFT) |
| 33575A | Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) |
| 33575B | Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) |
| 33580F | Bellcrank Assy, Shifting (FOR FLOOR SHIFT) |
| 33593F | Holder, Spring (FOR FLOOR SHIFT) |
| 33597B | Seat, Shift Lever, NO.1 (FOR FLOOR SHIFT) |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33829 | Support, Transmission Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
