Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

7 part groups · 3 illustrations

Illustrations

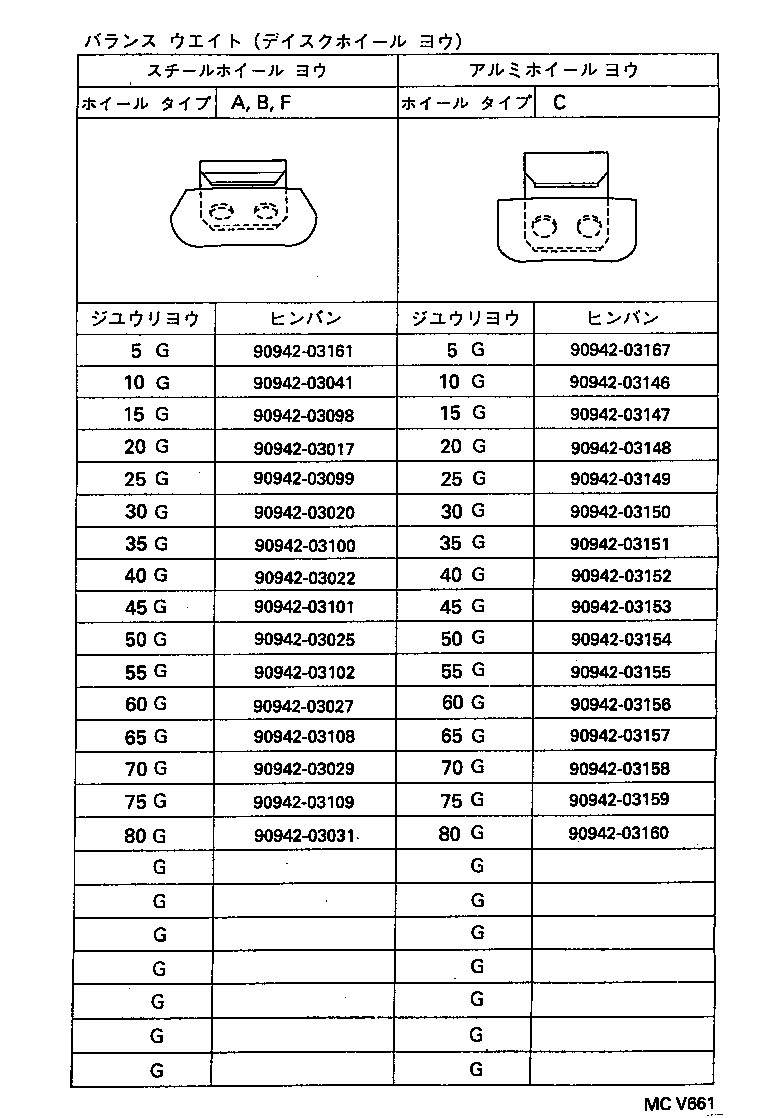

Figure 410694A 410694A 1992-01 → — Figure 410573 410573 1992-01 → — Figure MCV661 MCV661 1992-01 → —

Part groups

PNCDescription
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42601F Wheel, Disc (FOR FRONT)
42601R Wheel, Disc (FOR REAR)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
