Toyota Estima Emina/Lucida
1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan
Discontinued model
Data version 2000-07

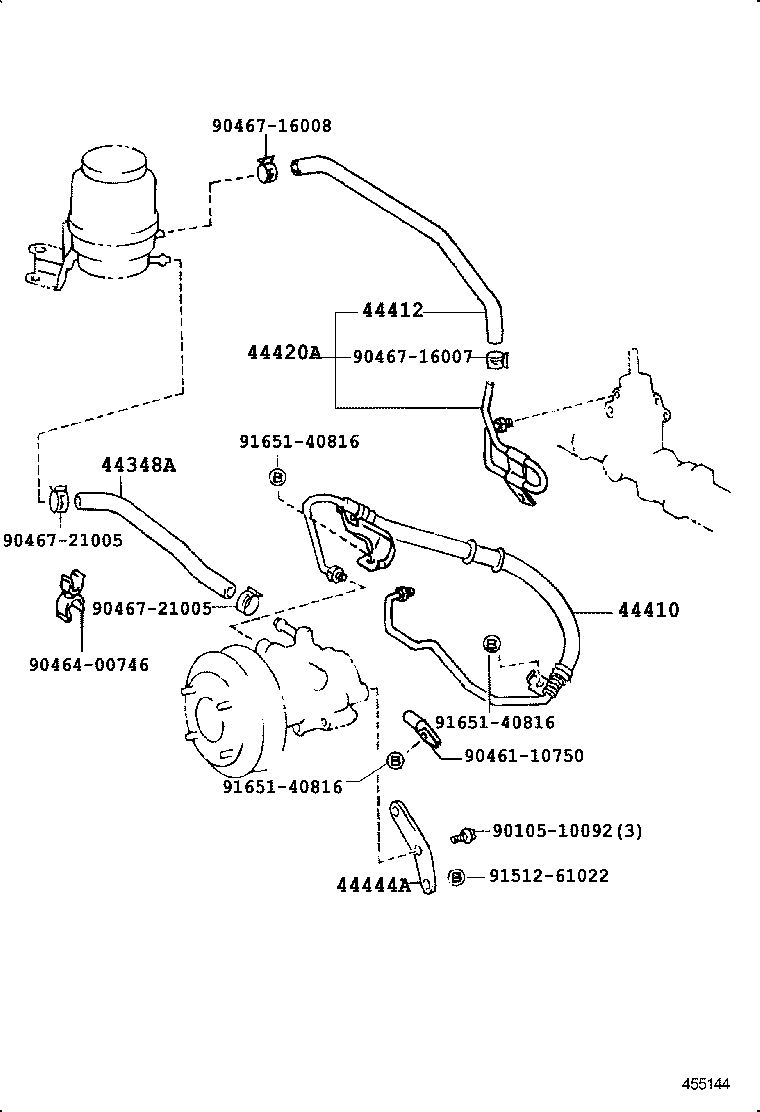

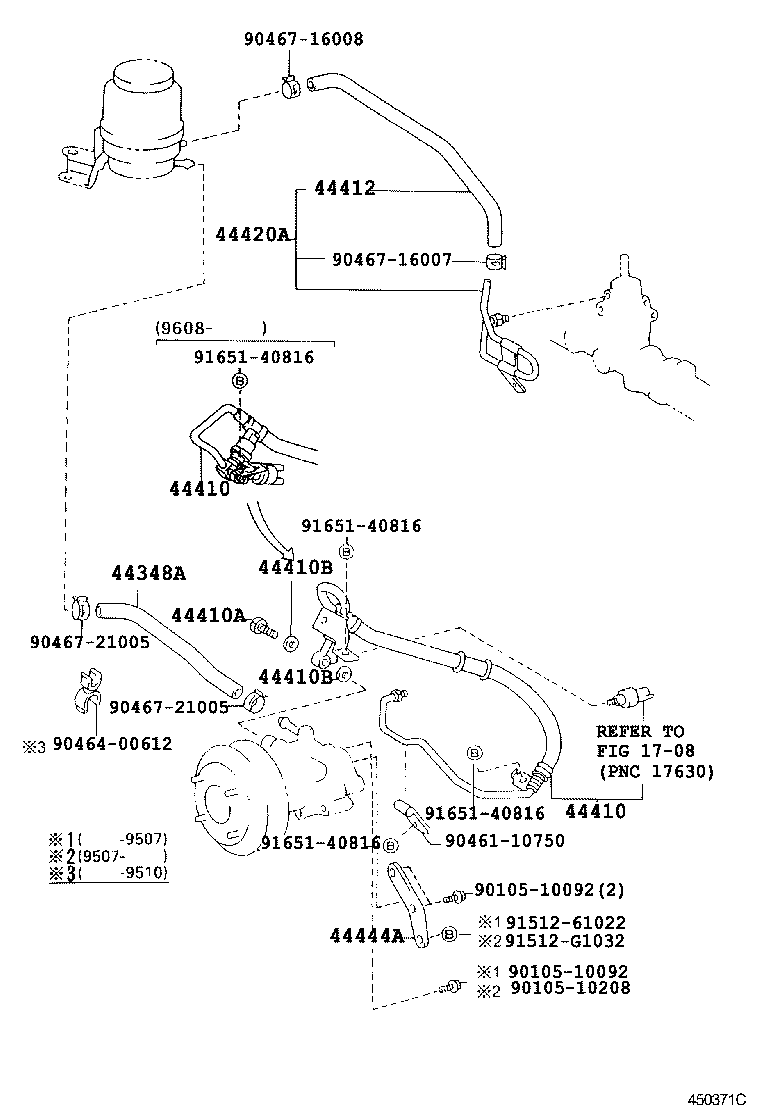

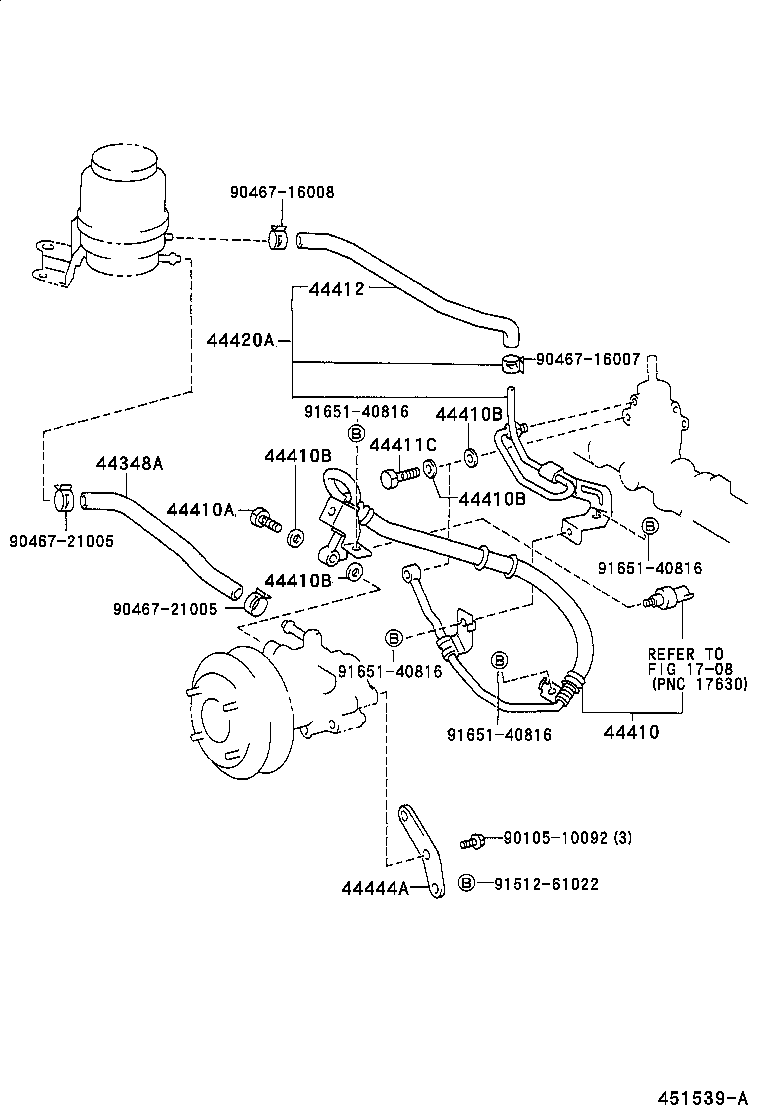

Power Steering Tube
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44412 | Hose, Return |
| 44420A | Tube Assy, Return |
| 44444A | Stay, Pump, Rear NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
