Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

18 part groups · 2 illustrations

Illustrations

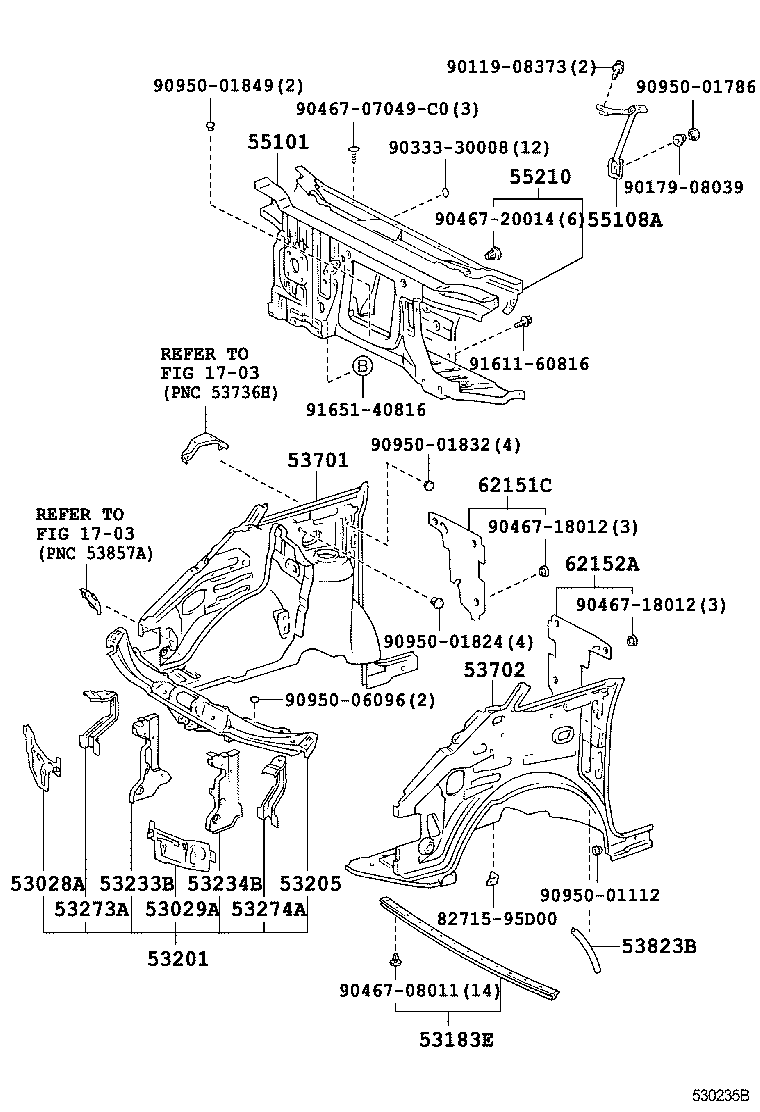

Figure 533266 533266 1992-01 → 1996-08 Figure 530235B 530235B 1996-08 → —

Part groups

PNCDescription
53028A Support Sub-assy, Radiator, Lower RH
53029A Support Sub-assy, Radiator, Lower LH
53183E Seal, Headlamp Cover, RH
53201 Support Sub-assy, Radiator
53205 Support Sub-assy, Radiator, Upper
53233B Bracket, Headlamp, Inner RH
53234B Bracket, Headlamp, Inner LH
53273A Reinforcement, Radiator Support, RH
53274A Reinforcement, Radiator Support, LH
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53823B Protector, Front Side Panel, NO.2
55101 Panel Sub-assy, Dash
55108A Brace Sub-assy, Pedal Support TO Cowl
55210 Insulator Assy, Dash Panel
55220 Insulator Assy, Dash Panel, NO.2
62151C Pad, Cowl Side Silencer, RH
62152A Pad, Cowl Side Silencer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
