Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 2 illustrations

Illustrations

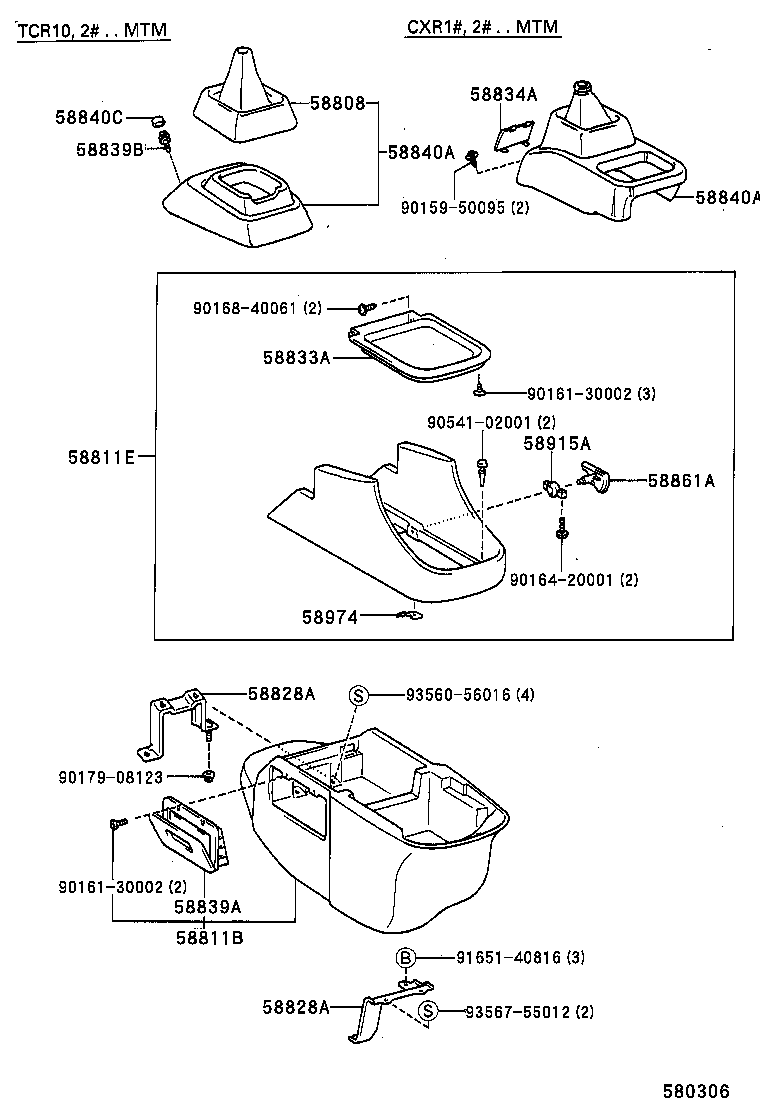

Figure MN1513F MN1513F 1992-01 → 1995-01 Figure 580306 580306 1995-01 → —

Part groups

PNCDescription
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58811E Box, Console, Upper
58828A Bracket, Console Box, Lower
58833A Cover, Console, Upper
58834A Cover, Console, Lower
58839A Cover, Console Box Hole
58839B Cover, Console Box Hole, NO.2
58840A Cover Assy, Shifting Hole
58840C Cap
58861A Support, Console Box, NO.1
58915A Damper, Console Box, Rear
58974 Plate, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
