Toyota Estima Emina/Lucida
1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan
Discontinued model
Data version 2000-07

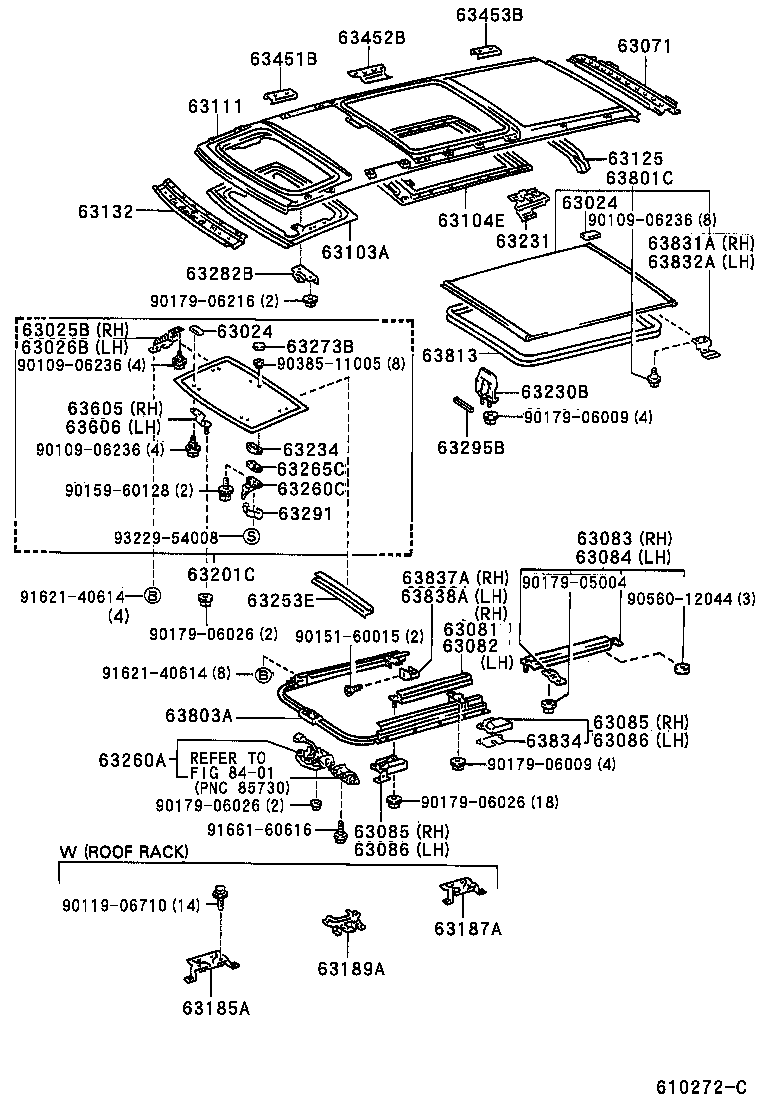

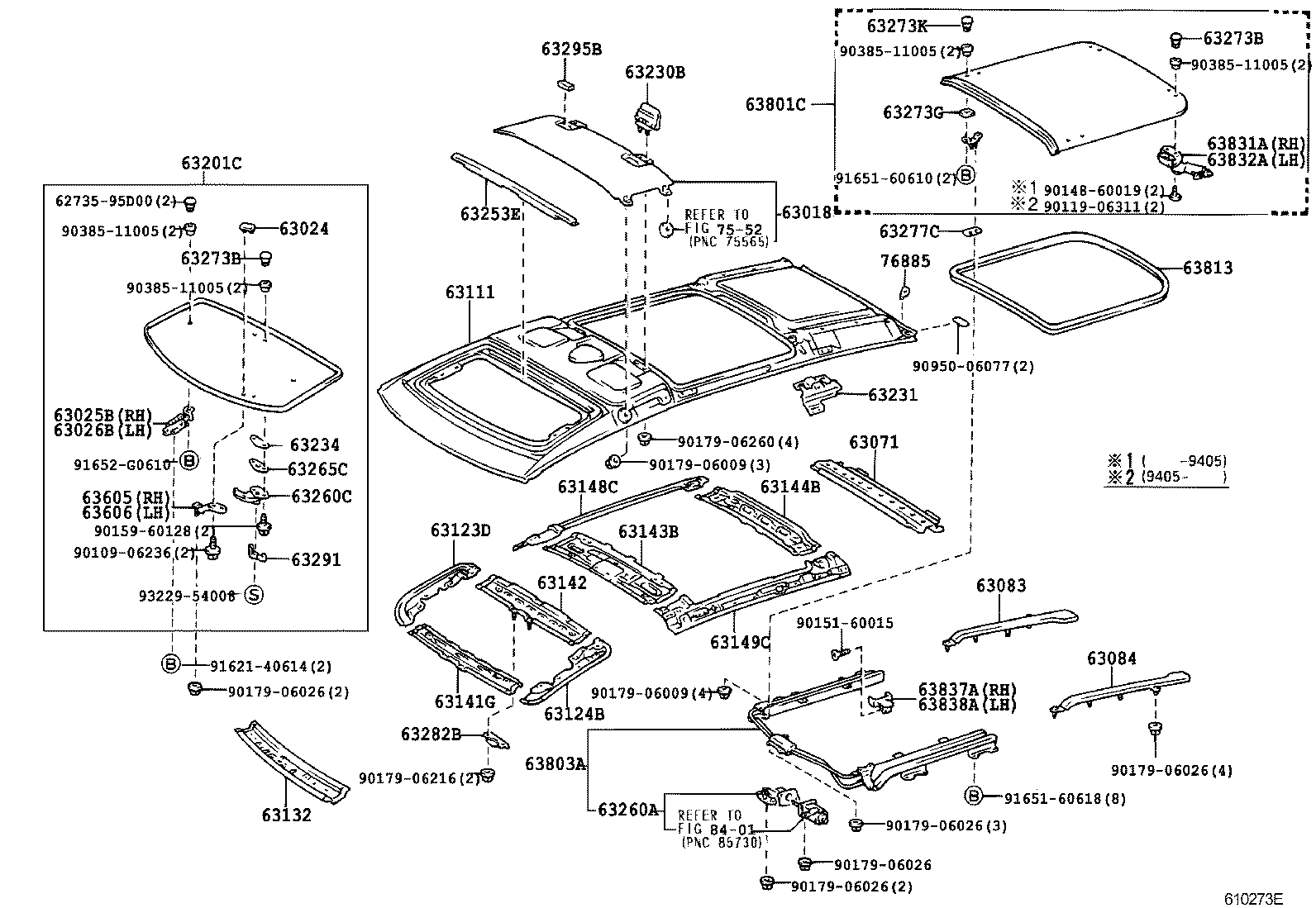

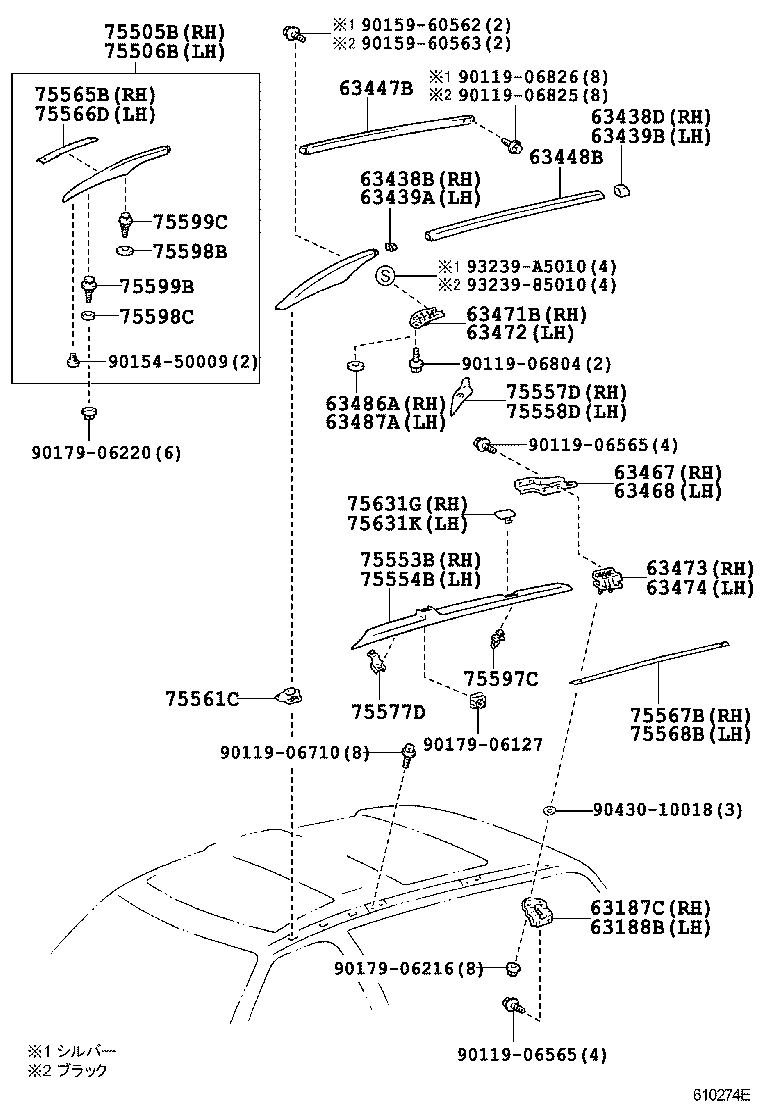

Roof Panel & Back Panel
94 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63018 | Panel Sub-assy, Roof, Front |
| 63024 | Seal Sub-assy, Roof Window Hinge, NO.1 |
| 63025B | Link Sub-assy, Tilt Roof, RH |
| 63026B | Link Sub-assy, Tilt Roof, LH |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63081 | Rail Sub-assy, Rear Slide Roof, Front RH |
| 63082 | Rail Sub-assy, Rear Slide Roof, Front LH |
| 63083 | Rail Sub-assy, Rear Slide Roof, Rear RH |
| 63084 | Rail Sub-assy, Rear Slide Roof, Rear LH |
| 63085 | Guide Sub-assy, Rear Slide Roof Lift, RH |
| 63086 | Guide Sub-assy, Rear Slide Roof Lift, LH |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63104E | Reinforcement Sub-assy, Roof Panel, Rear |
| 63111 | Panel, Roof |
| 63122A | Reinforcement, Roof Panel, Front |
| 63123D | Reinforcement, Roof Panel, Front RH |
| 63124B | Reinforcement, Roof Panel, Front LH |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63132 | Panel, Windshield Header, Inner |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63148C | Reinforcement, Roof Panel Side, RH |
| 63149C | Reinforcement, Roof Panel Side, LH |
| 63185A | Bracket, Roof Rack, Front RH |
| 63187A | Bracket, Roof Rack, Rear |
| 63187C | Bracket, Roof Rack, NO.1 Rear RH |
| 63188B | Bracket, Roof Rack, NO.1 Rear LH |
| 63189A | Bracket, Roof Rack, Center |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63230B | Panel Assy, Roof Wind Deflector |
| 63231 | Bracket, Room Lamp |
| 63234 | Protector, Slide Roof Housing |
| 63253E | Dam, Roof Window, NO.3 |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63265C | Plate, Tilt Roof Lock |
| 63273B | Retainer, Roof Window Hinge |
| 63273G | Packing, Slide Roof |
| 63273K | Retainer, Roof Window Hinge, Rear |
| 63277C | Shim, Sliding Roof Panel |
| 63282B | Striker, Tilt Roof Lock |
| 63291 | Garnish, Roof Window Lock, Outer |
| 63295B | Pad, Roof Wind Deflector Panel |
| 63357C | Silencer, Roof |
| 63438B | Seal, Roof Carrier, NO.3 RH |
| 63438D | Seal, Roof Carrier, NO.3 RH |
| 63439A | Seal, Roof Carrier, NO.3 LH |
| 63439B | Seal, Roof Carrier, NO.3 LH |
| 63447B | Bar, Roof Carrier, RH |
| 63448B | Bar, Roof Carrier, LH |
| 63451B | Reinforcement, Roof Rack, NO.1 |
| 63452B | Reinforcement, Roof Rack, NO.2 |
| 63453B | Reinforcement, Roof Rack, NO.3 |
| 63467 | Bracket, Roof Rack, Rear RH |
| 63468 | Bracket, Roof Rack, Rear LH |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63525 | Bracket, Television Rack, NO.1 |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
| 63801C | Glass Sub-assy, Rear Slide Roof |
| 63803A | Cable Sub-assy, Rear Slide Roof Drive |
| 63813 | Weatherstrip, Rear Slide Roof |
| 63831A | Shoe, Rear Slide Roof, RH |
| 63832A | Shoe, Rear Slide Roof, LH |
| 63834 | Packing, Rear Slide Roof Guide |
| 63837A | Garnish, Rear Slide Roof, RH |
| 63838A | Garnish, Rear Slide Roof, LH |
| 75505B | Garnish Sub-assy, Roof Side, Front RH |
| 75506B | Garnish Sub-assy, Roof Side, Front LH |
| 75553B | Garnish, Roof Side, Rear RH |
| 75554B | Garnish, Roof Side, Rear LH |
| 75557D | Cover, Roof Side Garnish End, RH |
| 75558D | Cover, Roof Side Garnish End, LH |
| 75561C | Clip, Roof Drip Side Finish Moulding |
| 75565B | Protector, Roof Side Garnish, Front RH |
| 75566D | Protector, Roof Side Garnish, Front LH |
| 75567B | Protector, Roof Side Garnish, Rear RH |
| 75568B | Protector, Roof Side Garnish, Rear RH |
| 75577D | Bracket, Roof Side Garnish |
| 75597C | Clip, Roof Side Garnish |
| 75598B | Packing, Roof Side Garnish |
| 75598C | Packing, Roof Side Garnish |
| 75599B | Bolt, Roof Side Garnish |
| 75599C | Bolt, Roof Side Garnish |
| 75631G | Lid, Roof Side Garnish, NO.1 RH |
| 75631K | Lid, Roof Side Garnish, NO.1 LH |
| 76885 | Retainer, Rear Spoiler, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
