Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

21 part groups · 2 illustrations

Illustrations

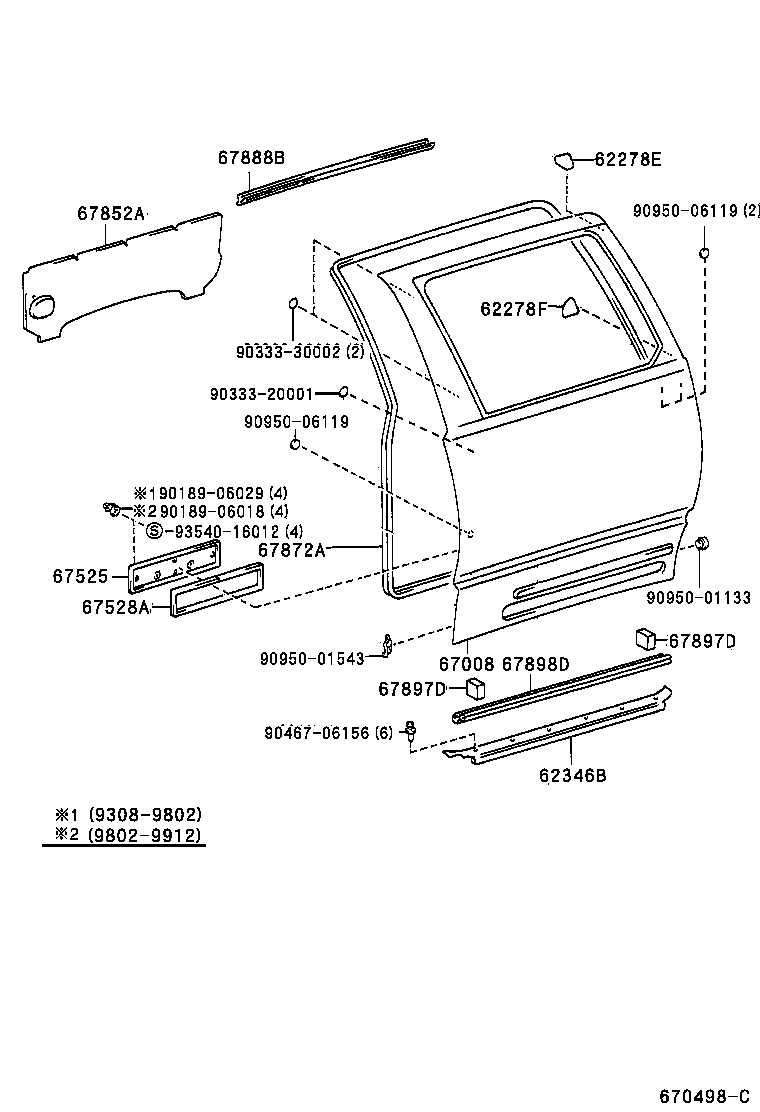

Figure 670505 670505 1992-01 → — Figure 670498C 670498C 1992-01 → —

Part groups

PNCDescription
61937A Bracket, Side Window Garnish
62278E Protector, Side Window
62278F Protector, Side Window
62346B Weatherstrip, Slide Door, NO.3 LH
67008 Panel Sub-assy, Slide Door, LH
67525 Cover, Slide Door Panel, Lower
67528A Packing, Slide Door Lower Cover
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67604B Clip(FOR SLIDE DOOR TRIM BOARD)
67645B Bracket, Slide Door Trim Base
67663C Clip(FOR DOOR FRAME GARNISH)
67664A Garnish, Door Frame, LH
67664B Garnish, Door Frame, Upper LH
67668A Garnish, Slide Door Window, LH
67772F Cap, Rear Door Trim Retainer
67852A Cover, Slide Door Service Hole, NO.2
67872A Weatherstrip, Slide Door, NO.1 LH
67888B Weatherstrip, Slide Door, NO.2 LH
67897D Dam, Slide Door, Lower
67898D Seal, Slide Door, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
