Toyota Estima Emina/Lucida
1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan
Discontinued model
Data version 2000-07

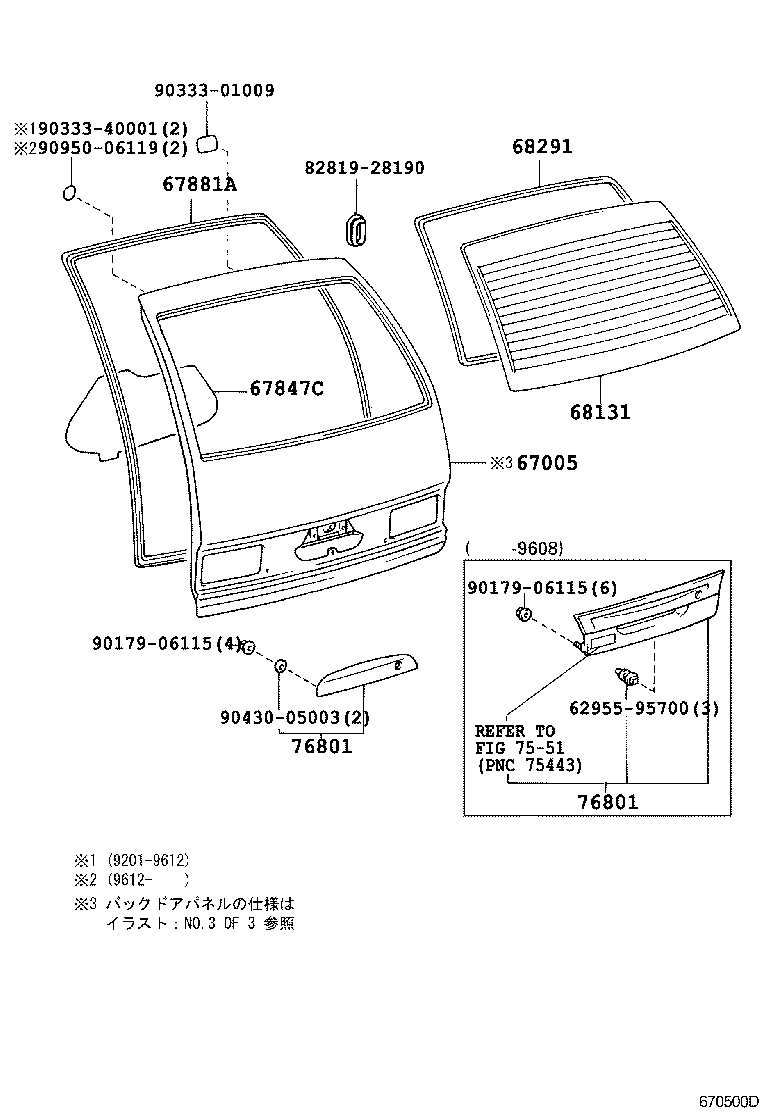

Back Door Panel & Glass
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62581H | Garnish, Rear Window Side, RH |
| 62581J | Fastener(FOR REAR WINDOW SIDE GARNISH) |
| 62582H | Garnish, Rear Window Side, LH |
| 65931 | Cover, Curtain Rail |
| 67005 | Panel Sub-assy, Back Door |
| 67687C | Garnish, Back Window |
| 67750 | Board Assy, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847C | Cover, Back Door Service Hole, NO.1 |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 68291 | Weatherstrip, Back Door Glass |
| 76801 | Garnish Sub-assy, Back Door, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
