Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

194 part groups · 19 illustrations

Illustrations

710483B 1992-01 → 1996-08

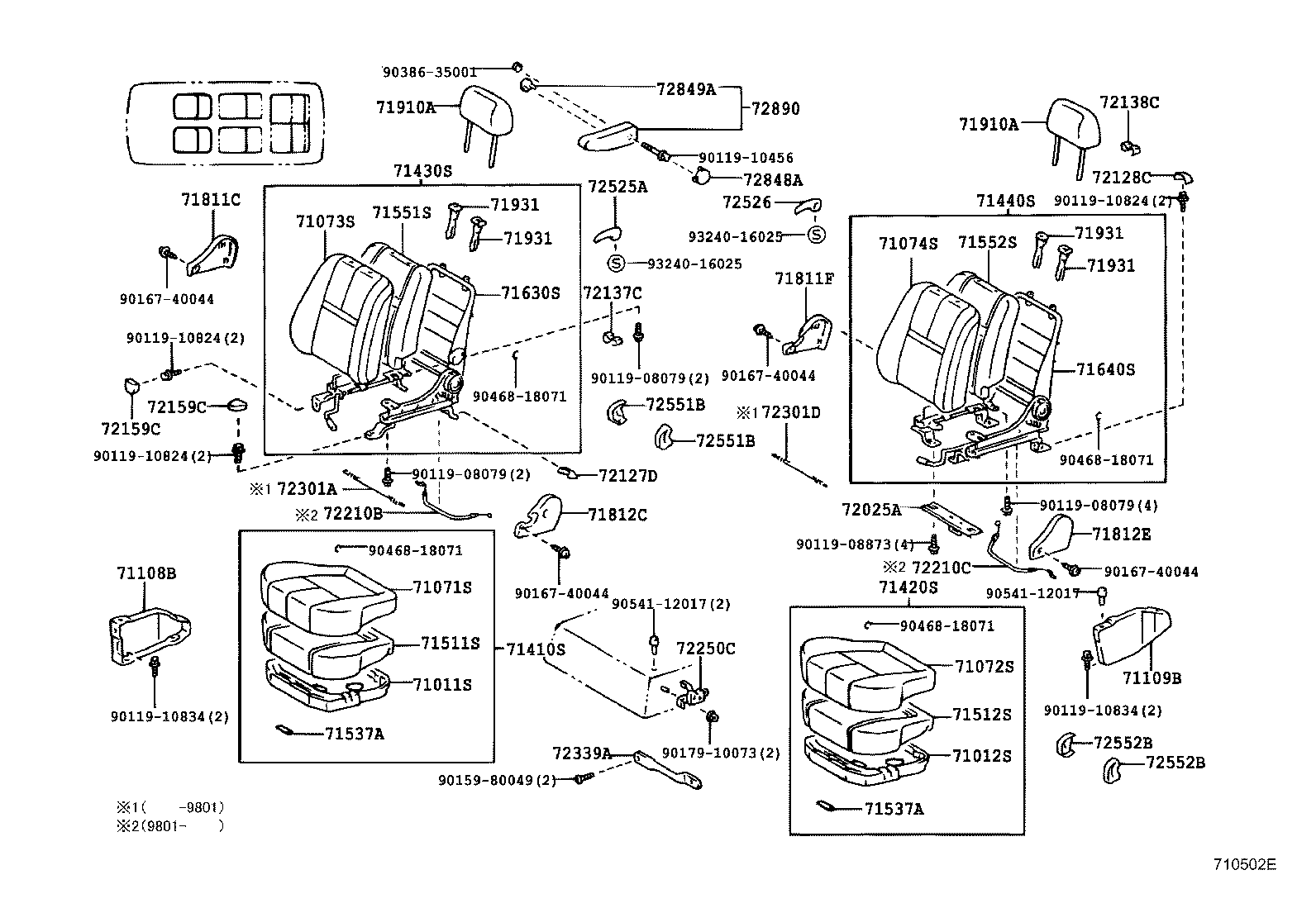

710502E 1996-08 → —

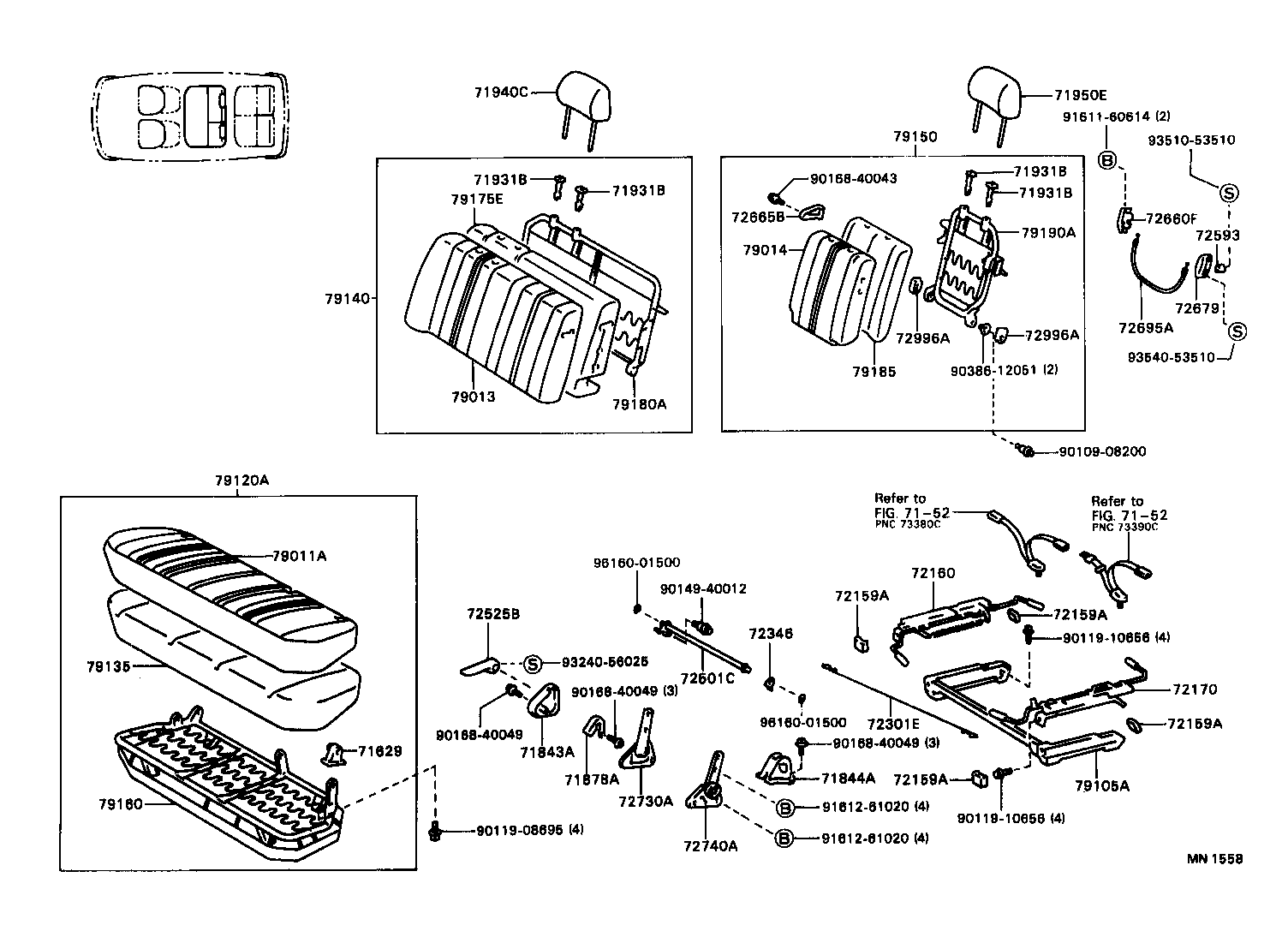

MN1558 1992-01 → 1993-08

710491B 1992-01 → 1995-11

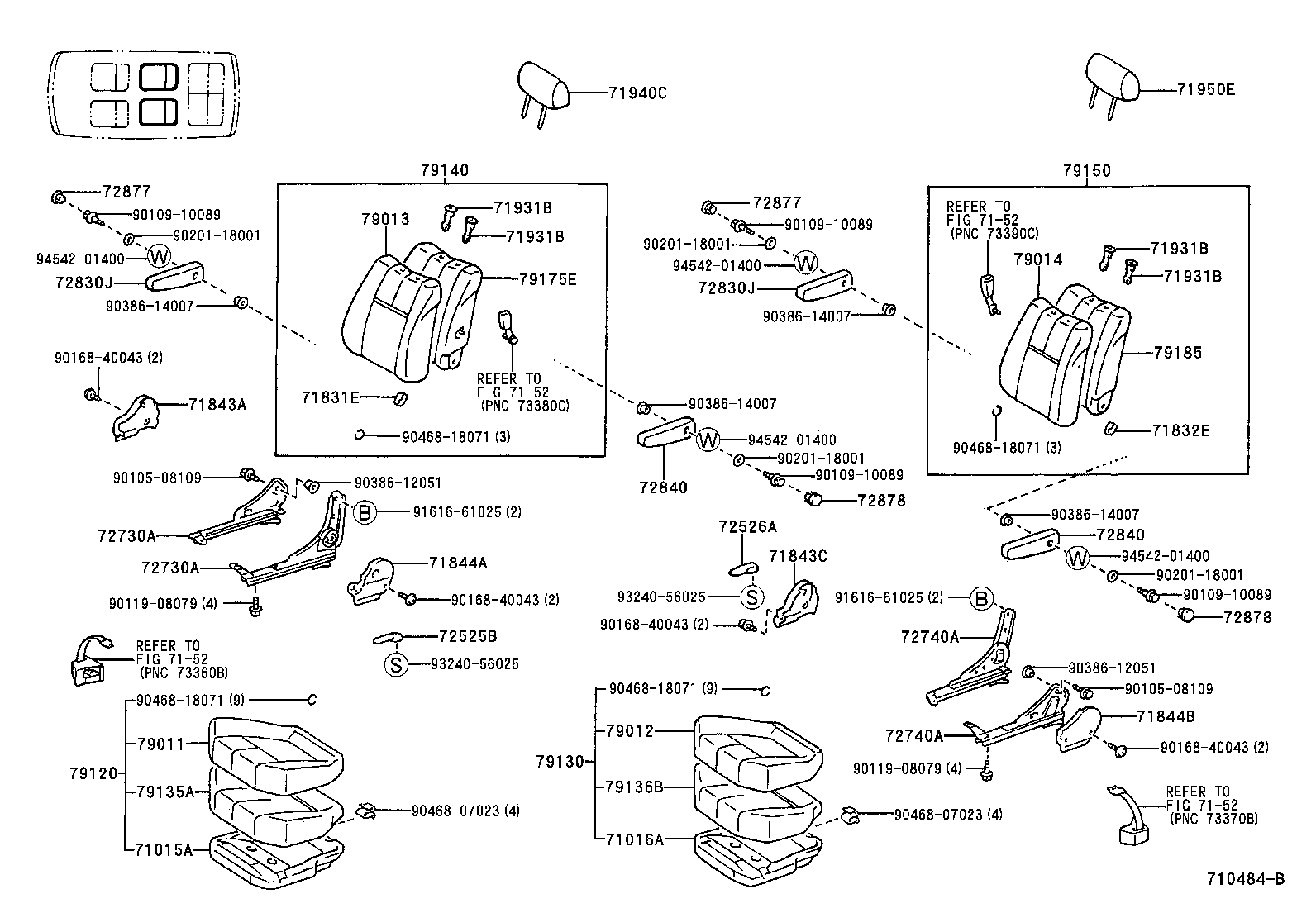

710484B 1992-01 → 1995-11

710484B 1995-01 → 1995-11

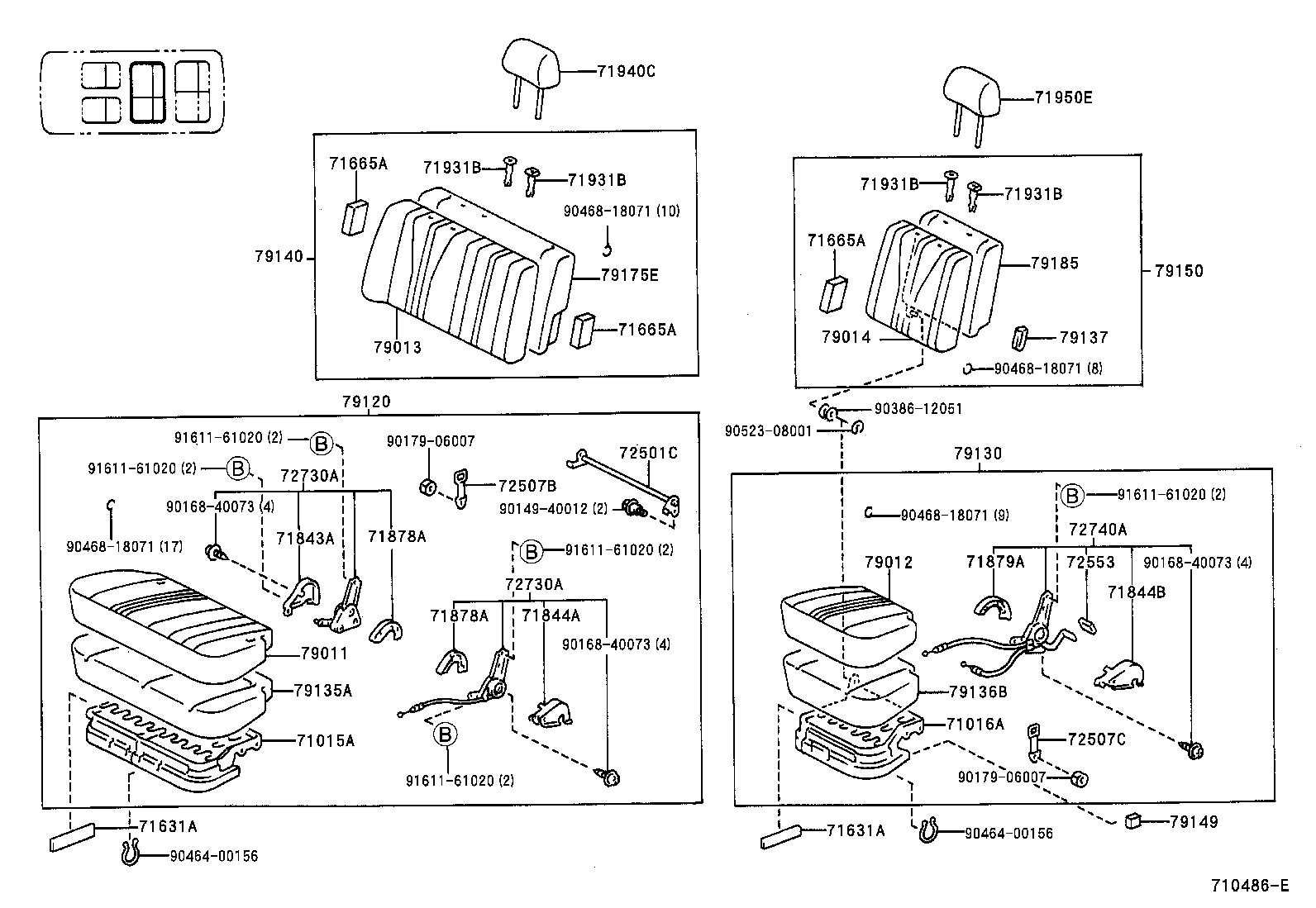

710486E 1995-11 → 1996-08

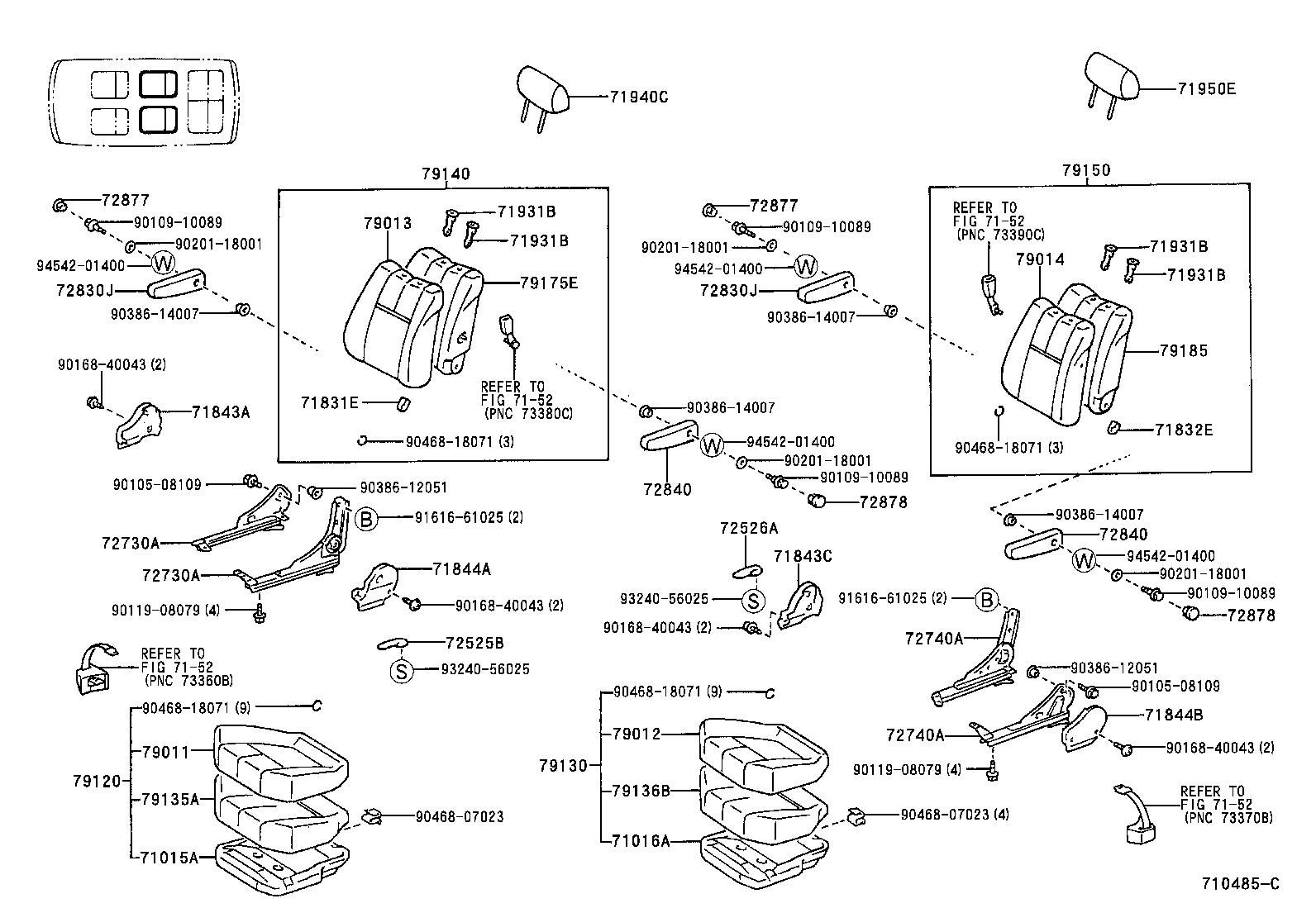

710485C 1995-11 → 1996-08

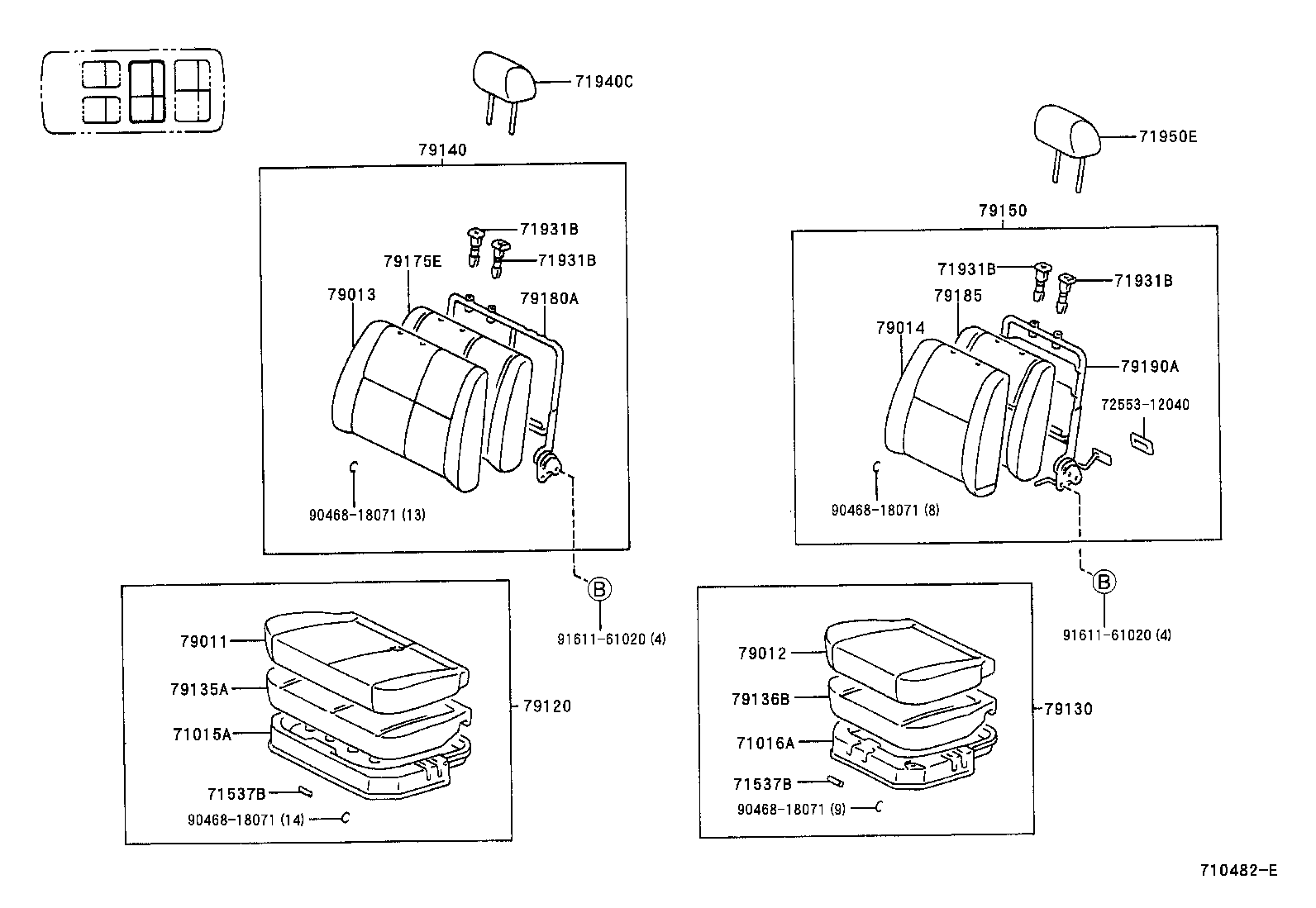

710482E 1996-08 → 1998-01

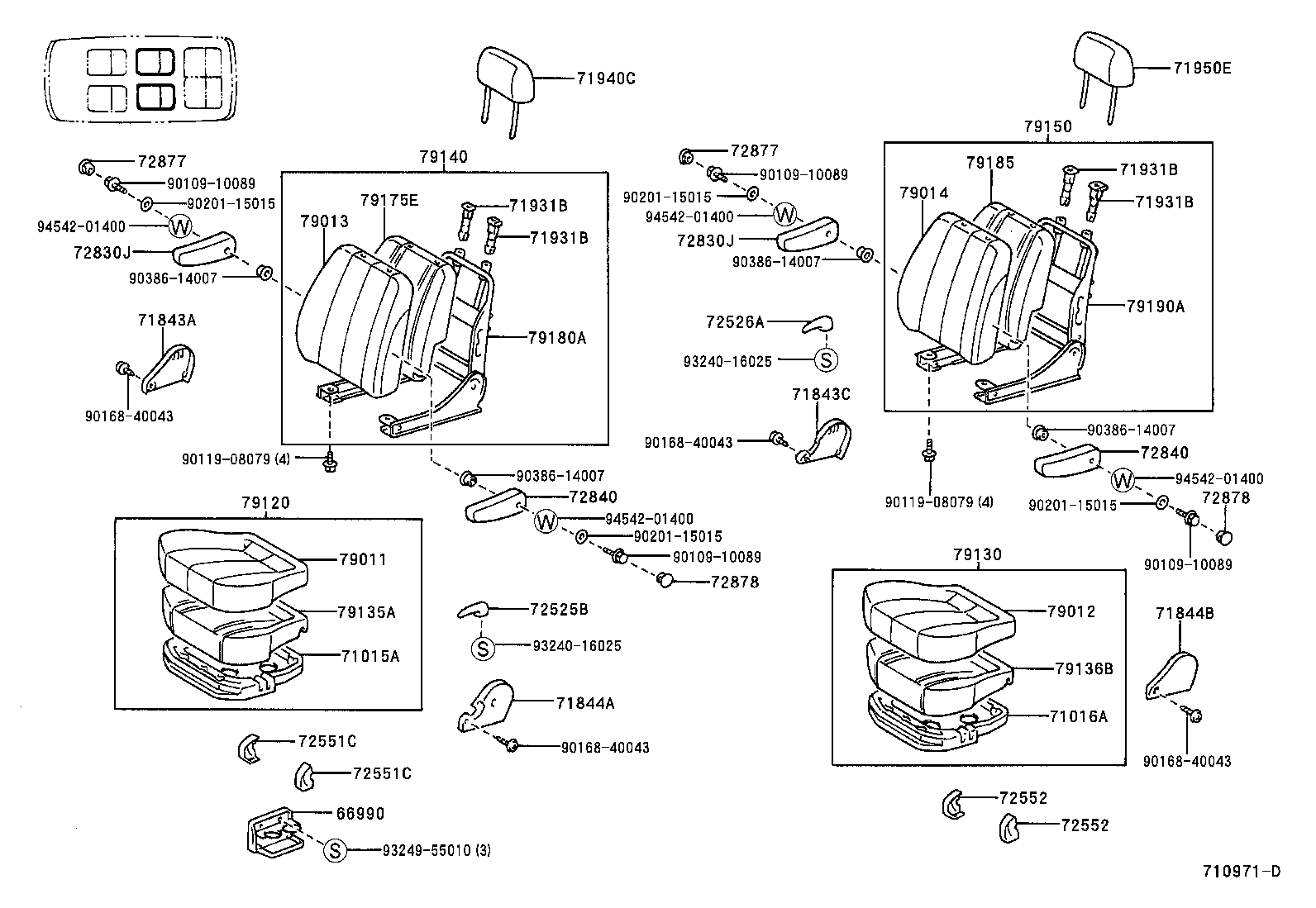

710971D 1996-08 → —

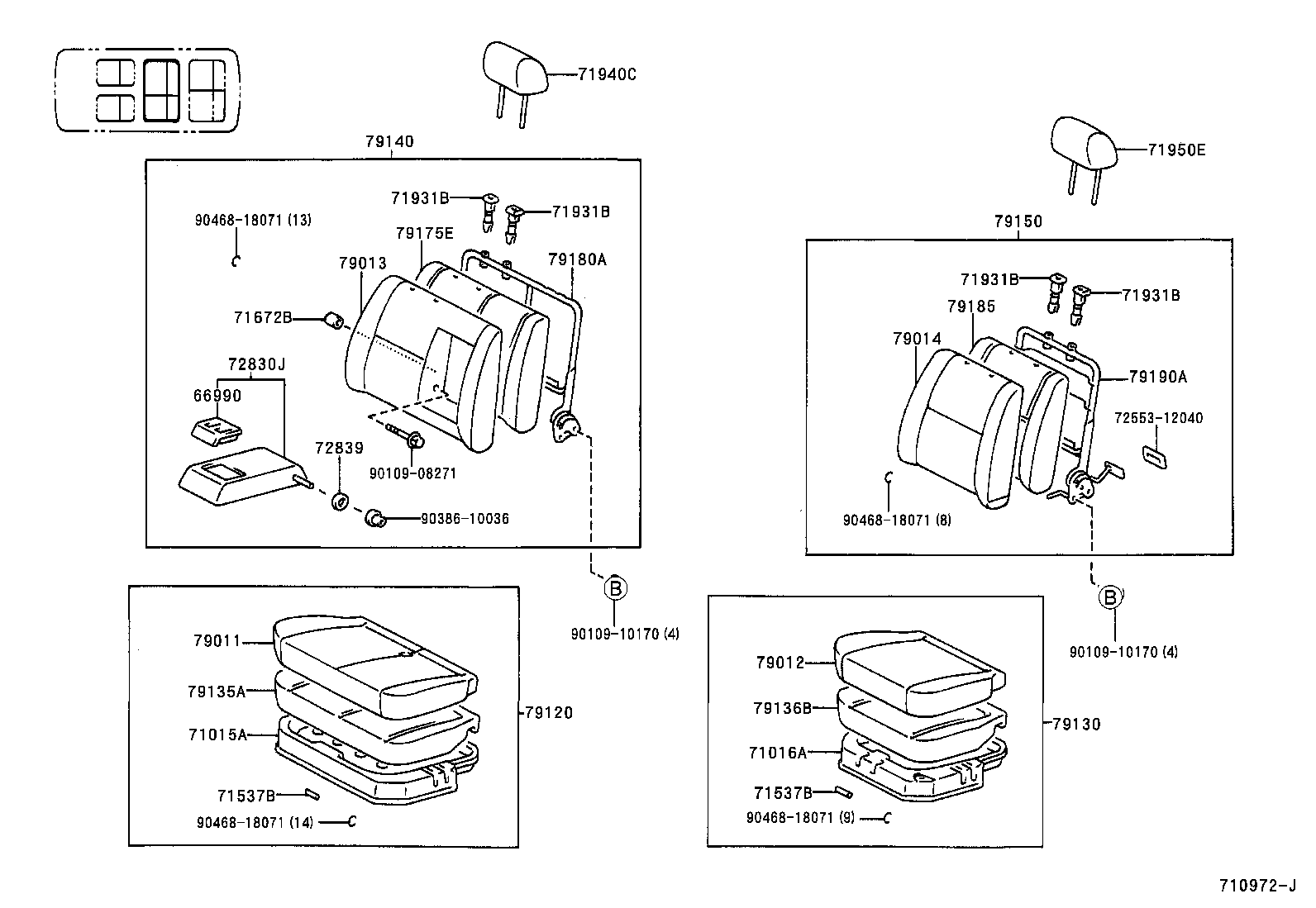

710972J 1998-01 → —

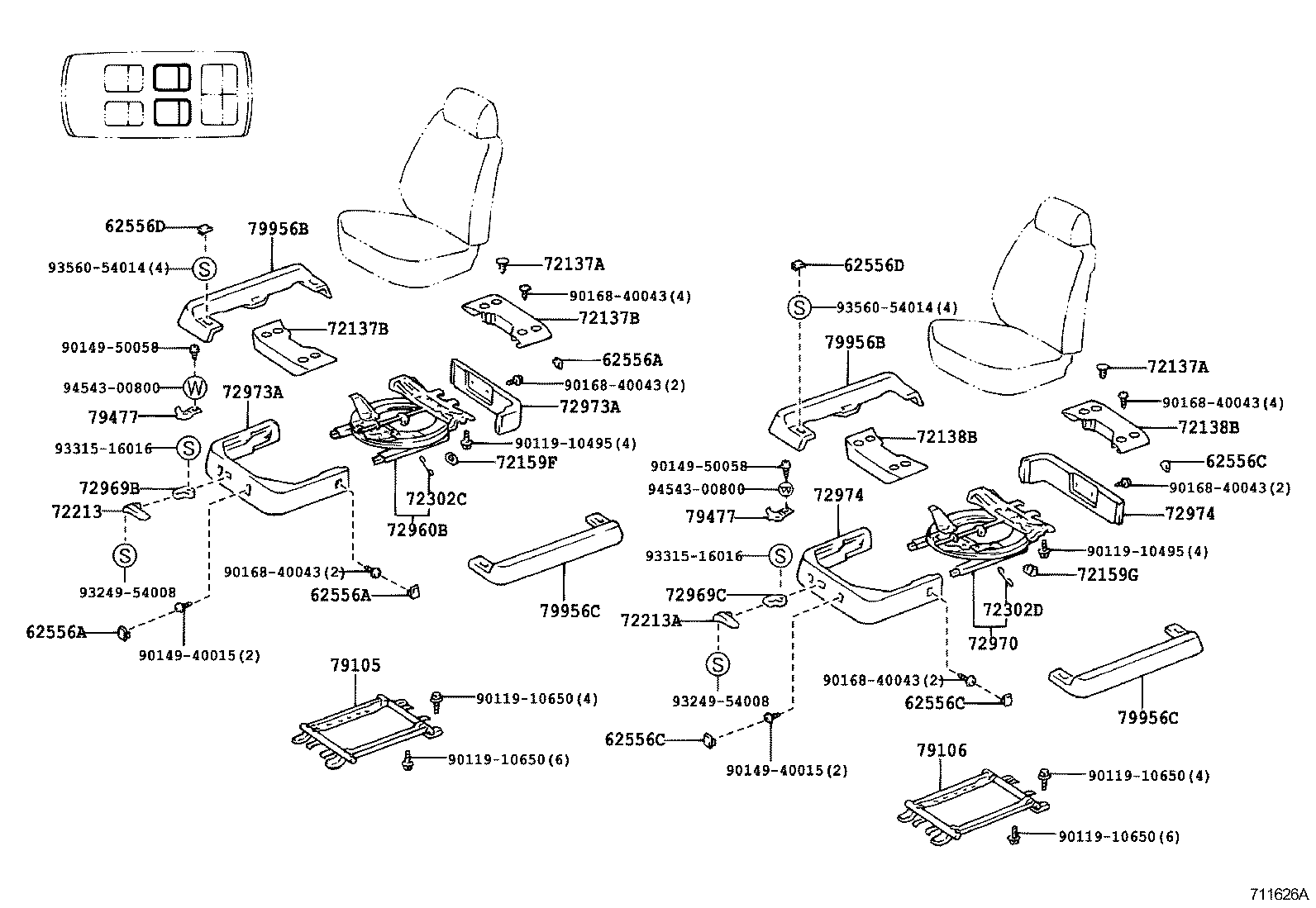

711626A 1992-01 → 1995-11

711626A 1995-01 → 1995-11

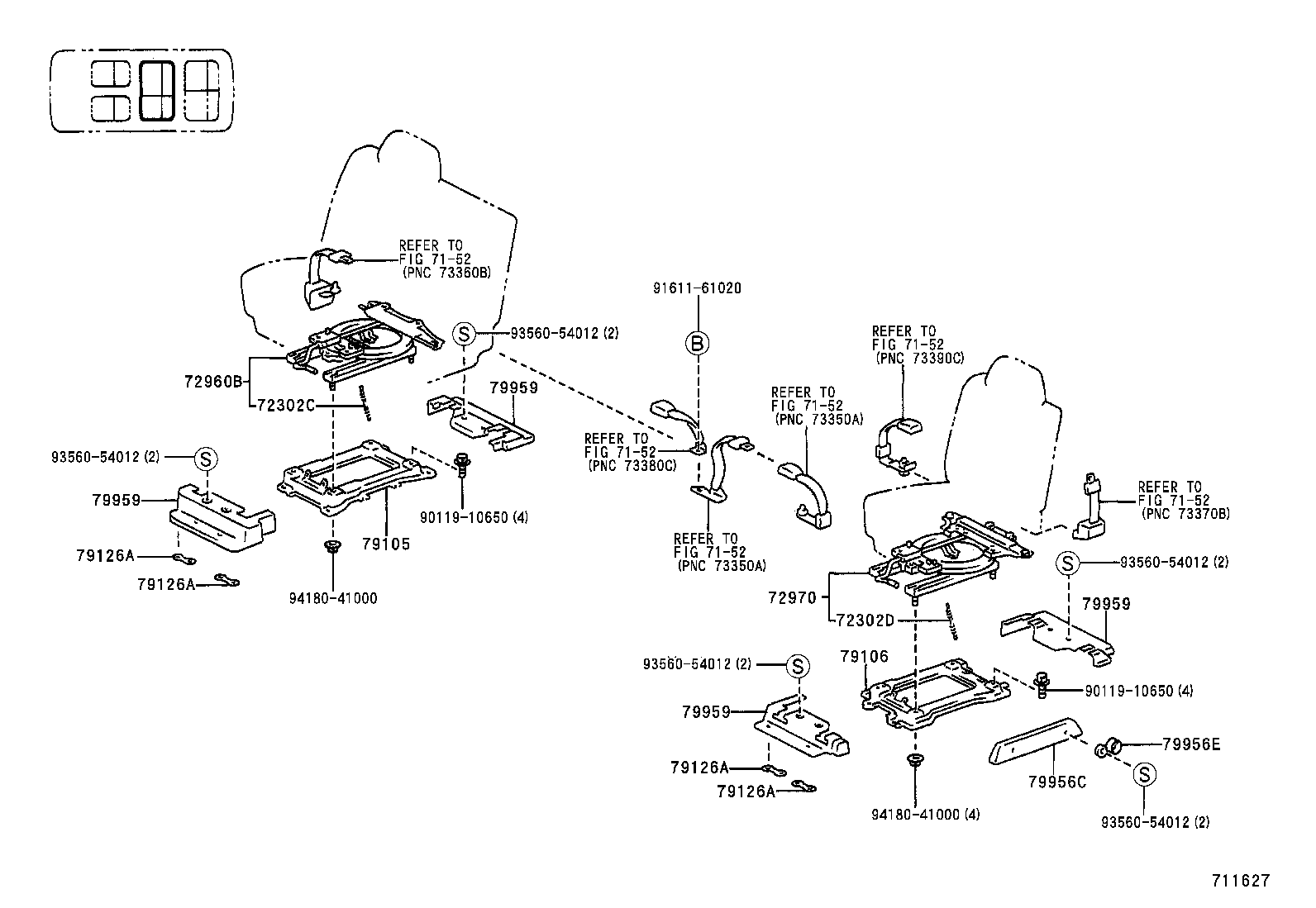

711627 1995-11 → 1996-08

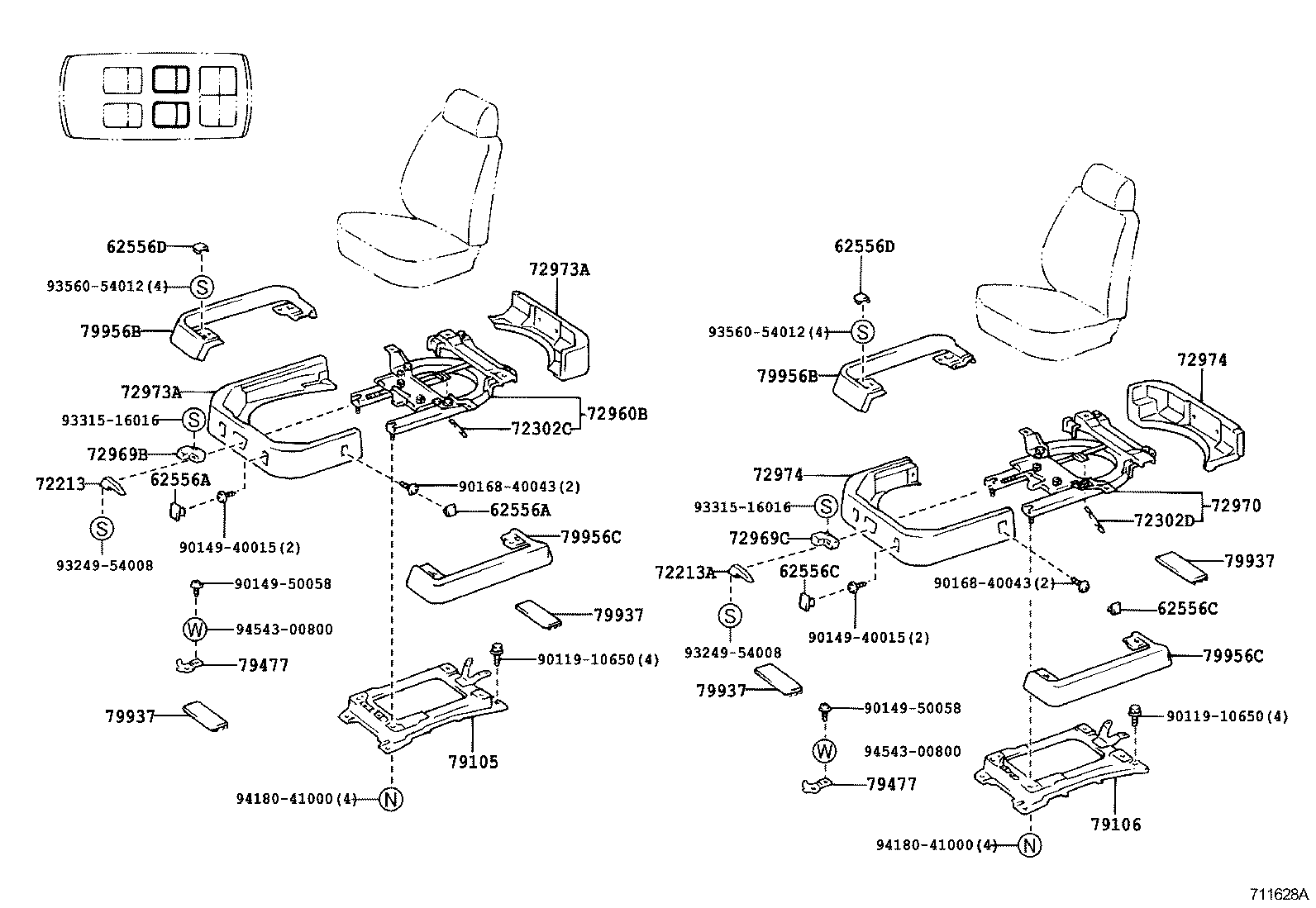

711628A 1995-11 → 1996-08

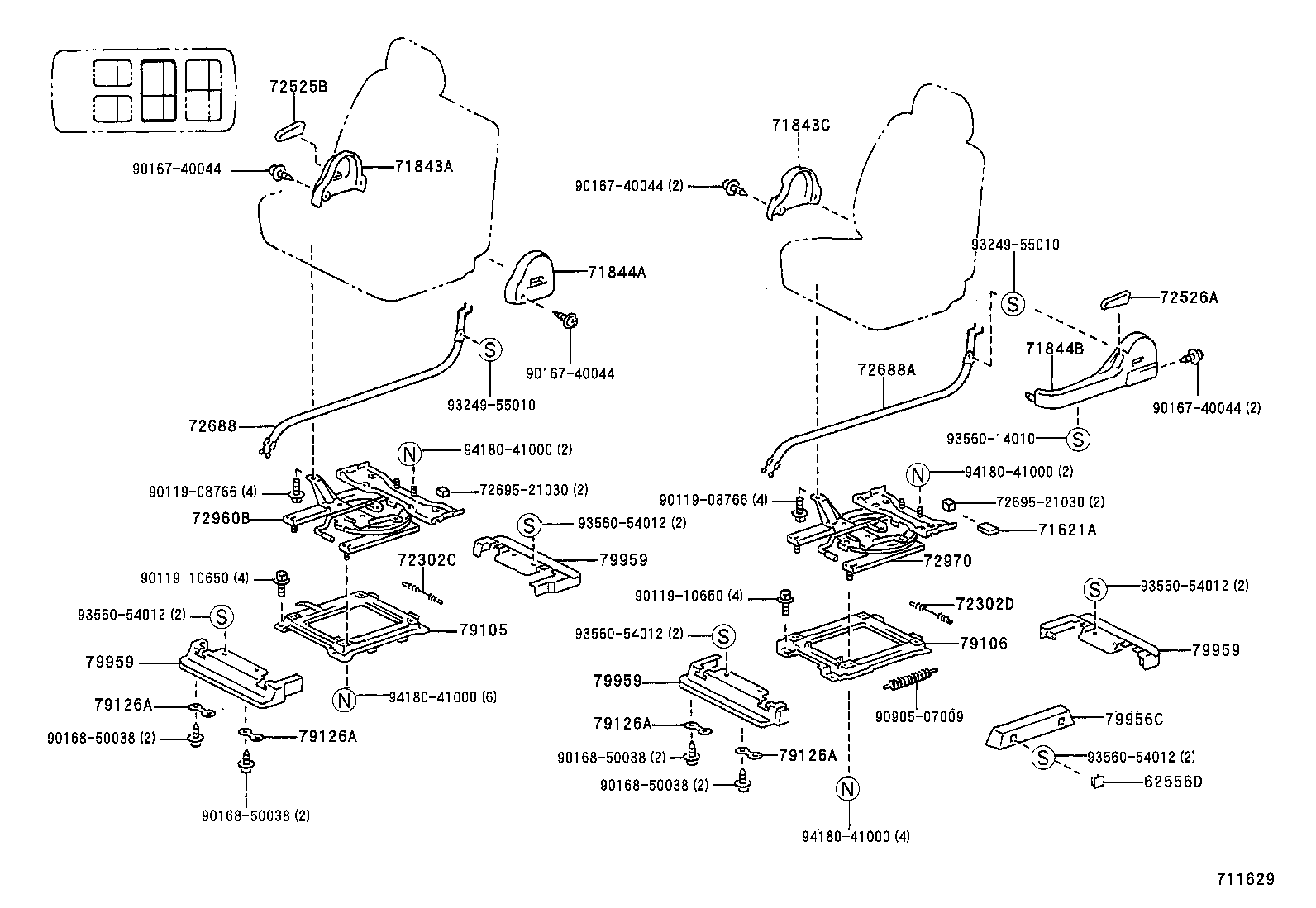

711629 1996-08 → 1998-01

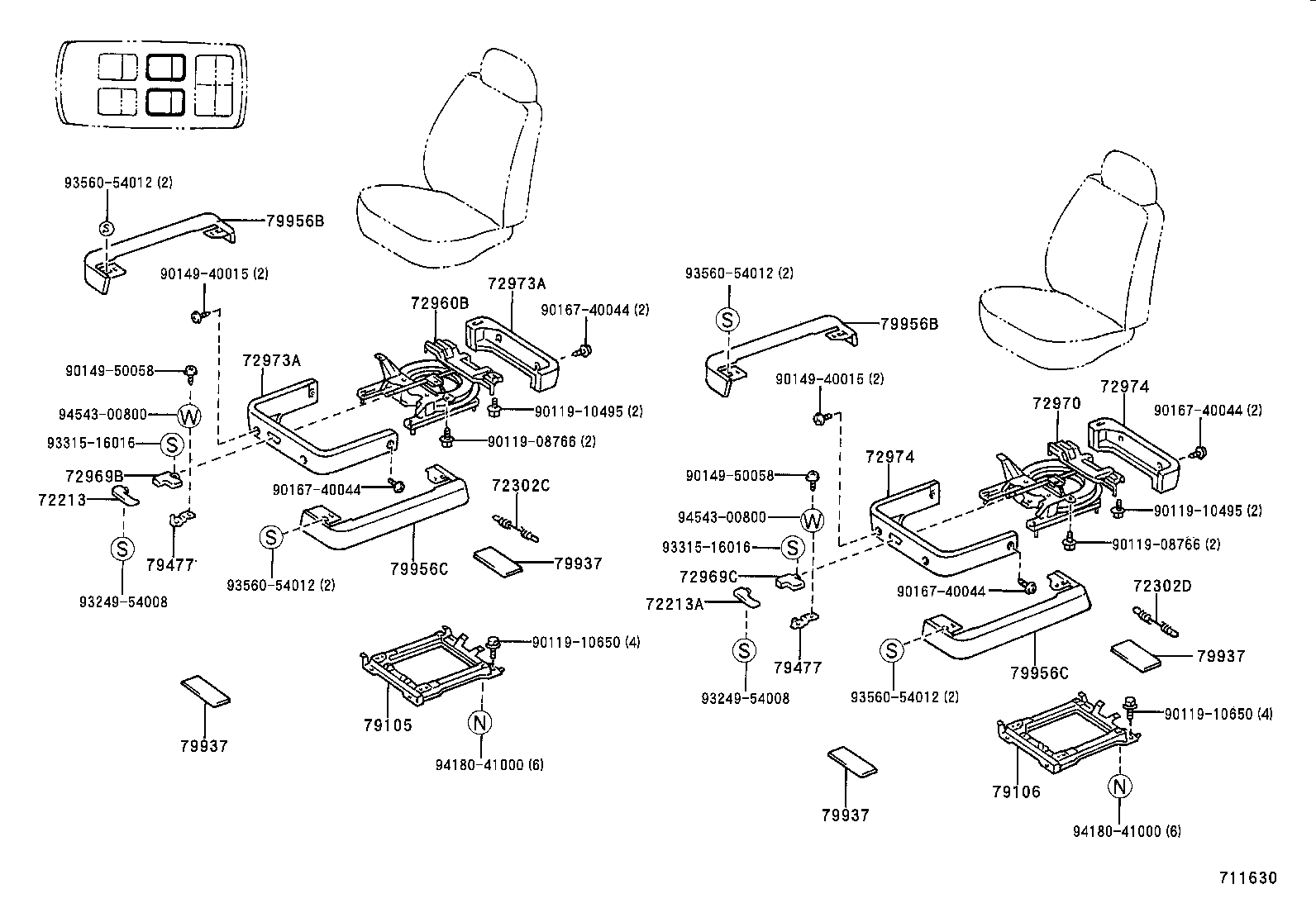

711630 1996-08 → —

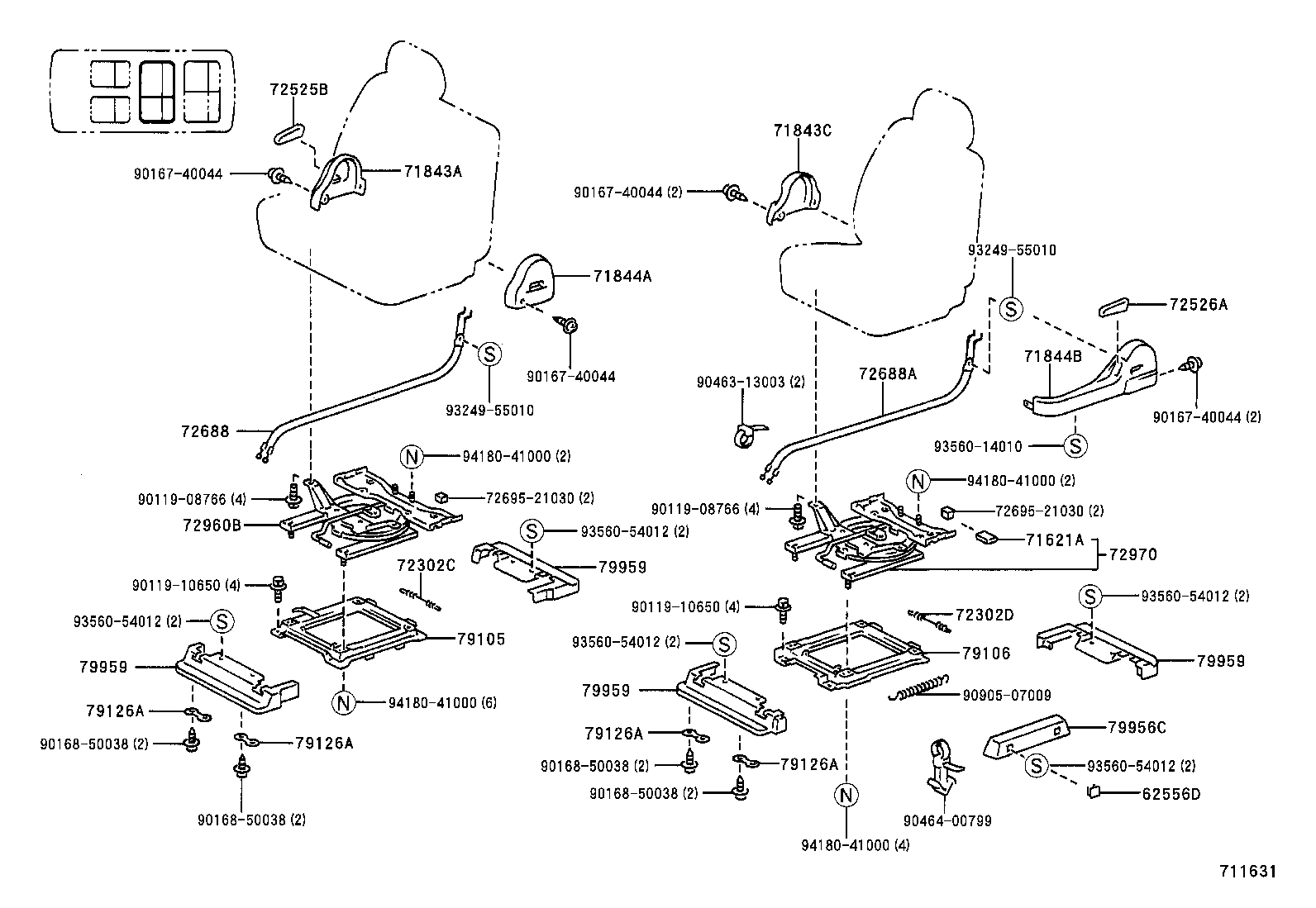

711631 1998-01 → —

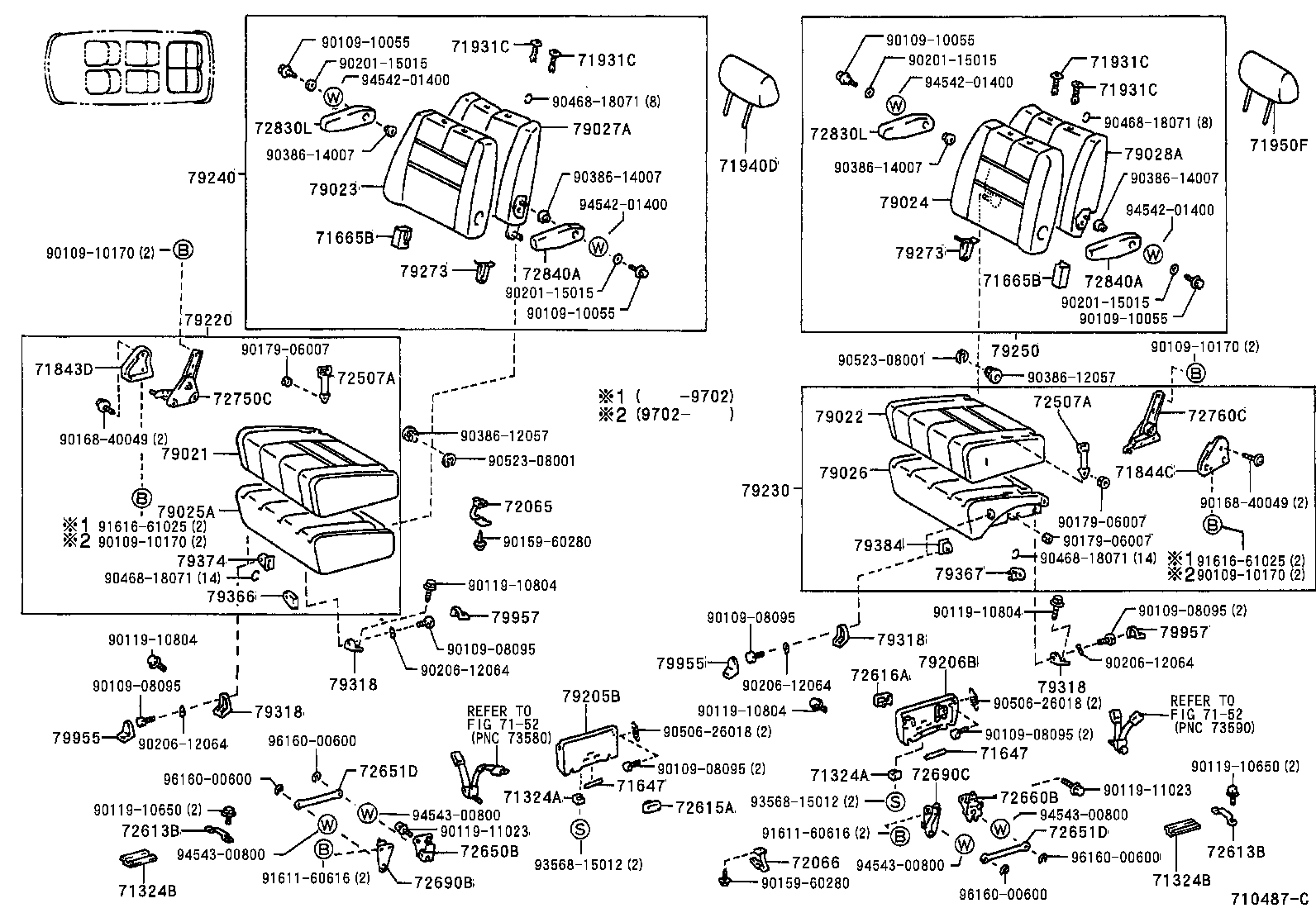

710487C 1992-01 → —

Part groups

PNC	Description
62556A	Cap, Rear Seat Side Garnish
62556C	Cap, Rear Seat Side Garnish, NO.2
62556D	Cap, Rear Seat Side Garnish, NO.3
66990	Holder Assy, Cup
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71108B	Leg Sub-assy, Front Seat, RH
71109B	Leg Sub-assy, Front Seat, LH
71324A	Cushion, Rear Seat
71324B	Cushion, Rear Seat
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71537B	Protector, Rear Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71621A	Pad, Rear Seat Cushion Silencer, A
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71631A	Pad, Rear Seat Cushion Corner
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71665A	Pad, Rear Seatback, Side A
71665B	Pad, Rear Seatback, Side B
71672B	Silencer, Rear Seatback, RH
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71831D	Cover, Front Seat Hinge, RH
71831E	Cover, Rear Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71832E	Cover, Rear Seat Hinge, LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843C	Cover, Reclining Adjuster, RH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844B	Cover, Reclining Adjuster, LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940C	Headrest Assy, Rear NO.1 Seat, RH
71940D	Headrest Assy, Rear NO.2 Seat, RH
71950E	Headrest Assy, Rear NO.1 Seat, LH
71950F	Headrest Assy, Rear NO.2 Seat, LH
72025A	Striker Sub-assy, Front Seat Lock
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72127D	Cover, Seat Track Bracket, Front, RH
72128C	Cover, Seat Track Bracket, Front, LH
72137A	Clip (FOR SEAT TRACK COVER)
72137B	Cover, Seat Track, RH
72137C	Cover, Seat Track Inner, RH
72138B	Cover, Seat Track, LH
72138C	Cover, Seat Track, LH
72159A	Cover, Rear Seat Track Bracket
72159C	Cover, Front Seat Track Bracket
72159F	Cover, Rear Seat Track Bracket, RH
72159G	Cover, Rear Seat Track Bracket, LH
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72213	Knob, Seat Track Adjusting Handle
72213A	Knob, Seat Track Adjusting Handle
72250C	Lock Assy, Front Seat
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72301E	Wire Sub-assy, Rear NO.1 Seat Track Equalizing, RH
72302C	Wire Sub-assy, Rear Seat Track Equalizing, RH
72302D	Wire Sub-assy, Rear Seat Track Equalizing, LH
72339A	Frame, Front Seat Leg Support
72346	Hook, Reclining Connecting
72347	Plate, Seatback Return Spring Stopper
72501C	Pipe Sub-assy, Reclining Connecting
72501F	Pipe Sub-assy, Reclining Connecting
72507A	Handle Sub-assy, Reclining Release
72507B	Handle Sub-assy, Reclining Release, RH
72507C	Handle Sub-assy, Reclining Release, LH
72510D	Adjuster Assy, Reclining Seat, Outer RH
72520D	Adjuster Assy, Reclining Seat, Outer LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72530A	Adjuster Assy, Reclining Seat, Inner RH
72540A	Adjuster Assy, Reclining Seat, Inner LH
72551B	Cover, Reclining Hinge, RH
72551C	Cover, Reclining Hinge, NO.2
72552	Cover, Reclining Hinge, NO.2
72552B	Cover, Reclining Hinge, LH
72553	Cover, Reclining Pedal
72593	Knob, Reclining Remote Control Lever
72613B	Striker, Rear Seat Lock
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72650B	Lock Assy, Rear NO.3 Seat, RH
72651D	Rod, Rear Seatback Lock, RH
72660B	Lock Assy, Rear NO.3 Seat, LH
72660F	Lock Assy, Rear Seat, LH
72665B	Cover, Rear Seatback Lock
72679	Bezel, Rear Seatback Lock Control
72688	Cable, Rear Seat Track & Turn Control
72688A	Cable, Rear Track & Turn Control
72690B	Lever Assy, Seat Cushion Lock Release, RH
72690C	Lever Assy, Seat Cushion Lock Release, LH
72695A	Cable, Rear Seat Lock Control
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72750C	Adjuster Assy, NO.3 Seat Reclining, RH
72760C	Adjuster Assy, NO.3 Seat Reclining, LH
72830J	Armrest Assy, Rear NO.1 Seat, RH
72830L	Armrest Assy, Rear NO.2 Seat, RH
72839	Shim, Rear Seat Armrest Hinge
72840	Armrest Assy, Rear NO.1 Seat, LH
72840A	Armrest Assy, Rear NO.2 Seat, LH
72848A	Cap, Seat Armrest, NO.1
72849A	Cap, Seat Armrest, NO.2
72877	Cover, Seat Armrest, RH
72878	Cover, Seat Armrest, LH
72890	Armrest Assy, Seat, C LH
72960B	Table Assy, Rear Seat Turn, RH
72969B	Knob, Rear Seat Turn Lock, RH
72969C	Knob, Rear Seat Turn Lock, LH
72970	Table Assy, Rear Seat Turn, LH
72973A	Cover, Rear Seat Turn Table
72974	Cover, Rear Seat Turn Lock
72996A	Cover, Rear Seatback
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79025A	Pad Sub-assy, NO.2 Seat Cushion, RH
79026	Pad Sub-assy, NO.2 Seat Cushion, LH
79027A	Pad Sub-assy, NO.2 Seatback, RH
79028A	Pad Sub-assy, NO.2 Seatback, LH
79105	Leg Sub-assy, NO.1 Seat, RH
79105A	Leg Sub-assy, NO.1 Seat
79106	Leg Sub Assy, NO.1 Seat, LH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79126A	Reinforcement, NO.1 Seat Leg, NO.1
79130	Cushion Assy, NO.1 Seat, LH
79135	Pad, NO.1 Seat Cushion
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79137	Cover, NO.1 Seat Hinge
79140	Back Assy, NO.1 Seat, RH
79149	Pad, NO.1 Seat Cushion Cover Side
79150	Back Assy, NO.1 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79175E	Pad, NO.1 Seatback, RH
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79190A	Spring Assy, NO.1 Seatback, LH
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79220	Cushion Assy, NO.2 Seat, RH
79230	Cushion Assy, NO.2 Seat, LH
79240	Back Assy, NO.2 Seat, RH
79250	Back Assy, NO.2 Seat, LH
79273	Cover, NO.2 Seat Hinge
79318	Bracket, NO.3 Seat Leg
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79374	Cover, NO.3 Seat Leg, Rear RH
79384	Cover, NO.3 Seat Leg, Rear LH
79477	Bracket, Rear Seat Turn Set Link, NO.1
79937	Cover, Rear Seat Leg, NO.2
79955	Cover, Rear Seat Front Bracket, Front
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79956E	Cap(FOR REAR SEAT LEG SIDE COVER)
79957	Cover, Rear Seat Rear Bracket, Rear
79959	Cover, RR Seat Leg

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
