Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

28 part groups · 2 illustrations

Illustrations

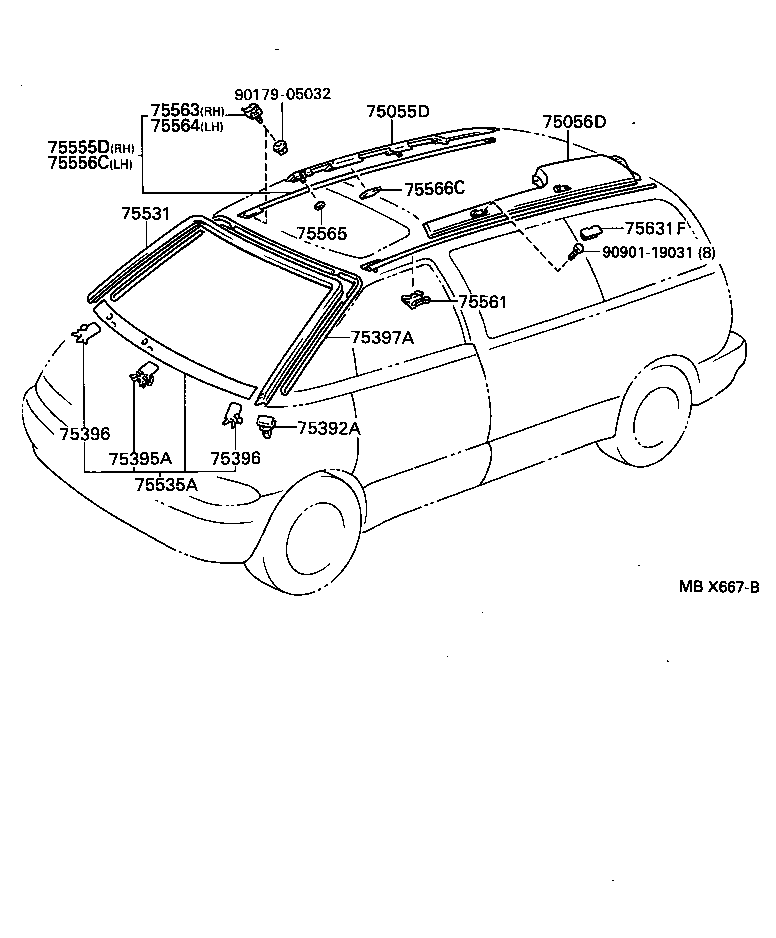

Figure 750218A 750218A 1992-01 → — Figure MBX667B MBX667B 1993-08 → —

Part groups

PNCDescription
75001 Lid Sub-assy, Roof Side Garnish, NO.1 RH
75002 Lid Sub-assy, Roof Side Garnish, NO.1 LH
75003 Lid Sub-assy, Roof Side Garnish, NO.2 RH
75004 Lid Sub-assy, Roof Side Garnish, NO.2 LH
75005 Lid Sub-assy, Roof Side Garnish, NO.3 RH
75006 Lid Sub-assy, Roof Side Garnish, NO.3 LH
75055D Garnish Sub-assy, Roof Side, Rear RH
75056D Garnish Sub-assy, Roof Side, Rear LH
75392A Retainer, Outside Moulding, NO.1
75395A Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75397A Clip, Outside Moulding, NO.3
75505 Garnish Sub-assy, Roof Side, Front RH
75506 Garnish Sub-assy, Roof Side, Front LH
75531 Moulding, Windshield, Outer Upper
75535A Moulding, Windshield, Outside Lower
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75561A Clip, Roof Drip Side Finish Moulding
75563 Retainer, Roof Drip Side Finish Moulding, NO.1
75564 Retainer, Roof Drip Side Finish Moulding, NO.2
75565 Protector, Roof Side Garnish, NO.1
75566C Protector, Roof Side Garnish, NO.2
75597A Clip, Roof Side Garnish
75598 Packing, Roof Side Garnish
75599A Bolt, Roof Side Garnish
75631F Lid, Roof Side Garnish, NO.1 RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
