Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07

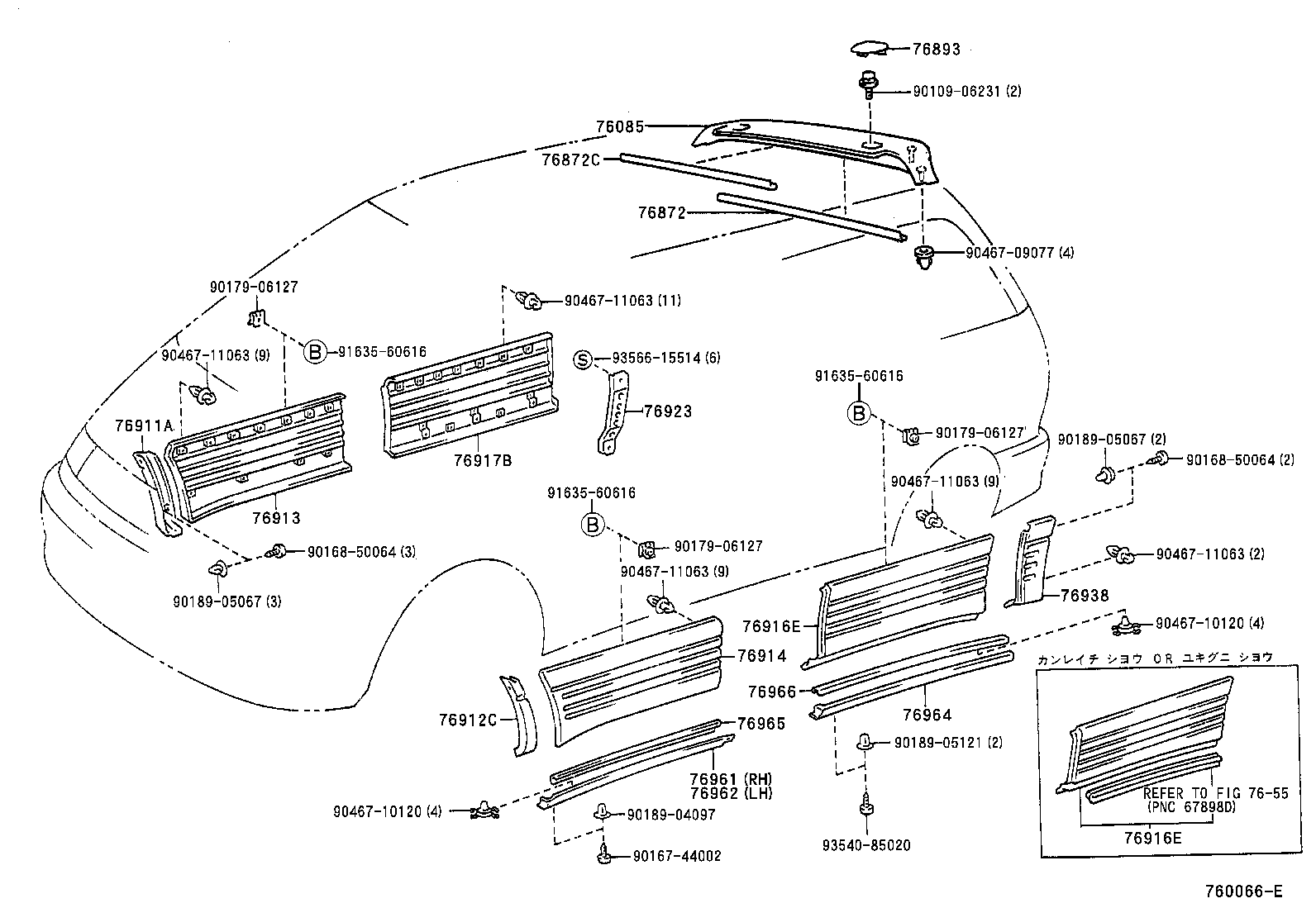

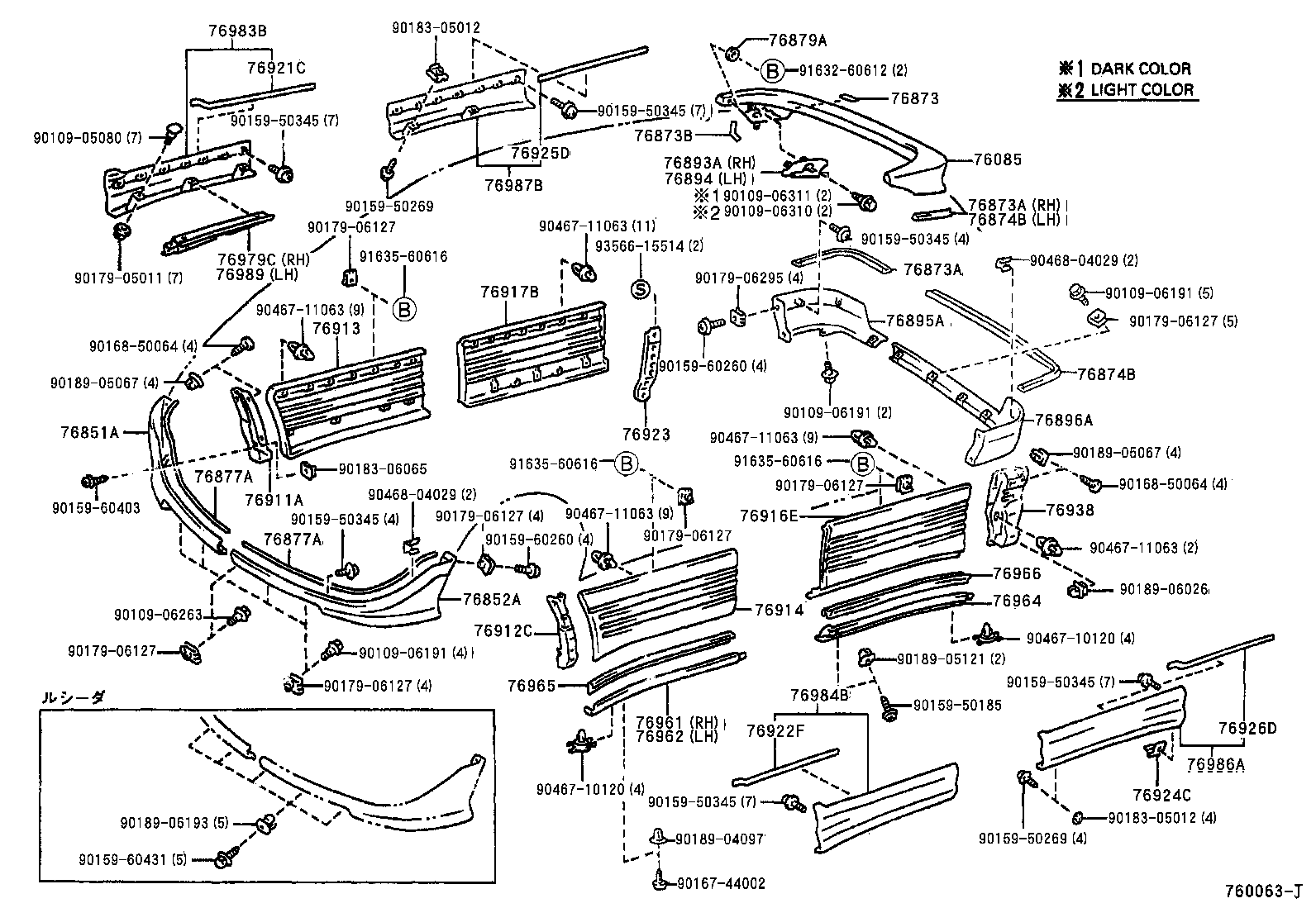

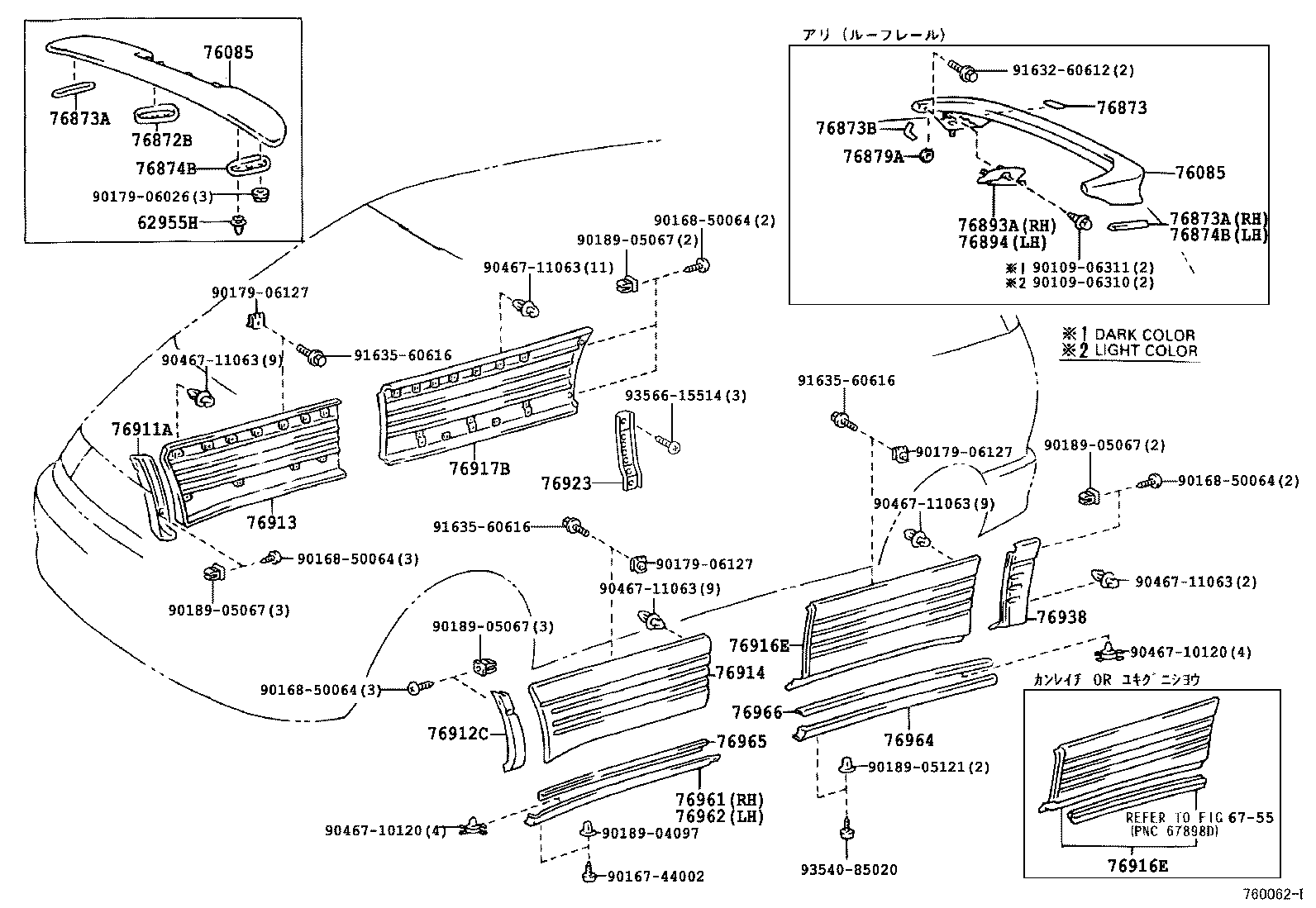

Spoiler & Side Mudguard

42 part groups · 4 illustrations

PNC	Description
62955H	Retainer, Rear Spoiler
76085	Spoiler Sub-assy, Rear
76851A	Cover, Front Spoiler, RH
76852A	Cover, Front Spoiler, LH
76872	Protector, Rear Spoiler, NO.1
76872B	Protector, Rear Spoiler, Center
76872C	Protector, Rear Spoiler, NO.1
76873	Protector, Rear Spoiler, NO.2
76873A	Protector, Rear Spoiler, RH
76873B	Protector, Rear Spoiler, NO.2
76874B	Protector, Rear Spoiler, LH
76877A	Protector, Front Spoiler
76879A	Spacer, Rear Spoiler
76893	Cover, Rear Spoiler, NO.1
76893A	Cover, Rear Spoiler, RH
76894	Cover, Rear Spoiler, LH
76895A	Spoiler, Rear Bumper, RH
76896A	Spoiler, Rear Bumper, LH
76911A	Mudguard, Fender Panel, RH
76912C	Mudguard, Fender Panel, LH
76913	Mudguard, Front Door, RH
76914	Mudguard, Front Door, LH
76916E	Mudguard, Slide Door, LH
76917B	Mudguard, Quarter Panel, RH
76921C	Protector, Side Mudguard, RH
76922F	Protector, Side Mudguard, LH
76923	Retainer, Side Mudguard
76924C	Retainer, Side Mudguard, NO.2
76925D	Protector, Side Mudguard, RH
76926D	Protector, Side Mudguard, LH
76938	Mudguard, Quarter Panel, Rear LH
76961	Mudguard, Front Door, Lower RH
76962	Mudguard, Front Door, Lower LH
76964	Mudguard, Slide Door, Lower LH
76965	Protector, Front Door Lower Mudguard
76966	Protector, Slide Door Lower Mudguard
76979C	Cover, Front Door Mudguard, RH
76983B	Mudguard, Front Door Side, RH
76984B	Mudguard, Front Door Side, LH
76986A	Mudguard, Slide Door Side, LH
76987B	Mudguard, Quarter Panel Side, RH
76989	Cover, Front Door Mudguard, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
