Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

45 part groups · 22 illustrations

Illustrations

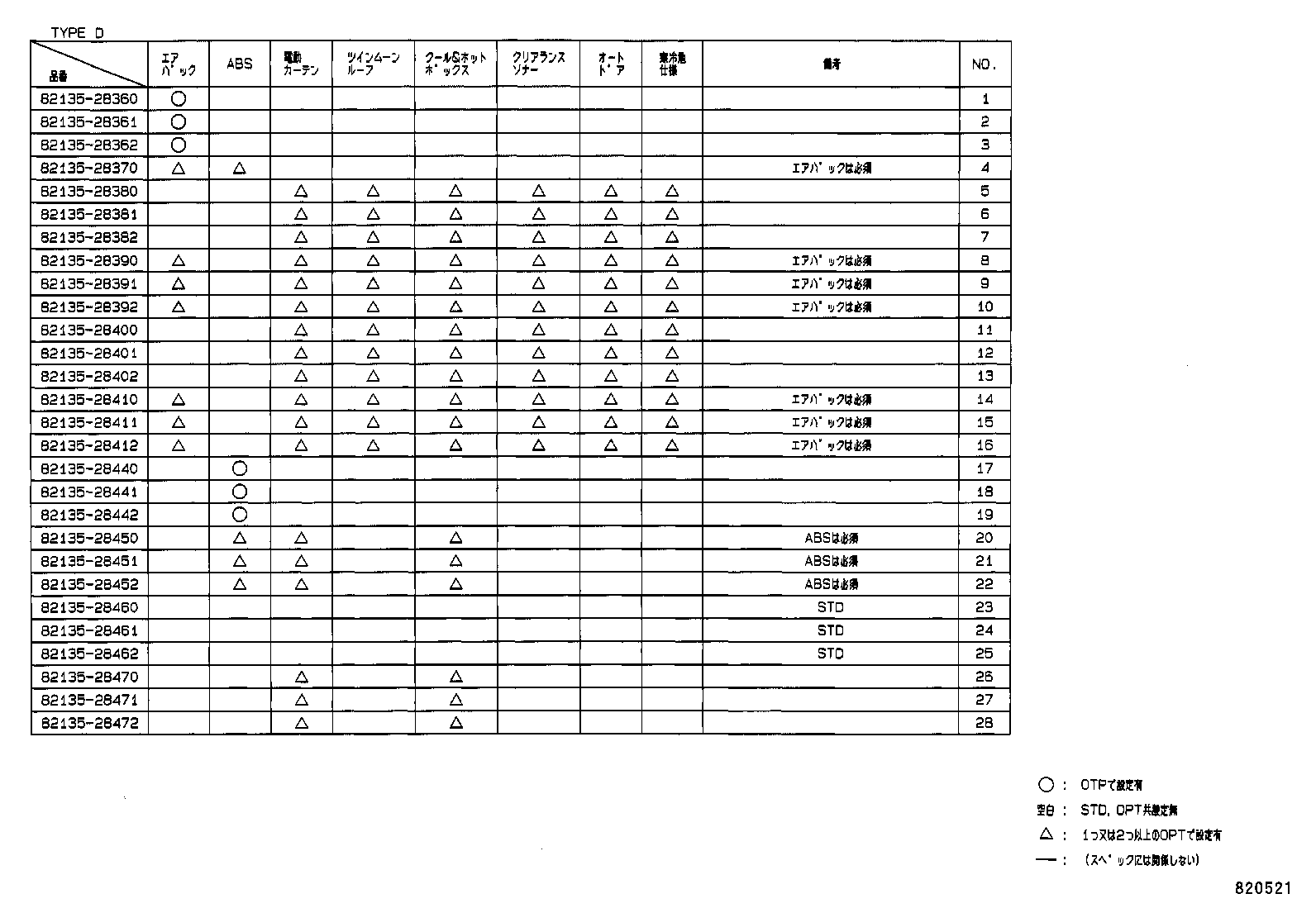

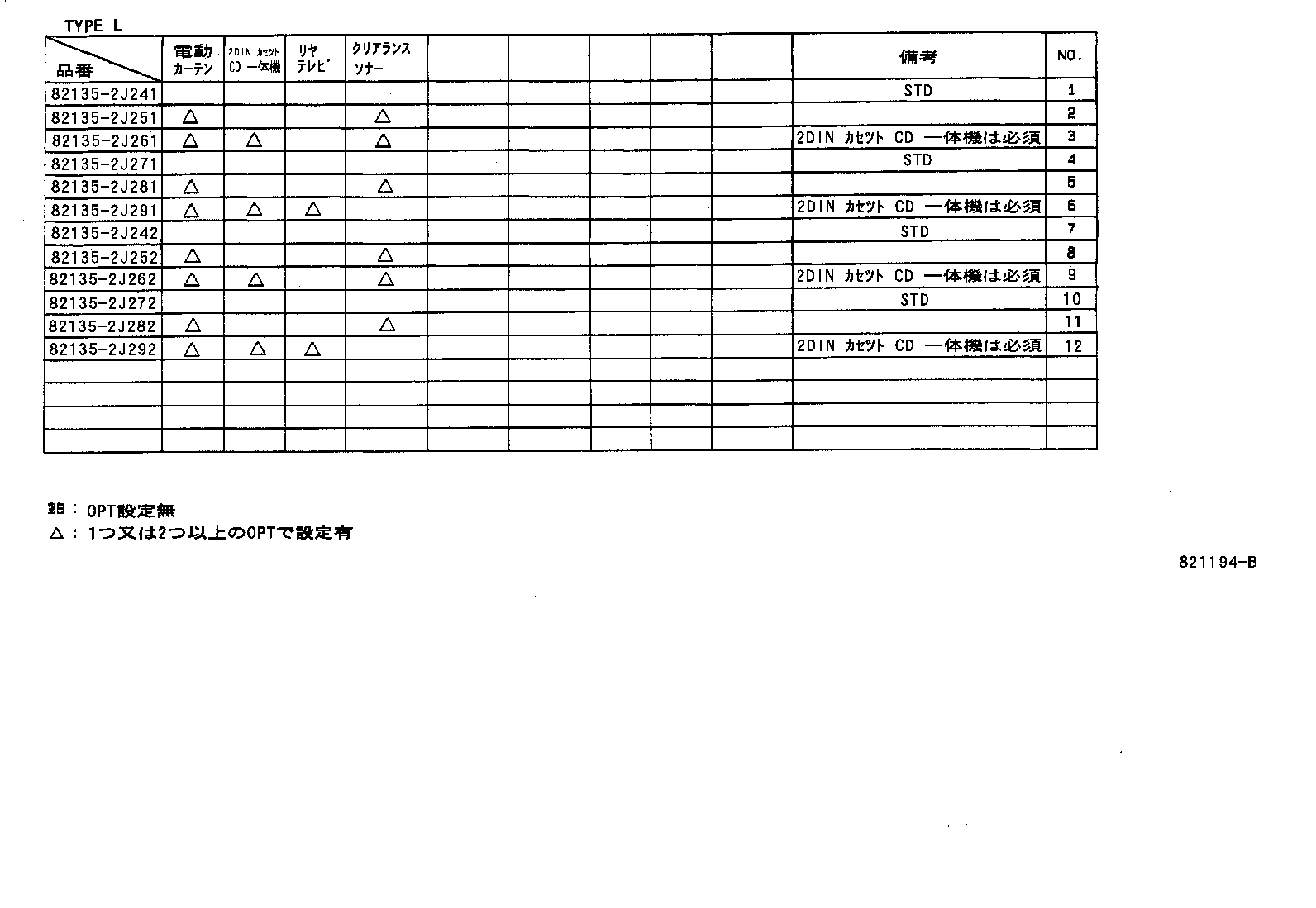

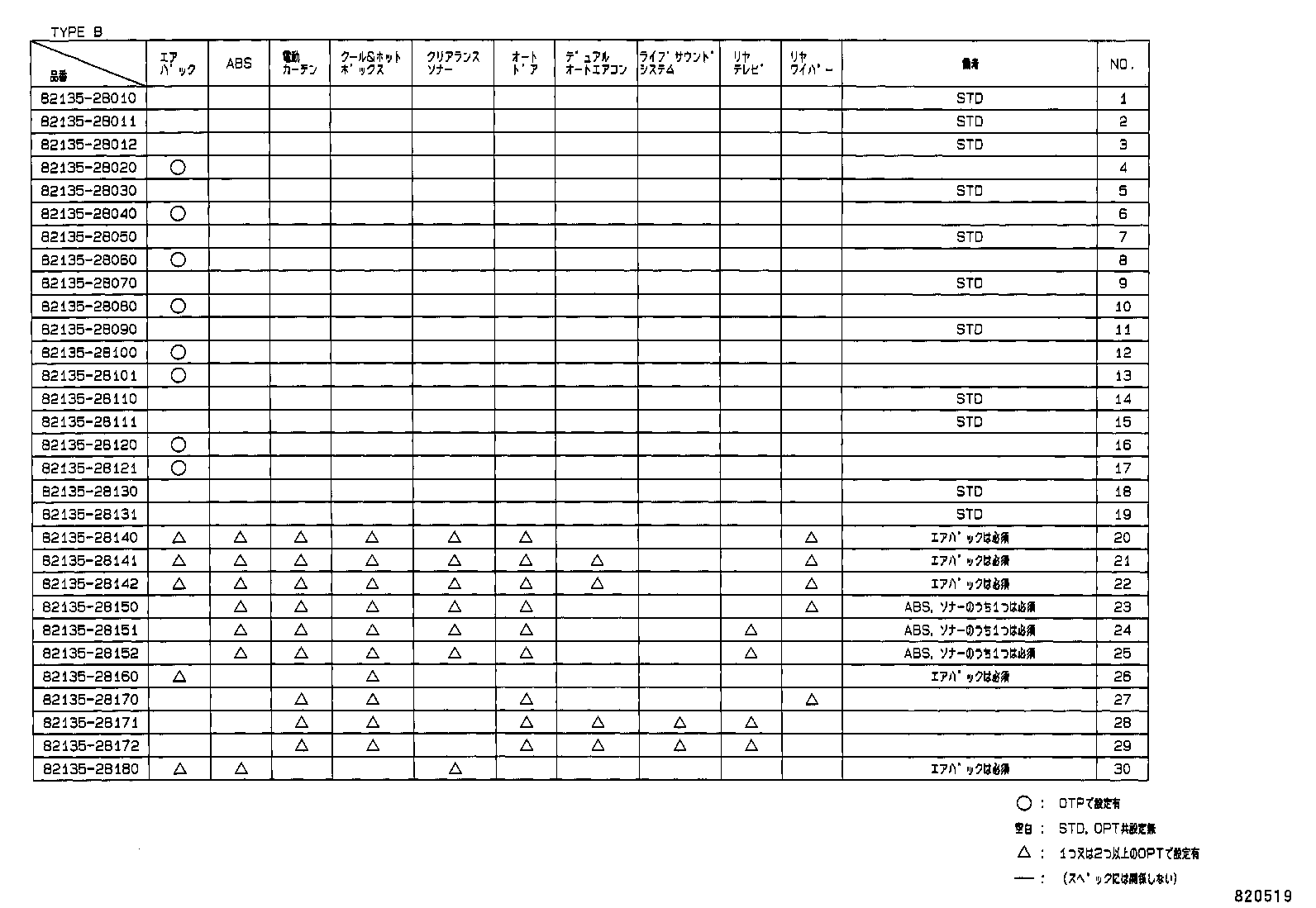

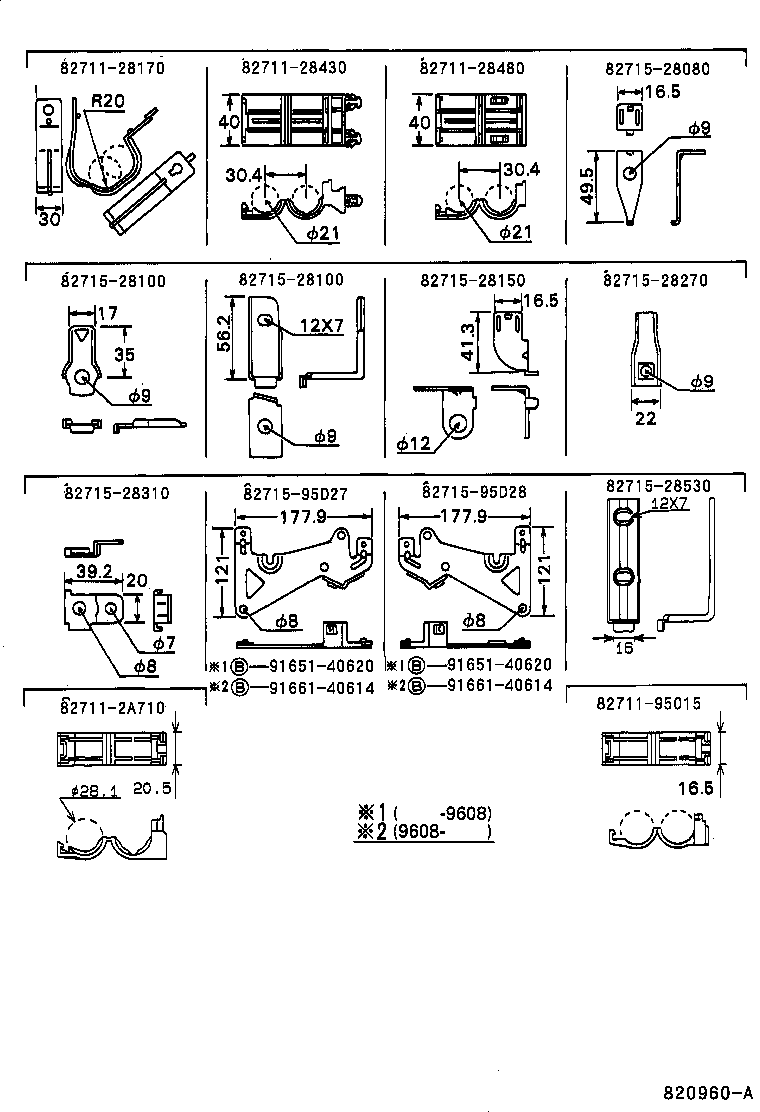

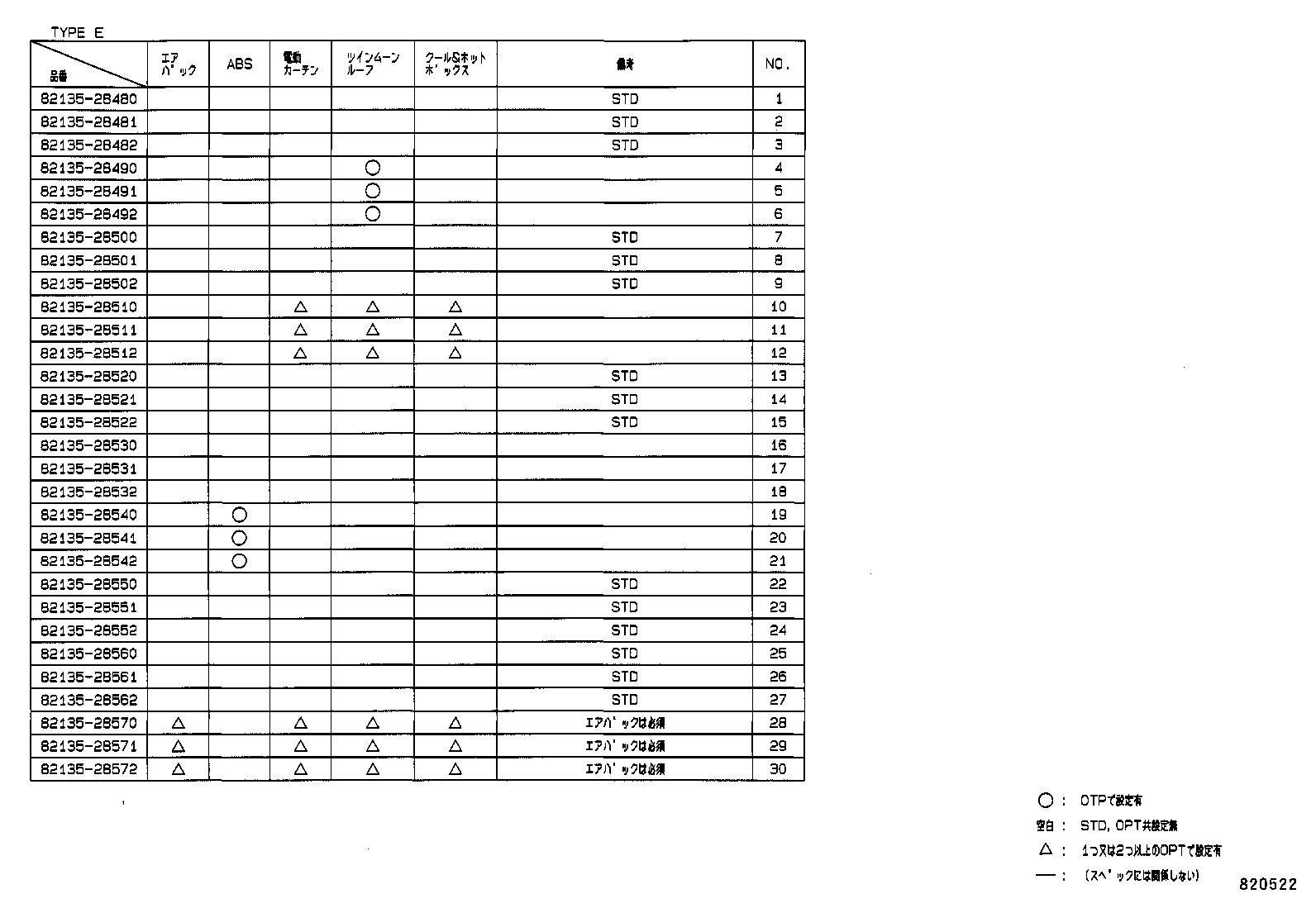

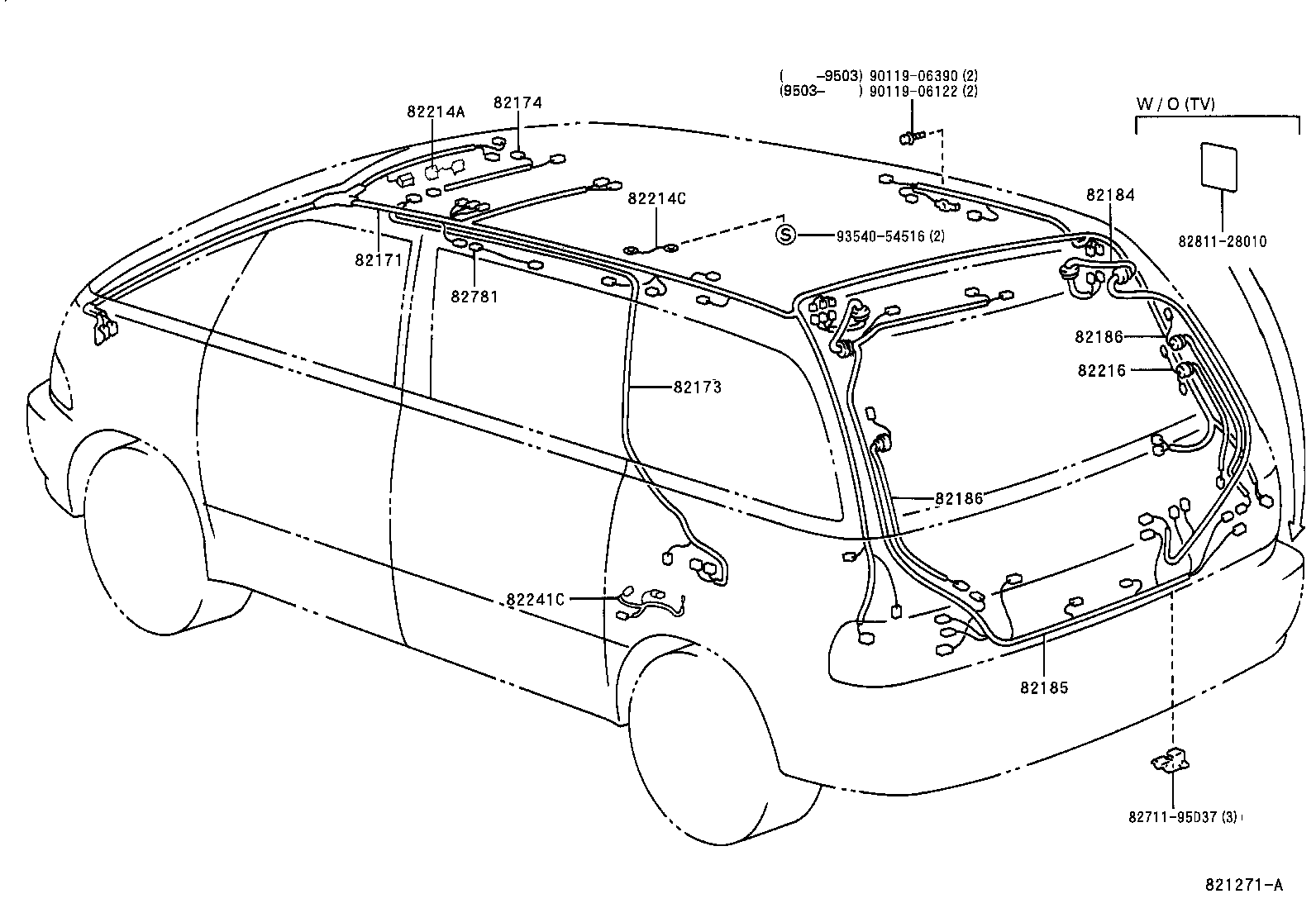

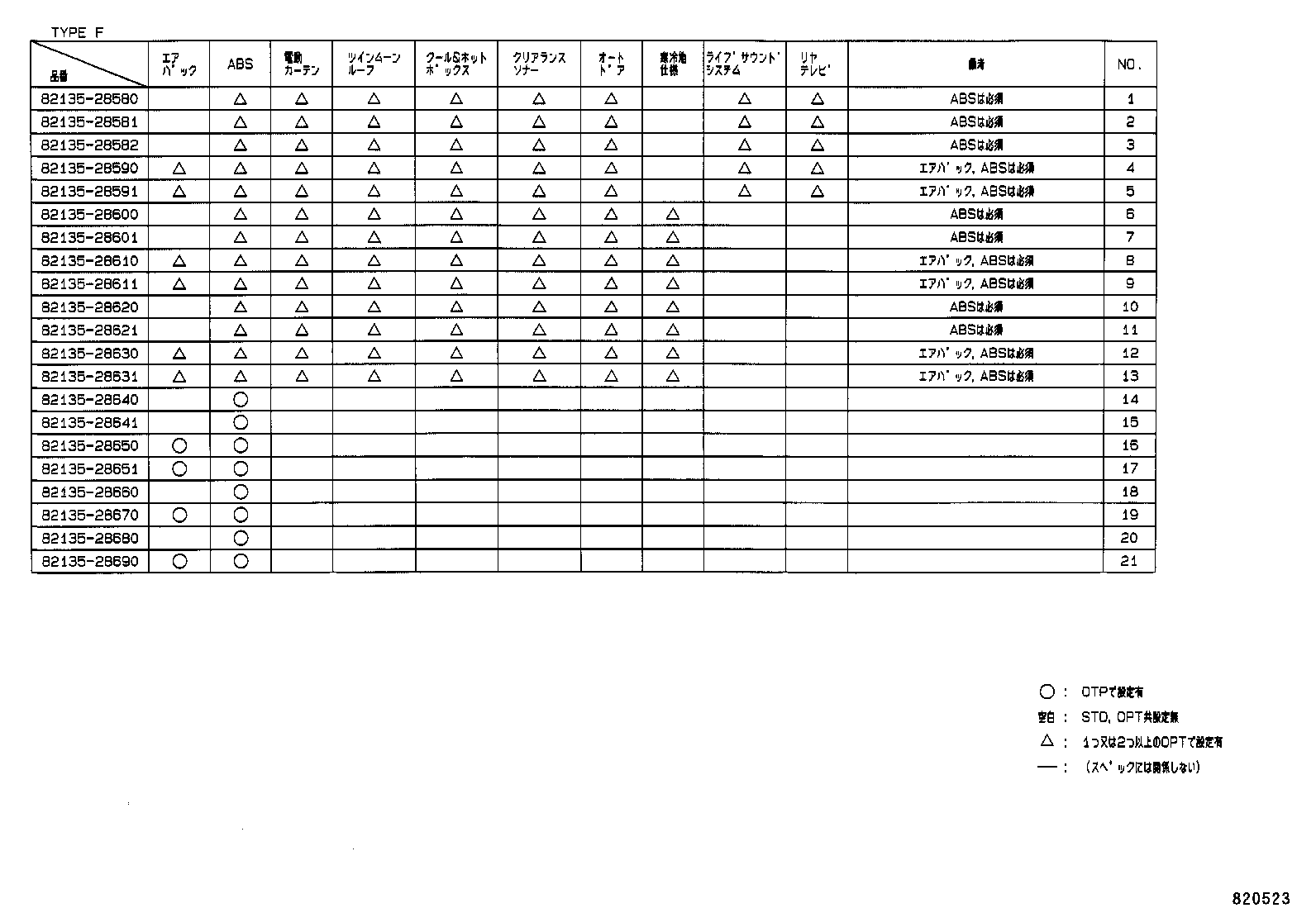

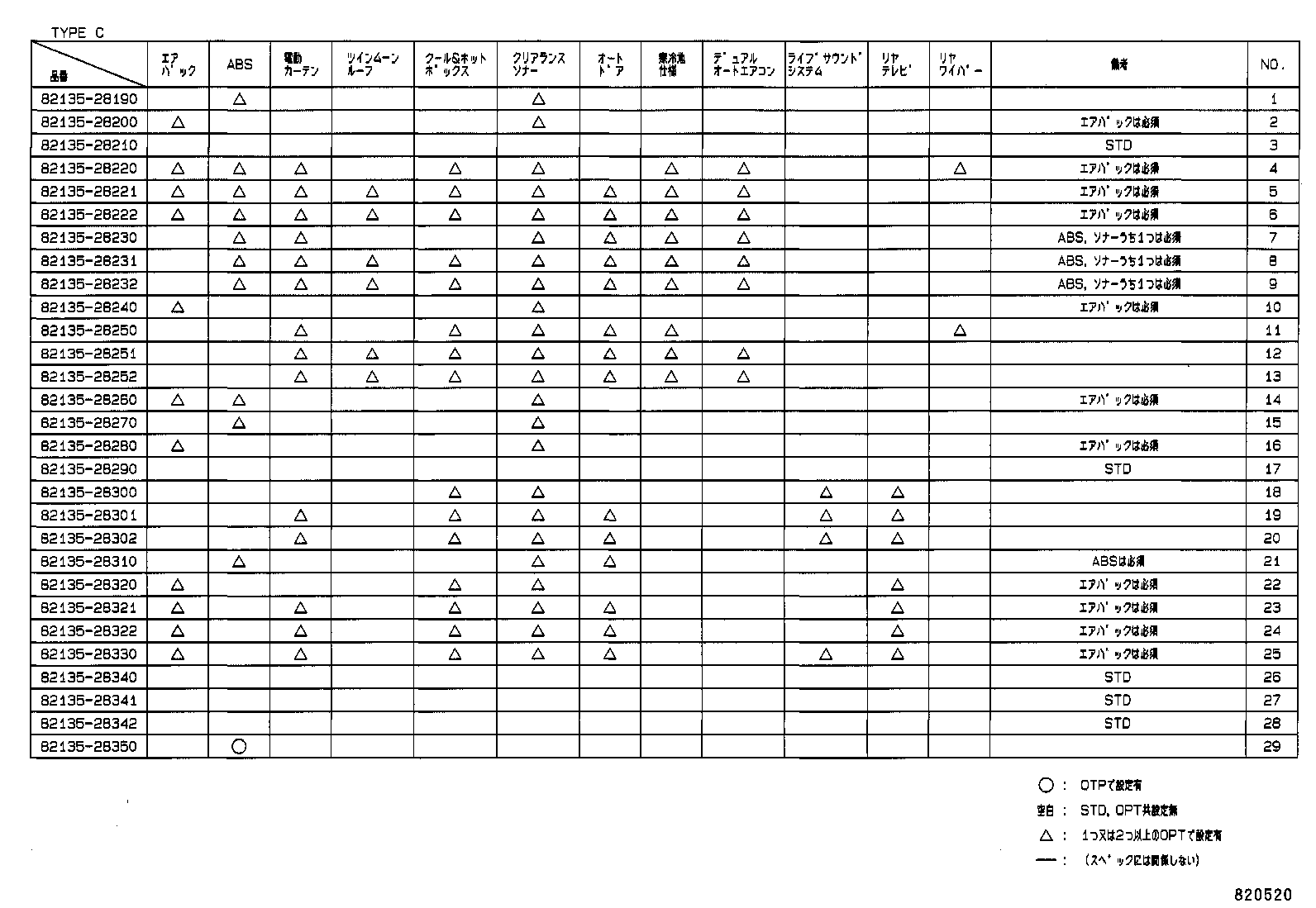

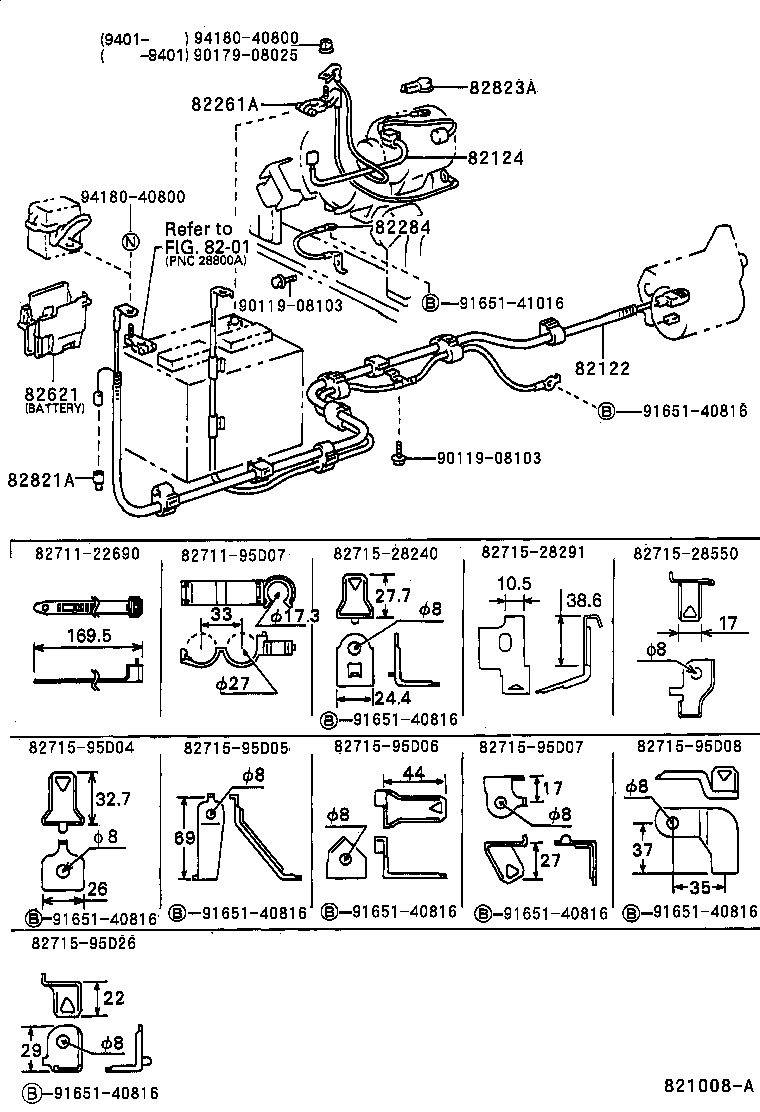

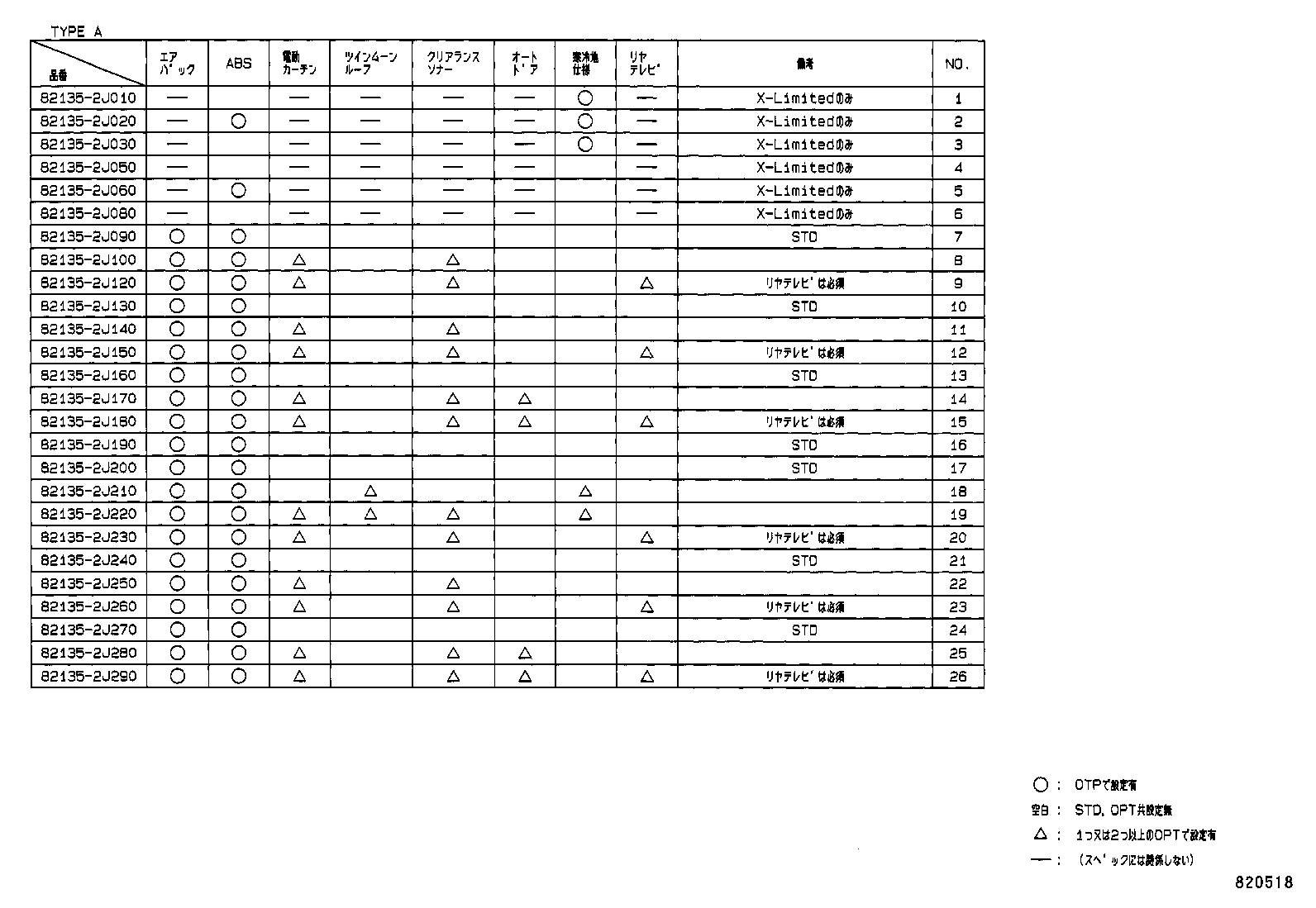

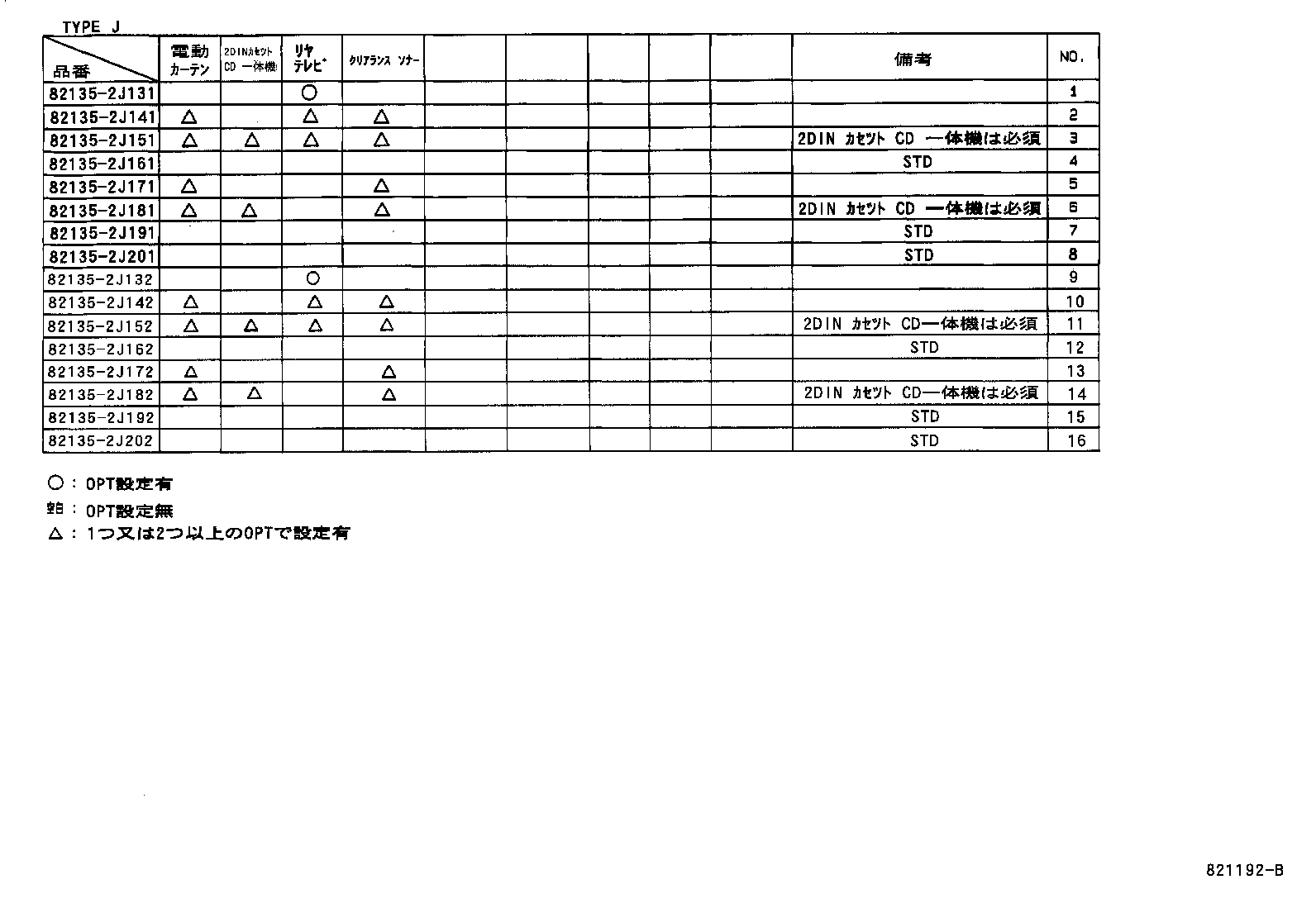

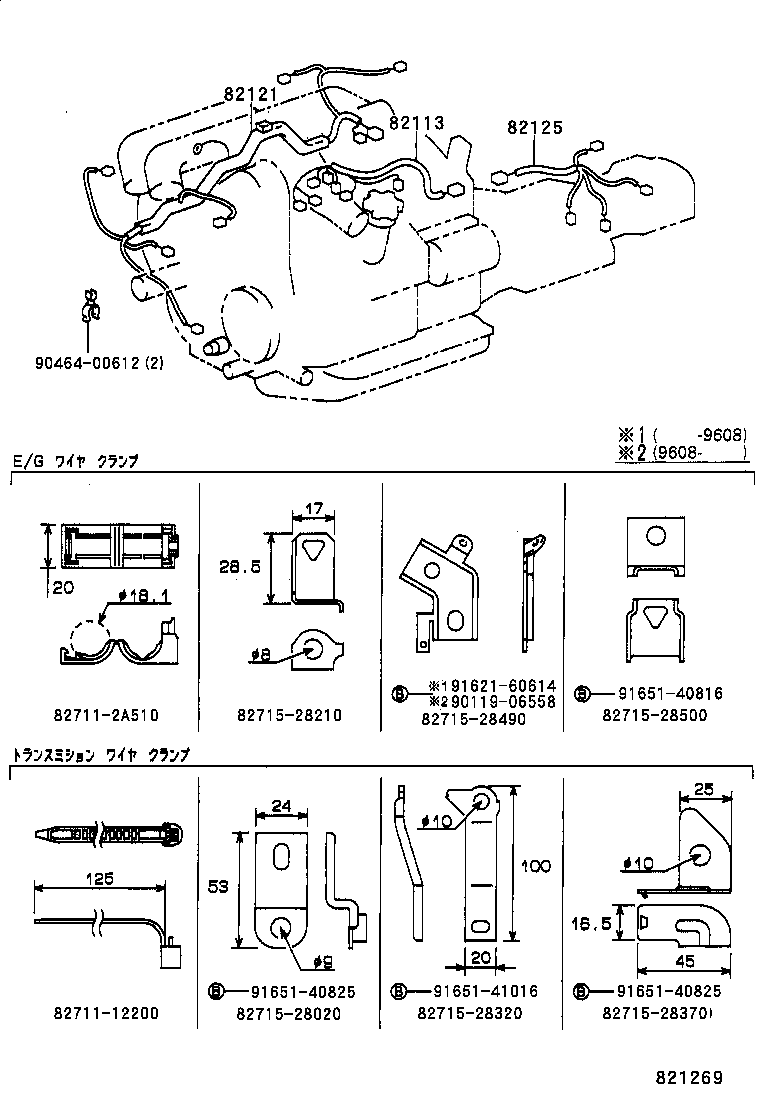

Figure 821286A 821286A 1992-01 → — Figure MES994A MES994A 1992-01 → 1993-08 Figure 821269 821269 1993-08 → — Figure 821008A 821008A 1992-01 → — Figure 821195B 821195B 1992-01 → — Figure 821270A 821270A 1992-01 → — Figure 820518 820518 1992-01 → — Figure 820519 820519 1992-01 → — Figure 820520 820520 1992-01 → — Figure 820521 820521 1992-01 → — Figure 820522 820522 1992-01 → — Figure 820523A 820523A 1992-01 → — Figure 820524 820524 1992-01 → — Figure 821191B 821191B 1998-01 → — Figure 821192B 821192B 1998-01 → — Figure 821193B 821193B 1998-01 → — Figure 821194B 821194B 1998-01 → — Figure 820960A 820960A 1992-01 → — Figure 821480A 821480A 1992-01 → — Figure 821271A 821271A 1992-01 → — Figure MES998A MES998A 1992-01 → — Figure 821971 821971 1992-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1

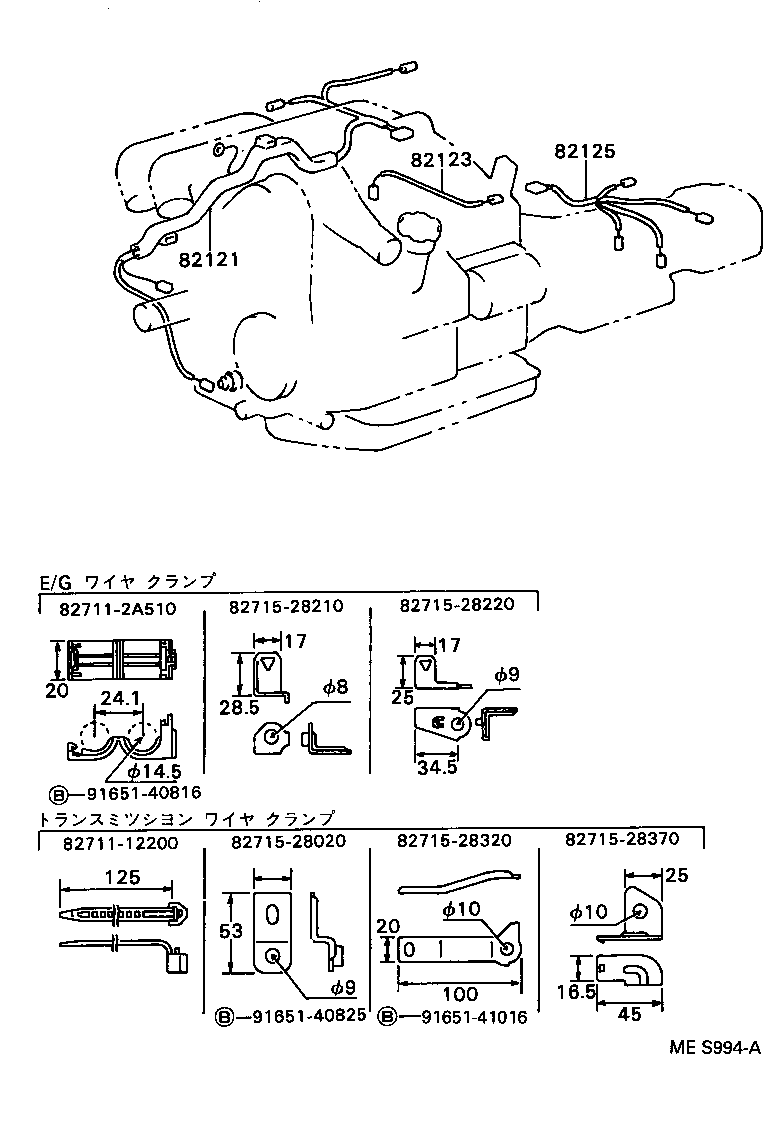

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission

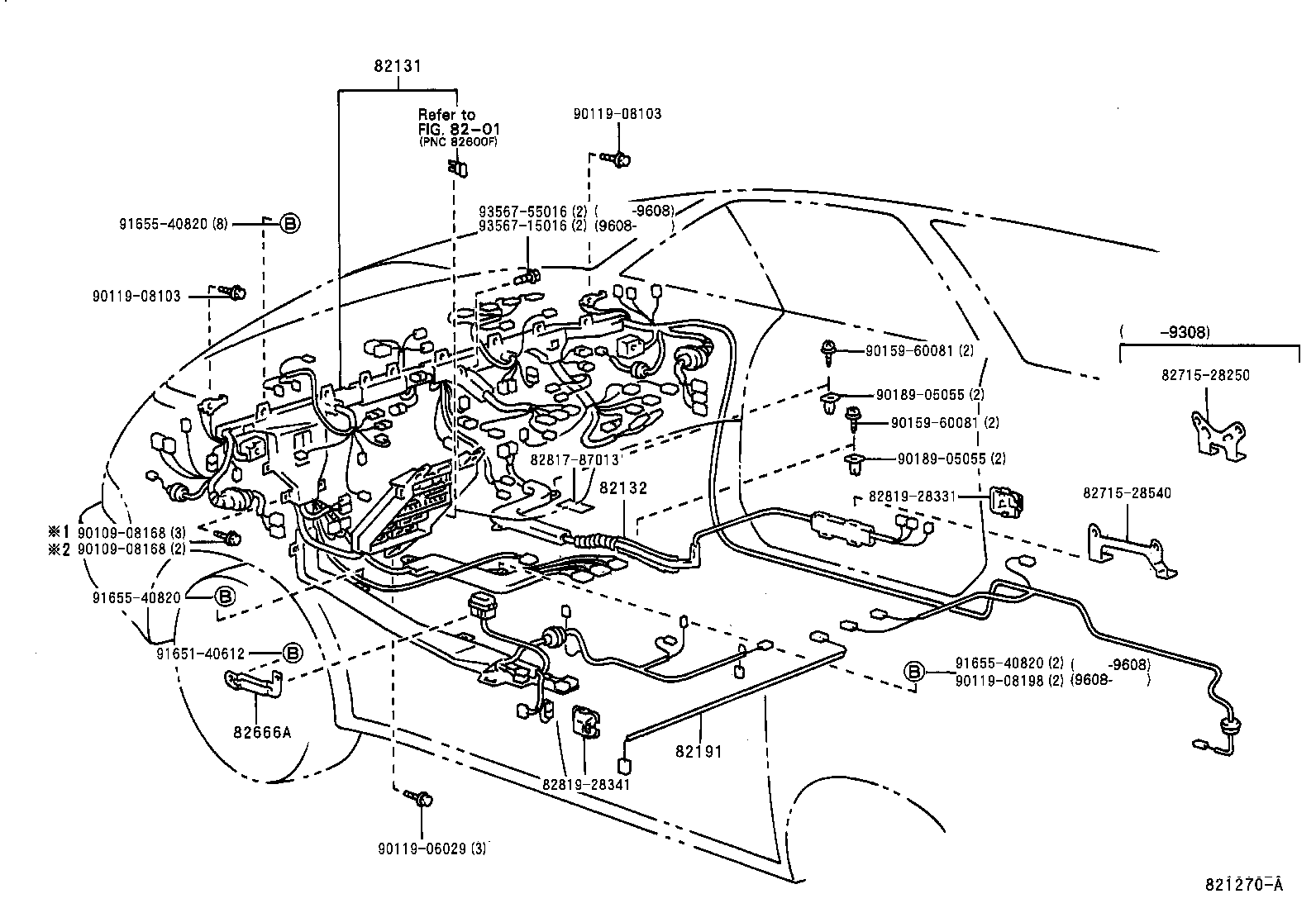

82131 Wire, Cowl
82132 Wire, Cowl, NO.2

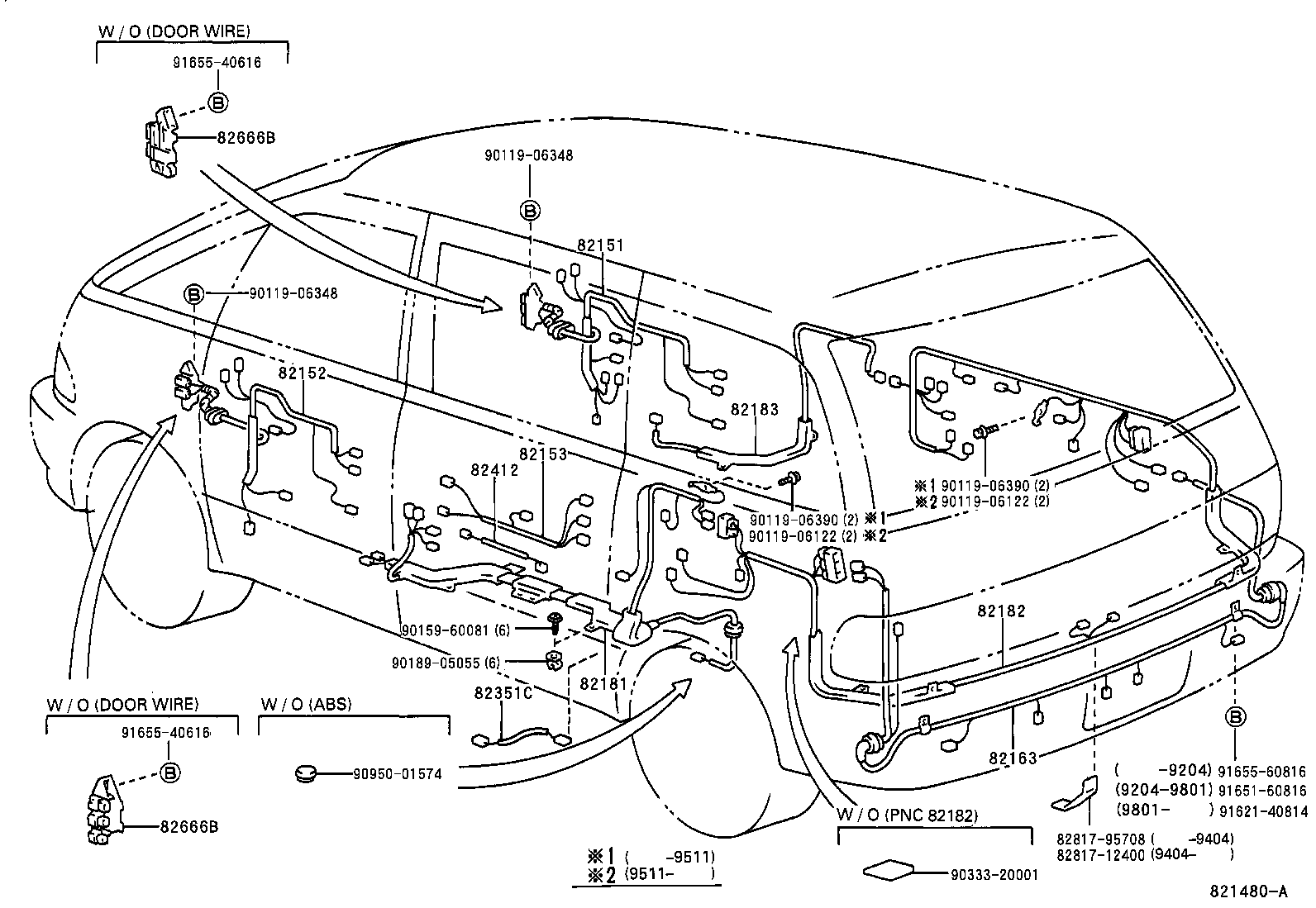

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82210C Fusible Link
82214A Wire, Lamp
82214C Wire, Room Lamp
82216 Wire, Rear Window Defogger
82241C Wire, Relay
82261A Wire, Alternator
82284 Wire, Earth
82345 Diode
82351C Wire, Courtesy Lamp Switch (FOR FRONT RH DOOR)
82412 Wire, Fuel Gage

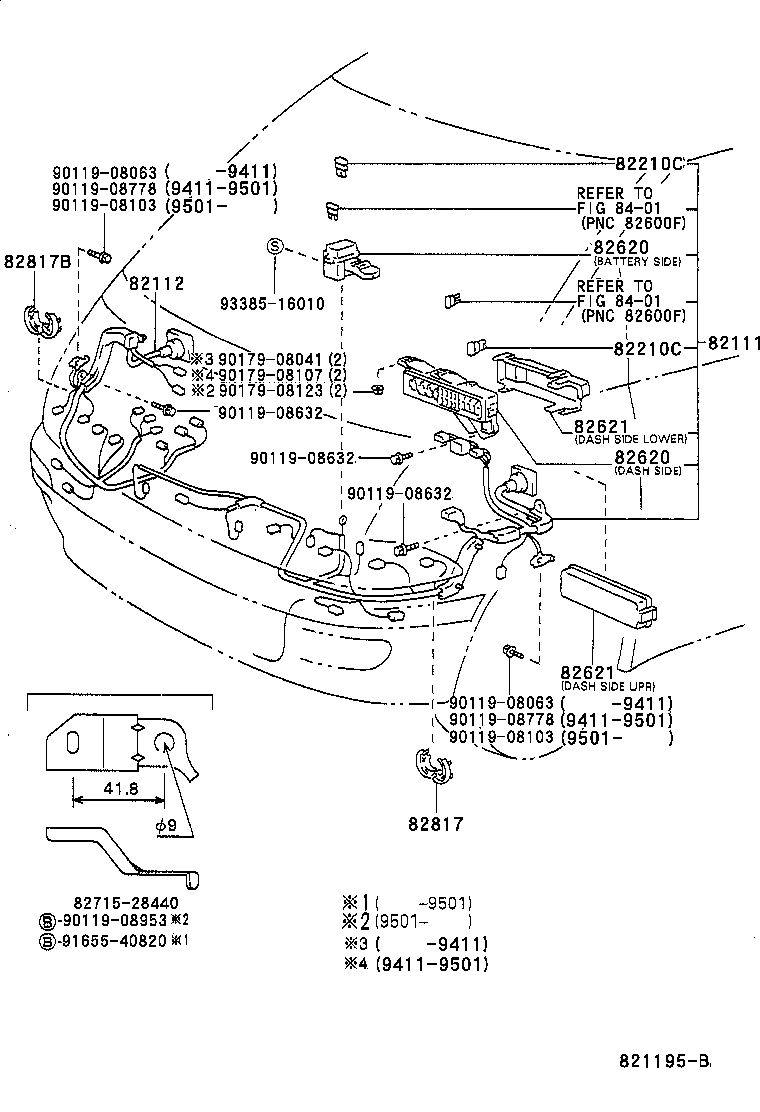

82620 Block Assy, Fusible Link
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82781 Wire, Auto Curtain, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82823A Cap, Terminal, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
