Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 3 illustrations

Illustrations

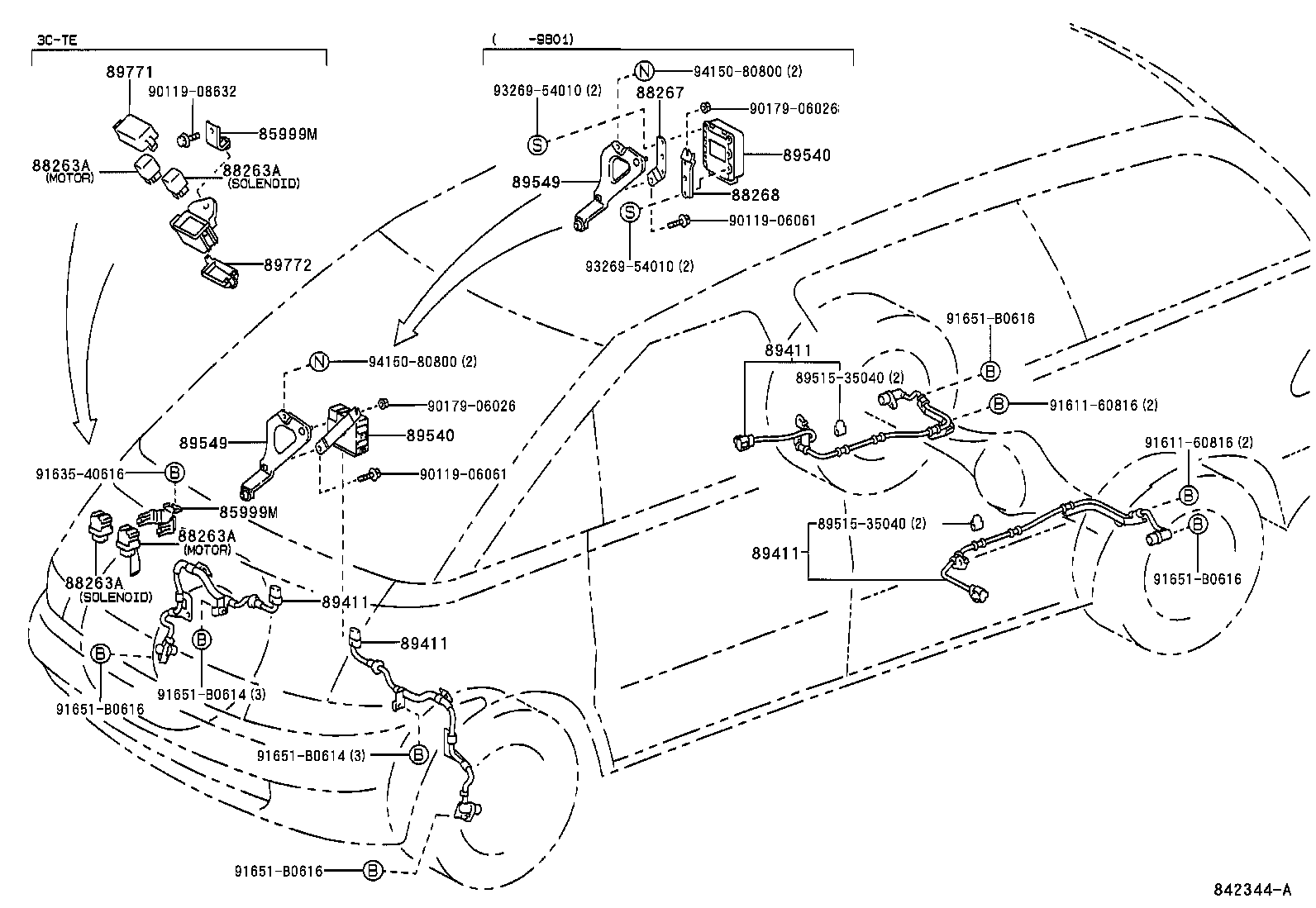

Figure 840663A 840663A 1992-01 → 1996-08 Figure 840664 840664 1992-01 → 1996-08 Figure 842344A 842344A 1996-08 → —

Part groups

PNCDescription
85999M Bracket, Relay
88263A Relay, Skid Control
88267 Bracket, Skid Control Computer, NO.1
88268 Bracket, Skid Control Computer, NO.2
89411 Sensor, Speed
89439B Bracket, Sensor
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
89771 Cover, Abs Relay Block, Upper
89772 Cover, Abs Relay Block, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
