Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

11 part groups · 2 illustrations

Illustrations

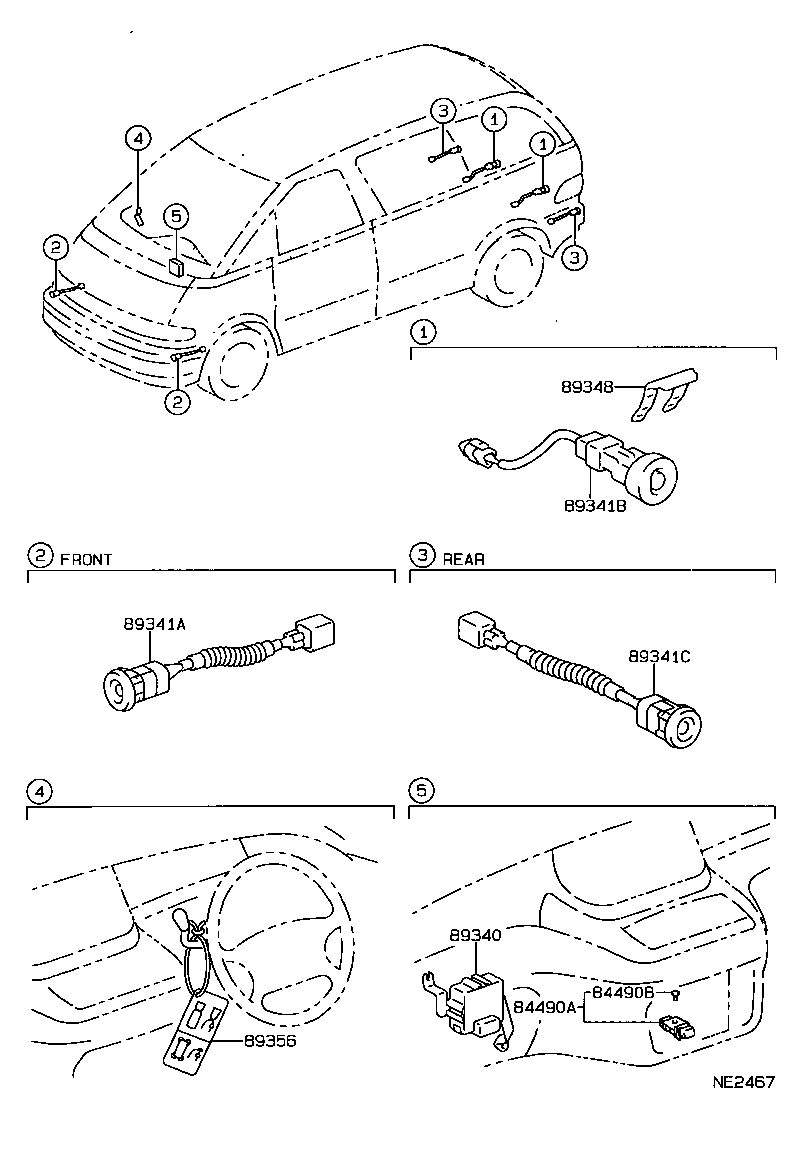

Figure MES871B MES871B 1992-01 → 1996-08 Figure NE2467 NE2467 1996-08 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
84490B Bulb(FOR BACK SONAR SWITCH)
89340 Computer Assy, Rear Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89356 Label, Clearance Warning Information
89358 Nut, Ultrasonic Sensor
89549B Bracket, Clearance Warning Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
