Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

13 part groups · 4 illustrations

Illustrations

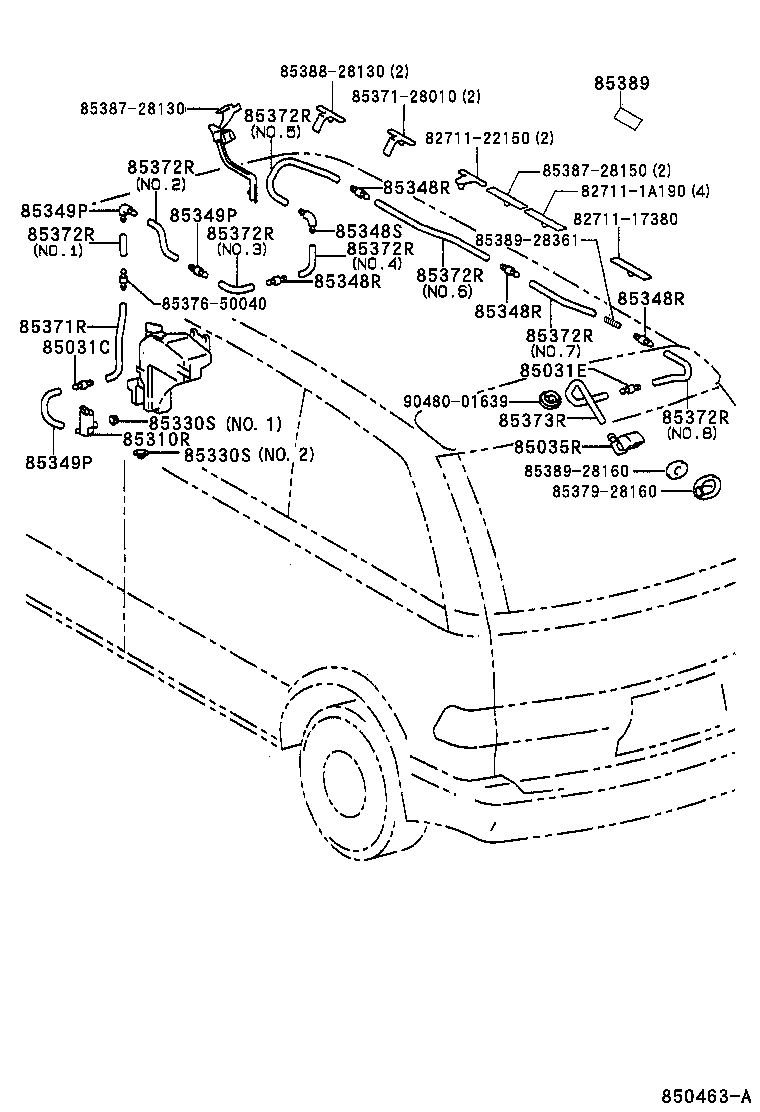

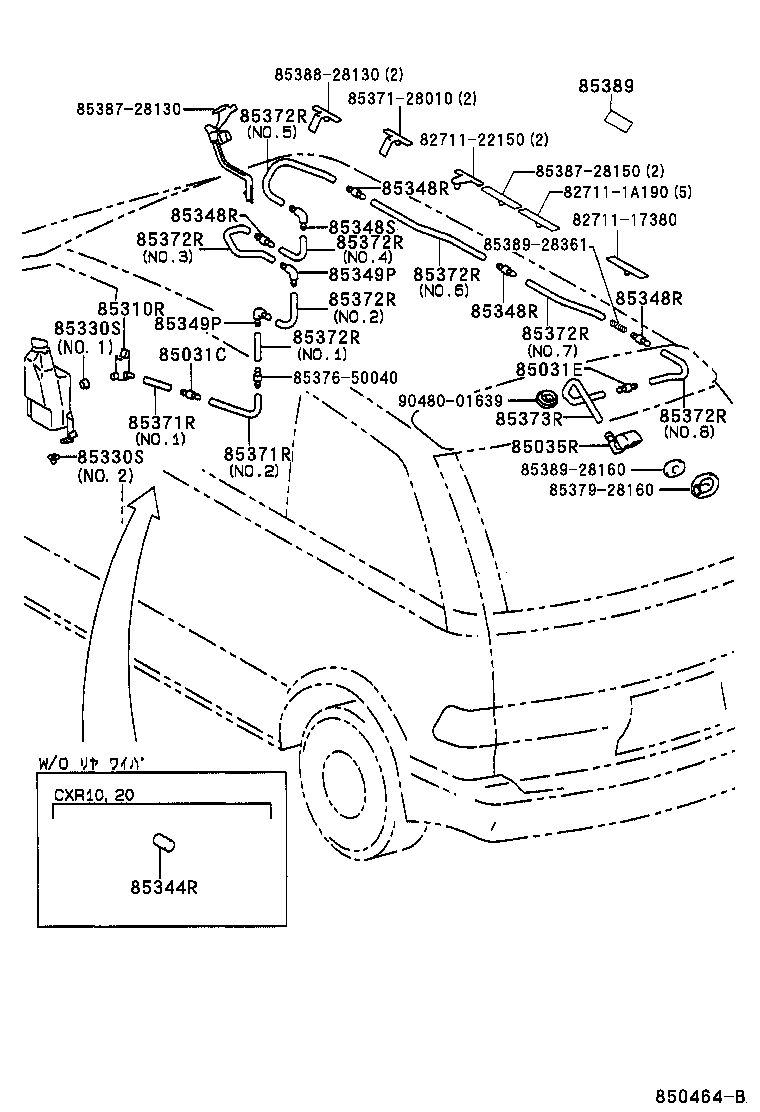

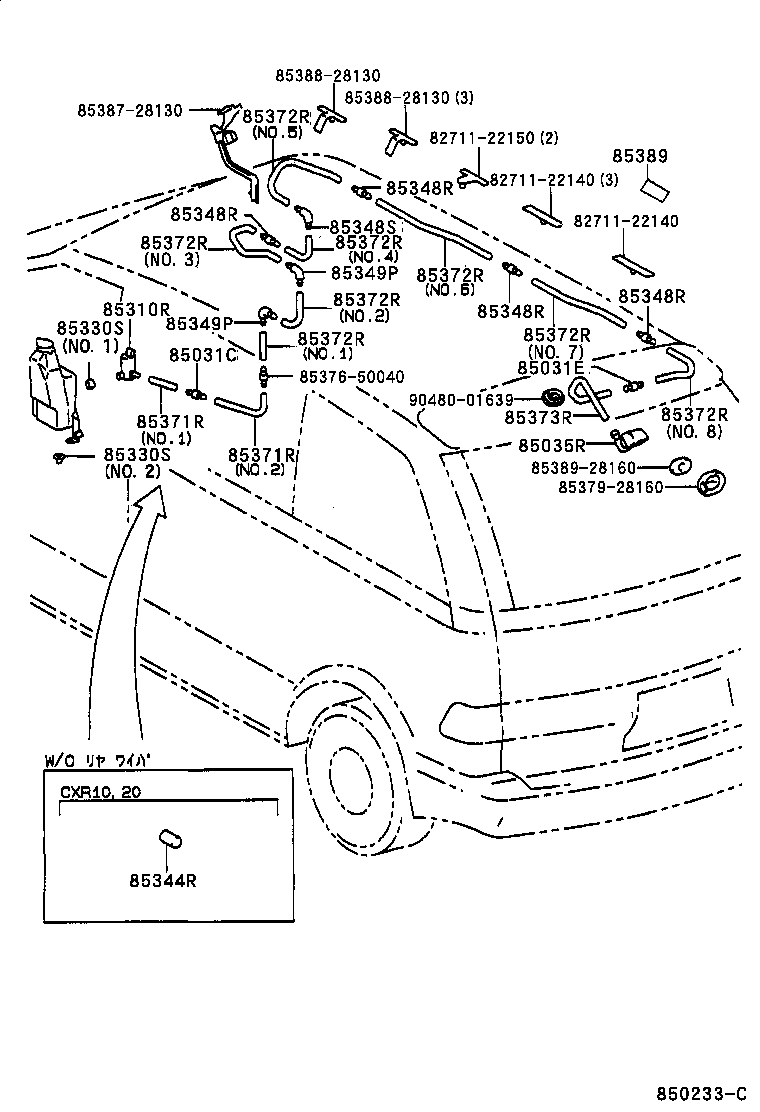

Figure 850232D 850232D 1992-01 → 1998-01 Figure 850233C 850233C 1992-01 → 1998-01 Figure 850463A 850463A 1998-01 → — Figure 850464B 850464B 1998-01 → —

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85031E Valve Sub-assy Rear Washer, NO.2
85035R Nozzle Sub-assy, Rear Washer
85310R Motor Assy, Rear Washer
85330S Bush, Rear Washer Jar
85344R Tube, Rear Washer Stop
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85349P Joint, Rear Washer Elbow, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85389 Packing, Windshield Washer Hose, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
