Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 3 illustrations

Illustrations

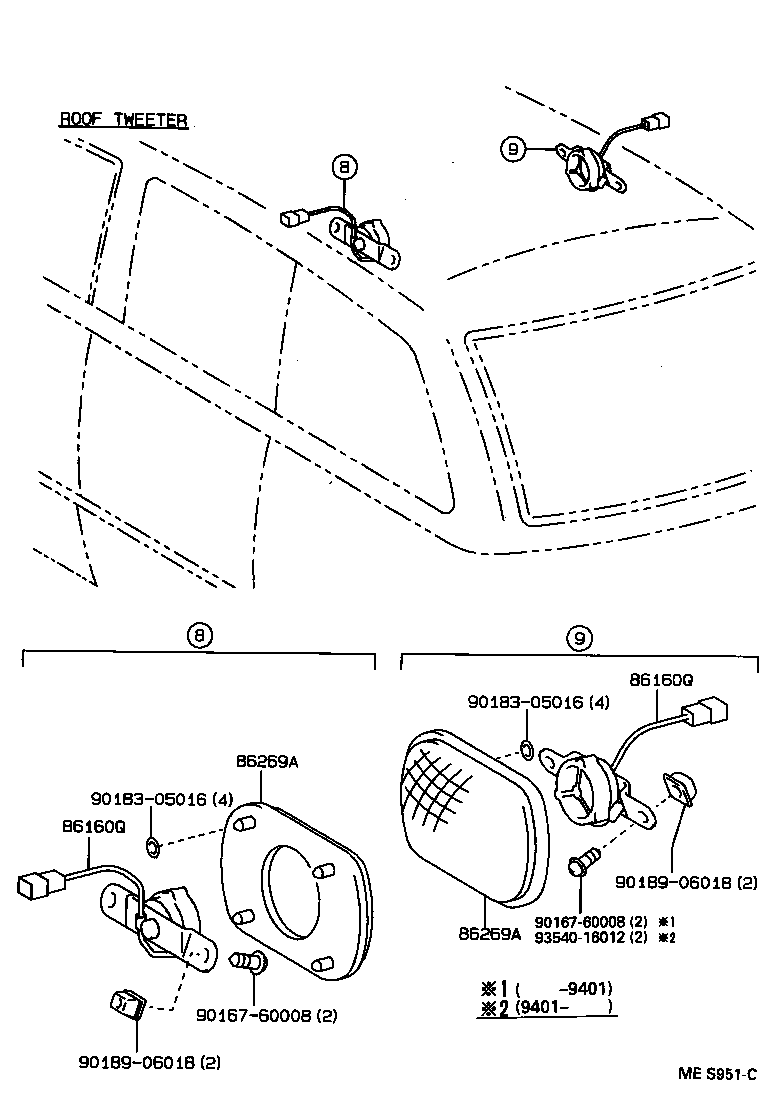

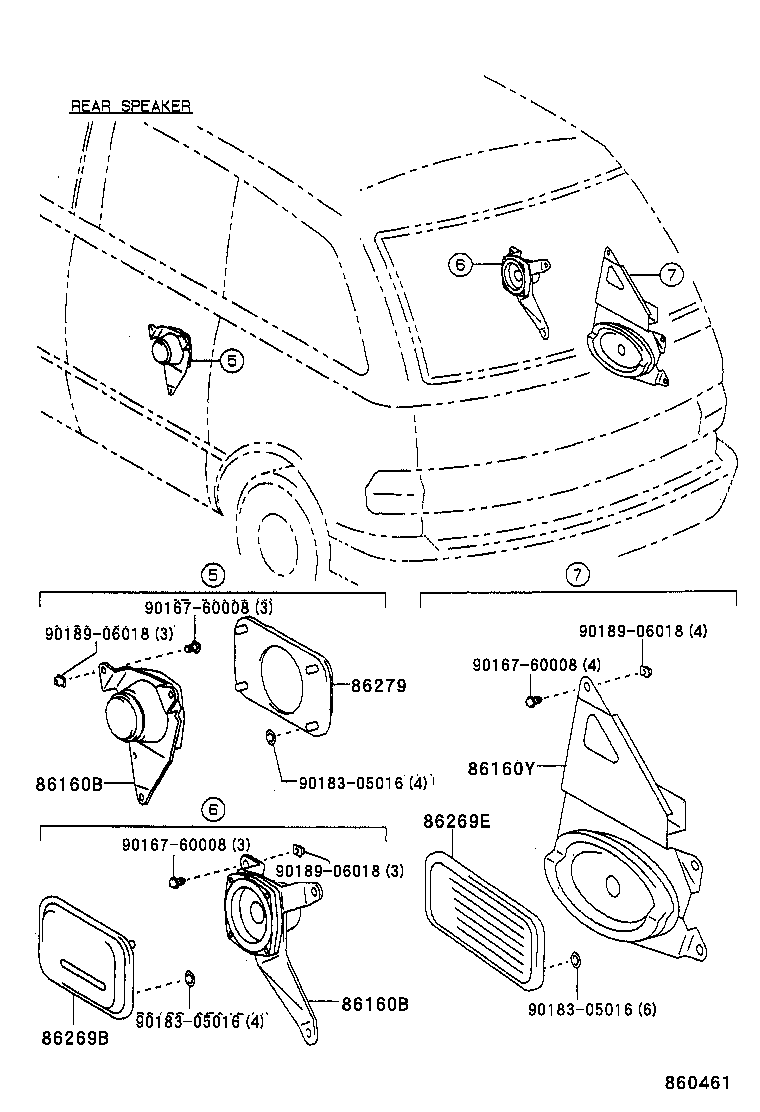

Figure 860460 860460 1992-01 → — Figure 860461 860461 1992-01 → — Figure MES951C MES951C 1992-01 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160Q Speaker Assy, Roof
86160Y Speaker Assy, Rear NO.2
86269A Grille, Speaker
86269B Grille, Speaker
86269E Grille, Speaker
86279 Grille, Speaker, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
