Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

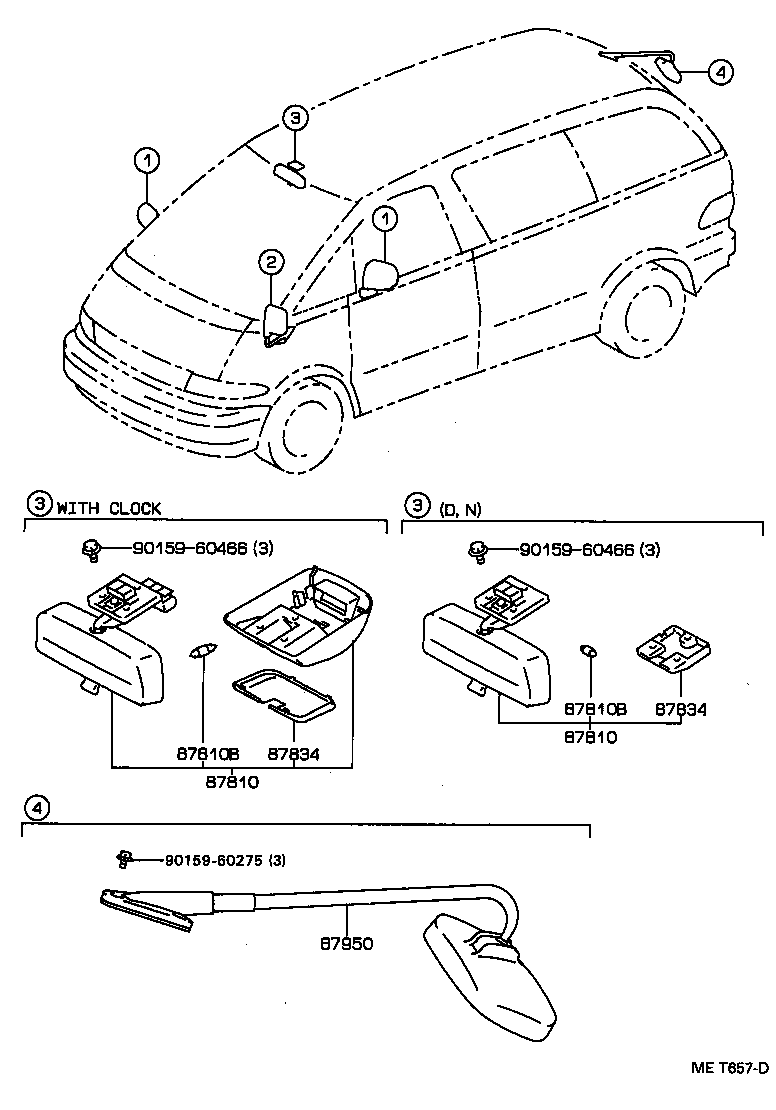

Figure 871614A 871614A 1992-01 → — Figure MET657D MET657D 1992-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87910F Mirror Assy, Fender, RH
87915 Cover, Outer Mirror, RH
87917B Mirror, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
87940F Mirror Assy, Fender, LH
87945 Cover, Outer Mirror, LH
87947B Mirror, Outer Rear View, LH
87950 Mirror Assy, Outer Under Rear View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
