Toyota Estima Emina/Lucida
1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan
Discontinued model
Data version 2000-07

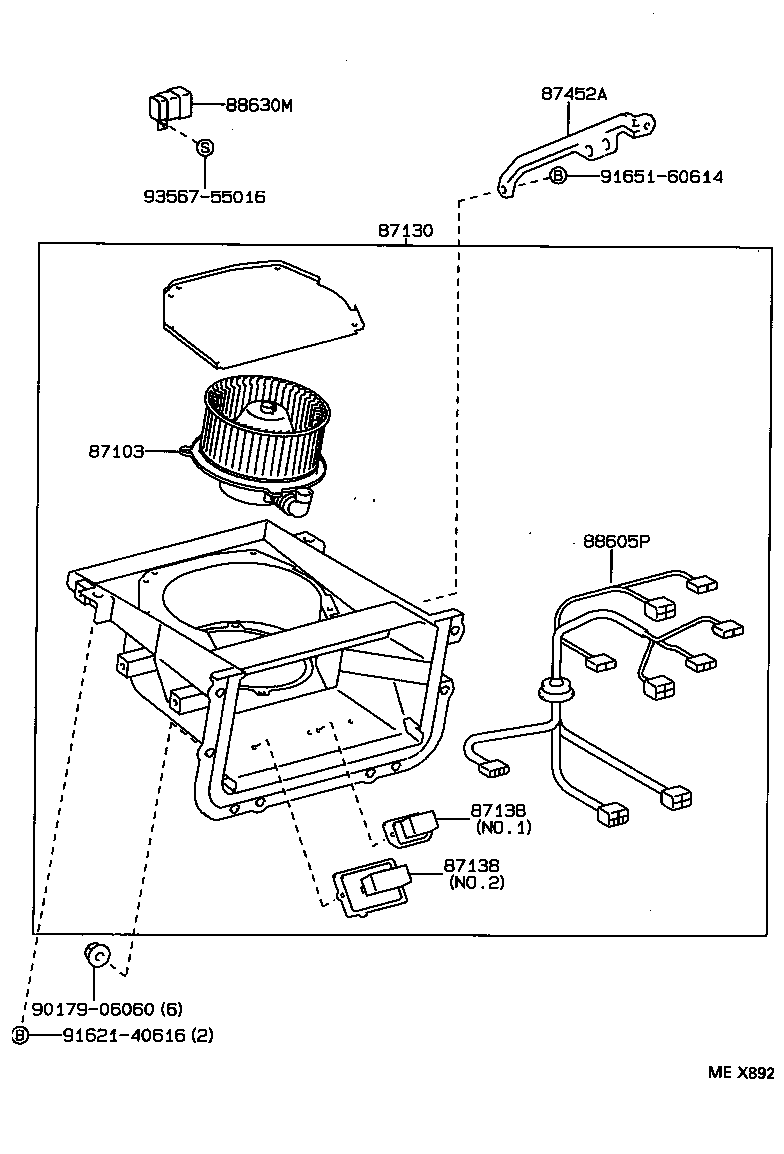

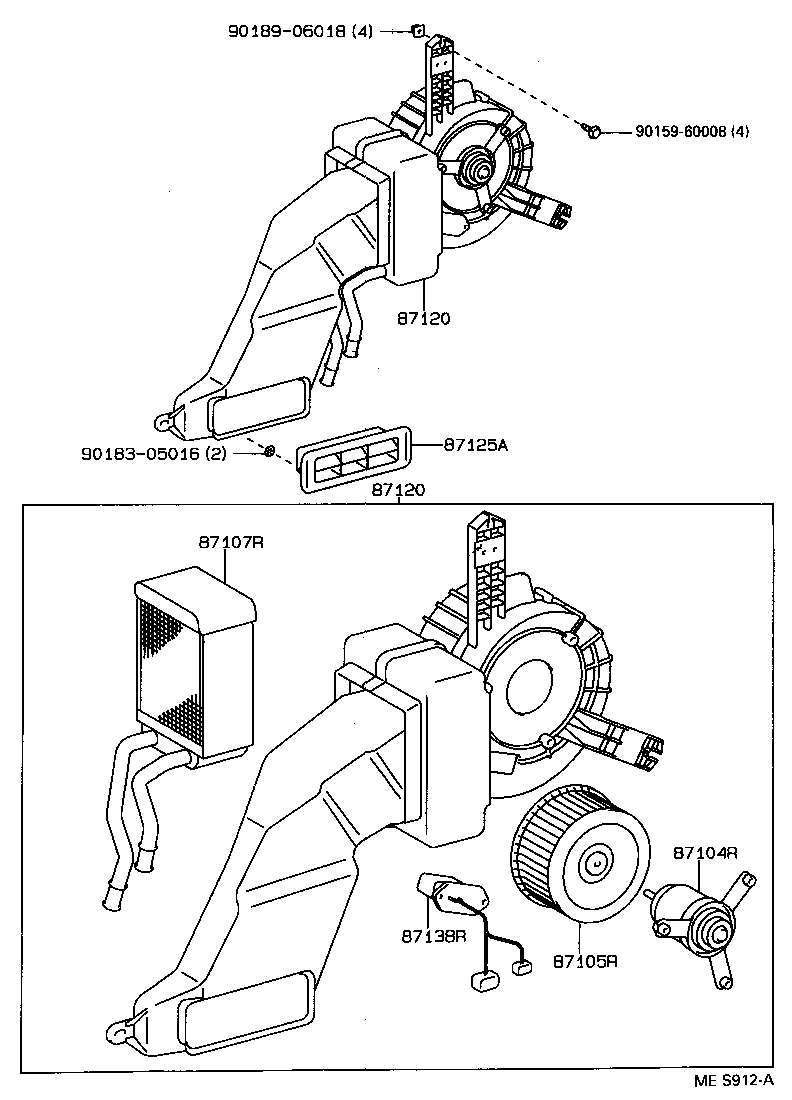

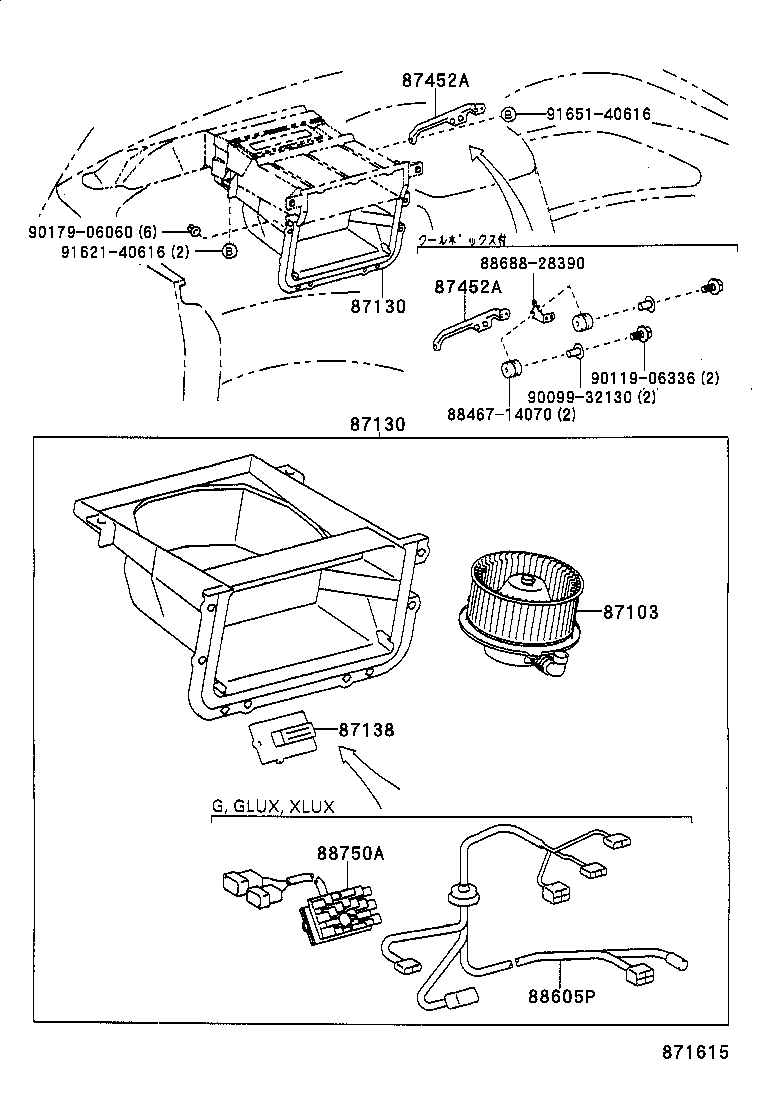

Heating & Air Conditioning - Heater Unit & Blower
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87114 | Cover, Heater |
| 87120 | Heater Assy, Rear |
| 87125A | Grille, Air Outlet |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87452A | Bracket, Heater, Front |
| 88326B | Plate, Cover |
| 88605P | Harness Sub-assy, Air Conditioner Wiring |
| 88630M | Relay Assy, Cooler |
| 88750A | Transistor Assy, Blower Resistor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
