Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07

Heating & Air Conditioning - Control & Air Duct

40 part groups · 6 illustrations

PNC	Description

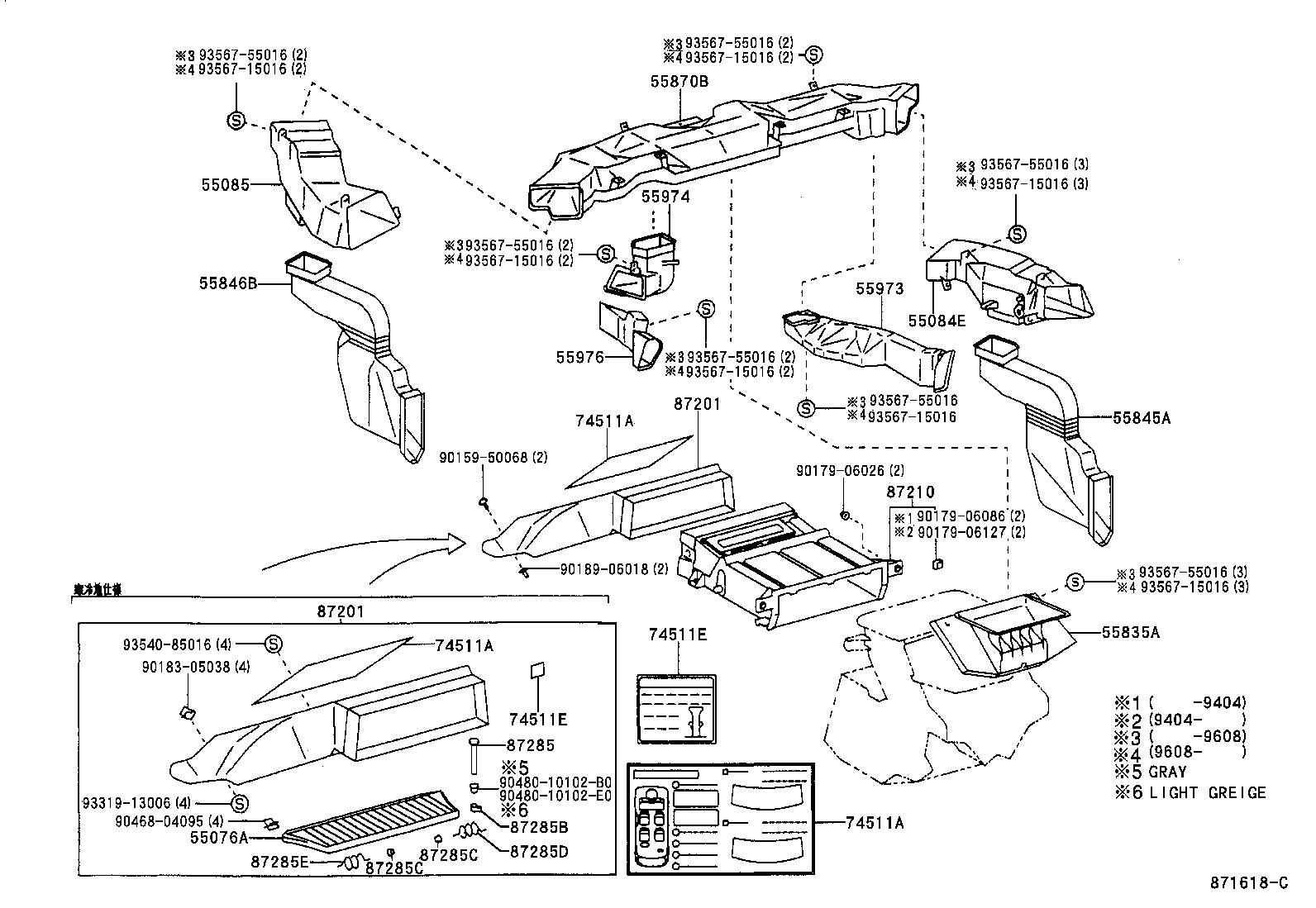

55076A	Net Sub-assy, Air Duct
55084E	Duct Sub-assy, Heater TO Register, NO.1
55085	Duct Sub-assy, Heater TO Register, NO.2
55519	Plate, Heater Control Name
55519R	Plate, Heater Control Name
55835A	Duct, Heater TO Register, Center
55845A	Duct, Heater TO Register, NO.3
55846B	Duct, Heater TO Register, NO.4
55870B	Duct Assy, Heater TO Register

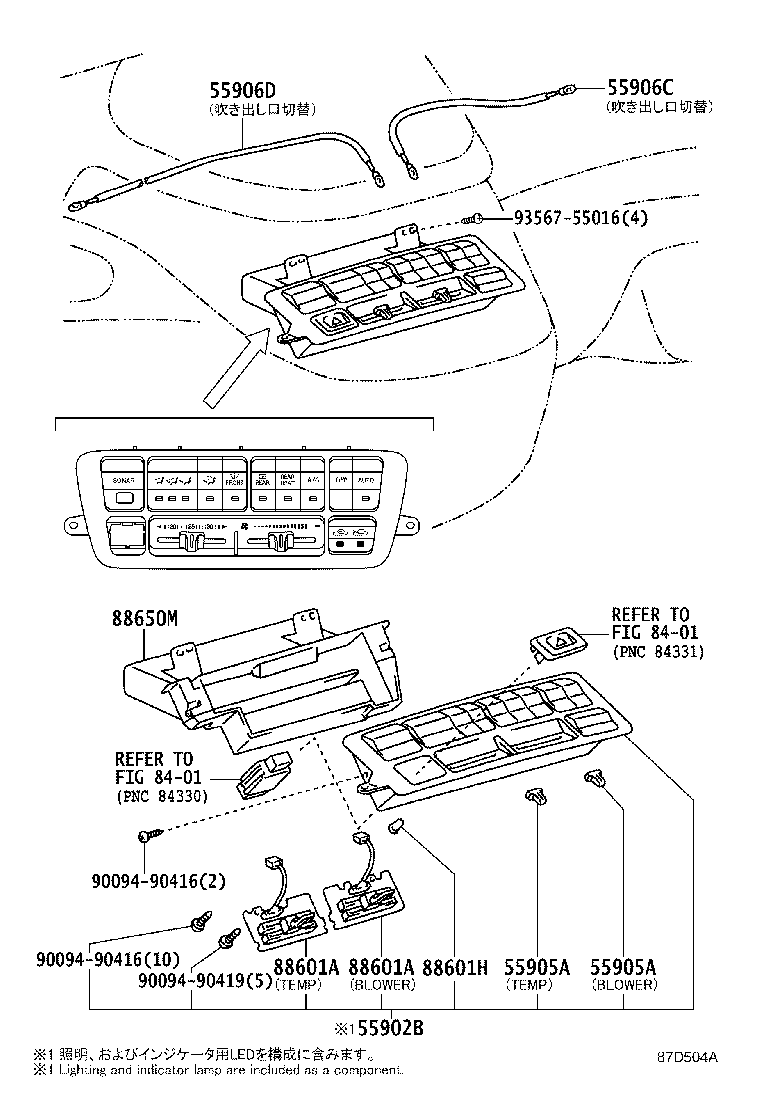

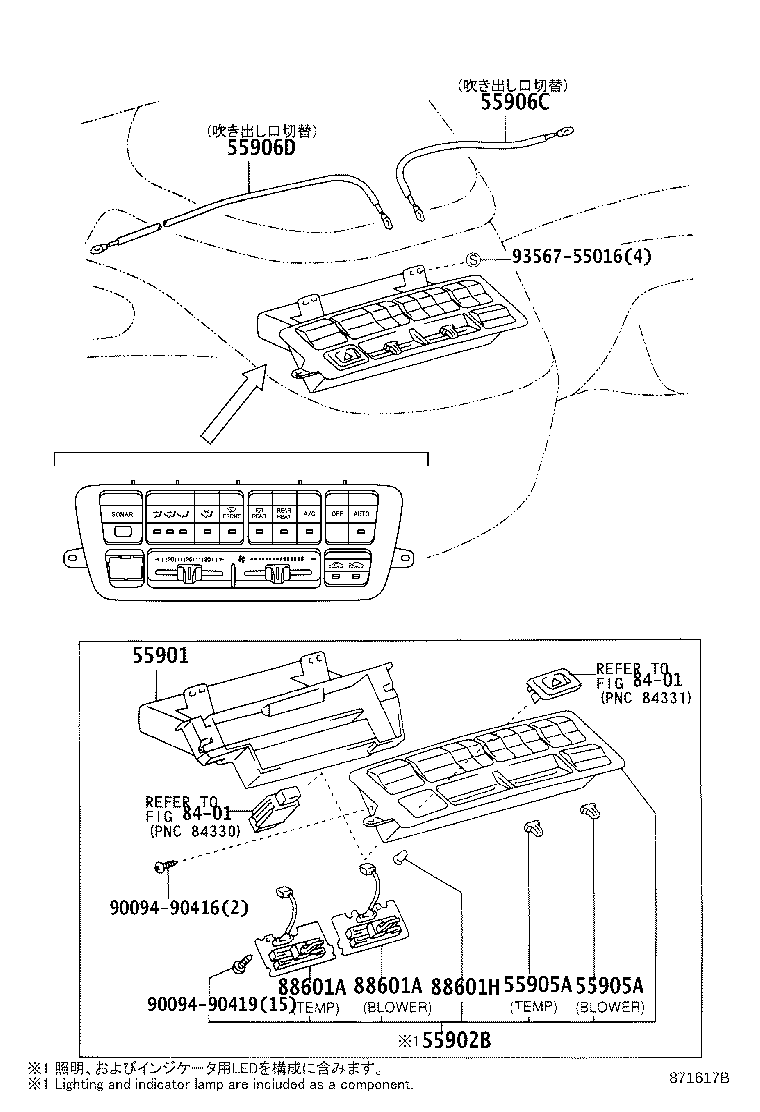

55901	Base Sub-assy, Heater Control
55902B	Control Sub-assy, Heater
55905A	Knob, Heater Control
55905B	Knob, Heater Control, NO.2
55906	Cable Sub-assy, Heater Control
55906C	Cable Sub-assy, Heater Control, NO.1
55906D	Cable Sub-assy, Heater Control, NO.2
55907A	Cable Sub-assy, Water Valve Control
55907R	Cable Sub-assy, Temperature Control
55908A	Cable Sub-assy, Air Inlet Damper Control
55909A	Cable Sub-assy, Airmix Damper Control
55910	Control Assy, Heater OR Boost Ventilator
55910R	Control Assy, Heater
55973	Duct, Side Defroster Nozzle, NO.3
55974	Duct, Side Defroster Nozzle, NO.4
55976	Duct, Side Defroster Nozzle, NO.6
74511A	Plate, Name
74511E	Plate, Heater Name, NO.2
87201	Duct Sub-assy, Air, NO.1
87210	Damper Assy, Air
87285	Knob, Heater Air Damper Control
87285B	Snap, Heater Air Damper Control
87285C	Bush (FOR HEATER AIR DAMPER CONTROL)
87285D	Spring, Torsion, NO.1(FOR HEATER AIR DAMPER CONTROL)
87285E	Spring, Torsion, NO.2(FOR HEATER AIR DAMPER CONTROL)
88601A	Switch Sub-assy, Cooler Control
88601H	Bulb, Indicator Lamp
88610C	Switch Assy, Cooler Control

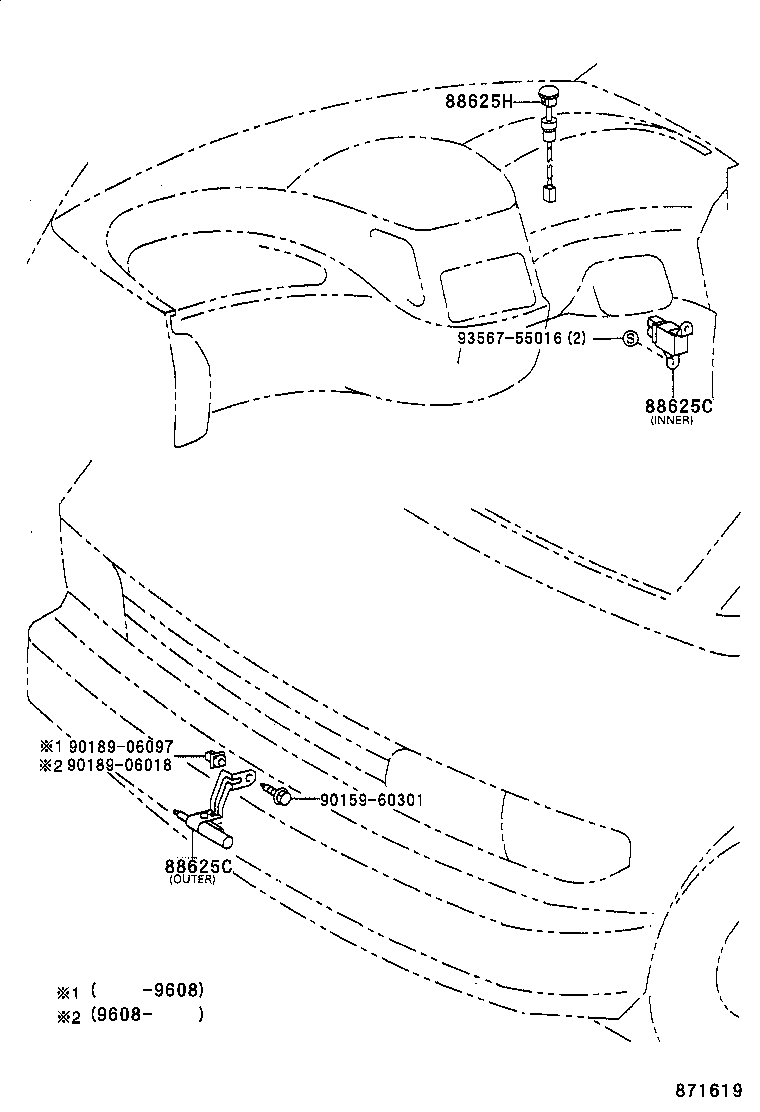

88625C	Thermistor, Cooler
88625H	Thermistor, Cooler (SOLAR SENSOR)
88650M	Computer Assy, Air Conditioner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
