Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

35 part groups · 4 illustrations

Illustrations

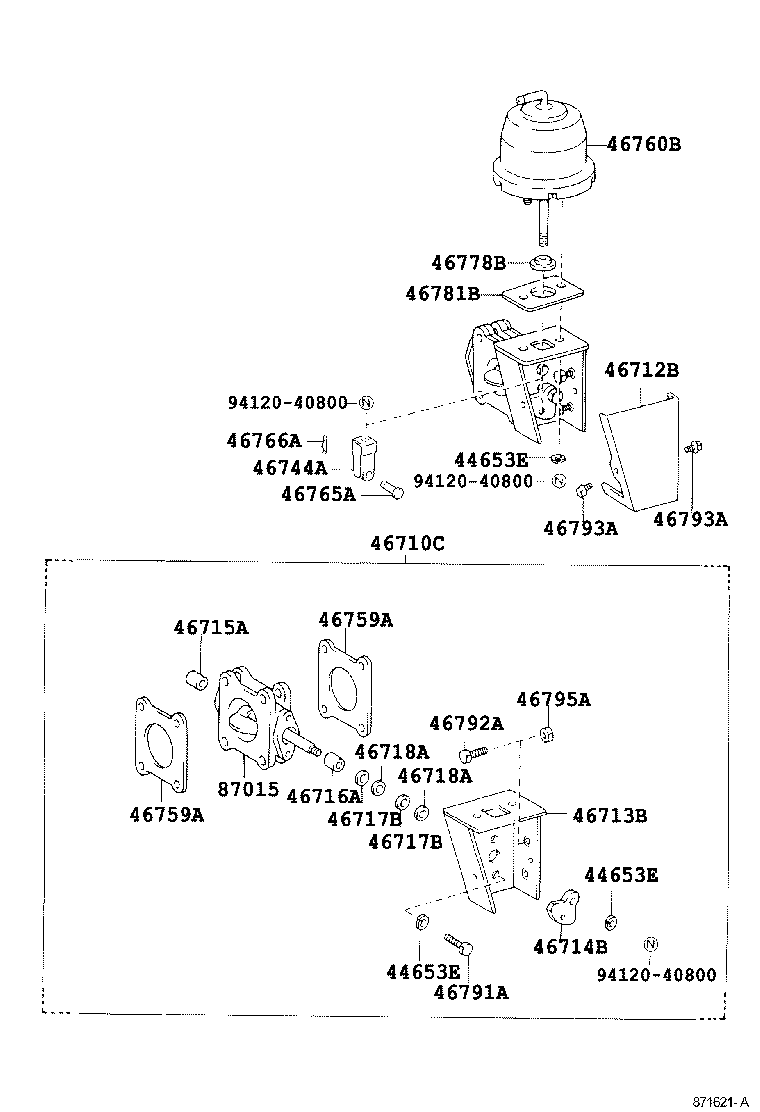

Figure MES931E MES931E 1992-01 → — Figure 871621A 871621A 1992-01 → — Figure MES932A MES932A 1992-01 → — Figure MES933A MES933A 1992-01 → 1996-08

Part groups

PNCDescription
44653E Washer, Heater Vacuum Diaphragm
46710C Valve Assy, Heater Vacuum Diaphragm
46712B Cover, Heater Vacuum Diaphragm
46713B Bracket, Heater Vacuum Diaphragm
46714B Lever, Heater Vacuum Diaphragm
46715A Bush, Heater Vacuum Diaphragm N
46716A Bush, Heater Vacuum Diaphragm N
46717B Ring, Heater Vacuum Diaphragm S
46718A Ring, Heater Vacuum Diaphragm
46744A Clevis, Heater Vacuum Diaphrgm
46759A Gasket, Heatea Vacuum Diaphragm
46760B Cylinder Assy, Heater Vacuum Diaphragm
46765A Pin, Heater Vacuum Diaphragm, NO.1
46766A Pin, Heater Vacuum Diaphragm, NO.2
46778B Bearing, Heater Vacuum Diaphragm
46781B Insulator, Heater Vacuum Diaphragm
46791A Bolt, Heater Vacuum Diaphragm, NO.1
46792A Bolt, Heater Vacuum Diaphragm, NO.2
46793A Screw, Heater Vacuum Diaphram
46795A Nut, Heater Vacuum Diaphragm
87015 Valve Sub-assy, Vacuum
87270 Pipe Assy, Vacuum
87271 Hose, Heater Vacuum
87273 Bracket, Heater Vacuum Tube
87293G Connector, Vacuum
88031 Actuator Set, Idle-up
88606B Diaphragm Sub-assy, Cooler
88689A Hose, Cooler Vacuum NO.1
88689B Hose, Cooler Vacuum NO.2
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691E Hose, Vacuum (FOR IDLE UP DIVICE), NO.3
88691F Hose, Vacuum (FOR IDLE UP DIVICE), NO.4
88691U Way(FOR VACUUM HOSE)
