Toyota Estima Emina/Lucida

1992-01 → 1999-12 · chassis CXR1#,2#,TCR1#,2# · catalogue 653140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

38 part groups · 18 illustrations

Illustrations

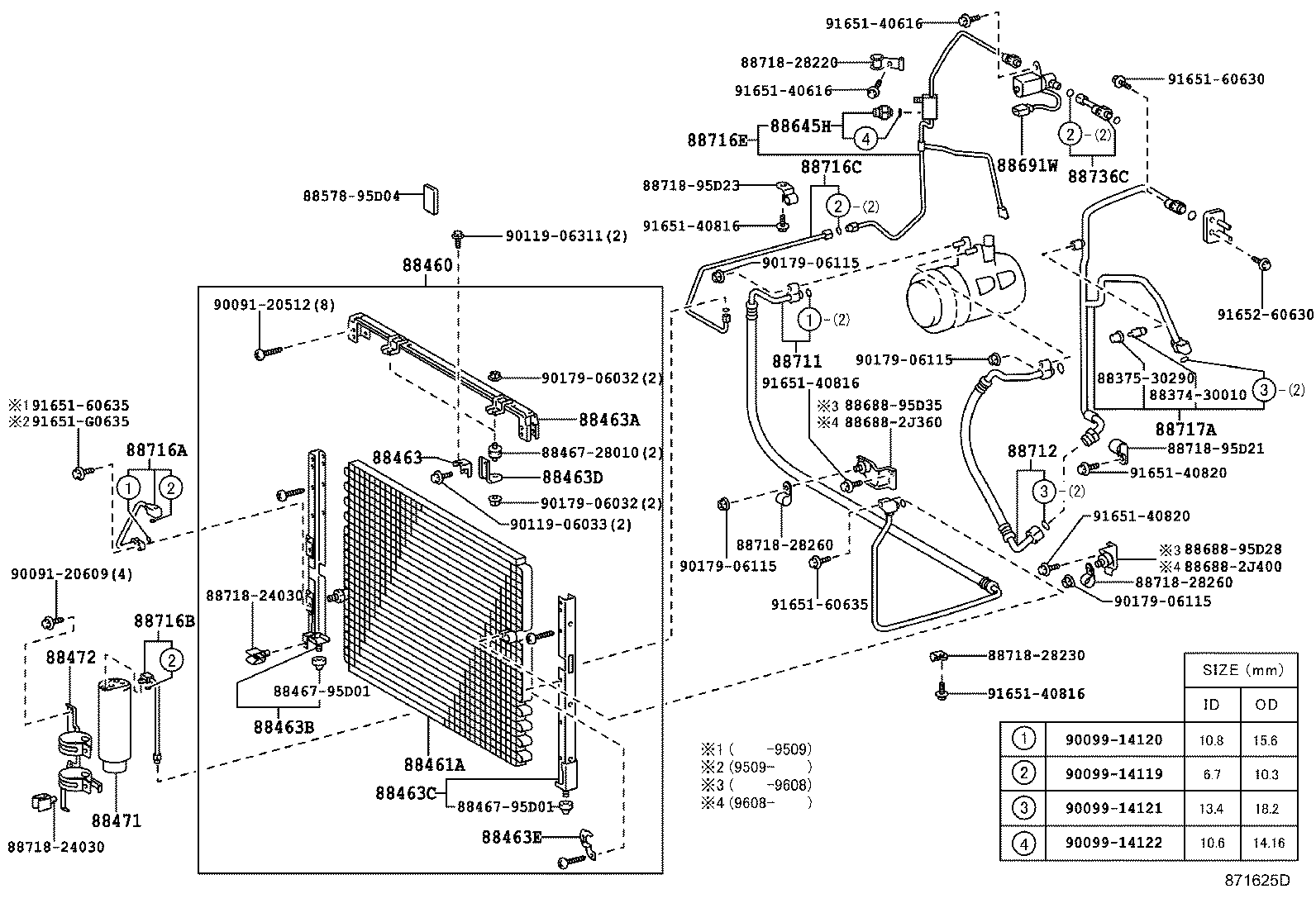

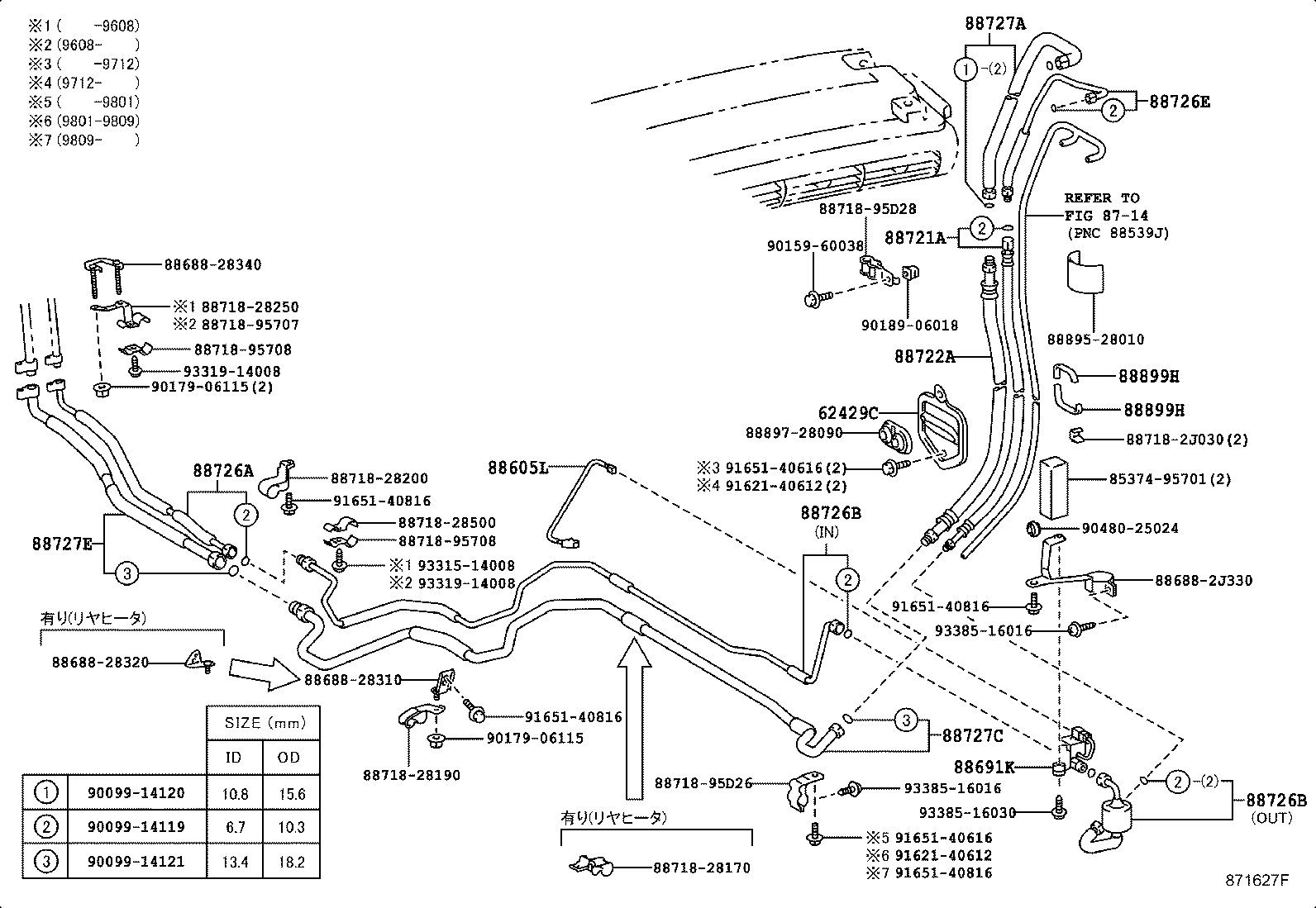

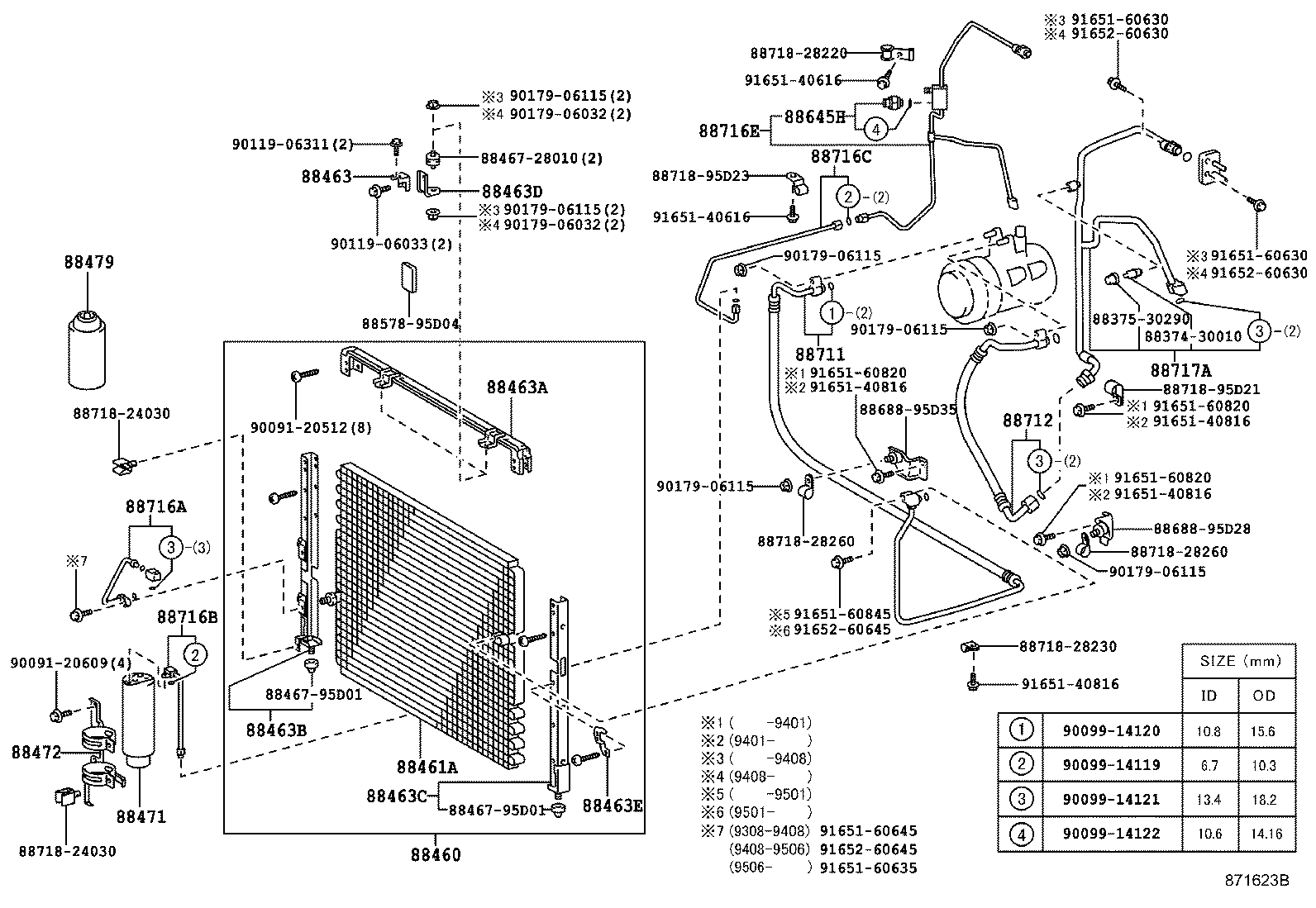

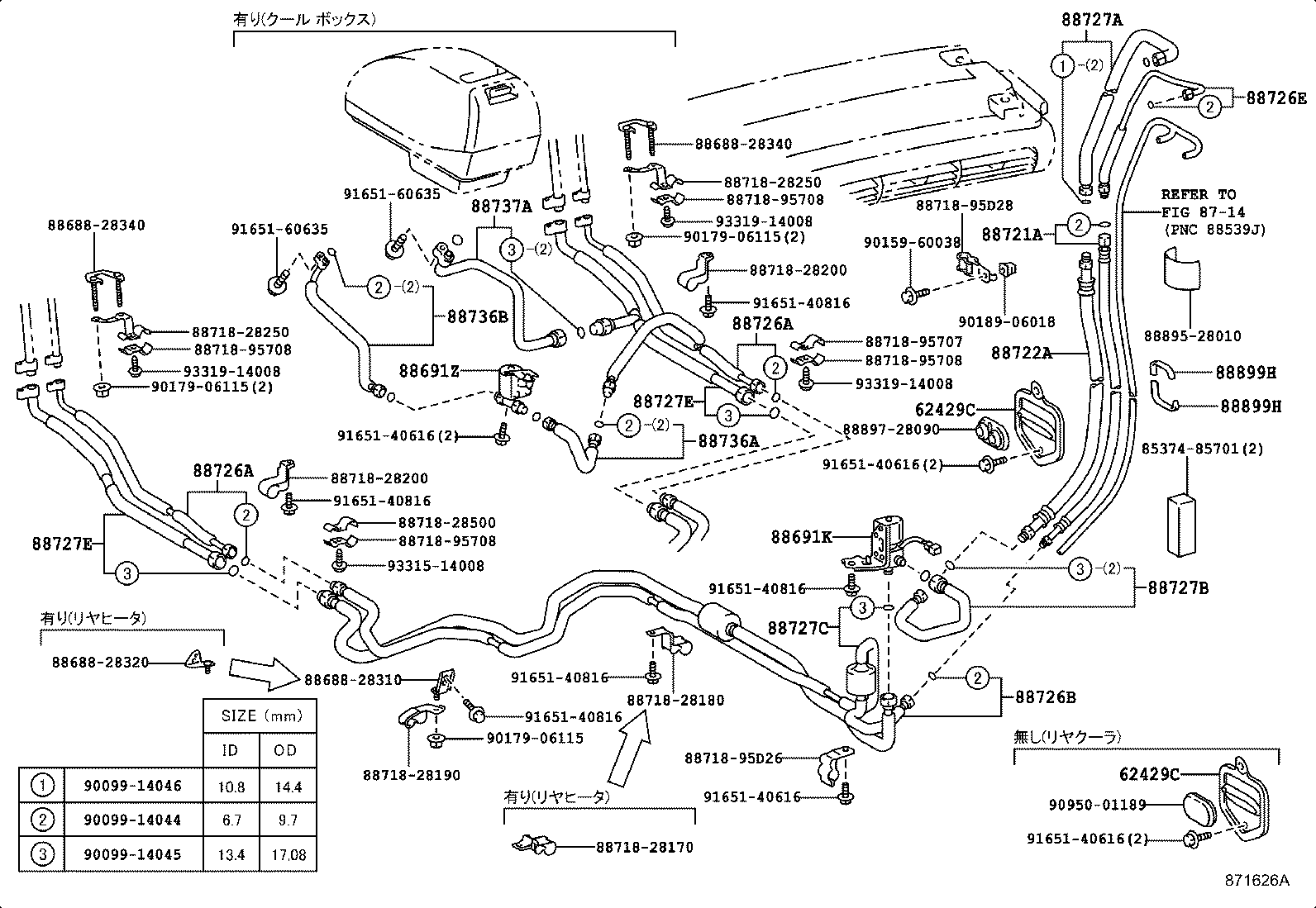

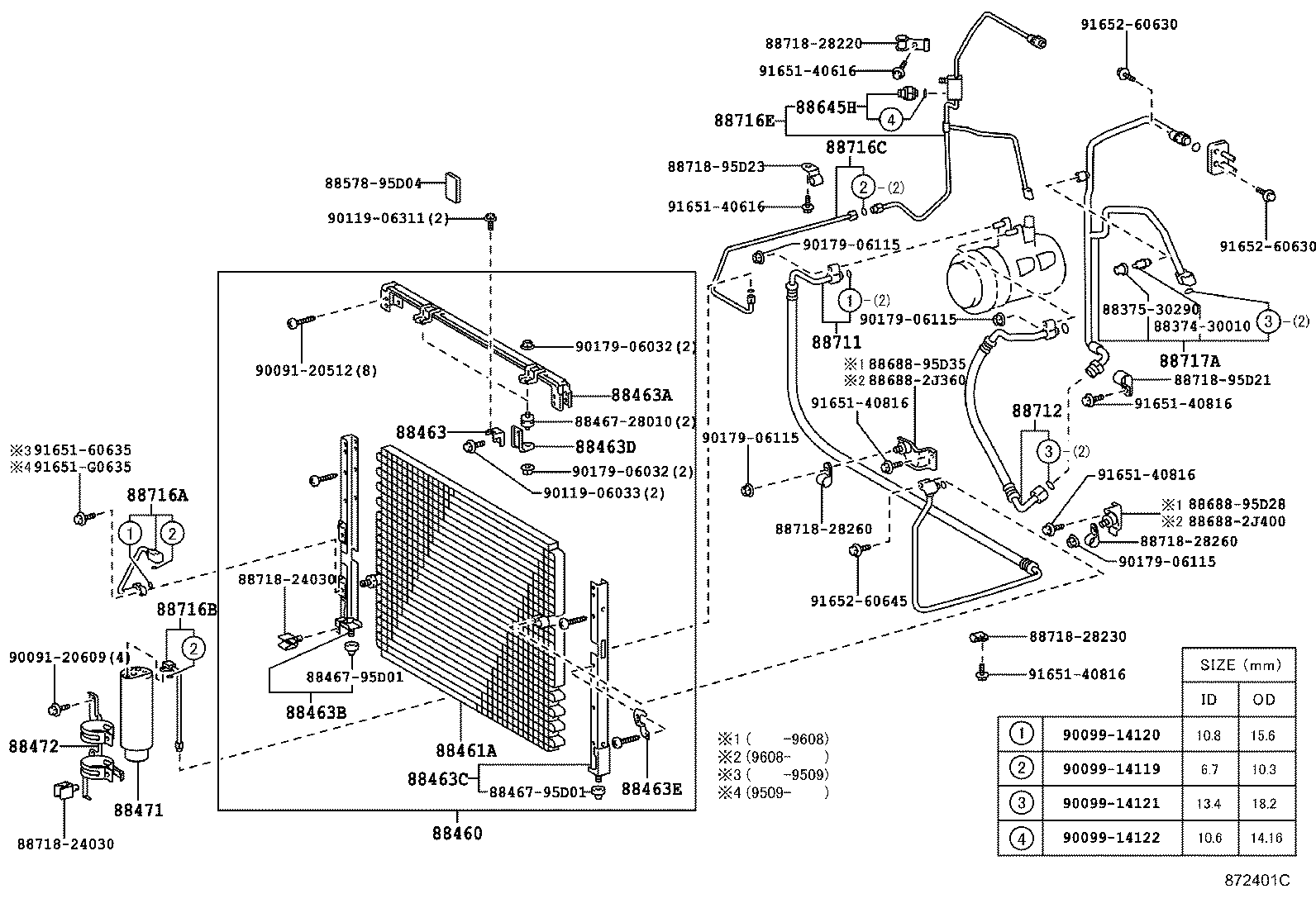

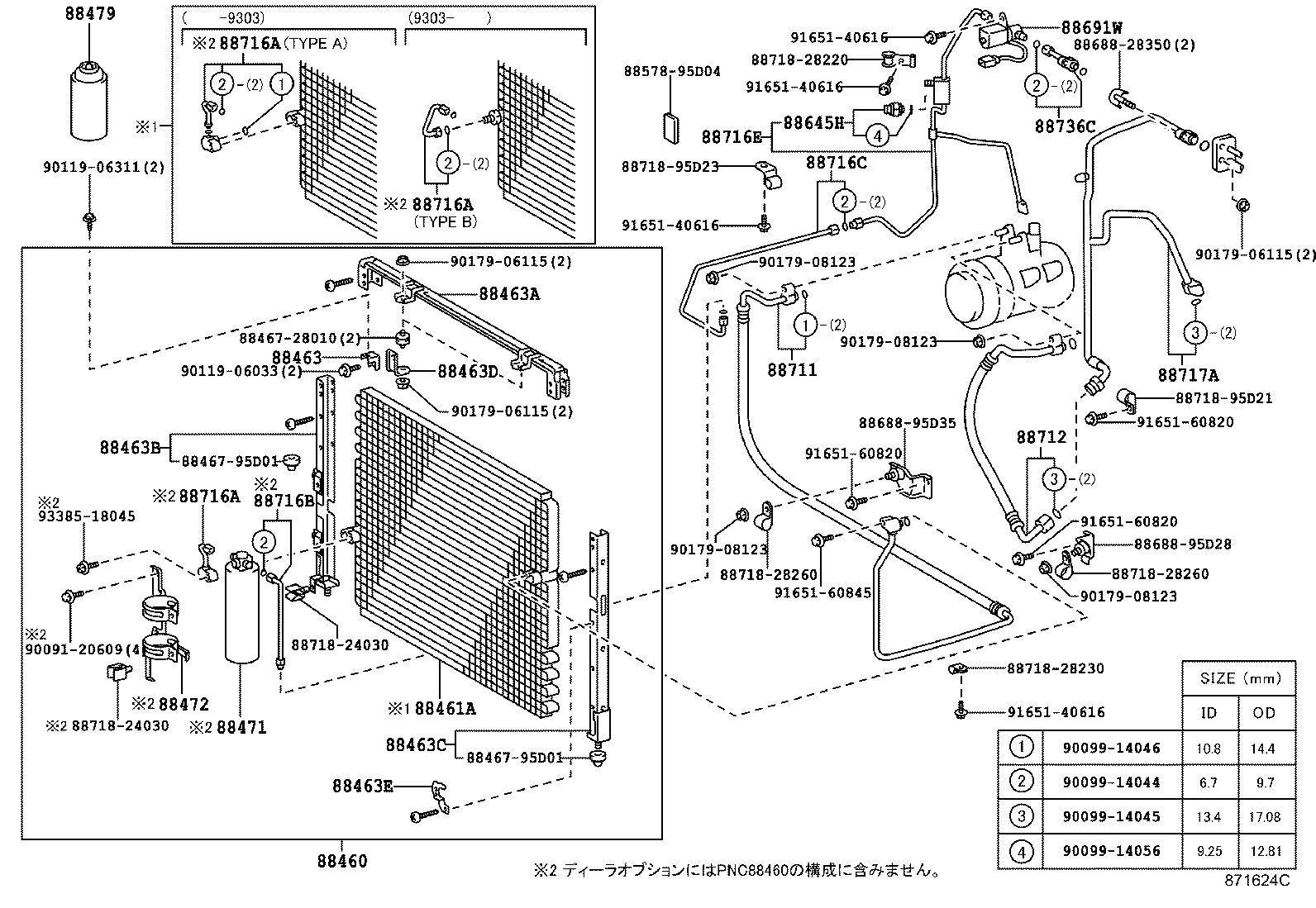

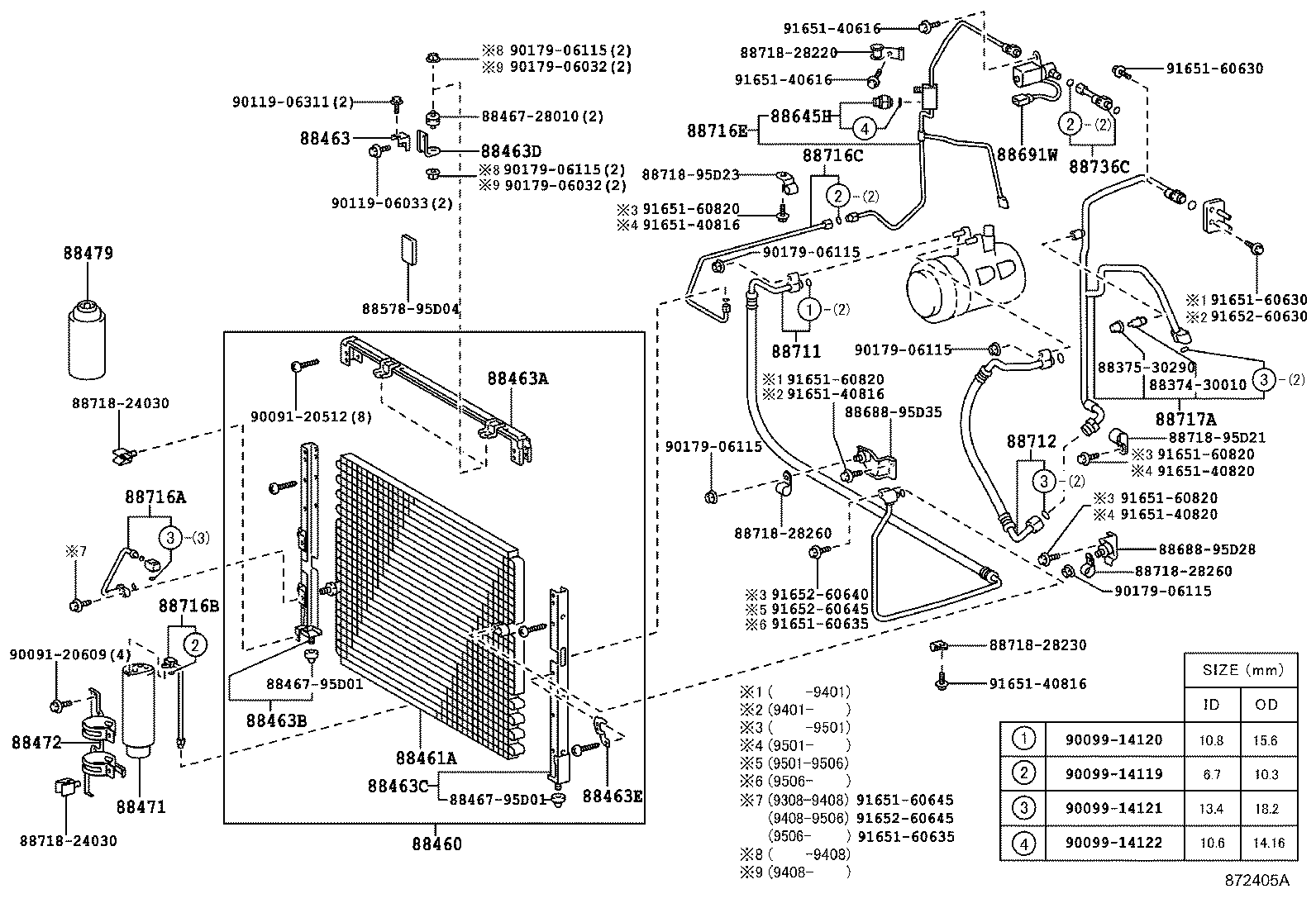

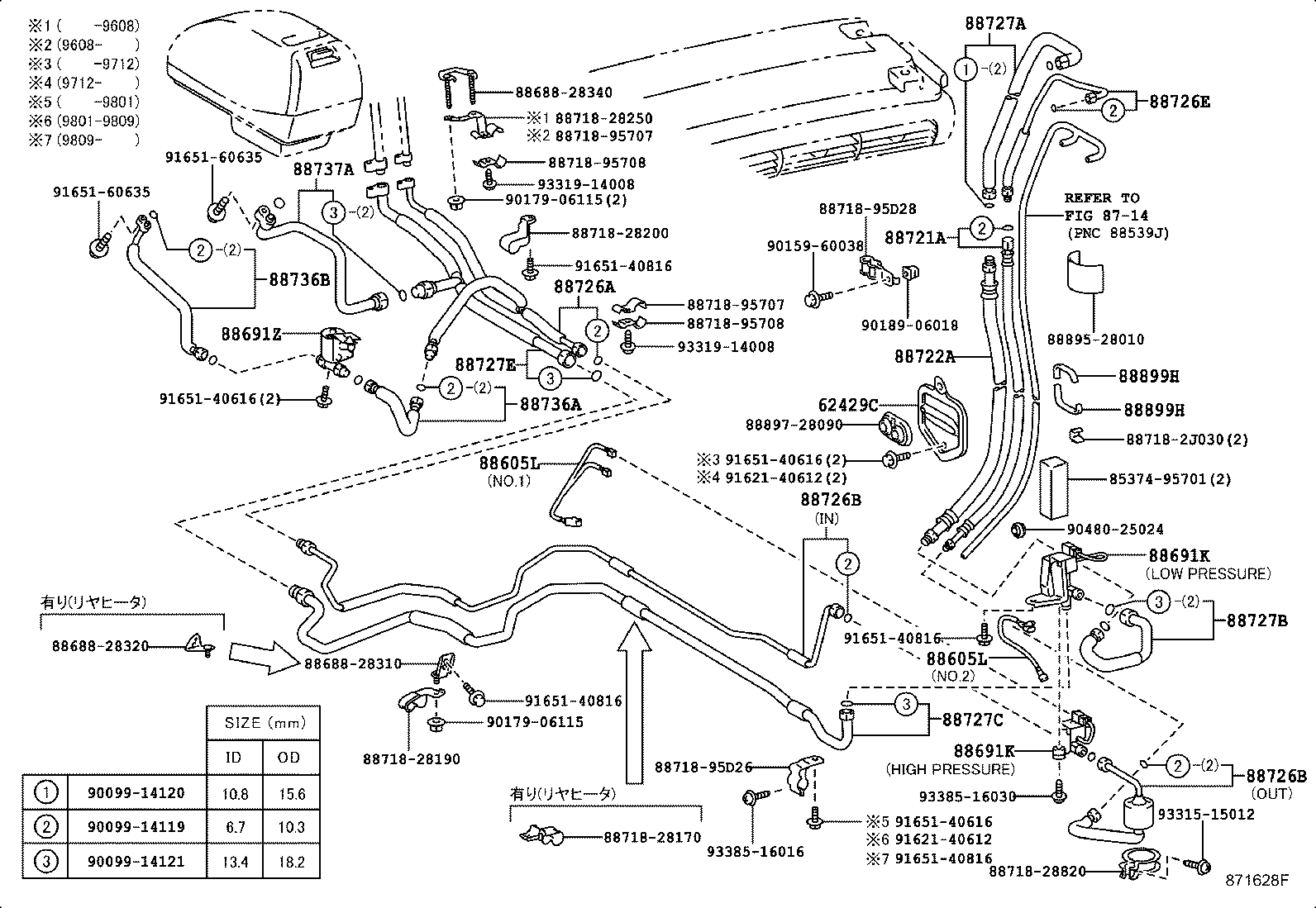

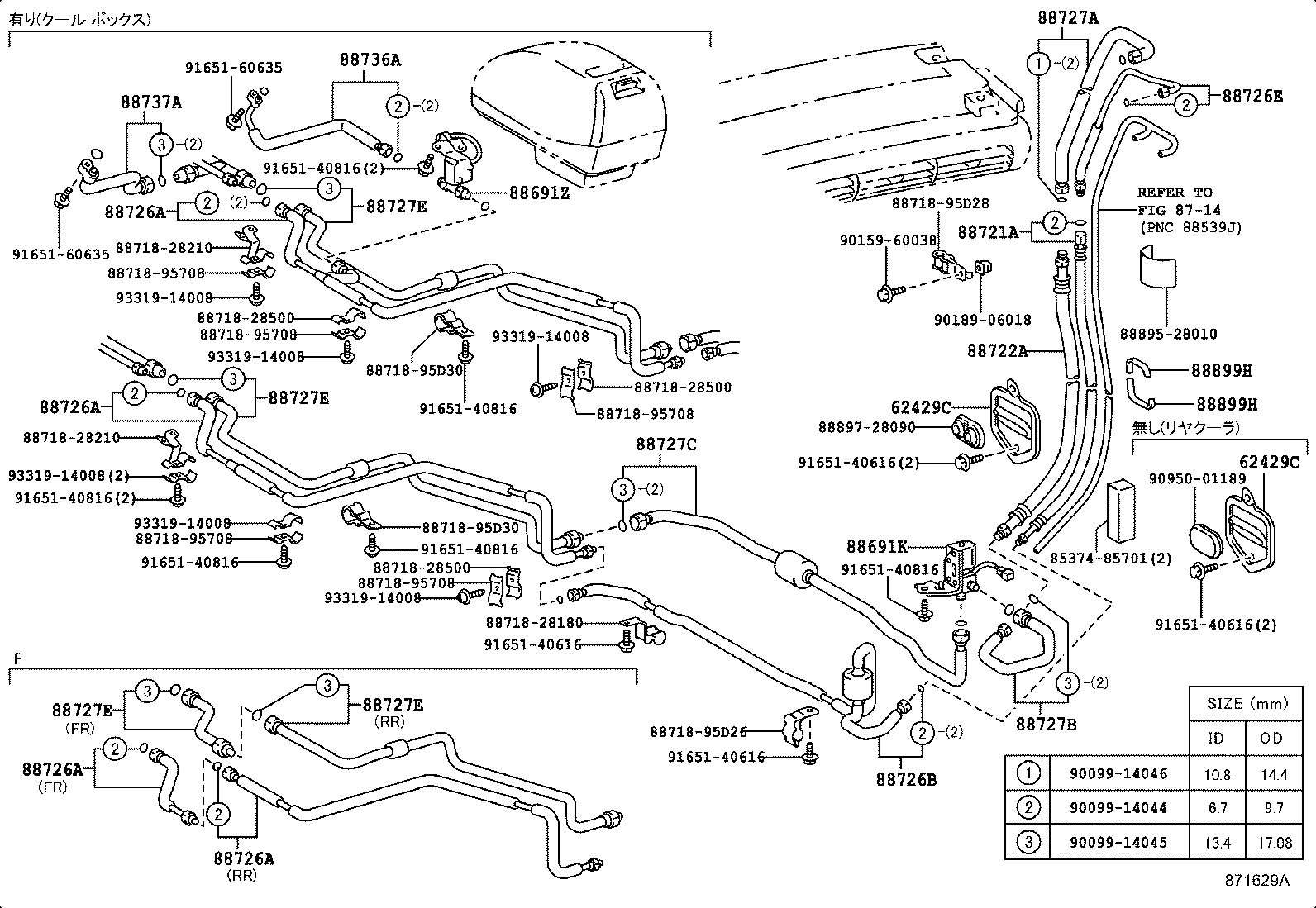

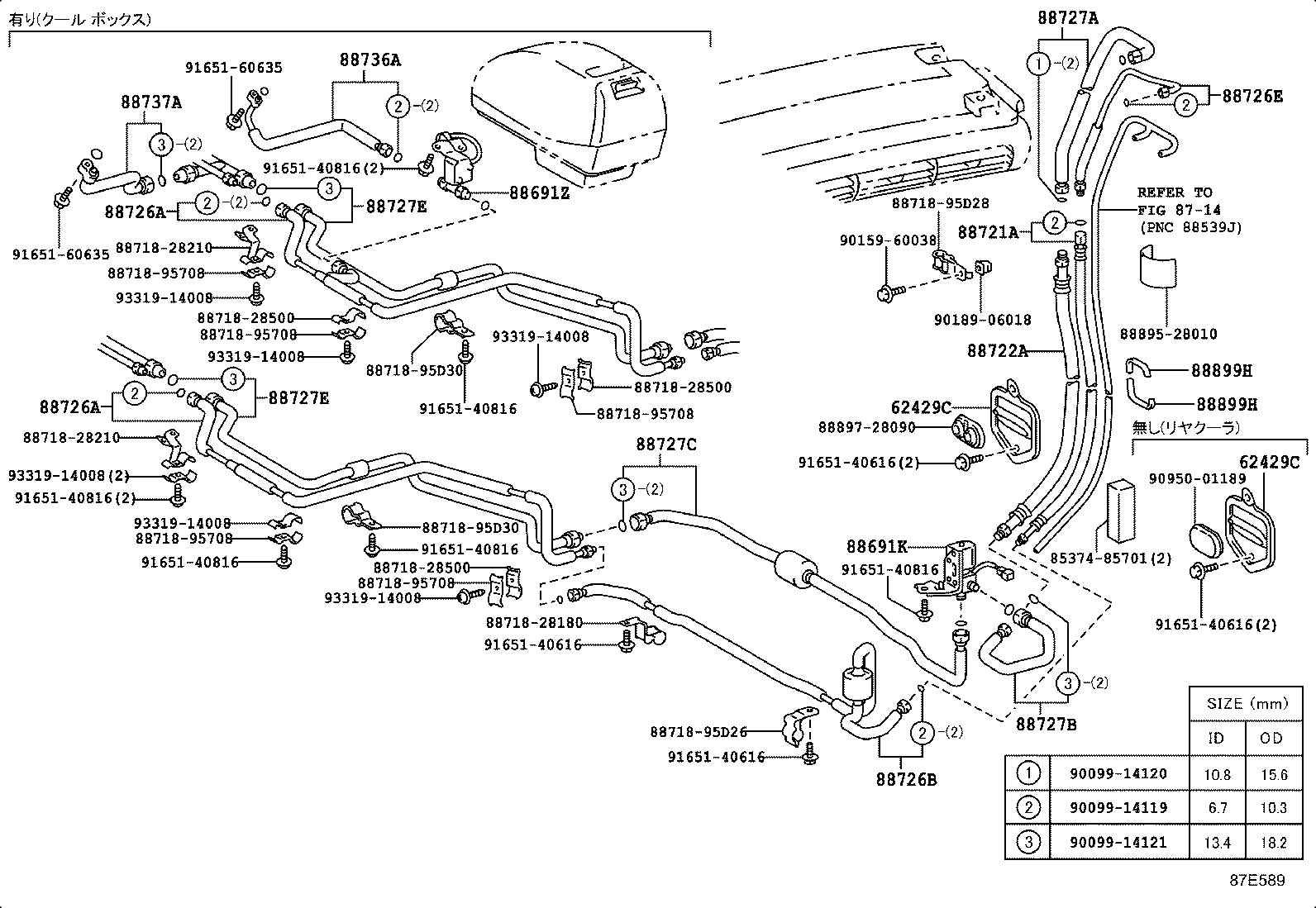

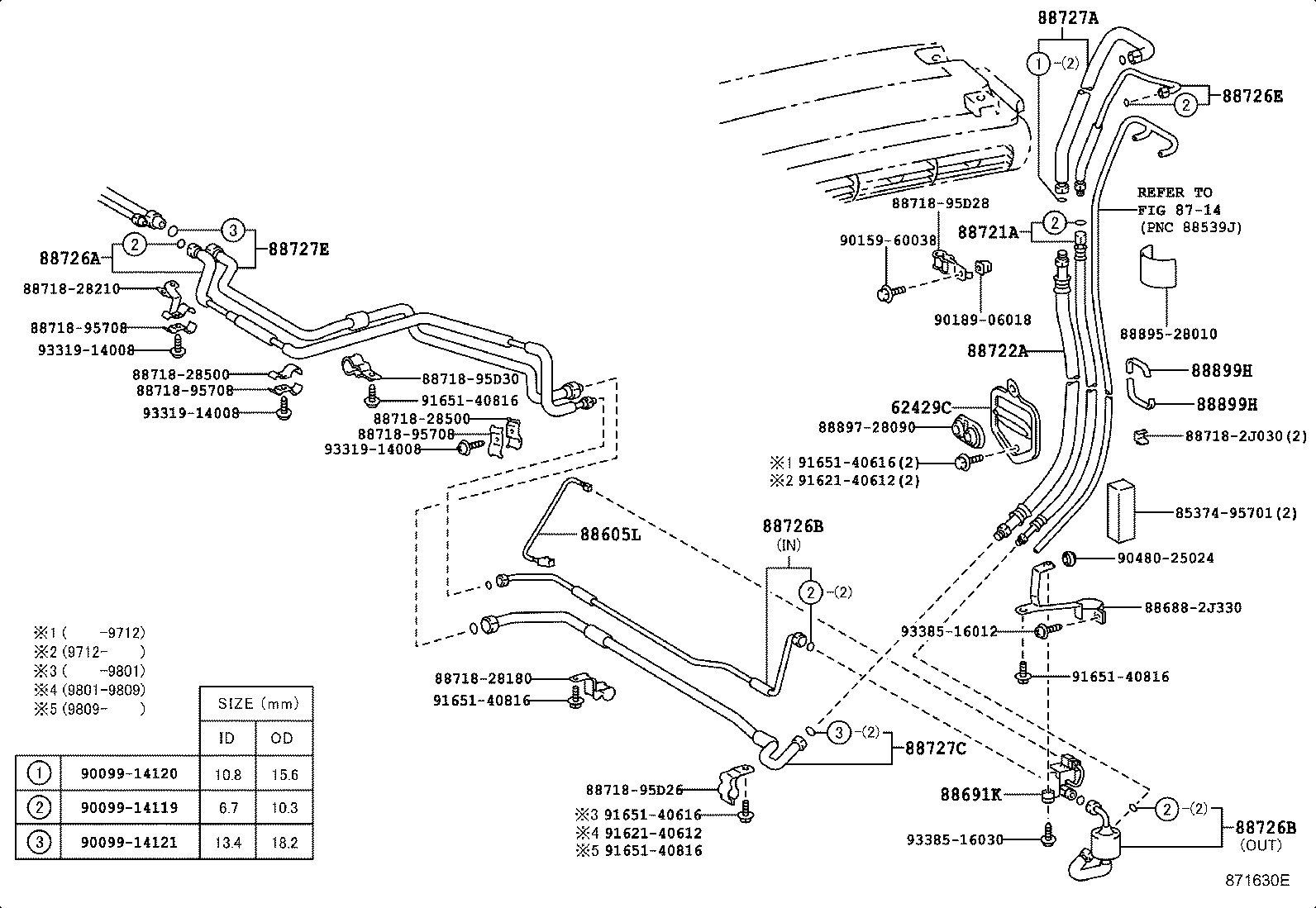

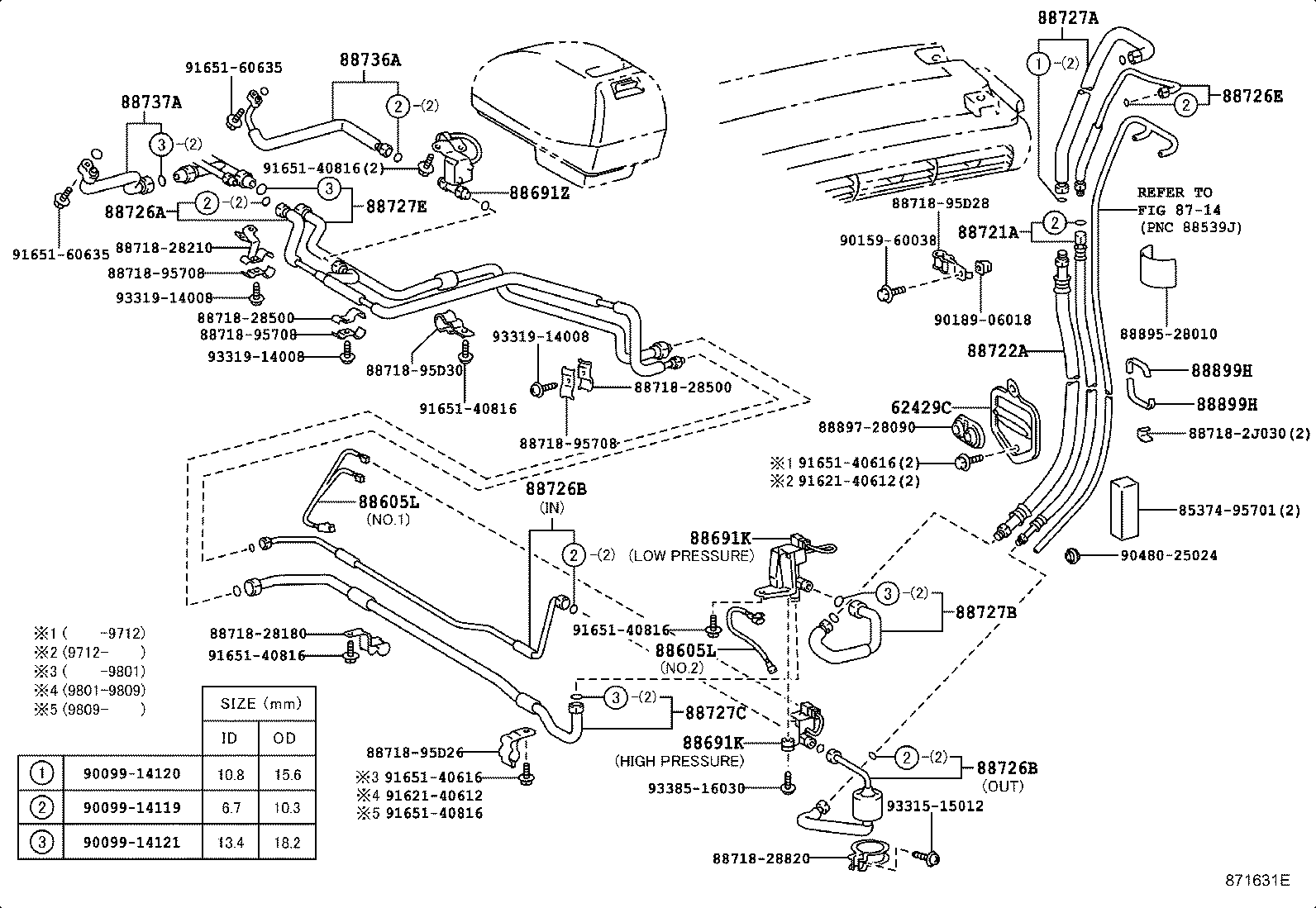

Figure 871622C 871622C 1992-01 → 1993-08 Figure 871623B 871623B 1993-08 → 1995-08 Figure 871623B 871623B 1995-08 → 1996-04 Figure 872401C 872401C 1995-08 → 1996-04 Figure 872401C 872401C 1996-04 → — Figure 871624C 871624C 1992-01 → 1993-08 Figure 872405A 872405A 1993-08 → 1995-08 Figure 872405A 872405A 1995-08 → 1996-04 Figure 871625D 871625D 1995-08 → 1996-04 Figure 871625D 871625D 1996-04 → — Figure 871626A 871626A 1992-01 → 1993-08 Figure 87E588 87E588 1993-08 → 1994-11 Figure 871627F 871627F 1994-11 → — Figure 871628F 871628F 1994-11 → — Figure 871629A 871629A 1992-01 → 1993-08 Figure 87E589 87E589 1993-08 → 1994-11 Figure 871630E 871630E 1994-11 → — Figure 871631E 871631E 1994-11 → —

Part groups

PNCDescription
62429C Cover, Center Pillar Service Hole
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88463D Bracket, Cooler Condenser, NO.5
88463E Bracket, Cooler Condenser, NO.6
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88605L Harness Sub-assy, Wiring Air Conditioner
88645H Switch, Pressure NO.1
88691K Valve Assy, Magnet
88691W Valve, Magnet
88691Z Valve, Magnet (COOL BOX)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88721A Hose, Liquid, A
88722A Hose, Suction, A
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726E Pipe, Cooler Refrigerant Liquid, E
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727E Pipe, Cooler Refrigerant Suction, E
88736A Tube, Liquid, A(FOR COOL BOX)
88736B Tube, Liquid, B(FOR COOL BOX)
88736C Tube, Liquid, C(FOR COOL BOX)
88737A Tube, Suction, A(FOR COOL BOX)
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
