Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

13 part groups · 3 illustrations

Illustrations

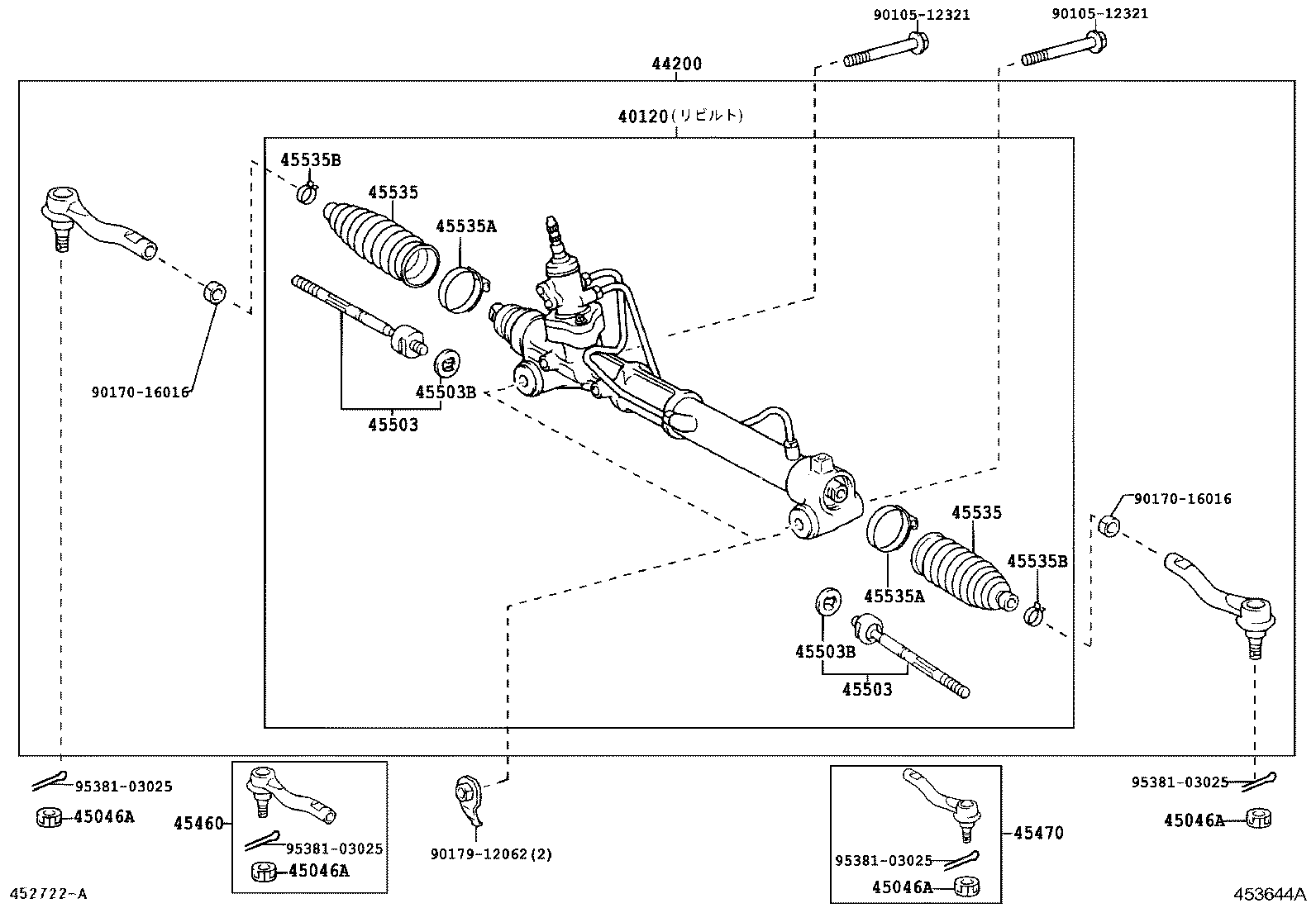

Figure 452722B 452722B 2001-05 → 2003-08 Figure 453644A 453644A 2003-08 → — Figure 452723B 452723B 2001-05 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
40120 Gear Assy,Power Steering,Rebuilt
44200 Link Assy, Power Steering
44250 Gear Assy, Power Steering(FOR RACK & PINION)
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
