Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

4 part groups · 2 illustrations

Illustrations

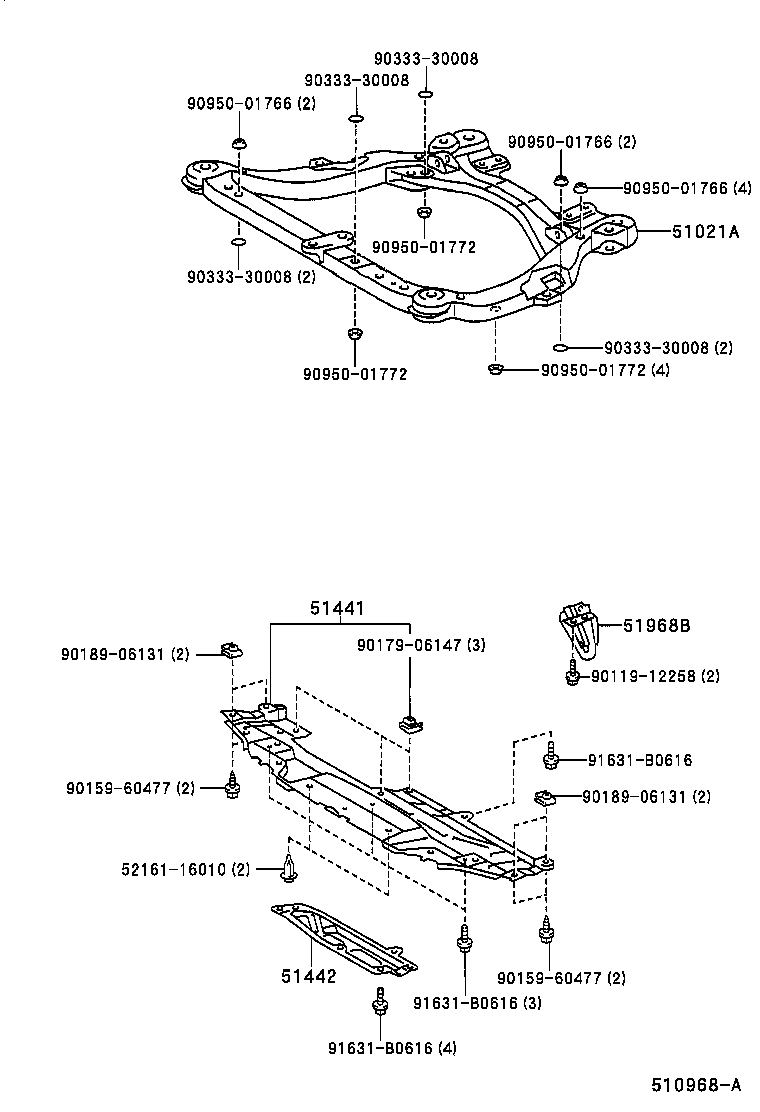

Figure 510688E 510688E 2001-05 → 2003-08 Figure 510968A 510968A 2003-08 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
