Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

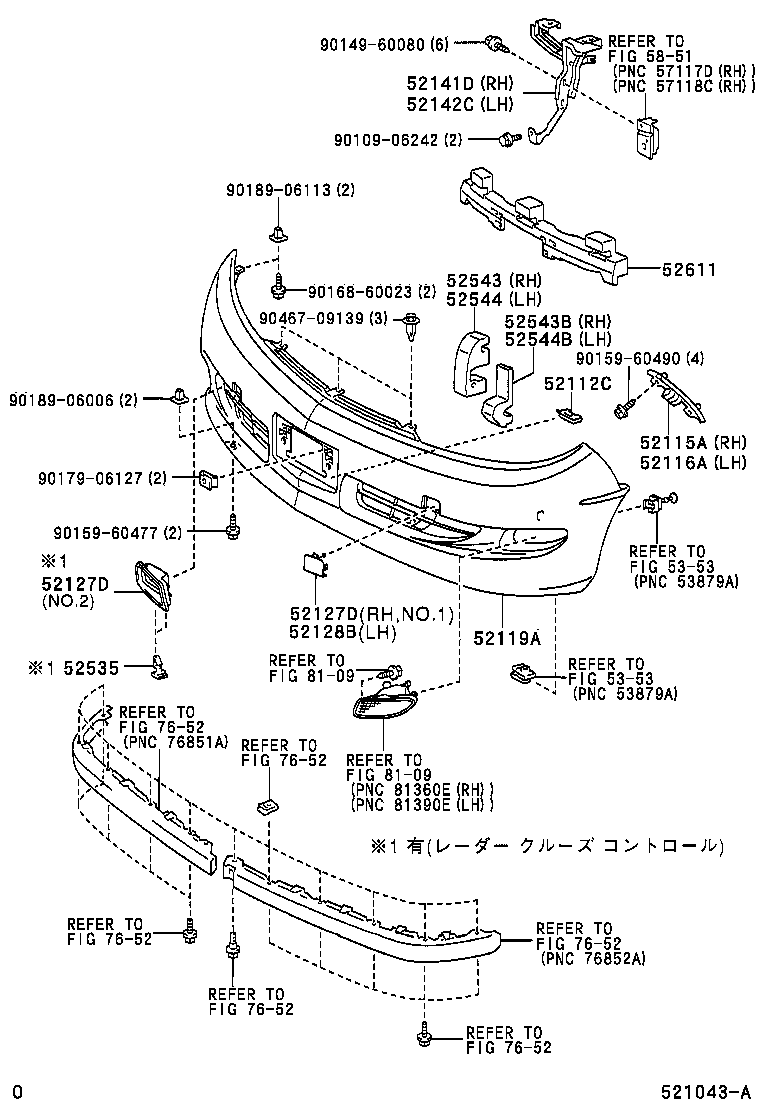

Figure 520742D 520742D 2001-05 → 2003-08 Figure 521043A 521043A 2003-08 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52543 Seal, Front Bumper Side, RH
52543B Seal, Front Bumper
52544 Seal, Front Bumper Side, LH
52544B Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
