Toyota Estima Hybrid
2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan
Discontinued model
Data version 2006-10

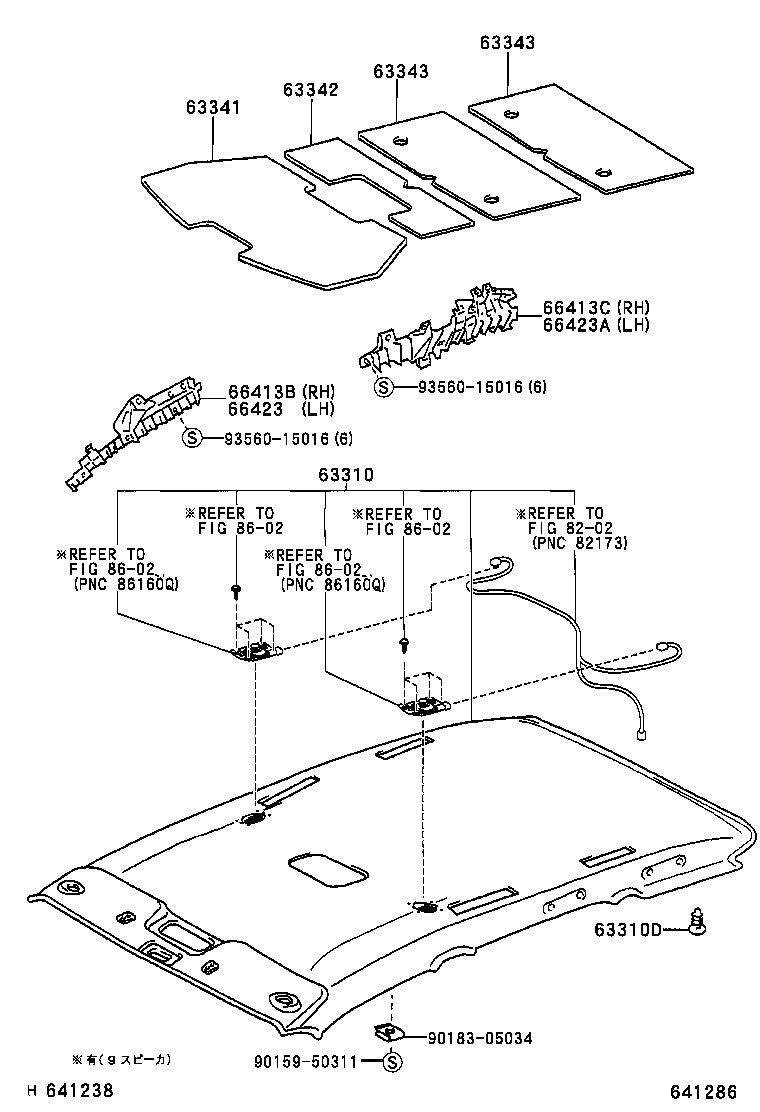

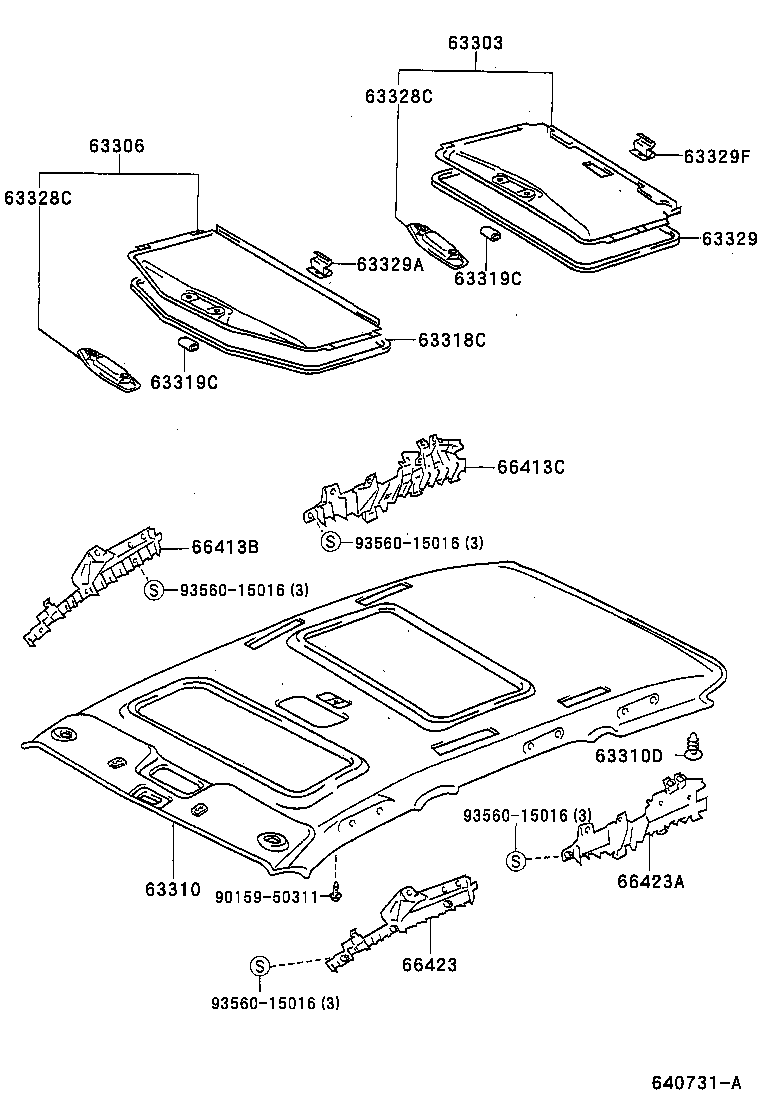

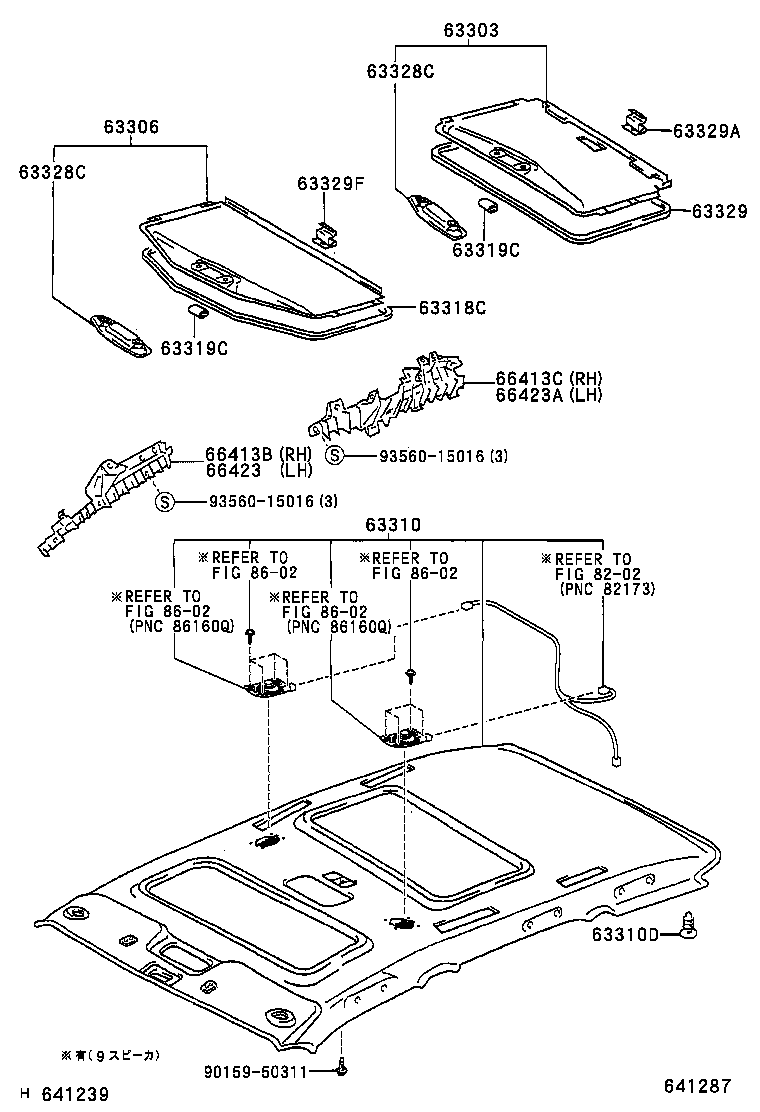

Roof Headlining & Silencer Pad
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63319C | Joint, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63329 | Moulding, Sun Roof Opening Trim, NO.2 |
| 63329A | Stopper, Sunshade Lock |
| 63329F | Stopper, Sunshade Lock |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 66413B | Spacer, Side Rail, Front RH |
| 66413C | Spacer, Side Rail, Front RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66423A | Spacer, Side Rail, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
