Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

157 part groups · 10 illustrations

Illustrations

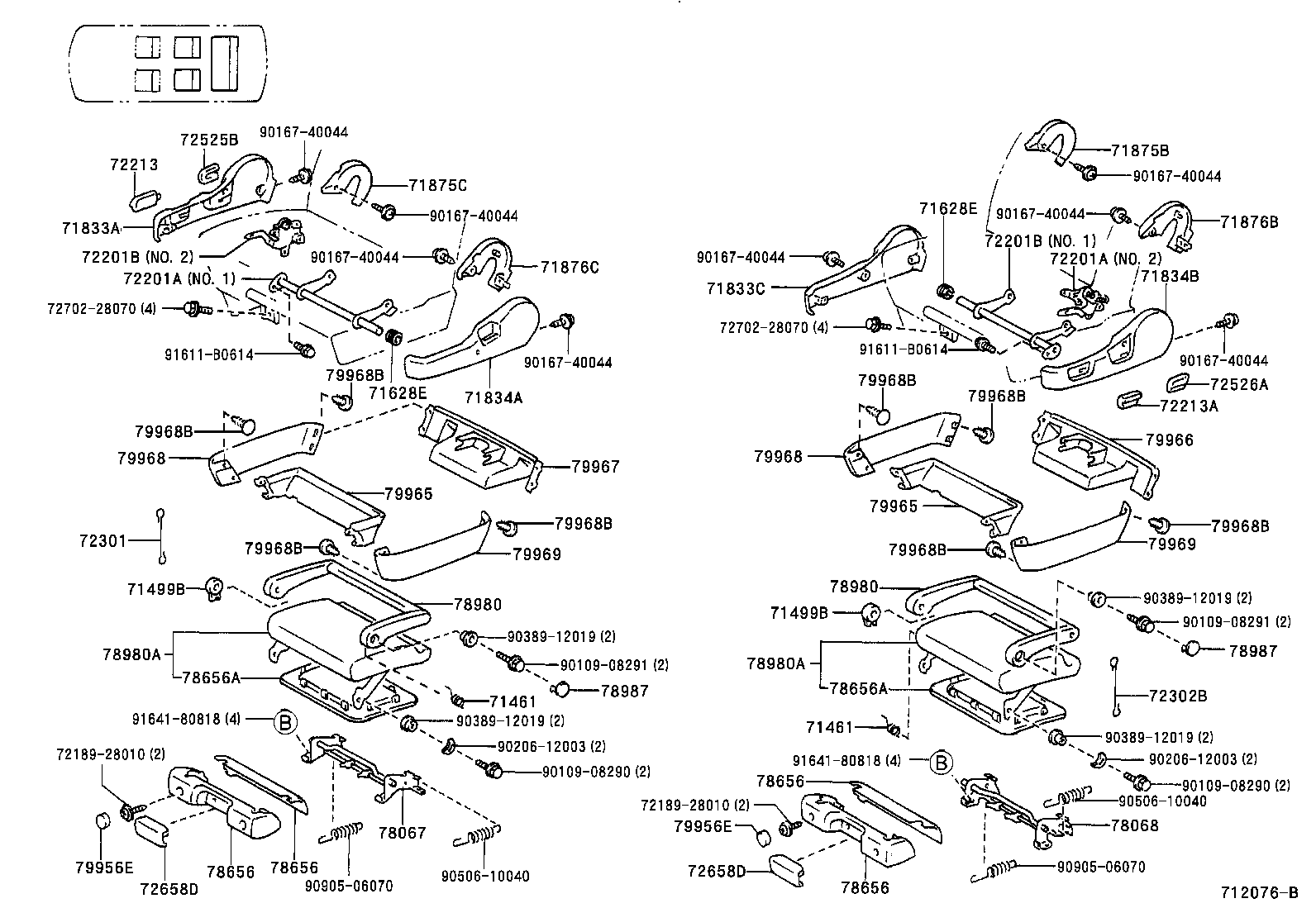

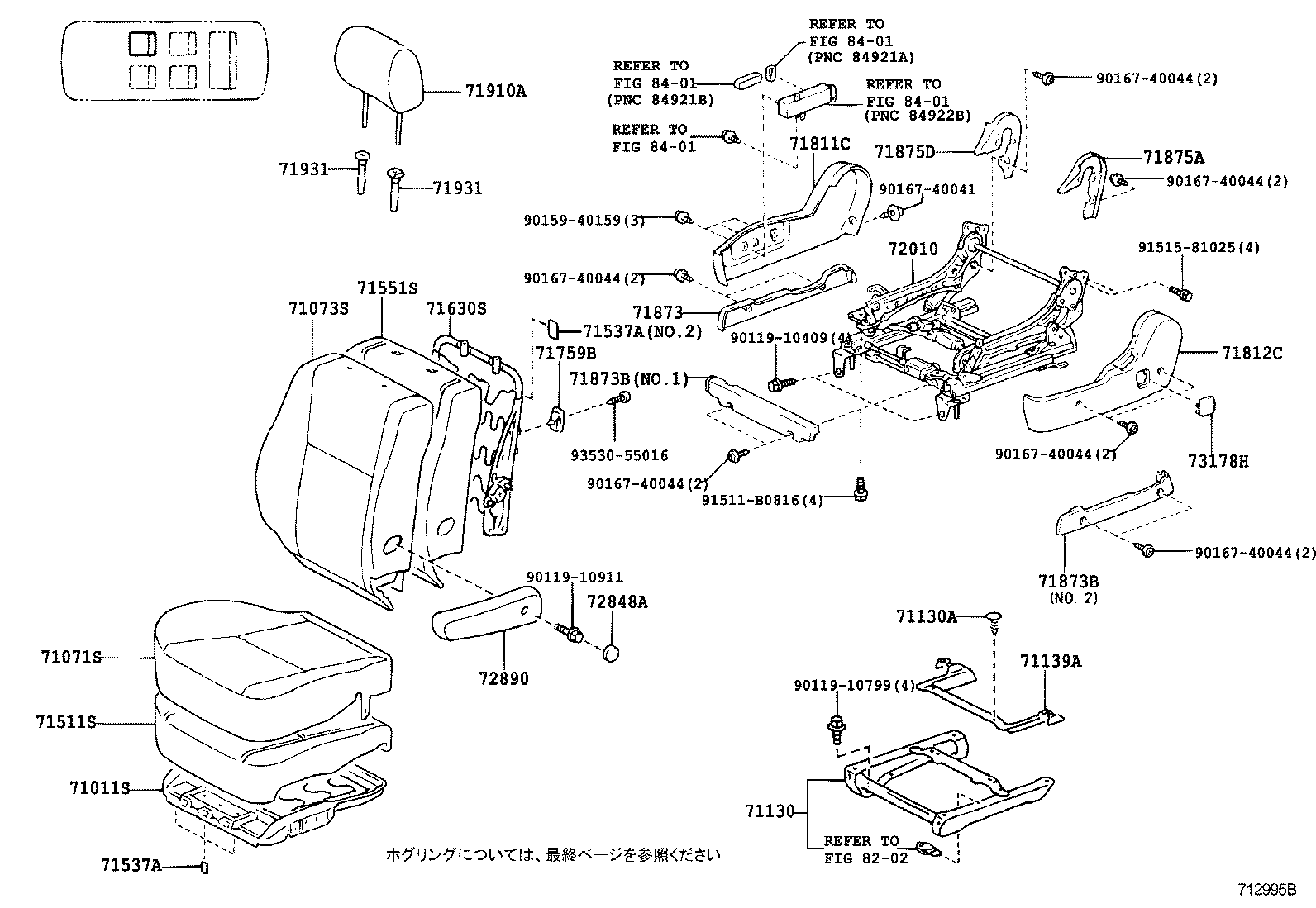

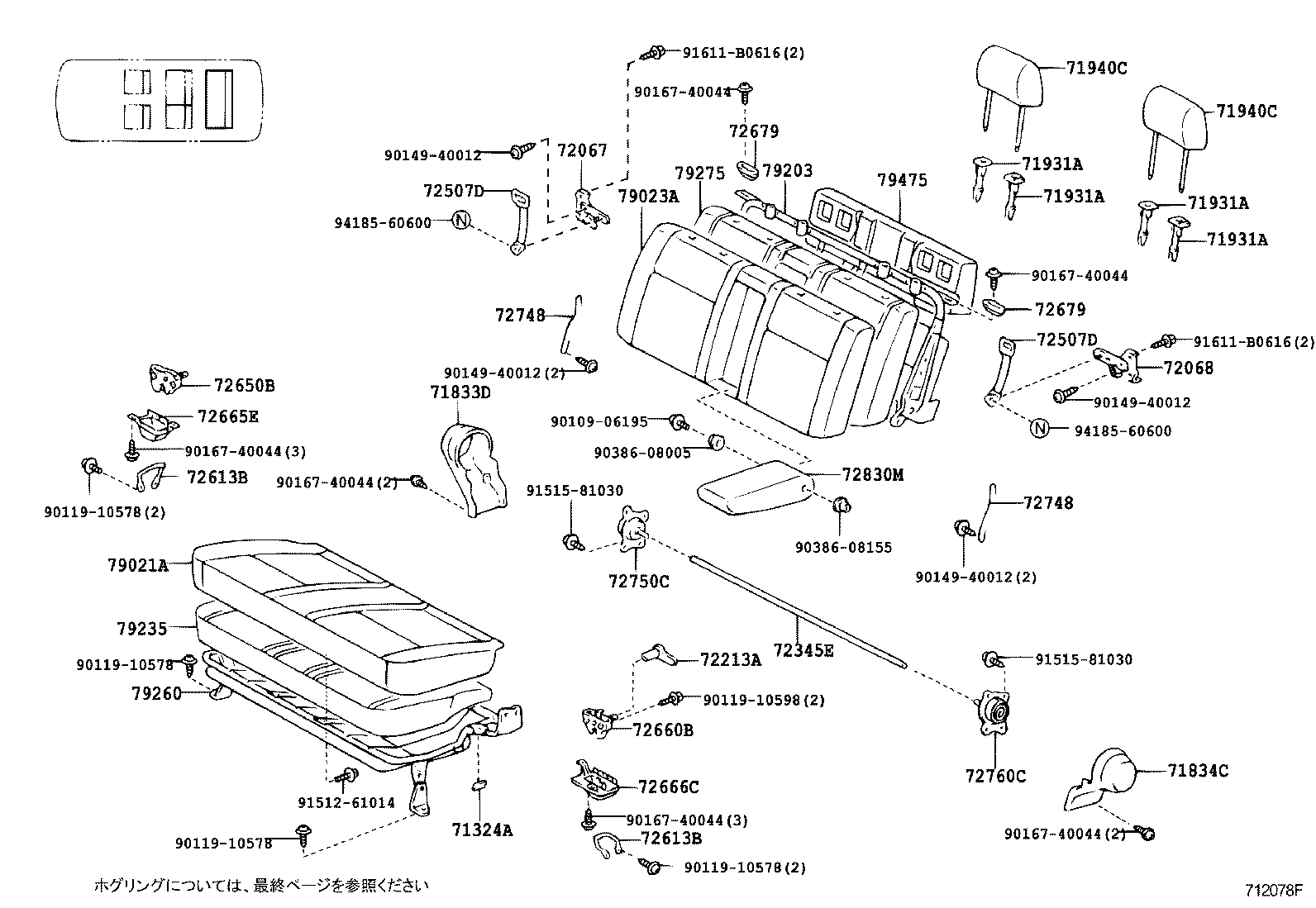

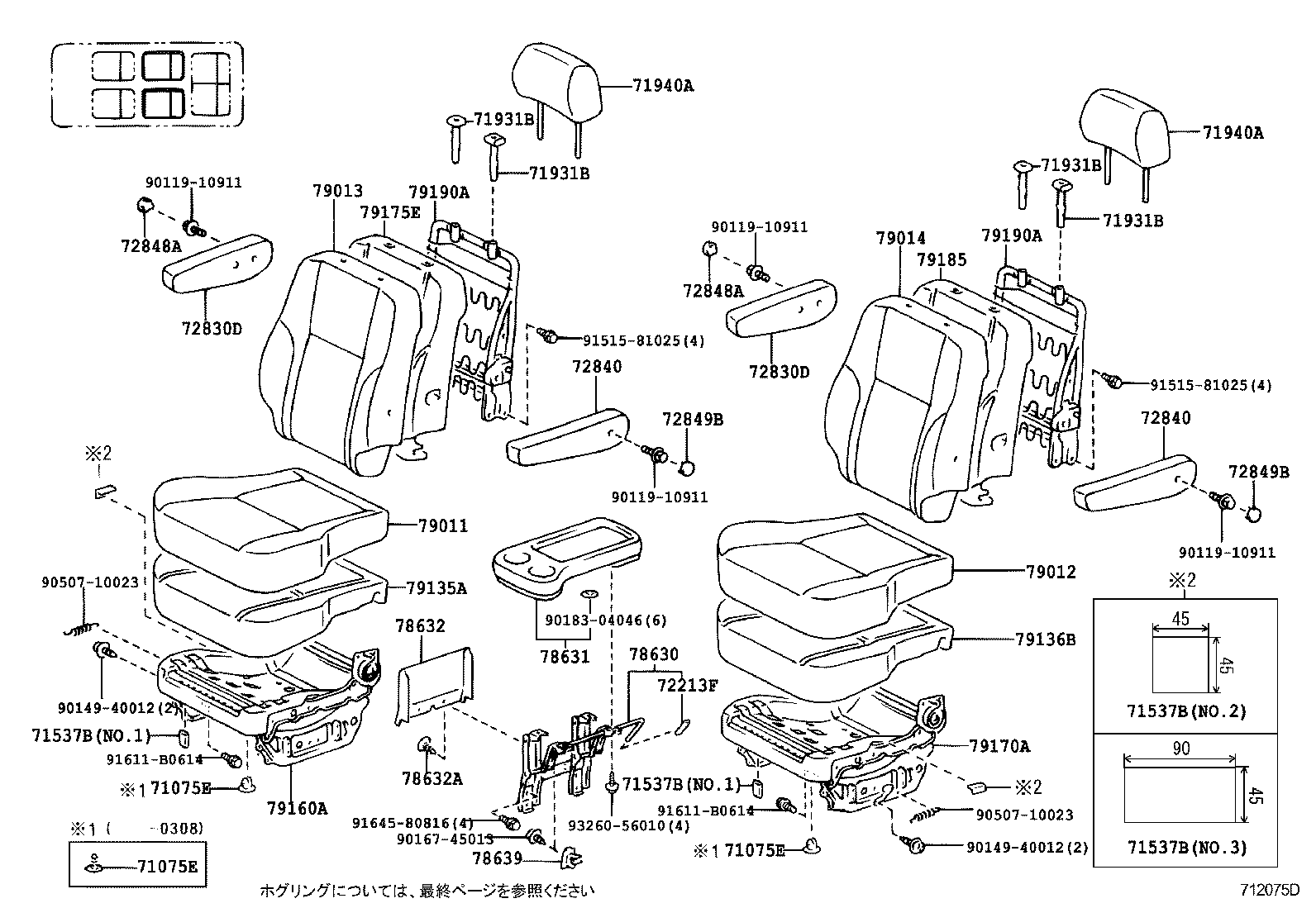

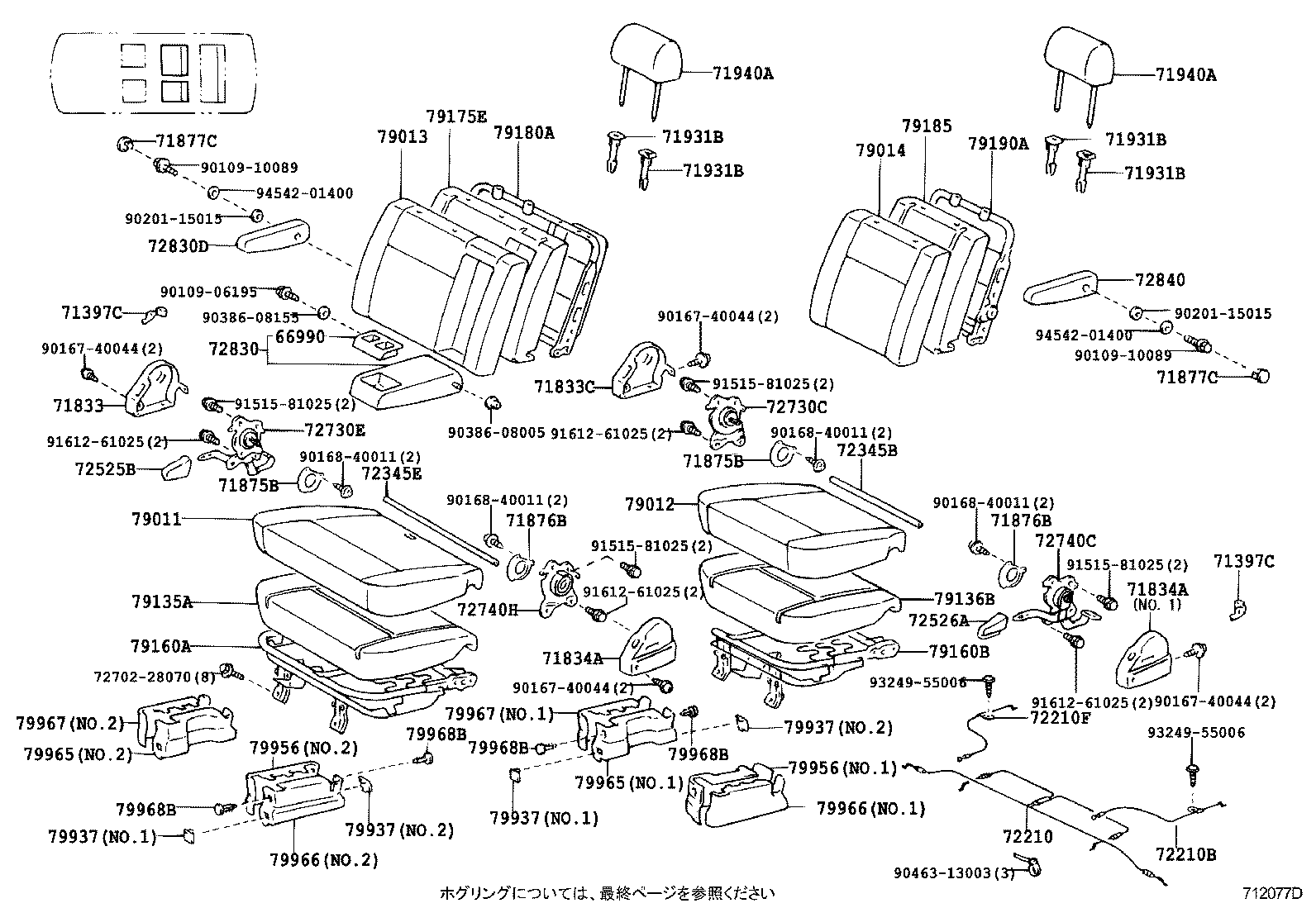

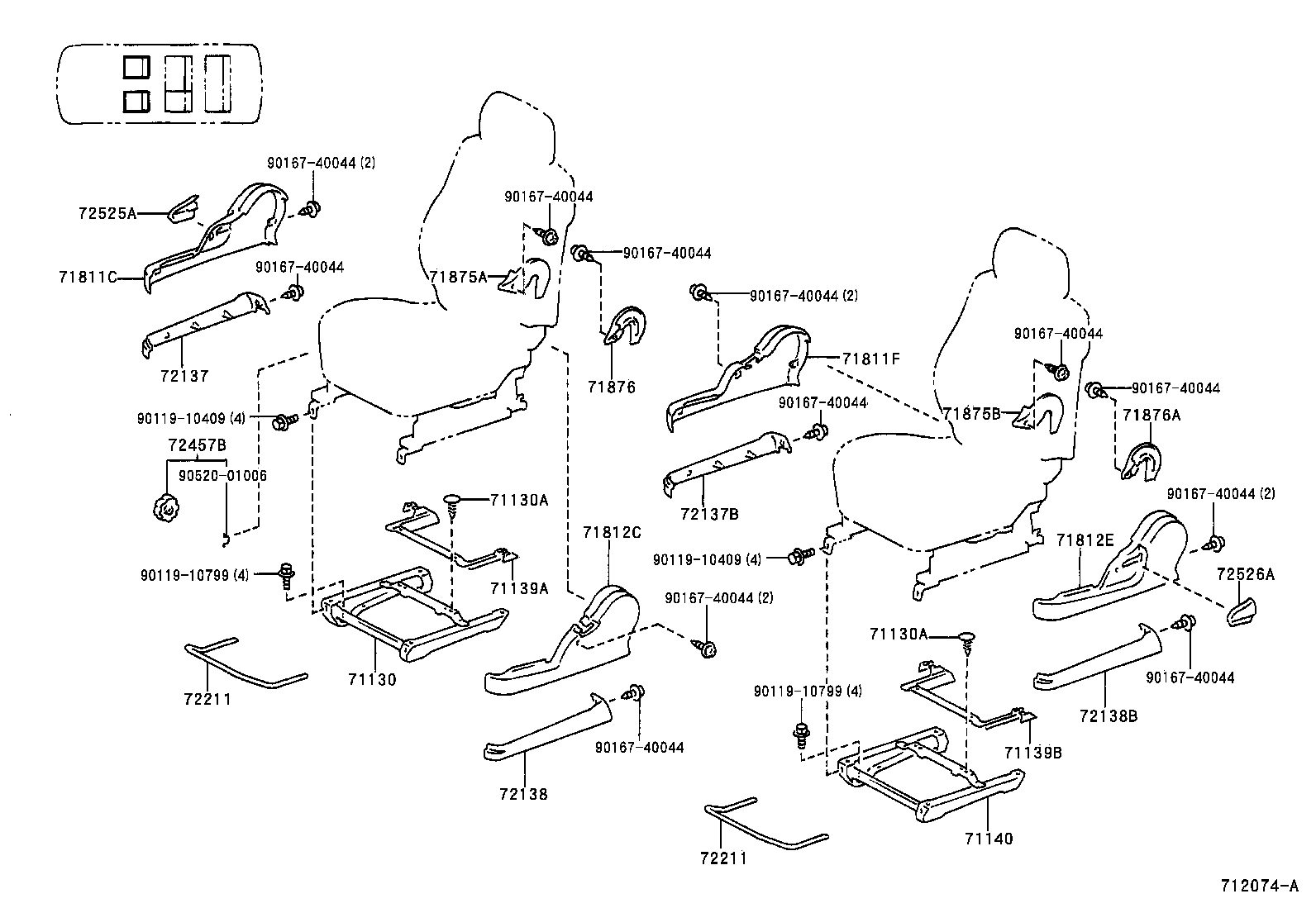

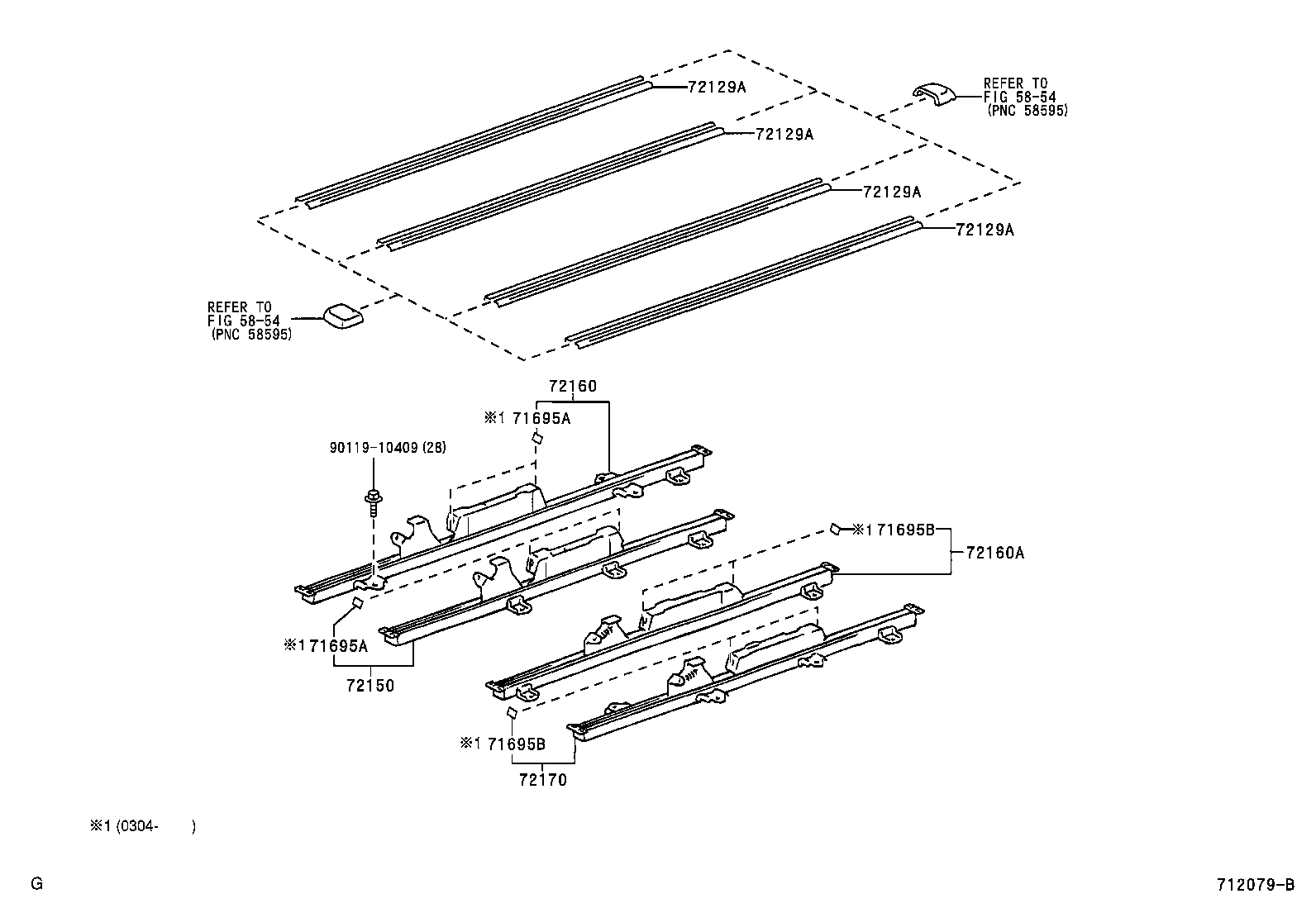

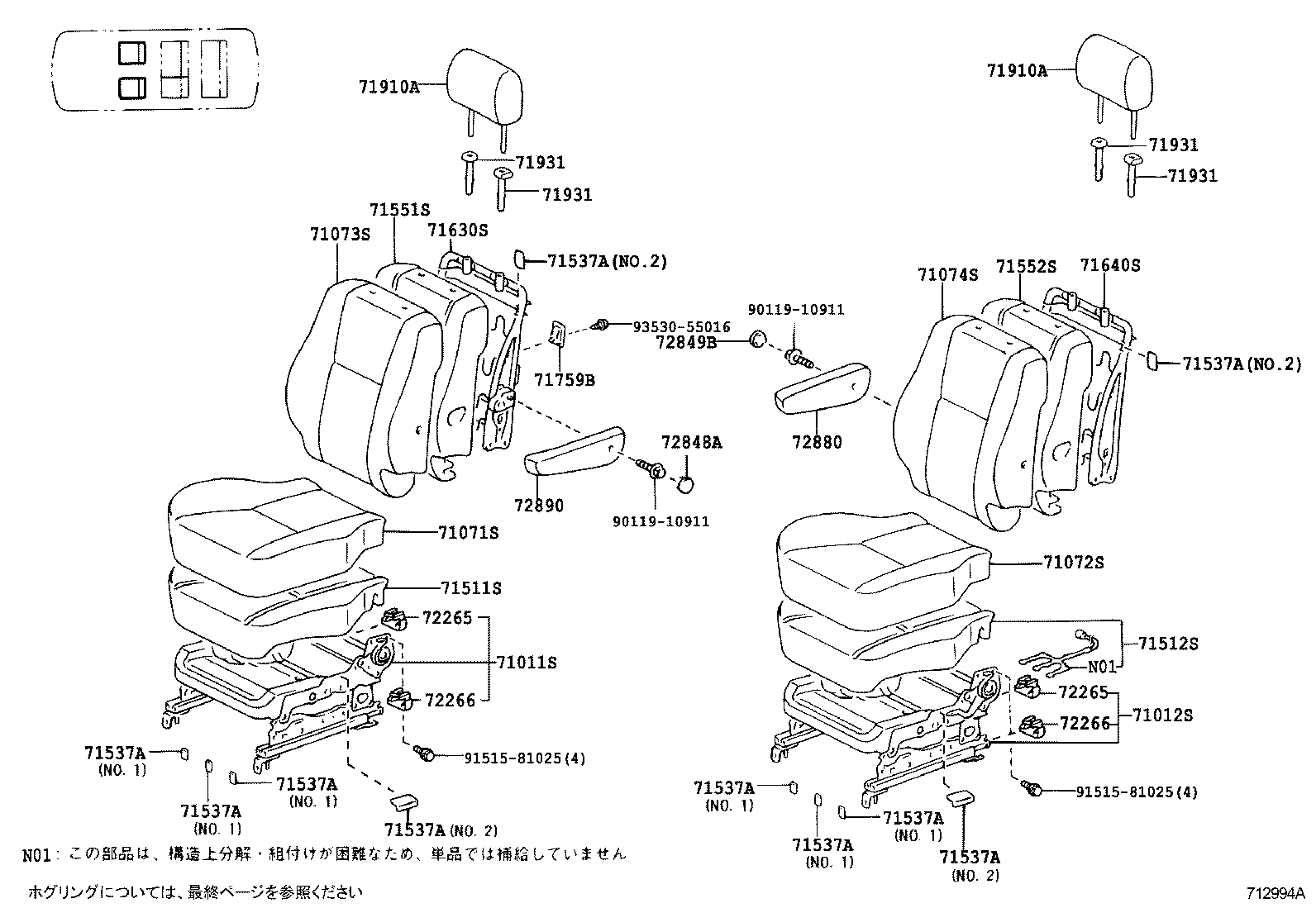

Figure 712073A 712073A 2001-05 → 2003-08 Figure 712994A 712994A 2003-08 → — Figure 712995B 712995B 2003-08 → — Figure 712074A 712074A 2001-05 → — Figure 712075D 712075D 2001-05 → — Figure 712076B 712076B 2001-05 → — Figure 712077D 712077D 2001-05 → — Figure 712078F 712078F 2001-05 → — Figure 712079B 712079B 2001-05 → — Figure 718165A 718165A 2001-05 → —

Part groups

PNCDescription
66990 Holder Assy, Cup
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71130 Leg Assy, Front Seat, RH
71130A Clip, Front Seat Leg
71139A Cover, Front Seat Leg, NO.1
71139B Cover, Front Seat Leg, NO.2
71140 Leg Assy, Front Seat, LH
71324A Cushion, Rear Seat
71397C Stopper, Rear Seat
71461 Spring, Rear Seat Cushion
71499B Damper, Seat Cushion Spring
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537B Protector, Rear Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71628E Spacer, Rear Seat Cushion
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71759B Hook, Front Seatback
71811C Cover, Reclining Adjuster, RH
71811F Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71812E Cover, Reclining Adjuster, LH
71833 Mat, Rear Seat Floor, Front
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71833D Cover Rear Seat Reclining, RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834C Cover, Rear Seat Reclining, NO.3 LH
71873 Shield, Front Seat Cushion, Lower RH
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875D Cover, Reclining Adjuster Outside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71877C Cover, Rear Seat Armrest Hole LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71940A Headrest Assy, Rear Seat
71940C Headrest Assy, Rear NO.1 Seat, RH
72010 Adjuster Assy, Front Seat, RH
72067 Lever Sub-assy, Rear Back Lock Control, RH
72068 Lever Sub-assy, Rear Back Lock Control, LH
72125A Cover, Seat Track, Upper Rear
72125D Cover, Seat Track, Upper Rear NO.2
72129A Protector, Seat Track Lower Rail, NO.2
72137 Cover, Seat Track, Outer RH
72137B Cover, Seat Track, RH
72138 Cover, Seat Track, Outer LH
72138B Cover, Seat Track, LH
72150 Track Assy, Rear Seat, RH
72160 Track Assy, Rear Seat, Outer RH
72160A Track Assy, Rear Seat, LH
72170 Track Assy, Rear Seat, Outer LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72210 Cable Assy, Seat Track Control
72210B Cable Assy, Seat Track Control, RH
72210F Cable Assy, Seat Track Control
72211 Handle, Seat Track Adjusting
72213 Knob, Seat Track Adjusting Handle
72213A Knob, Seat Track Adjusting Handle
72213F Knob, Seat Track Adjusting Handle
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72301 Wire Sub-assy, Seat Track Equalizing
72302B Wire Sub-assy, Rear Seat Track Equalizing
72345B Pipe, Reclining Connecting
72345E Pipe, Reclining Connecting
72345F Pipe, Reclining Connecting, RH
72345G Pipe, Reclining Connecting, LH
72457B Knob, Vertical Seat Adjuster, RH
72507D Handle Sub-assy, NO.2 Seat Reclining Release
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72613B Striker, Rear Seat Lock
72650B Lock Assy, Rear NO.3 Seat, RH
72658D Knob, Rear Seat Lock Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72665E Cover, Rear Seat Lock, NO.2 RH
72666C Cover, Rear Seat Lock, NO.2 LH
72679 Bezel, Rear Seatback Lock Control
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72730E Adjuster Assy, Rear Seatback, Outer RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72740H Adjuster Assy, Rear Seat Reclining, LH
72748 Wire, Rear Seat Reclining Control
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72830 Armrest Assy, Rear Seat, Center
72830D Armrest Assy, Rear Seat, RH
72830M Armrest Assy, Seat Center, RH
72840 Armrest Assy, Rear NO.1 Seat, LH
72848A Cap, Seat Armrest, NO.1
72849B Cap, Seat Armrest, NO.1
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
73178H Cap, Seat Belt Anchor Cover, RH
78067 Bracket Sub-assy, Rear Seat Legrest, Outer
78068 Bracket Sub-assy, Rear Seat Legrest, Inner
78630 Adjuster Assy, FR0NT Seat Side Table
78631 Table, Front Seat Side
78632 Cover, Front Seat Side Table
78632A Clip, Front Seat Side Table Cover
78639 Clip, Front Seat Side Table
78656 Cover, Rear Seat Legrest
78656A Cover, Rear Seat Legrest
78980 Footrest Assy, Rear Seat
78980A Footrest Assy, Rear Seat
78987 Cover, Rear Seat Footrest, NO.1
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79160B Spring Assy, NO.1 Seat Cushion, LH
79170A Spring Assy, NO.1 Seat Cusuion, LH
79175E Pad, NO.1 Seatback, RH
79180A Spring Assy, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79190A Spring Assy, NO.1 Seatback, LH
79203 Frame Sub-assy, NO.2 Seatback
79235 Pad, NO.2 Seat Cushion
79260 Spring Assy, NO.2 Seat Cushion
79275 Pad, NO.2 Seatback
79475 Pad, NO.4 Seatback
79937 Cover, Rear Seat Leg, NO.2
79956 Cover, Rear Seat Leg Bracket
79956E Cap(FOR REAR SEAT LEG SIDE COVER)
79965 Cover, Rear Seat Leg Side, NO.2
79966 Cover, Rear Seat Leg Side, NO.3
79967 Cover, Rear Seat Leg Side, NO.4
79968 Cover, Rear Seat Leg Side, NO.5
79968B Clip
79969 Cover, Rear Seat Leg Side, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
