Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

19 part groups · 3 illustrations

Illustrations

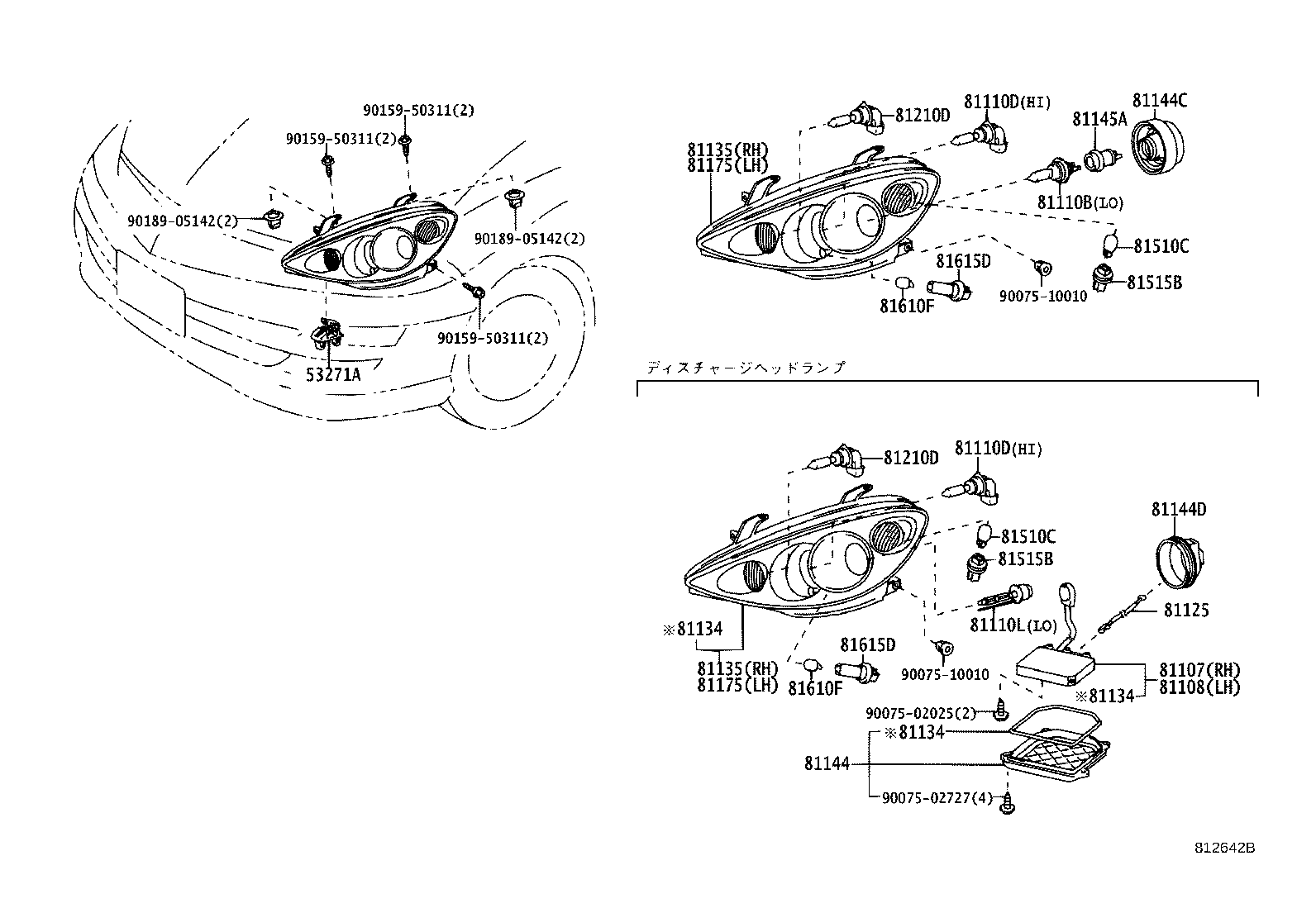

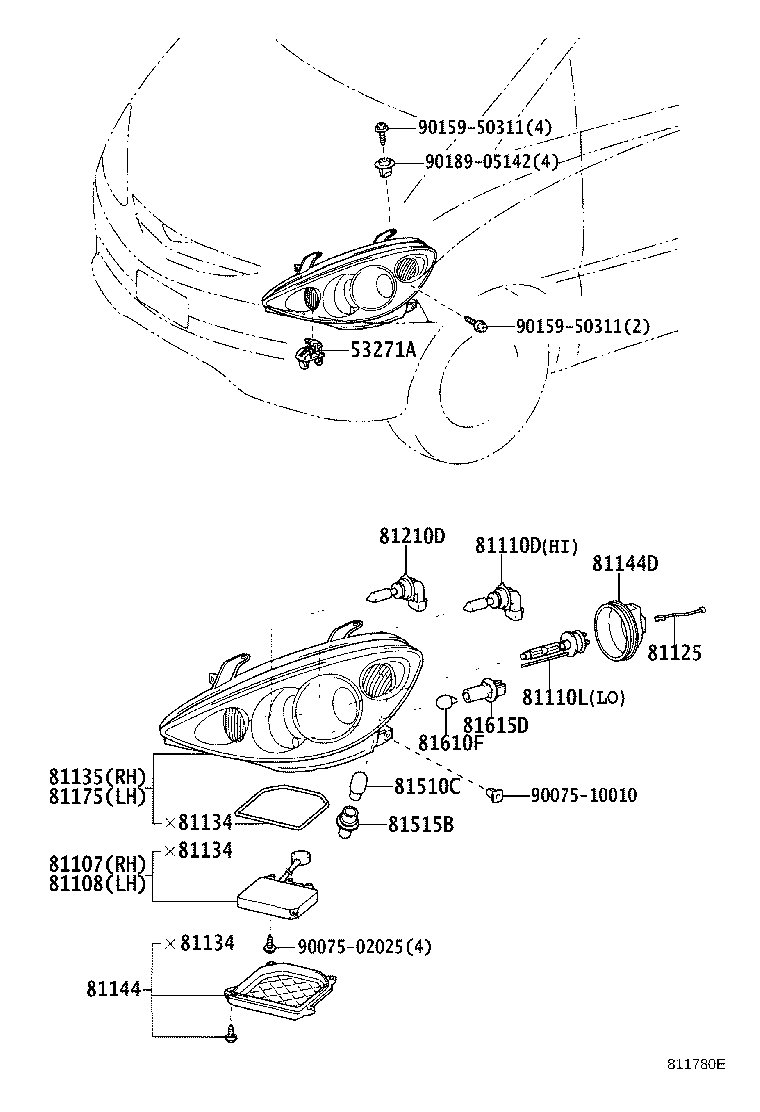

Figure 811779C 811779C 2001-05 → 2003-08 Figure 811780E 811780E 2001-05 → 2003-08 Figure 812642B 812642B 2003-08 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81145A Adapter Assy
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
