Toyota Estima Hybrid
2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan
Discontinued model
Data version 2006-10

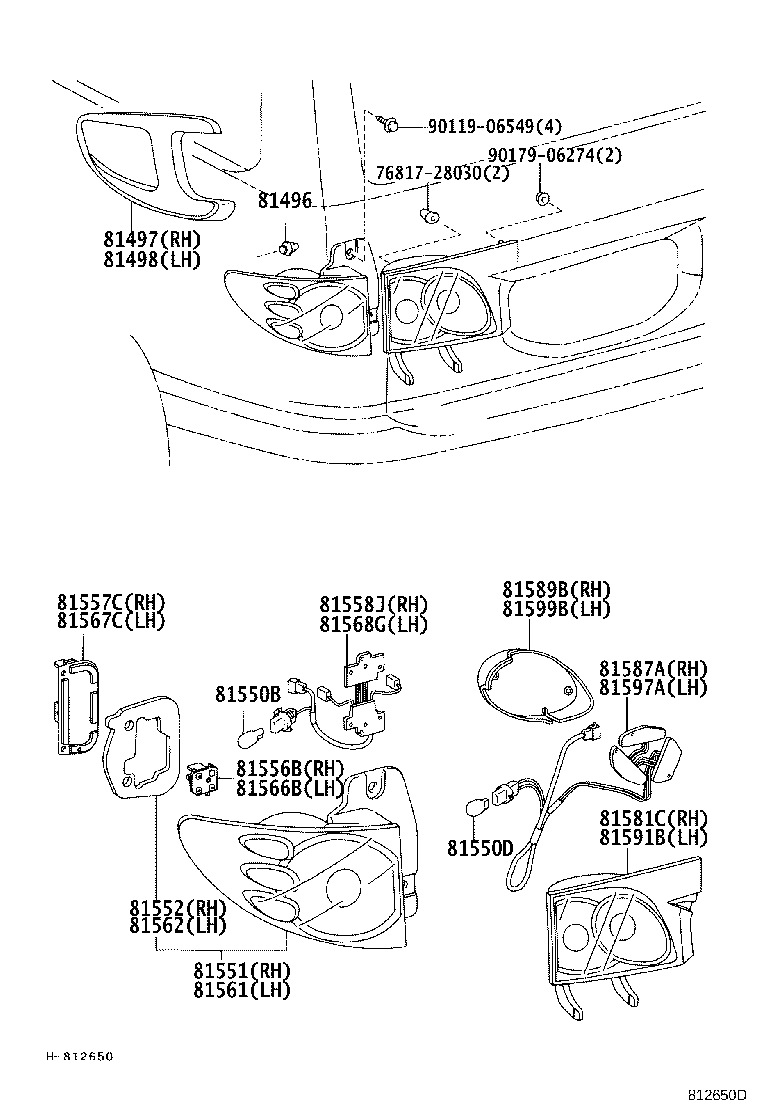

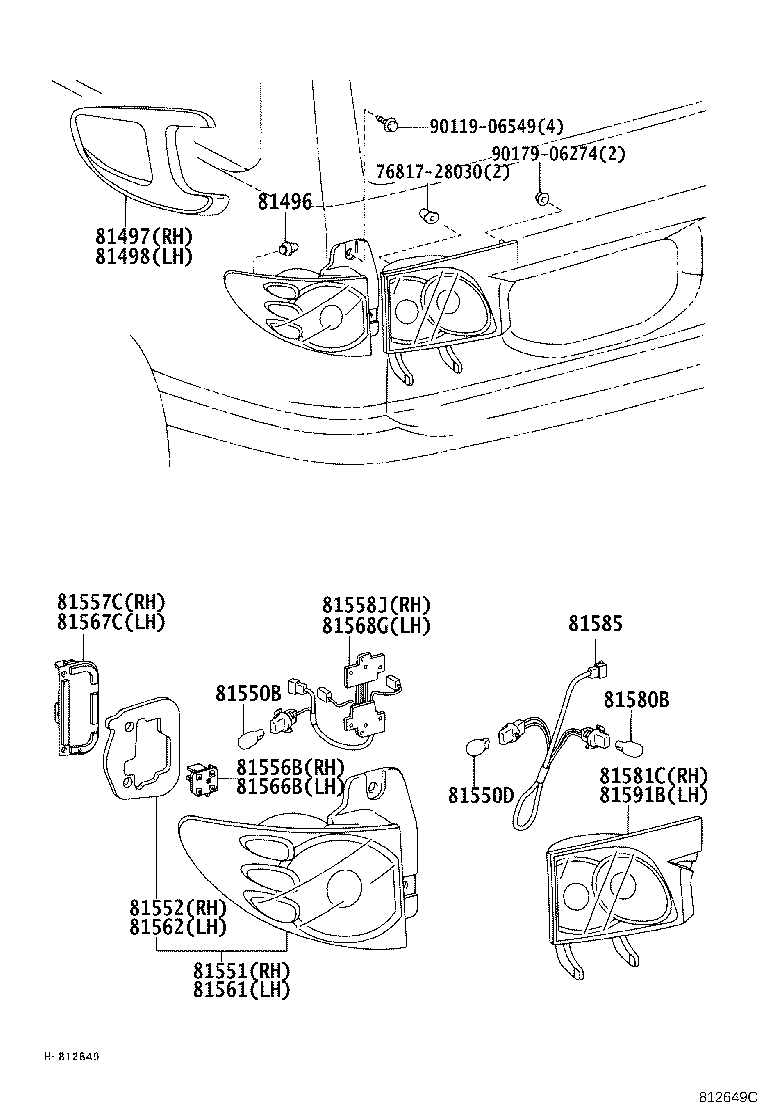

Rear Combination Lamp
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550D | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555B | Socket Plug, NO.1 |
| 81556B | Led, Rear Combination Lamp, RH |
| 81557C | Cover, Rear Combination Lamp, RH |
| 81558J | Plate, Rear Combination Lamp Circuit, RH |
| 81559C | Indicator, Rear Combination Lamp Outage |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81566B | Led, Rear Combination Lamp, LH |
| 81567C | Cover, Rear Combination Lamp, LH |
| 81568G | Plate, Rear Combination Lamp Circuit, LH |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81587A | Plate, Rear Lamp Circuit, RH |
| 81589B | Cover, Rear Combination Back, RH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81597A | Plate, Rear Lamp Circuit, LH |
| 81599B | Cover, Rear Combination Back, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
