Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

53 part groups · 13 illustrations

Illustrations

Figure 822619E

822619E 2001-05 → —

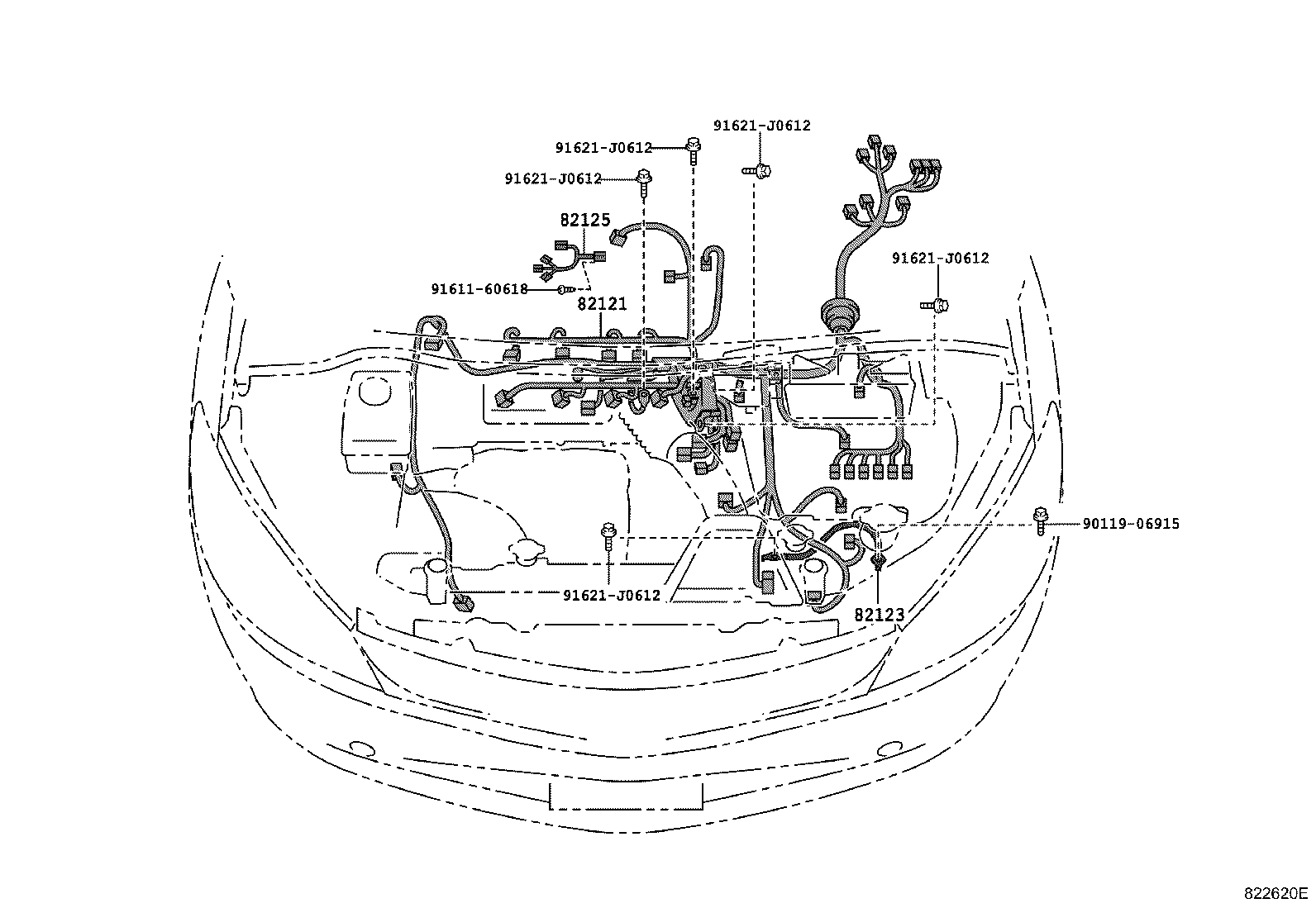

Figure 822620E

822620E 2001-05 → —

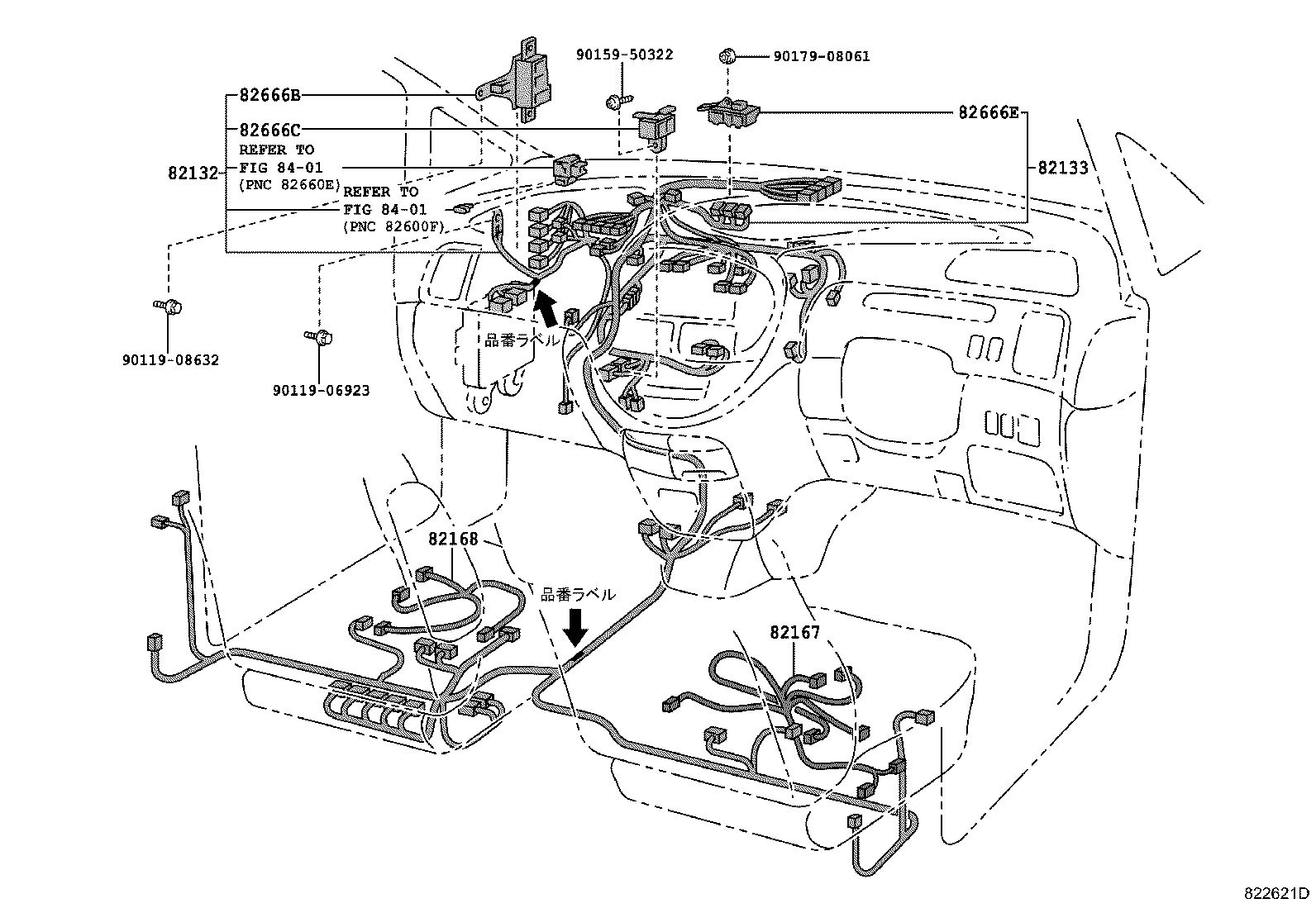

Figure 822621D

822621D 2001-05 → —

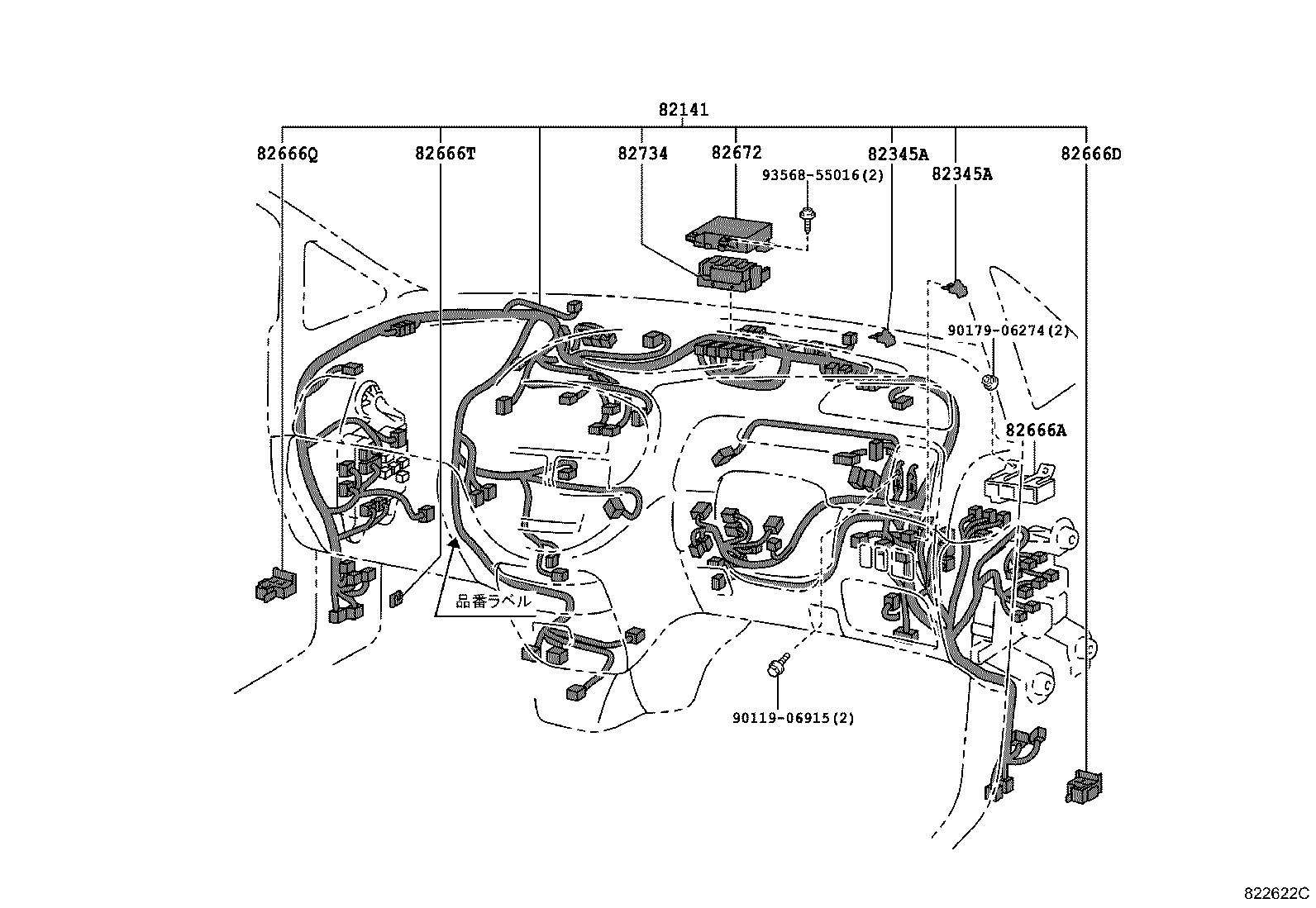

Figure 822622C

822622C 2001-05 → —

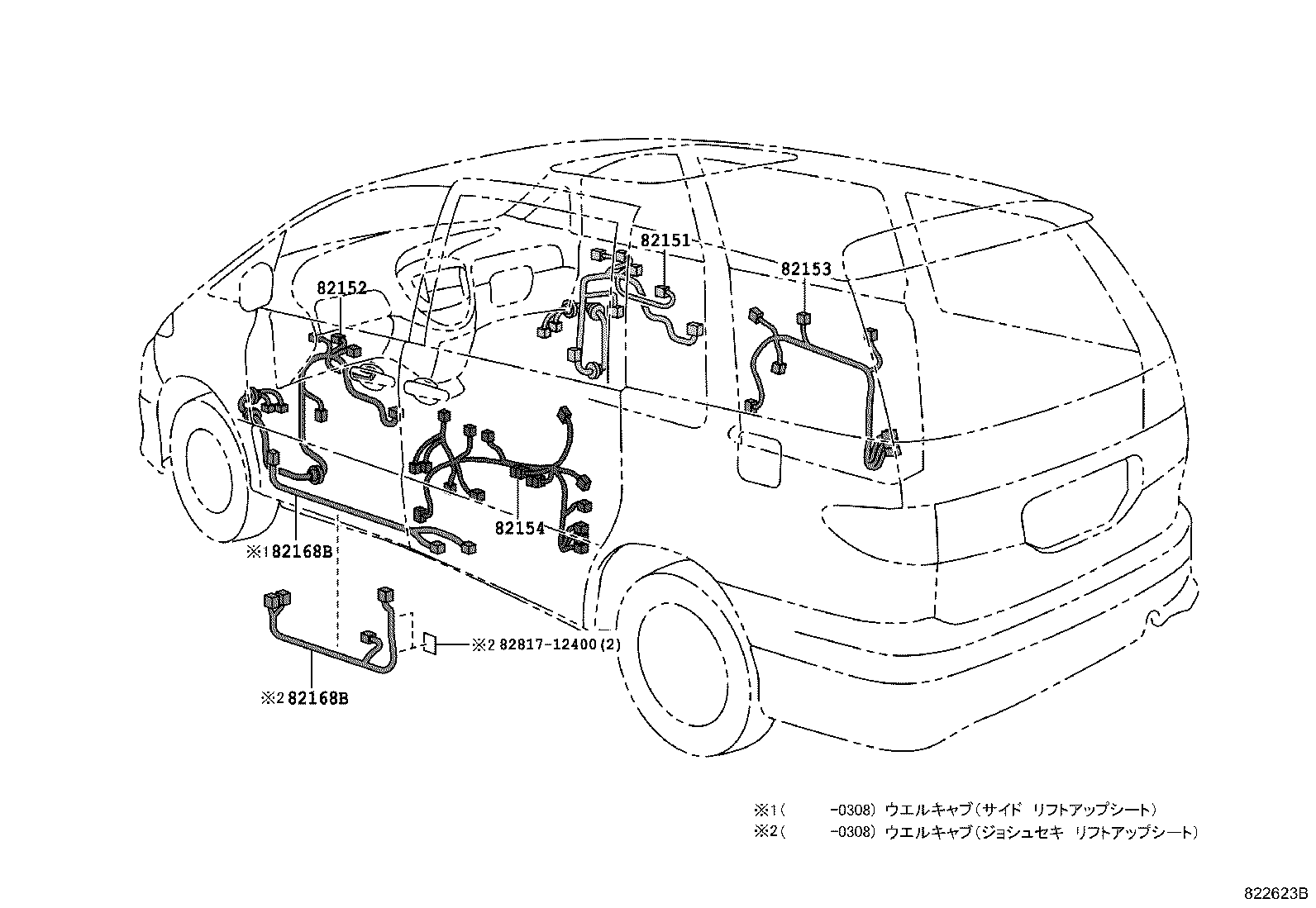

Figure 822623B

822623B 2001-05 → —

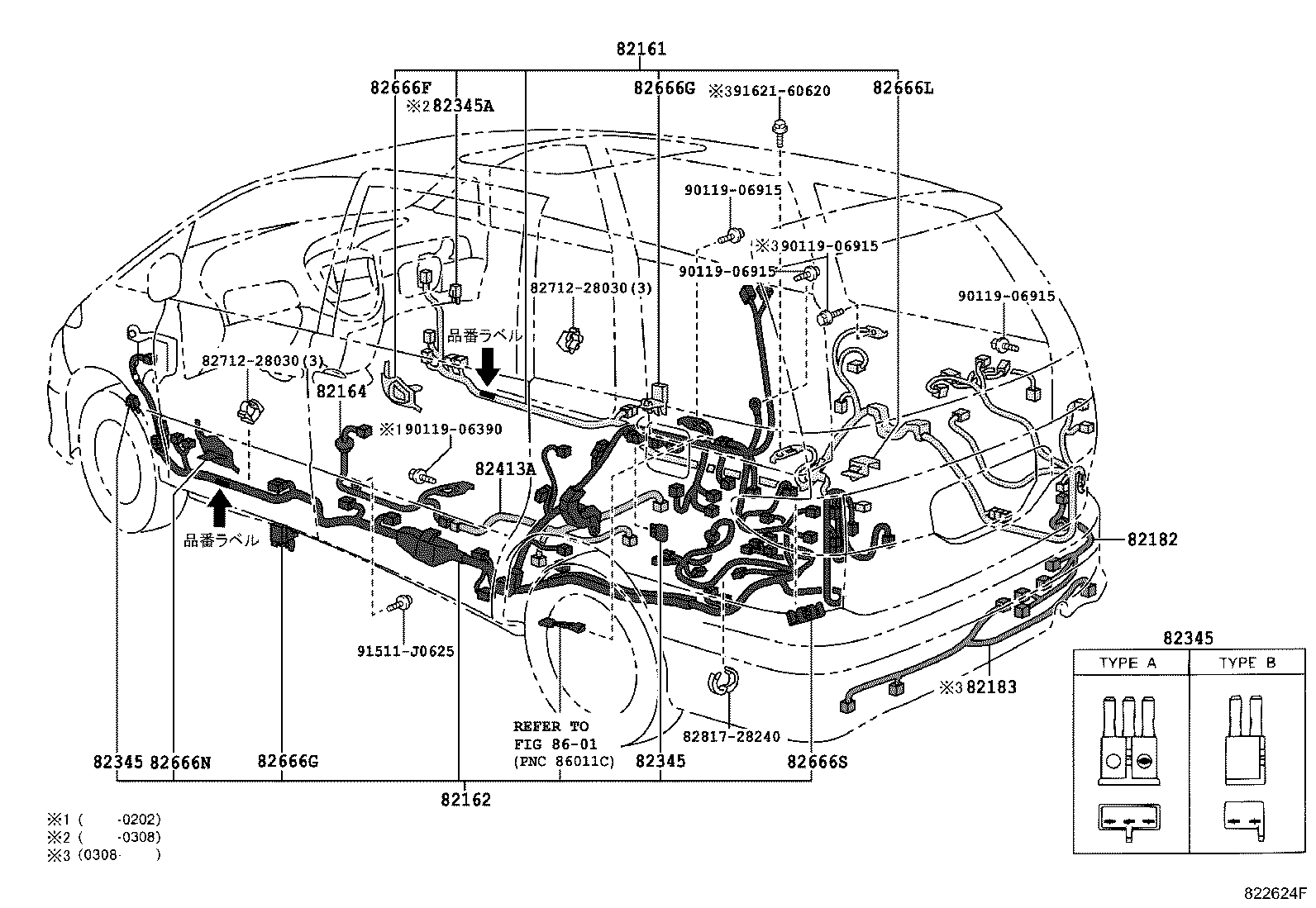

Figure 822624F

822624F 2001-05 → —

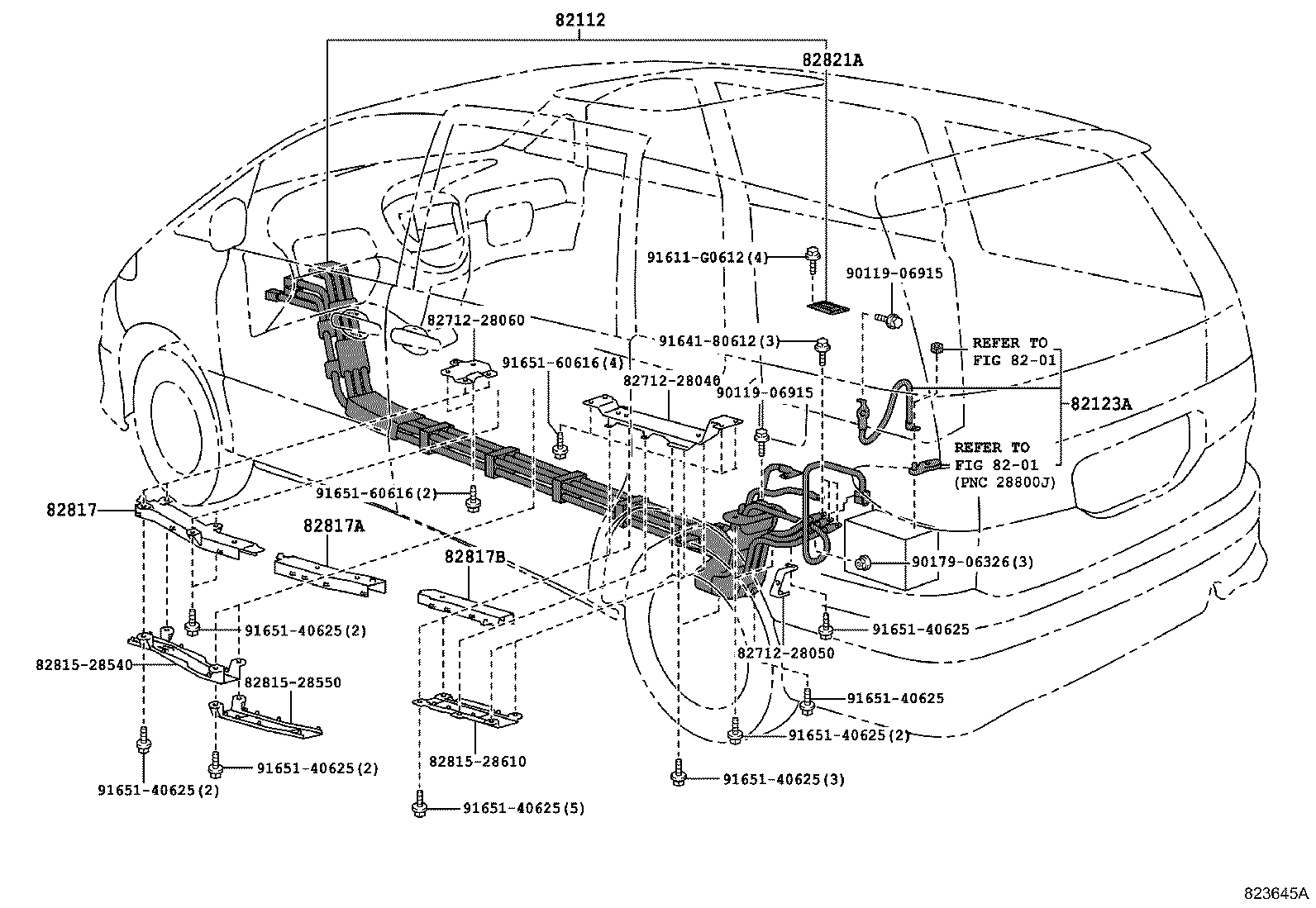

Figure 823645A

823645A 2001-05 → 2003-08

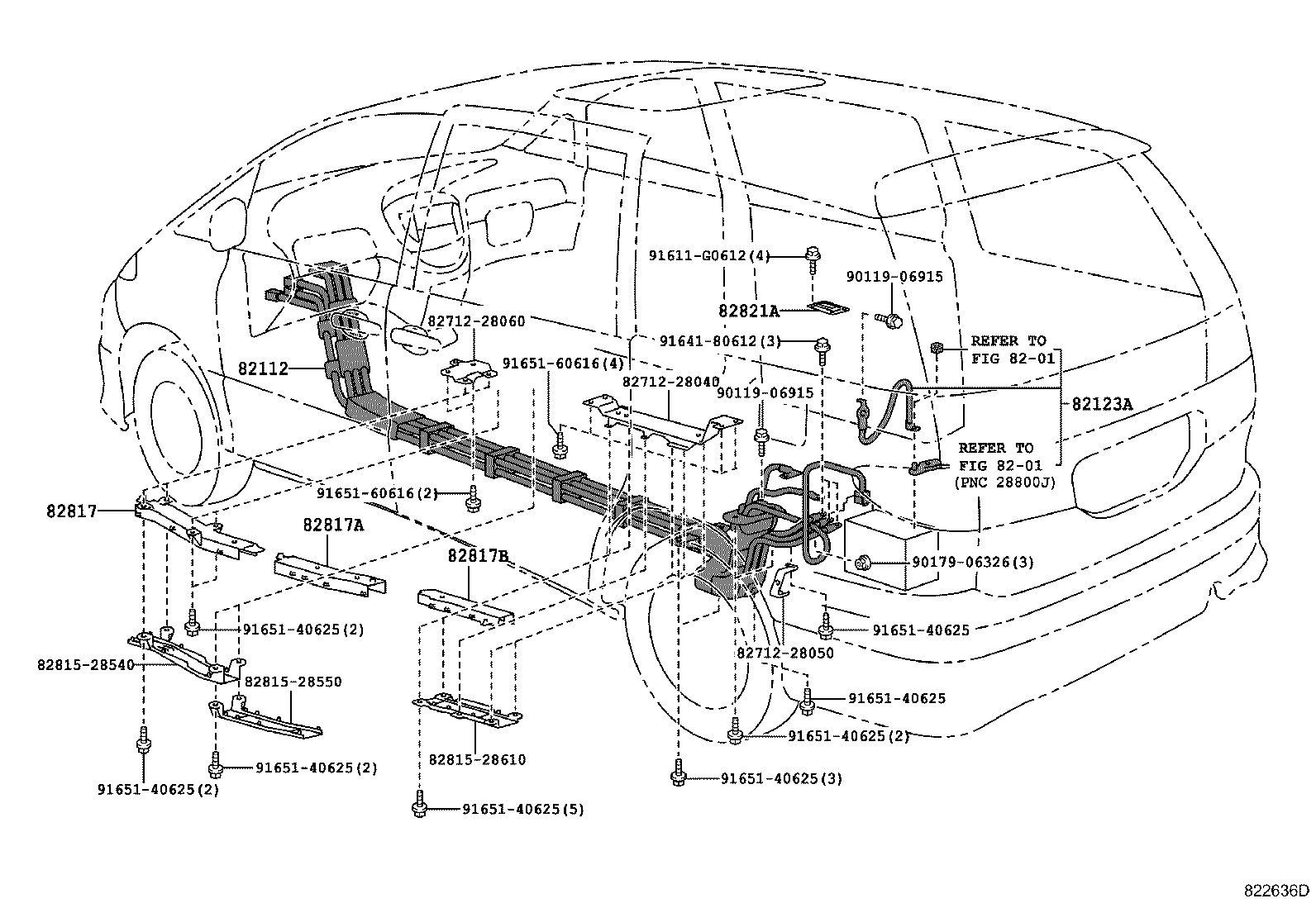

Figure 822636D

822636D 2003-08 → —

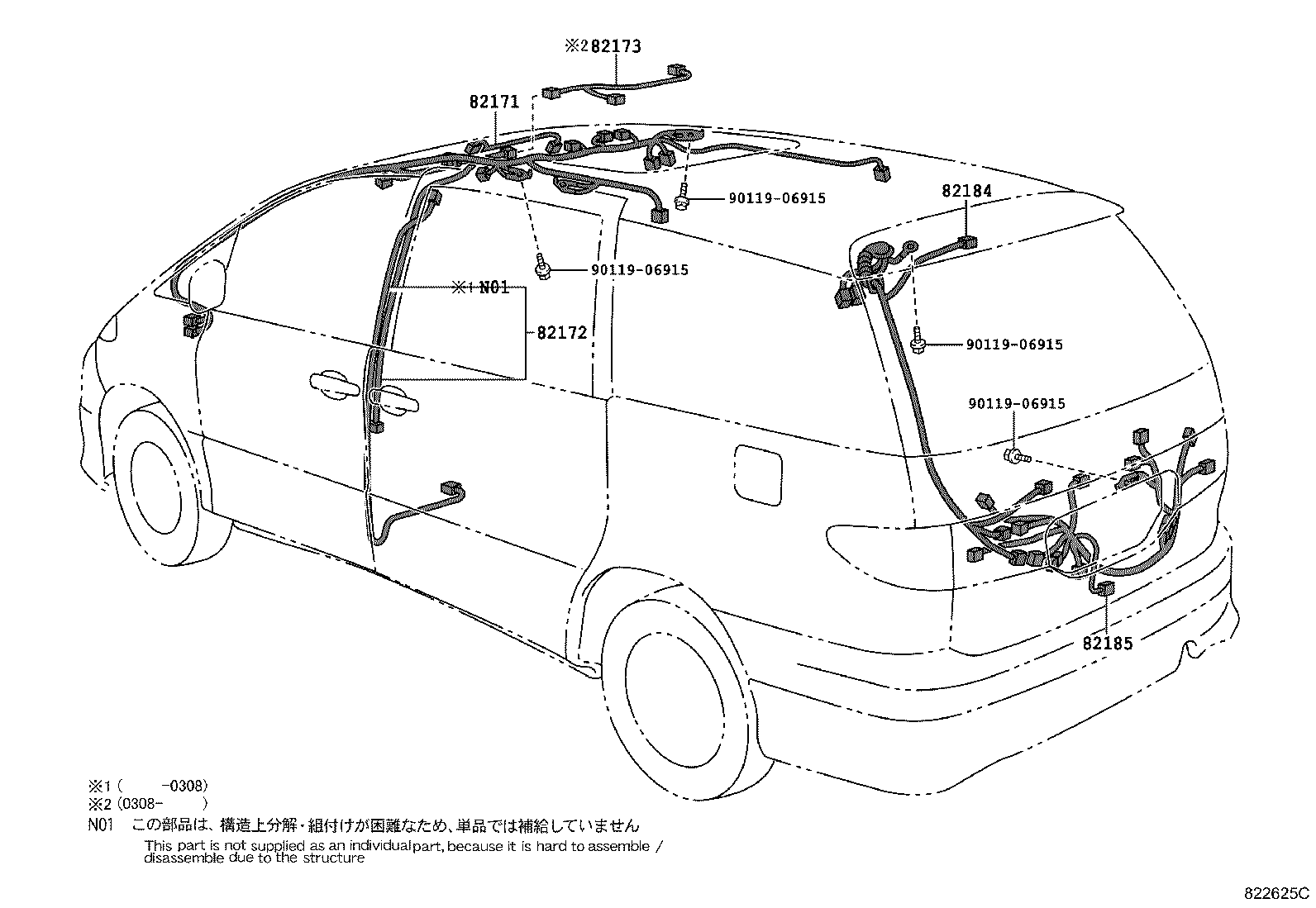

Figure 822625C

822625C 2001-05 → —

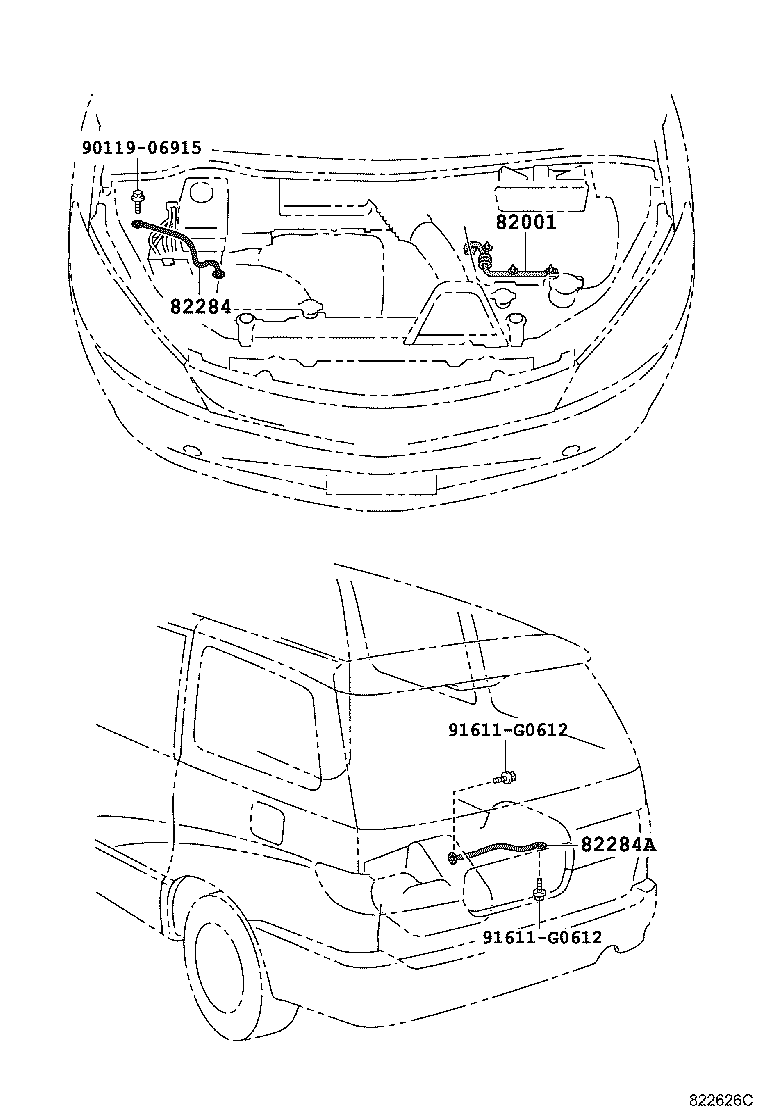

Figure 822626C

822626C 2001-05 → 2003-08

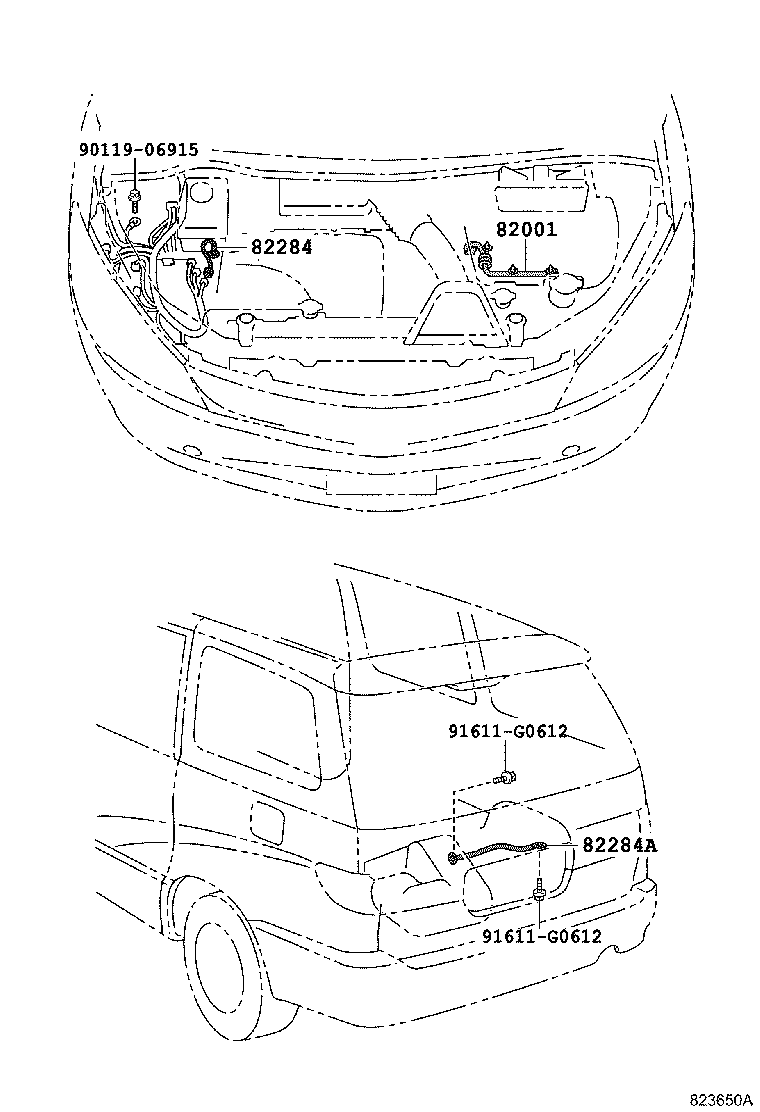

Figure 823650A

823650A 2003-08 → —

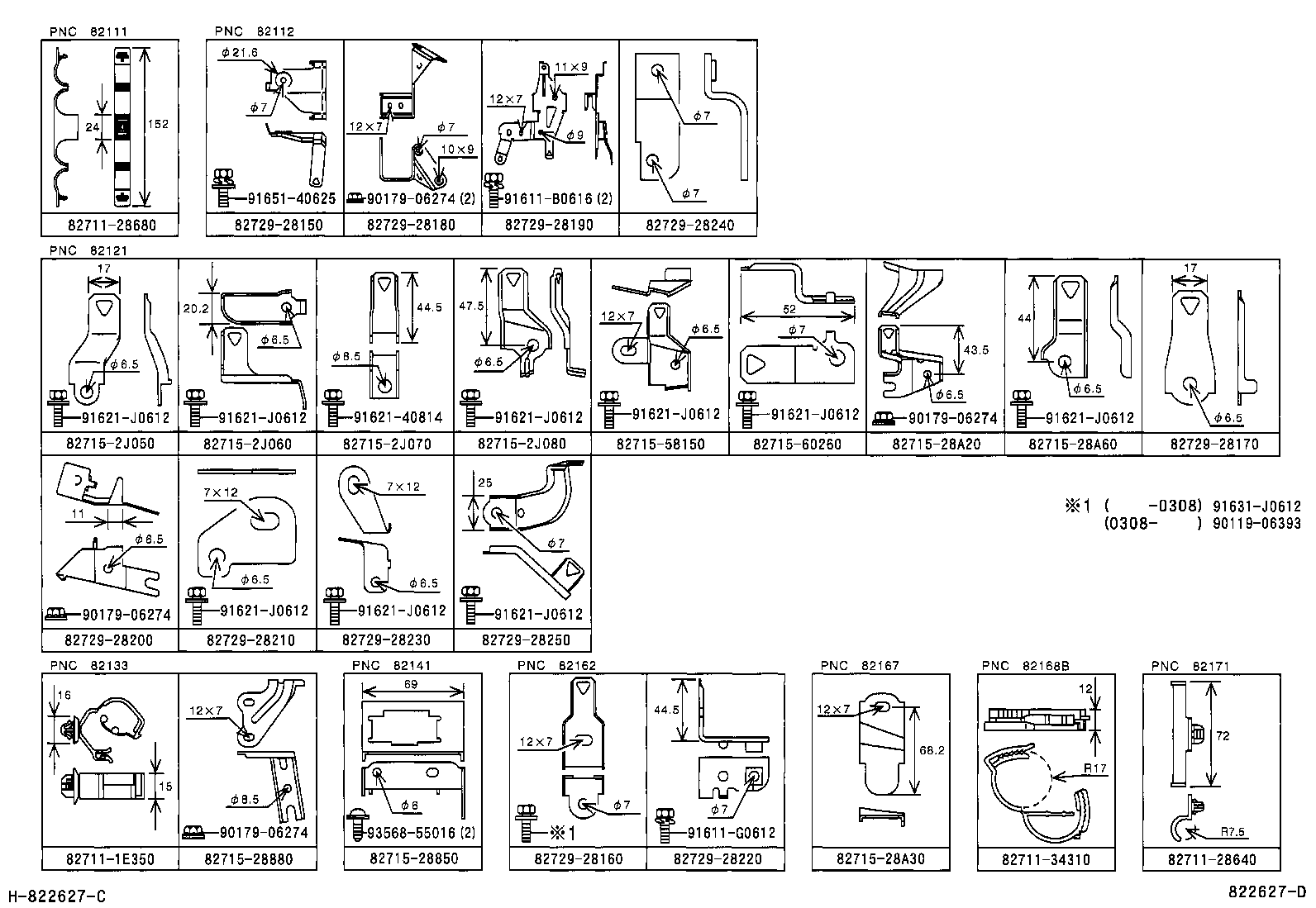

Figure 822627D

822627D 2001-05 → —

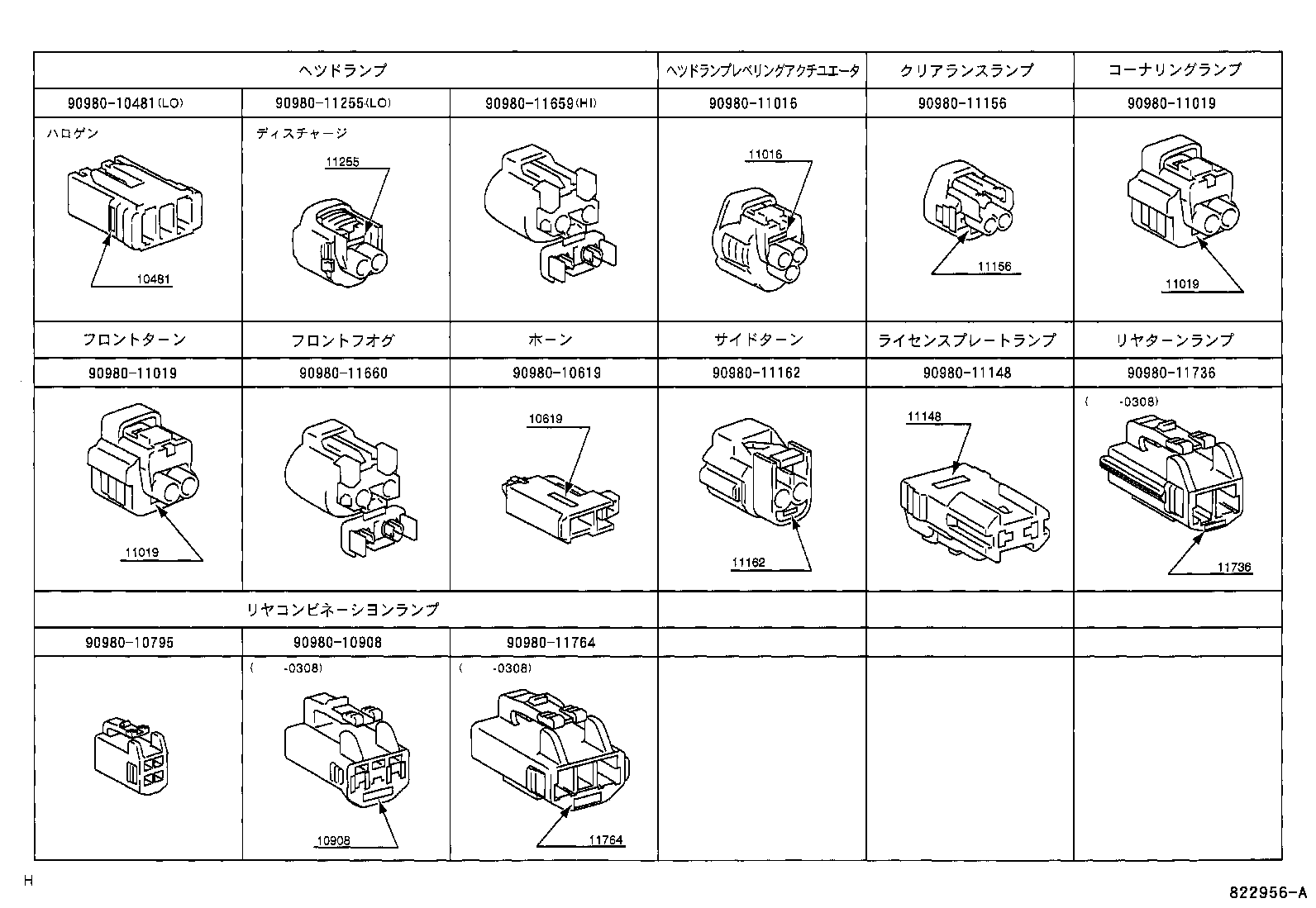

Figure 822956A

822956A 2001-05 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82114	Wire, Engine Room, NO.4
82121	Wire, Engine
82123	Wire, Engine, NO.3
82123A	Wire, Engine, NO.3
82125	Wire, Transmission
82132	Wire, Cowl, NO.2
82133	Wire, Cowl, NO.3
82141	Wire, Instrument Panel
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82167	Wire, Seat, NO.1
82168	Wire, Seat, NO.2
82168B	Wire, Seat, NO.2 (SUB WIRE)
82171	Wire, Roof, NO.1
82172	Wire, Roof, NO.2
82173	Wire, Roof, NO.3
82182	Wire, Luggage Room, NO.2
82183	Wire, Luggage Room, NO.3
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82217A	Wire, Front Window Defogger
82284	Wire, Earth
82284A	Wire, Earth NO.2
82345	Diode
82345A	Diode
82413A	Wire, Fuel Tank
82625	Terminal, Fusible Link
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666E	Holder, Connector NO.6
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82666L	Holder, Connector NO.9
82666N	Holder, Connector NO.10
82666Q	Holder, Connector NO.12
82666S	Holder, Connector NO.13
82666T	Holder, Connector NO.14
82672	Cover, Junktion Block
82734	Block, Center Junction
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82821A	Cover, Connector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
