Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

11 part groups · 4 illustrations

Illustrations

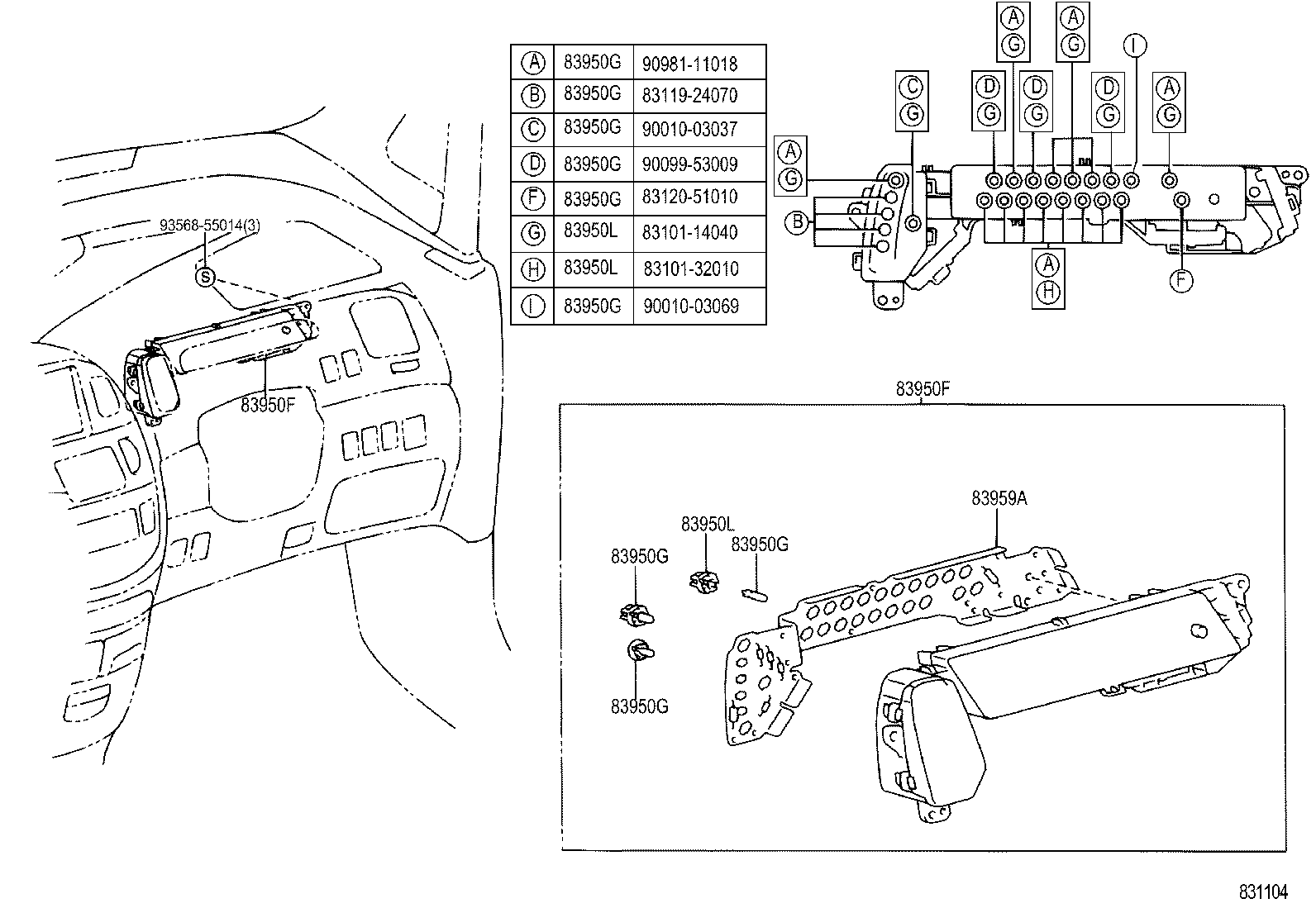

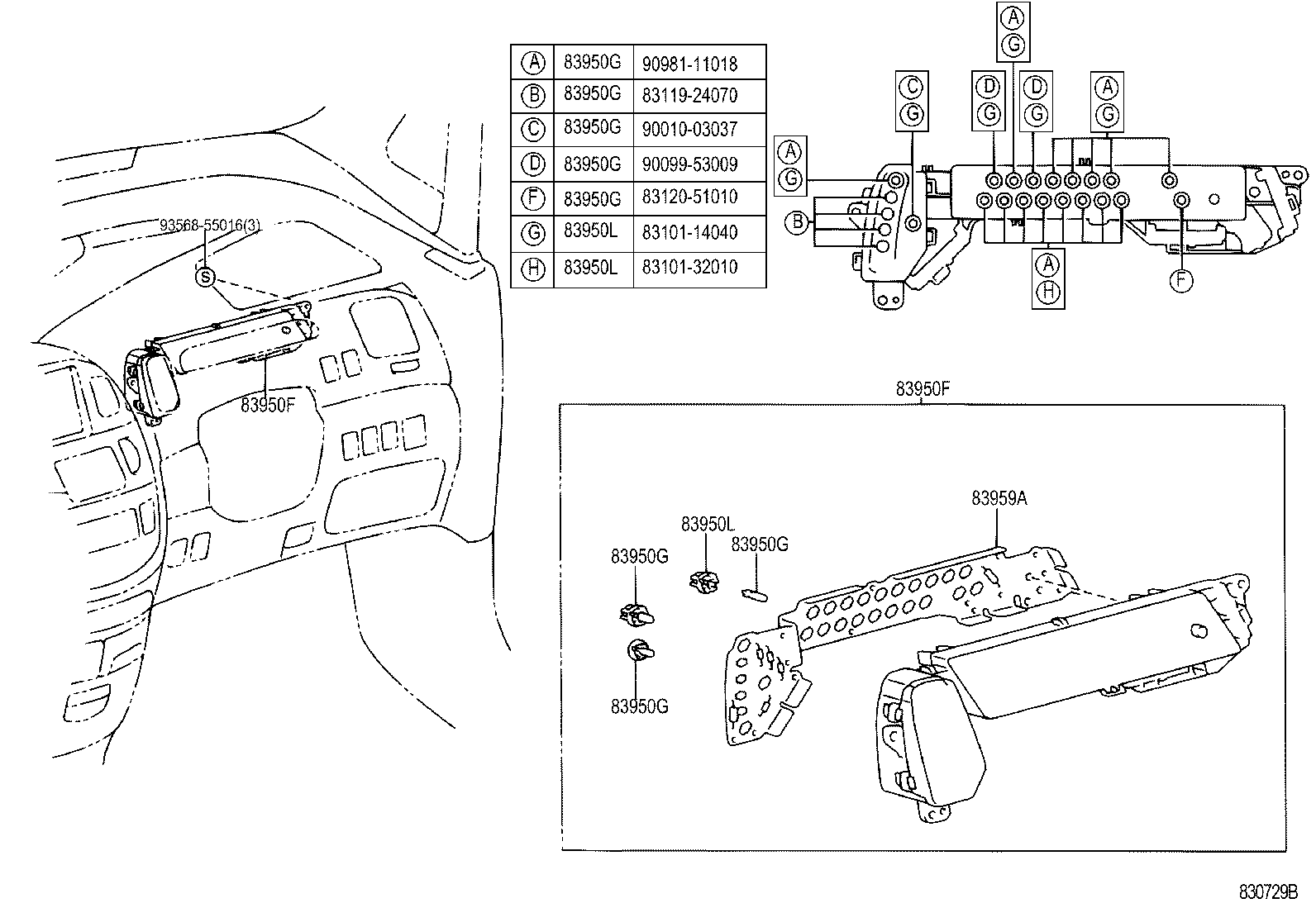

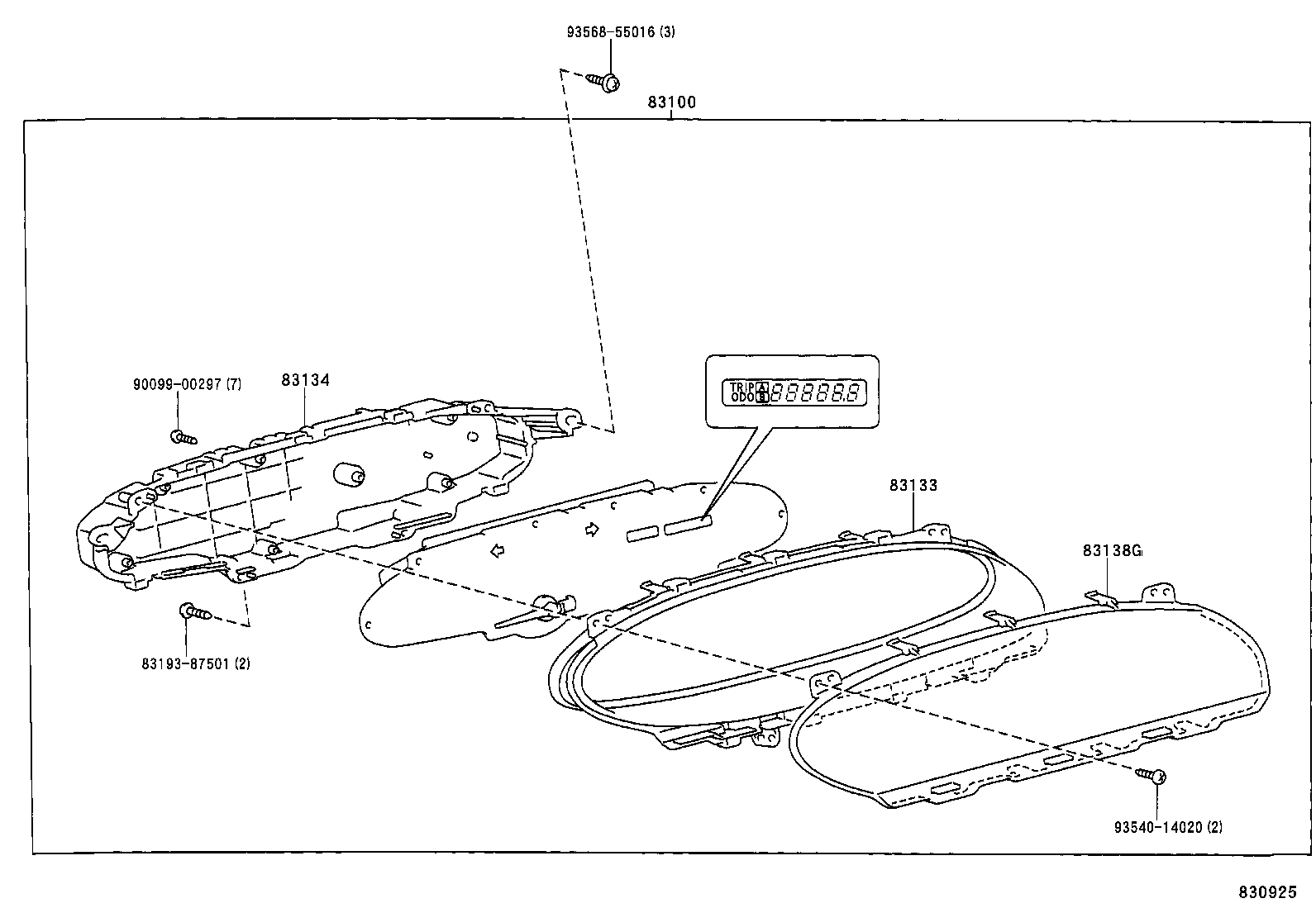

Figure 830728A 830728A 2001-05 → 2003-08 Figure 830925 830925 2003-08 → — Figure 830729B 830729B 2001-05 → 2003-08 Figure 831104 831104 2003-08 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83129 Wire, Meter
83133 Plate, Combination Meter, NO.1
83133B Plate, Combination Meter, NO.3
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83950F Lamp Assy, Telltale
83950G Bulb, Telltale Lamp
83950L Socket, Telltale Lamp
83959A Plate, Telltale Lamp Circuit
89820 Sensor Assy, Inclination
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
