Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

3 part groups · 2 illustrations

Illustrations

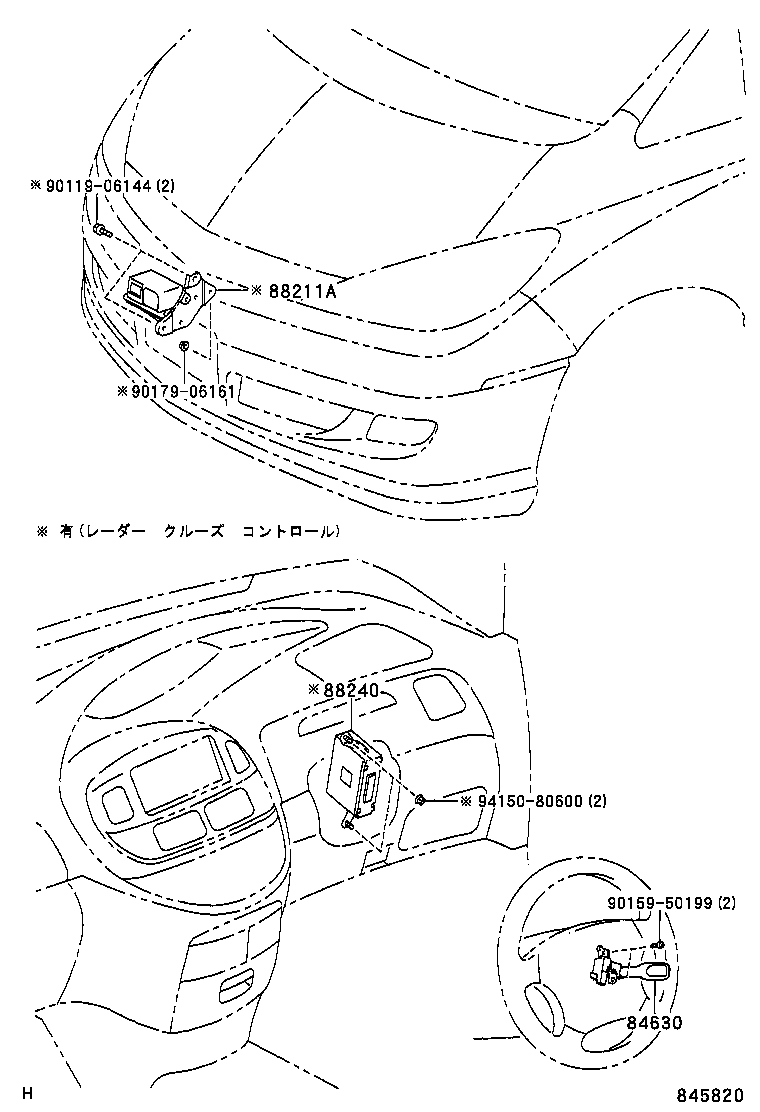

Figure 844221 844221 2001-05 → 2003-08 Figure 845820 845820 2003-08 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
88211A Sensor, Laser Radar
88240 Computer Assy, Cruise Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
