Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

14 part groups · 4 illustrations

Illustrations

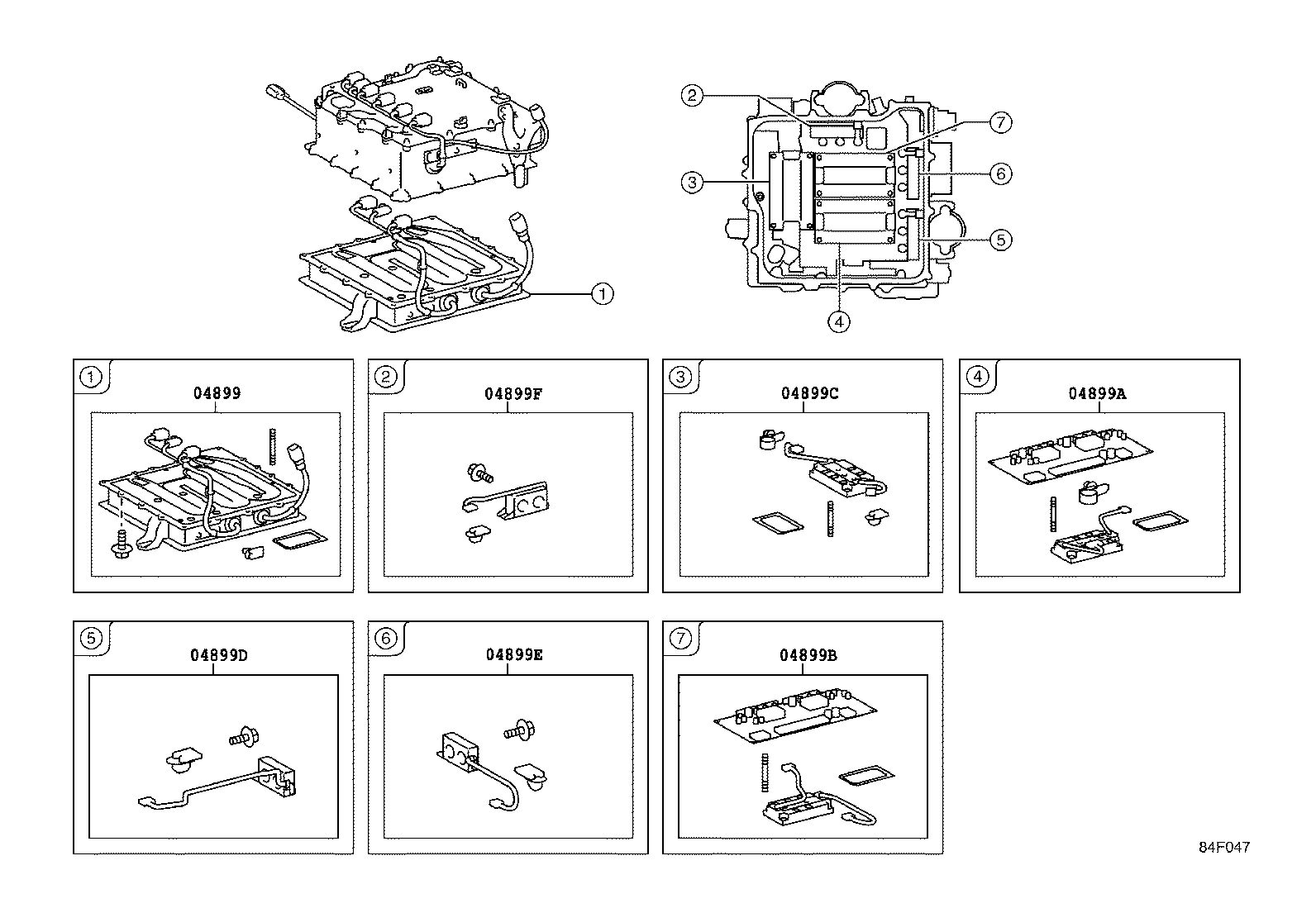

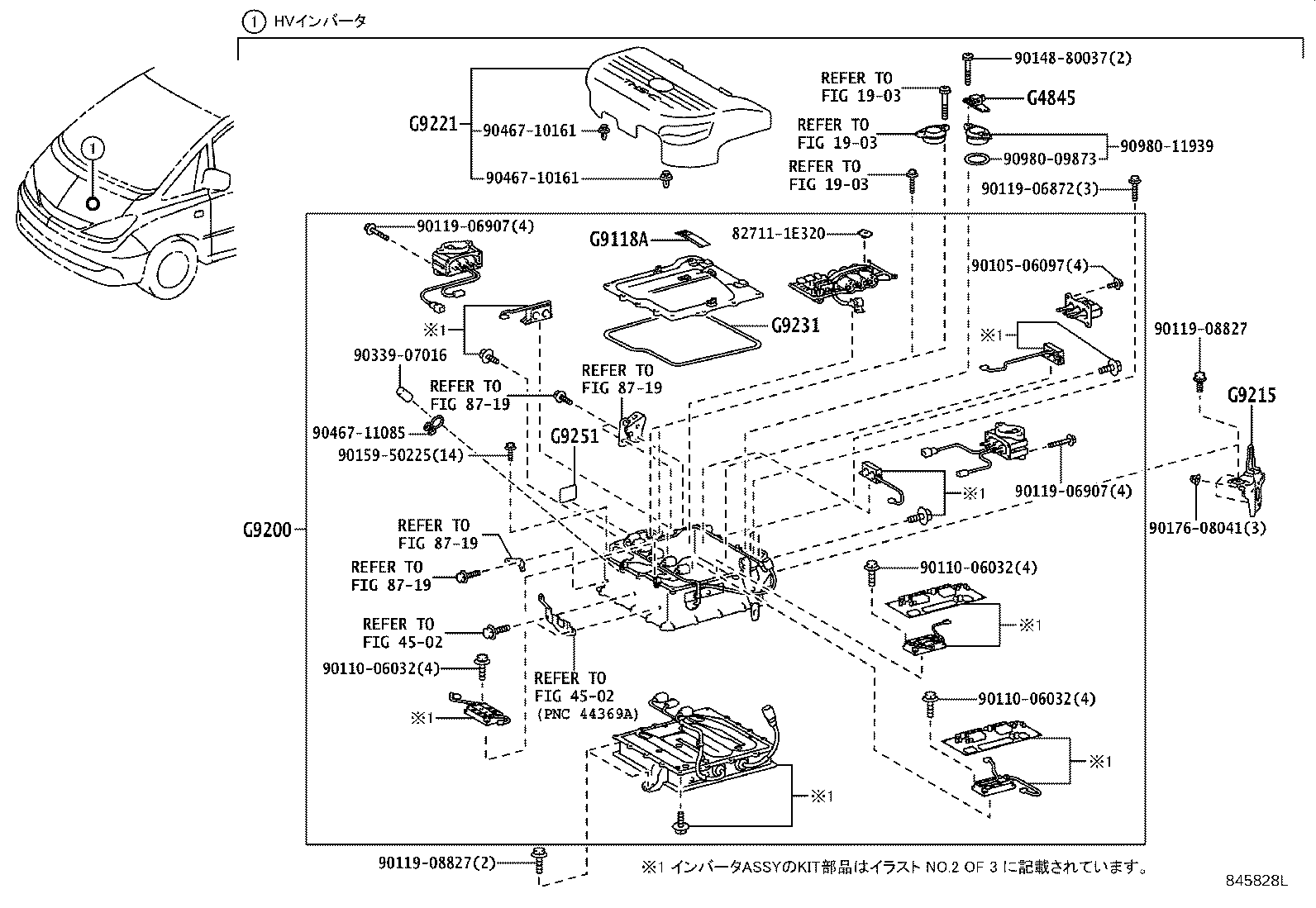

Figure 844228N 844228N 2001-05 → 2003-08 Figure 845828L 845828L 2003-08 → — Figure 84F047 84F047 2001-05 → — Figure 84E394 84E394 2001-05 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899A Transistor Kit, Power Module Intelligent(FRONT IPM)
04899B Transistor Kit, Power Module Intelligent(REAR IPM)
04899C Transistor Kit, Power Module Intelligent(STARTER IPM)
04899D Sensor Kit, Inverter Current(FRONT IPM)
04899E Sensor Kit, Inverter Current(REAR IPM)
04899F Sensor Kit, Inverter Current(STARTER IPM)
G4845 Sensor, Circuit Breaker, NO.1
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9215 Bracket, Inverter, NO.2
G9221 Cover, Inverter
G9231 Gasket, Inverter Cover
G9251 Seat, Inverter Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
