Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10

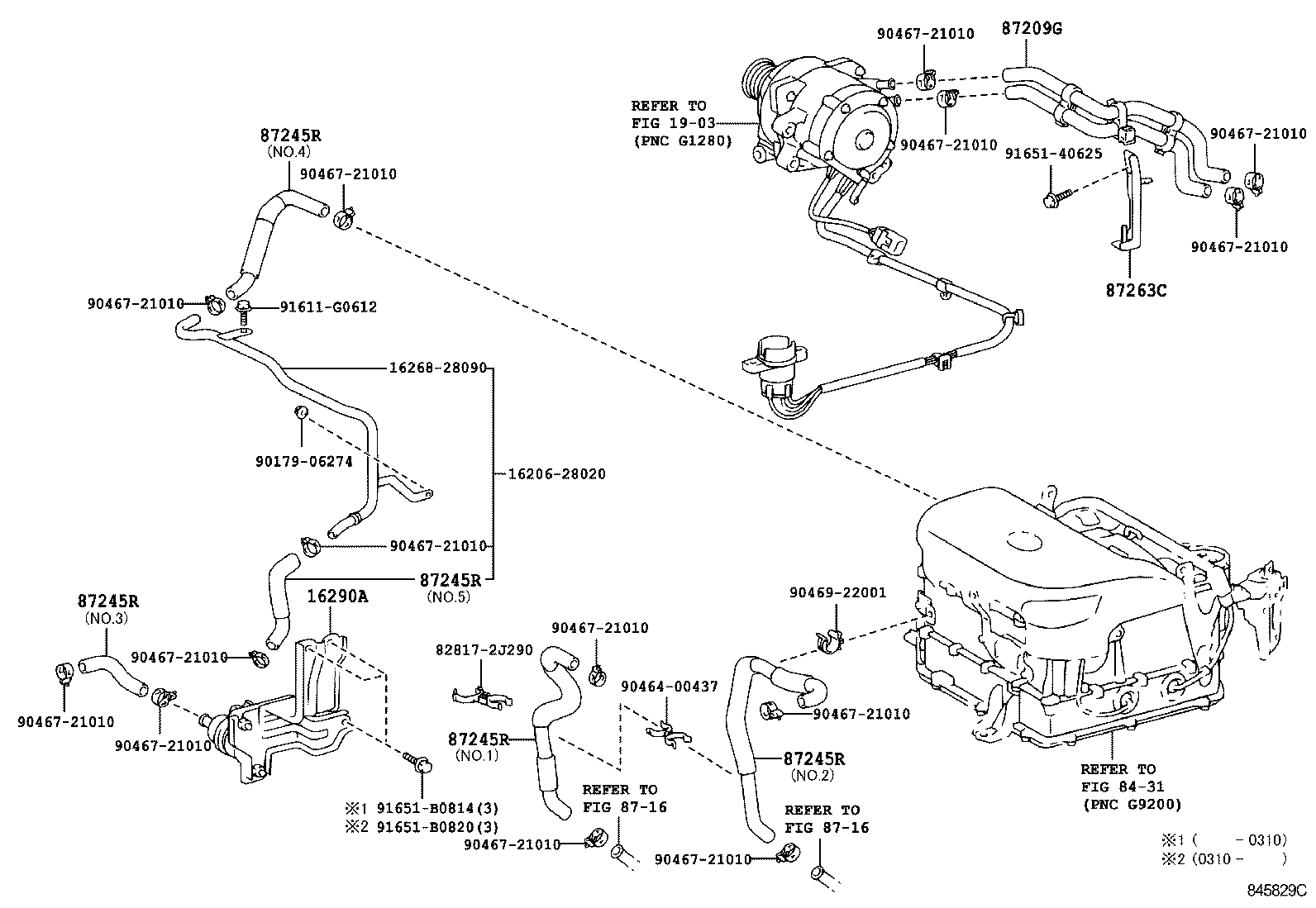

Inverter Cooling

4 part groups · 2 illustrations

PNC	Description
16290A	Pump Assy, Water W/Motor & Bracket
87209G	Hose Sub-assy, Water, NO.1
87245R	Hose, Water
87263C	Bracket, Water Hose

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
