Toyota Estima Hybrid
2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan
Discontinued model
Data version 2006-10

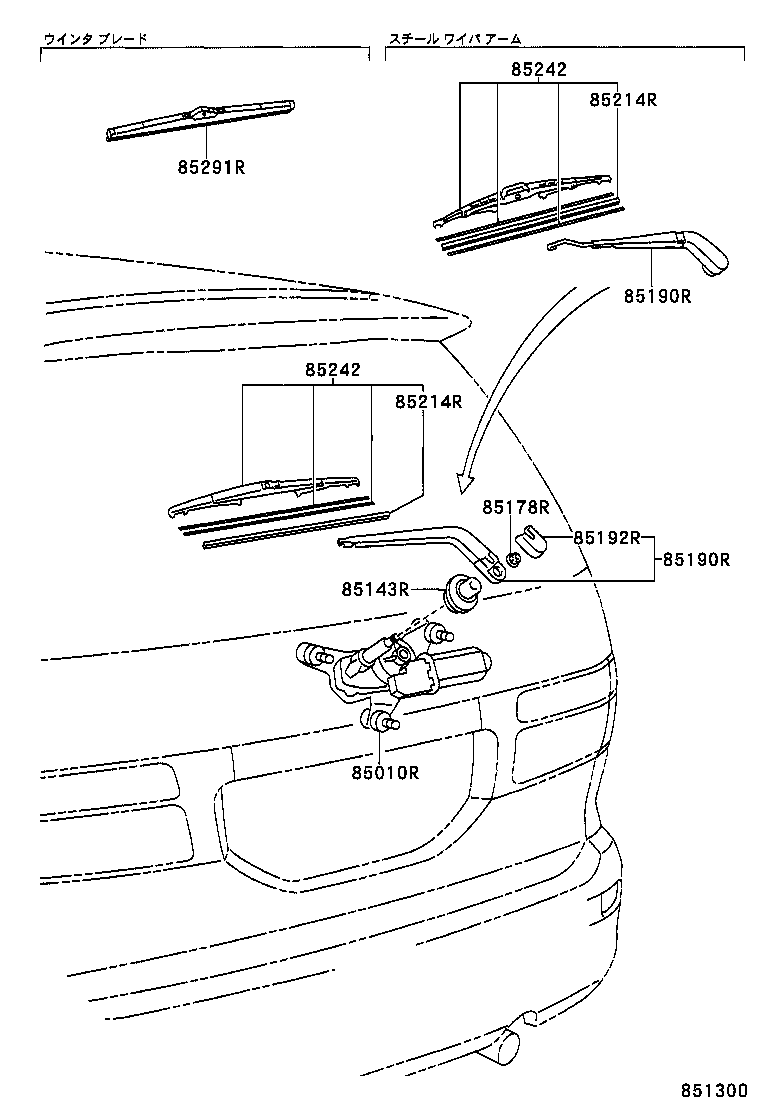

Rear Wiper
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85010R | Motor & Link Assy, RR Wiper |
| 85143R | Grommet, Rear Wiper Motor |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
| 85242 | Blade, RR Wiper |
| 85291R | Blade,Rear Wiper, Winter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
