Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 4 illustrations

Illustrations

Figure 861431D

861431D 2001-05 → —

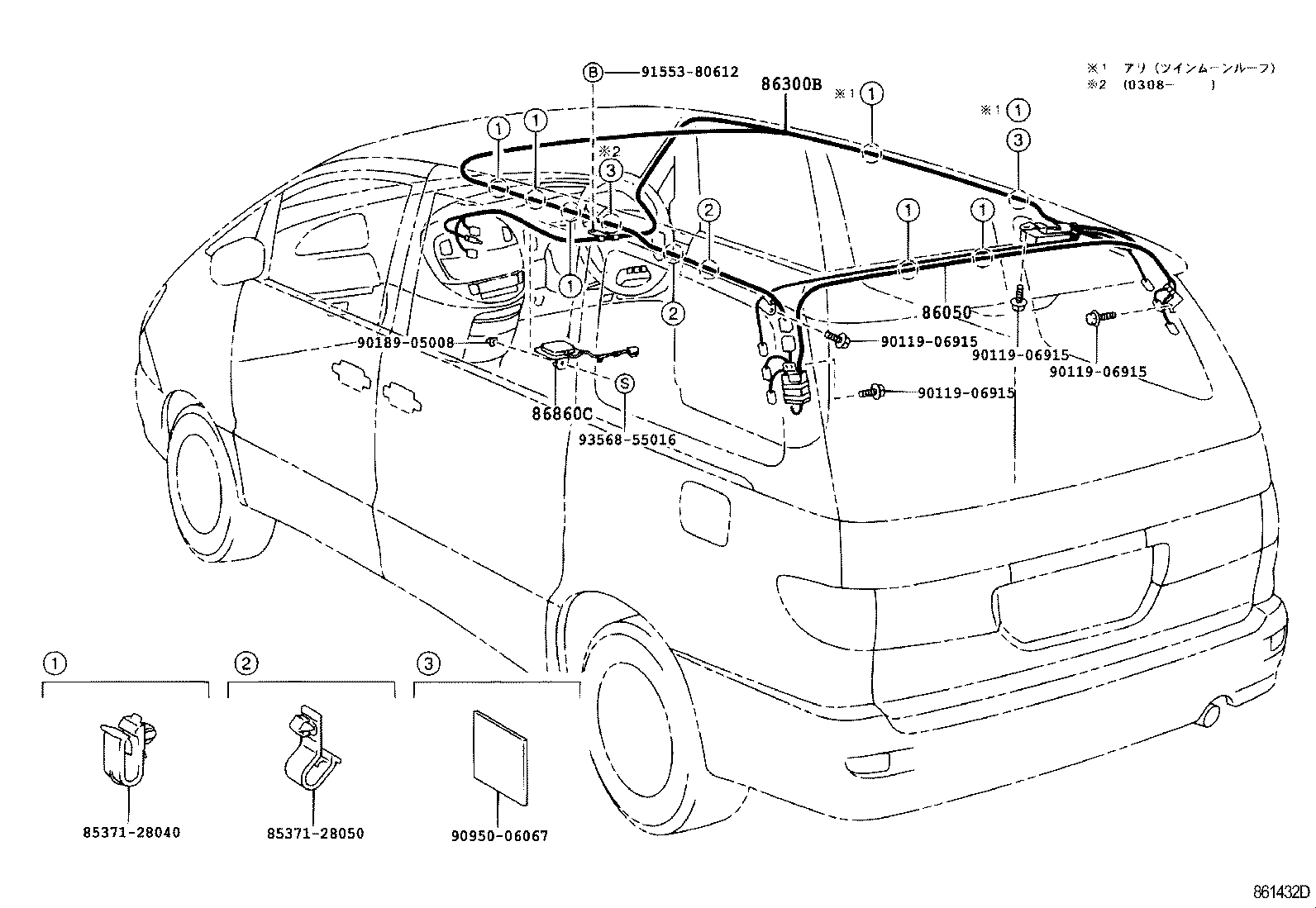

Figure 861432D

861432D 2001-05 → —

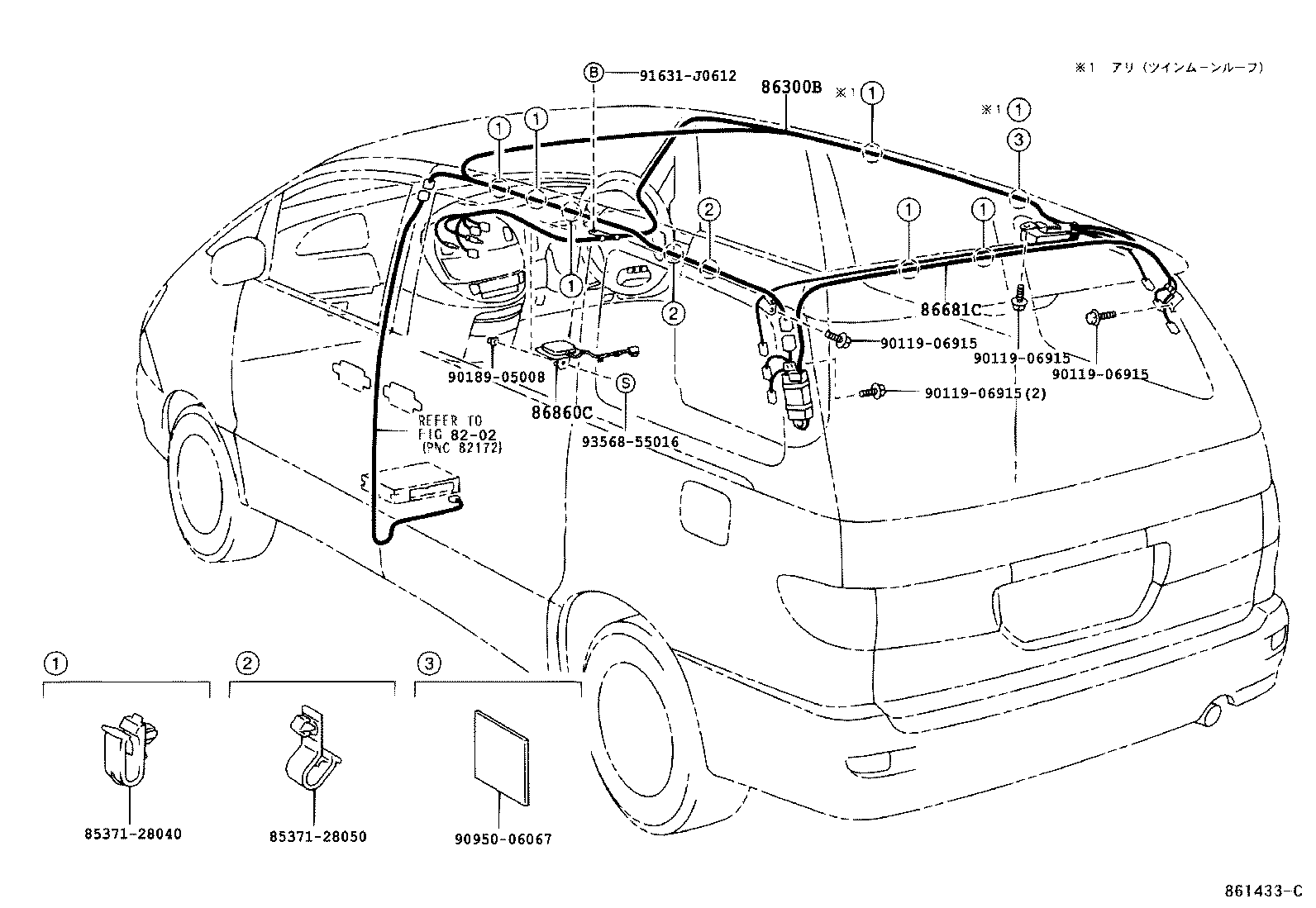

Figure 861433C

861433C 2001-05 → 2003-08

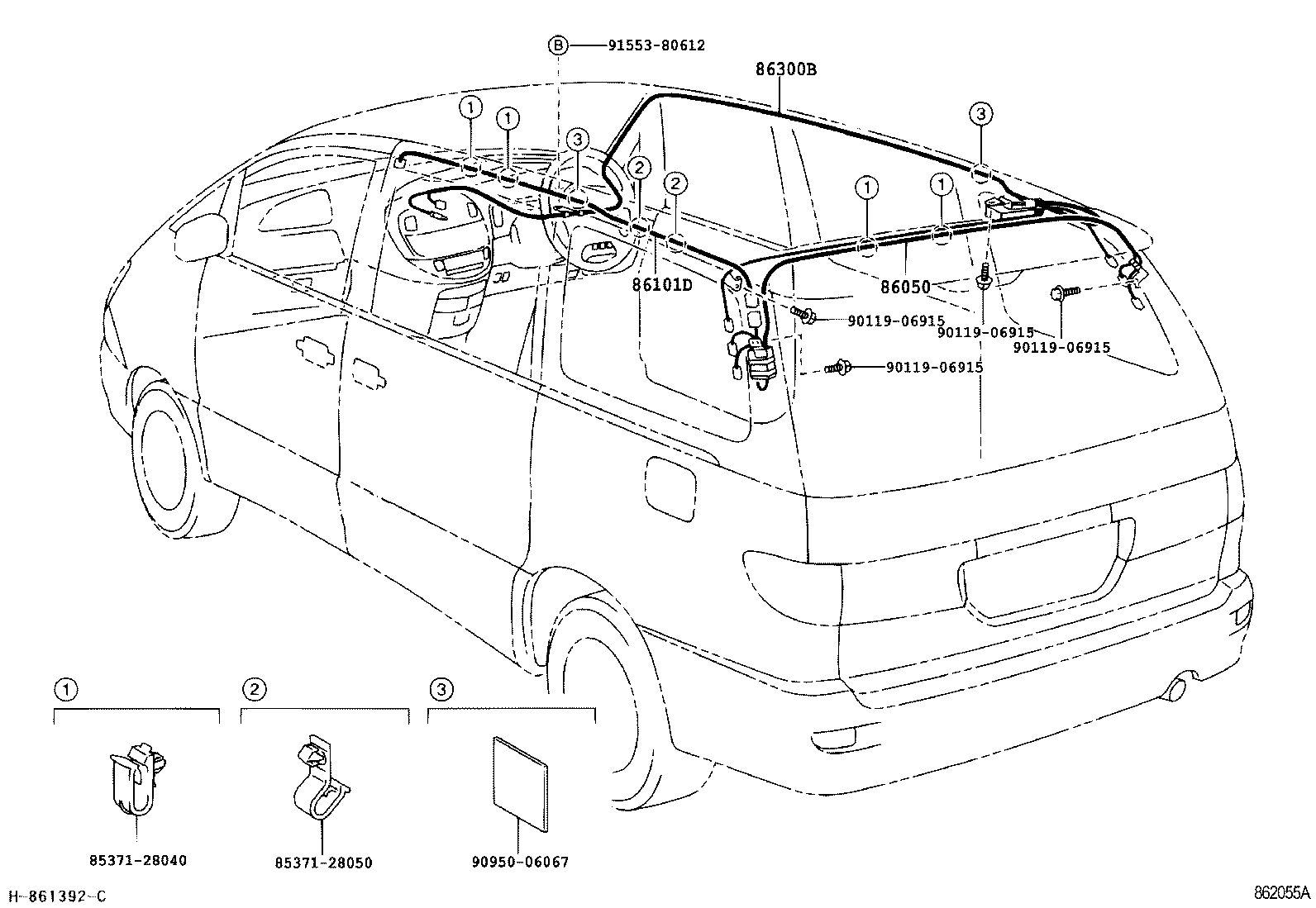

Figure 862055A

862055A 2003-08 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101D	Cord Sub-assy, Antenna, NO.3
86300B	Antenna Assy, Amplifier, NO.1
86681C	Divider, Antenna
86860C	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
