Toyota Estima Hybrid
2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan
Discontinued model
Data version 2006-10
Heating & Air Conditioning - Cooler Unit
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

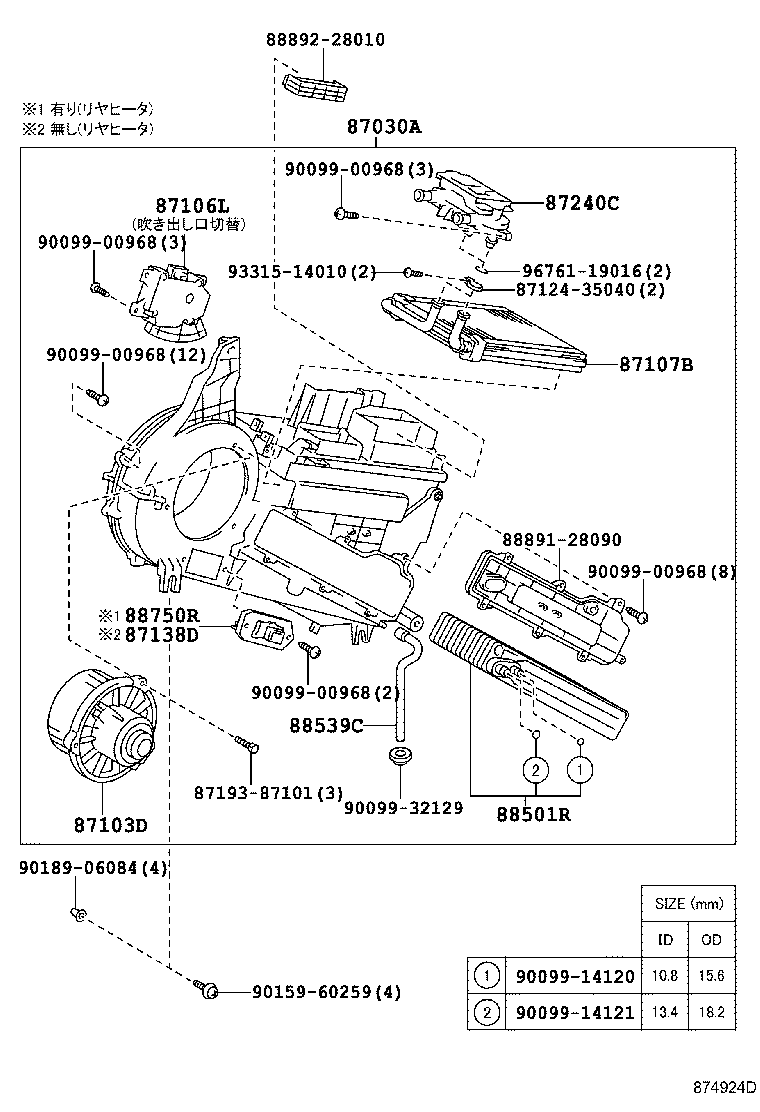

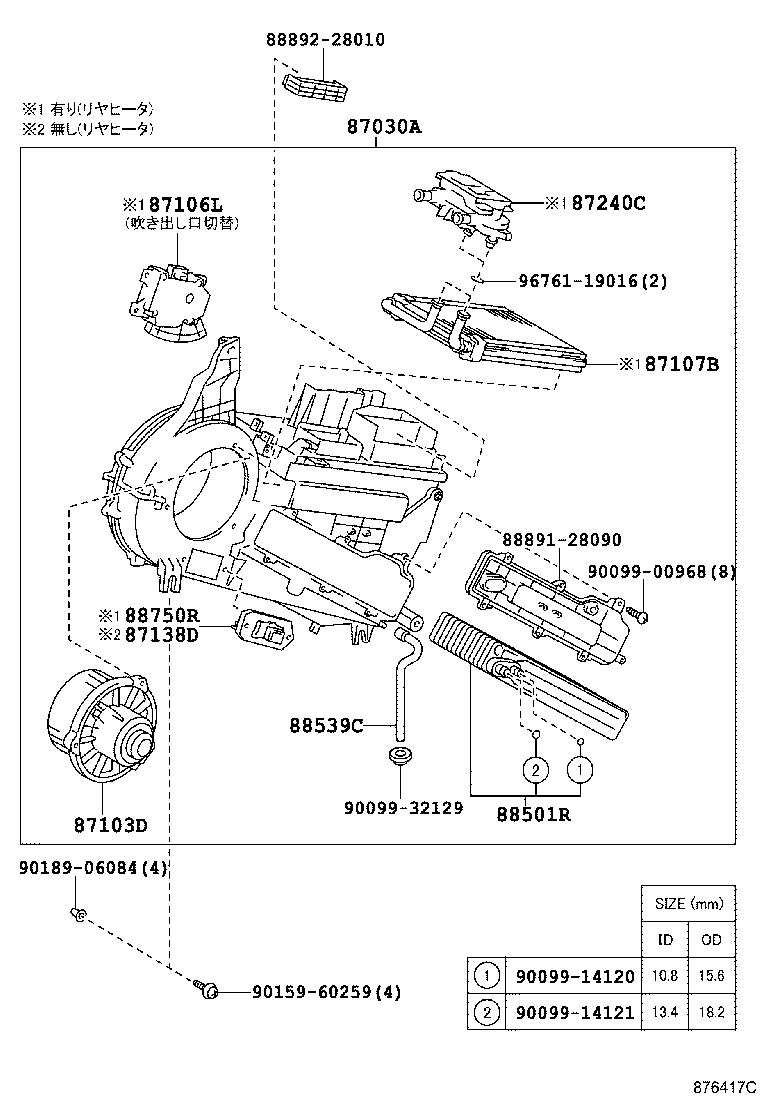

| 87030A | Unit Assy, Cooling, Rear |

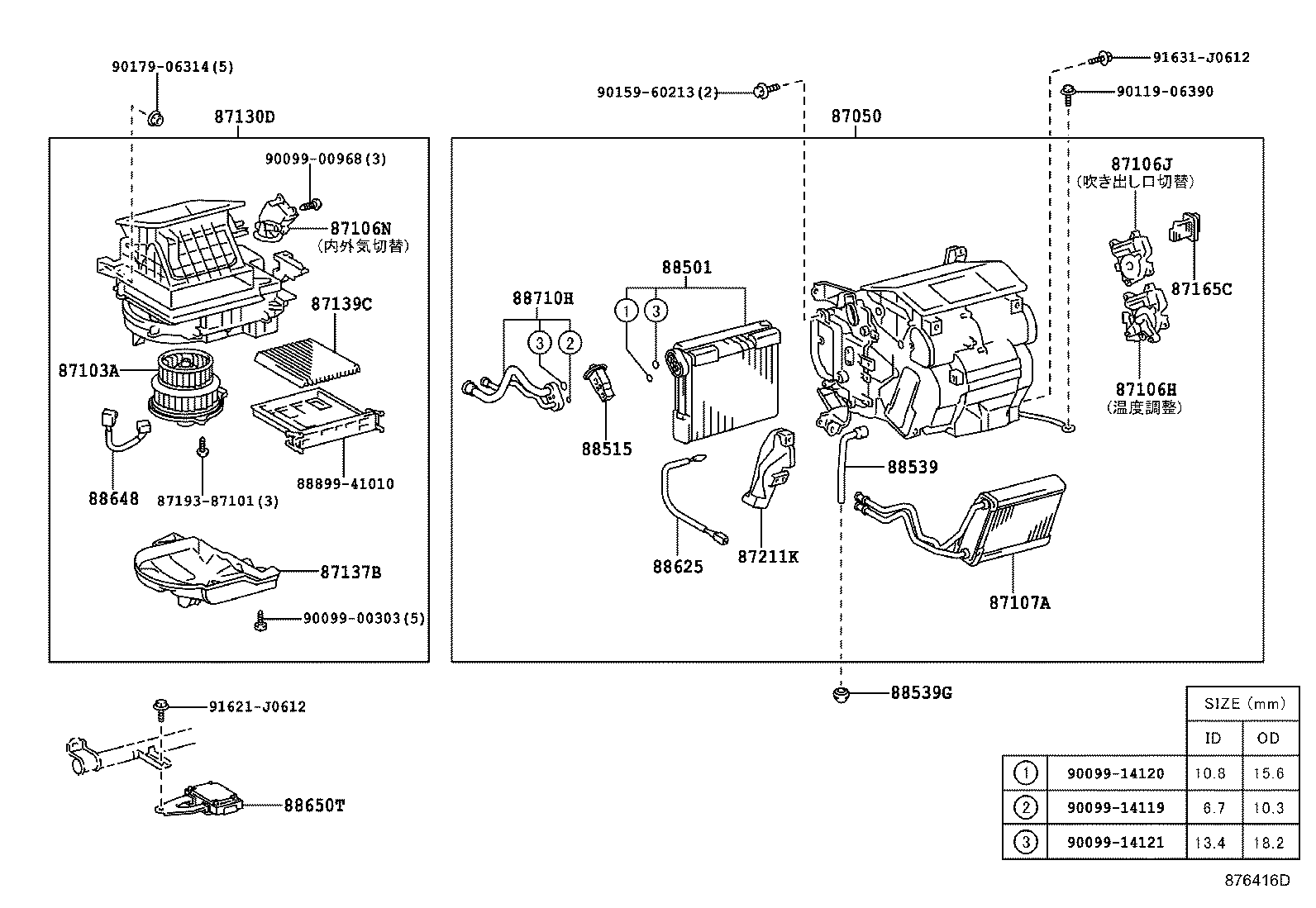

| 87050 | Radiator Assy, Air Conditioner |
| 87103A | Motor Sub-assy, Cooling Unit, W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106L | Servo Sub-assy, Damper |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87107B | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87137B | Cover, Heater Blower |
| 87138D | Resistor, Blower (REAR) |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87211K | Duct, Air |
| 87240C | Valve Assy, Heater Water |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88508 | Filter Sub-assy, Clean Air |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648 | Wiring, Cooler, NO.1 |
| 88650T | Amplifier Assy, Air Conditioner (FOR 2-WAY COMPRESSOR) |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88750R | Transistor Assy, Blower Resistor(REAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
