Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 4 illustrations

Illustrations

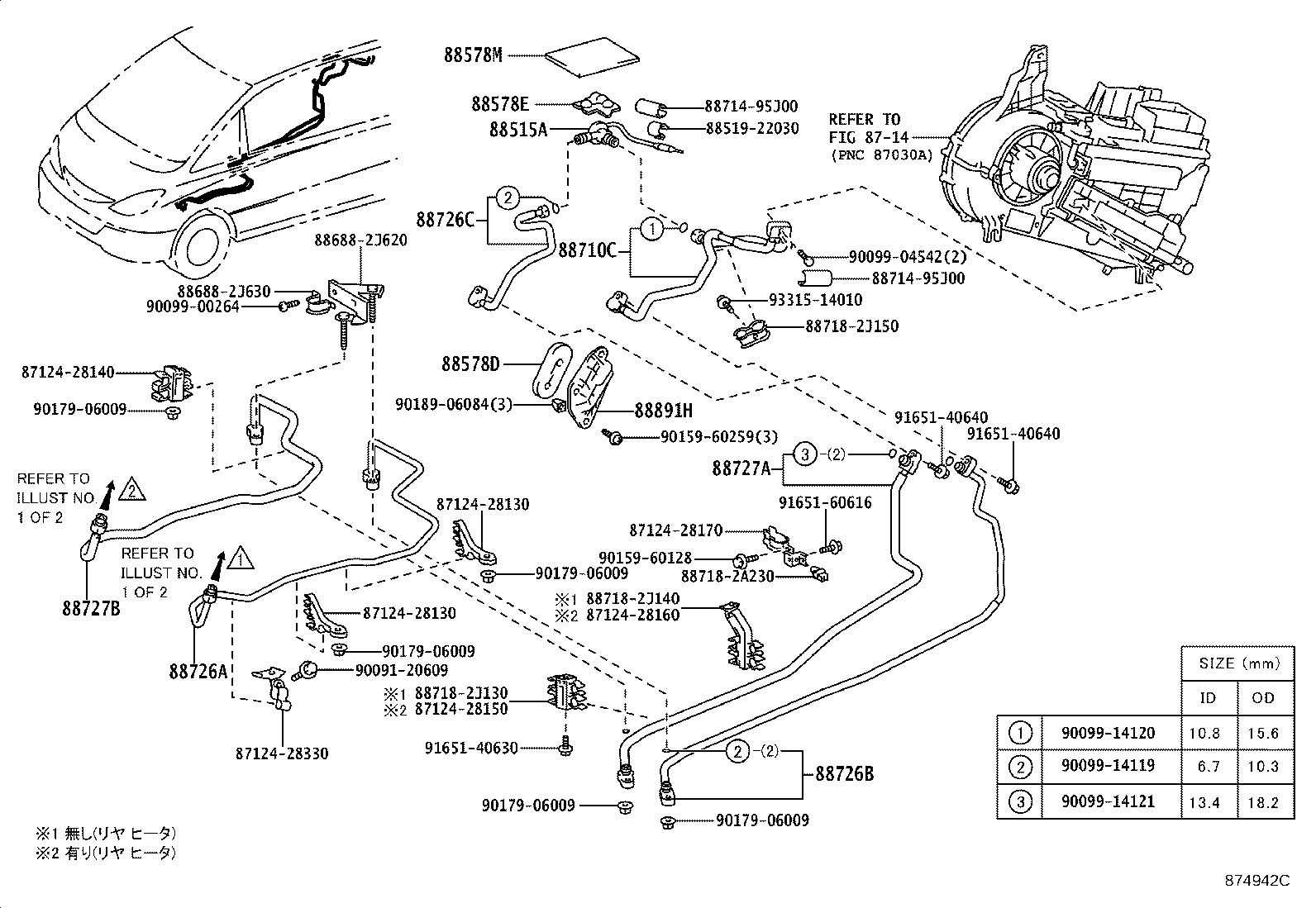

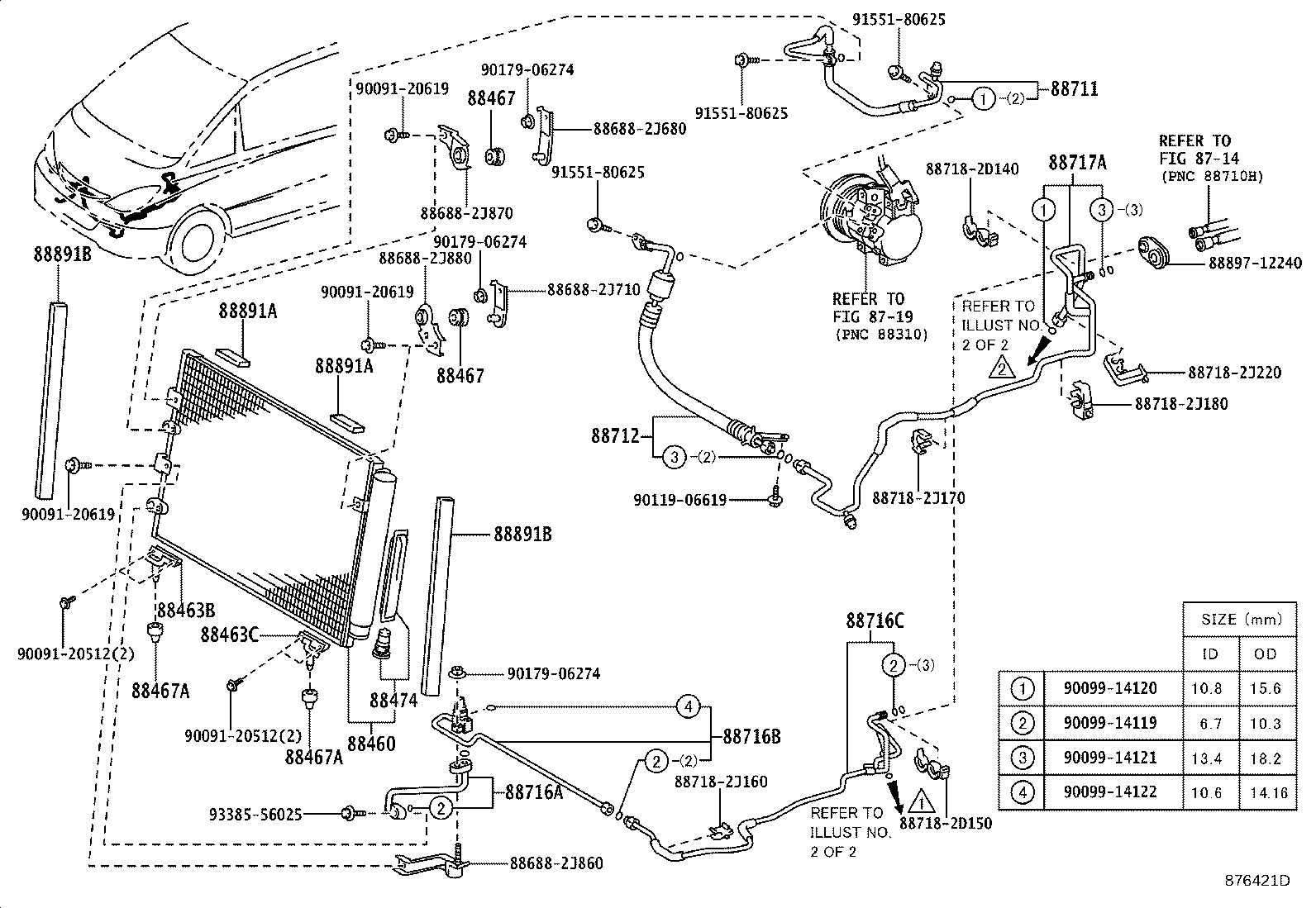

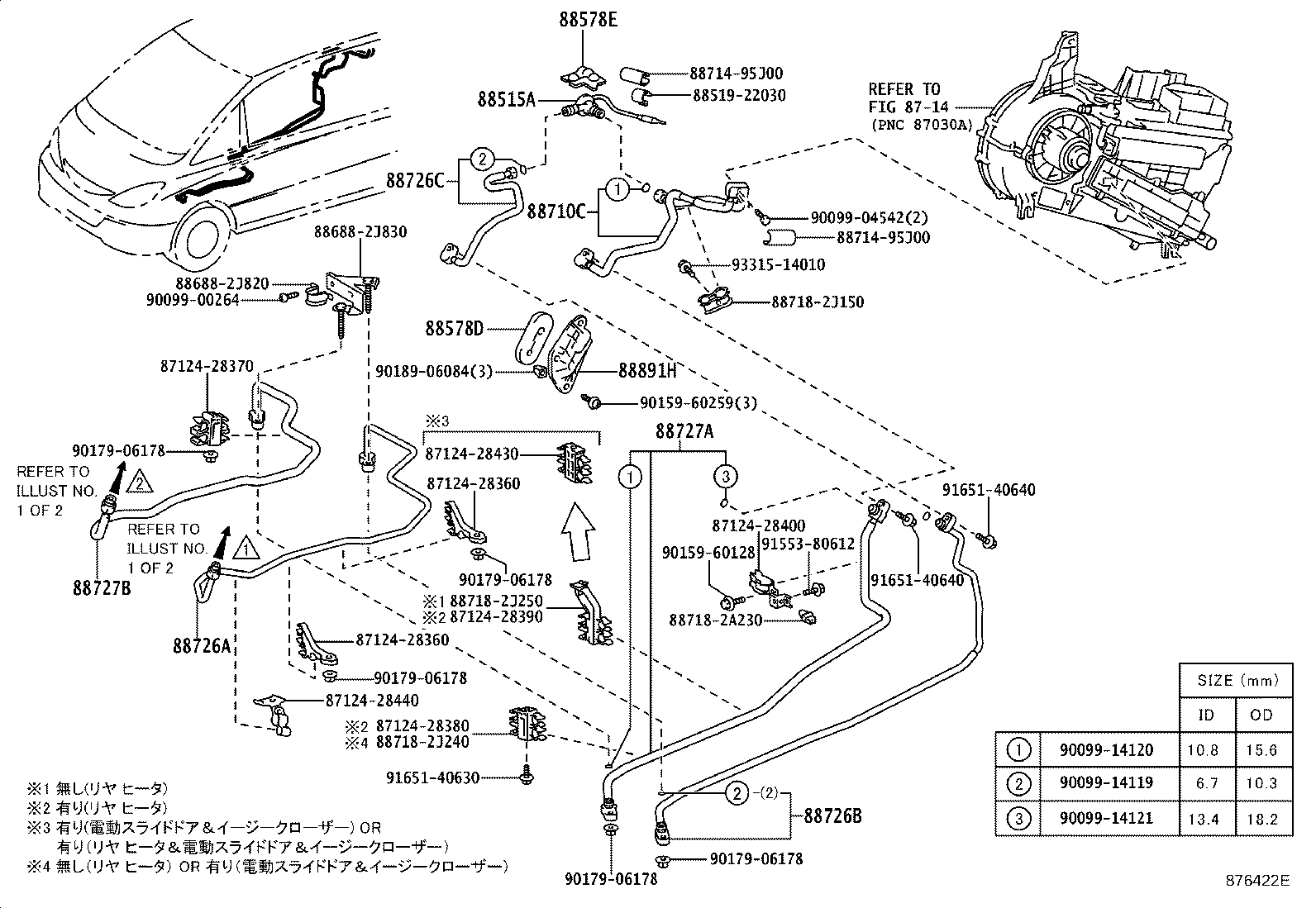

Figure 874939C 874939C 2001-05 → 2003-08 Figure 876421D 876421D 2003-08 → — Figure 874942C 874942C 2001-05 → 2003-08 Figure 876422E 876422E 2003-08 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
