Toyota Estima Hybrid

2001-05 → 2006-01 · chassis AHR10 · catalogue 656140 · Japan

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

4 part groups · 2 illustrations

Illustrations

874912 2001-05 → 2003-08

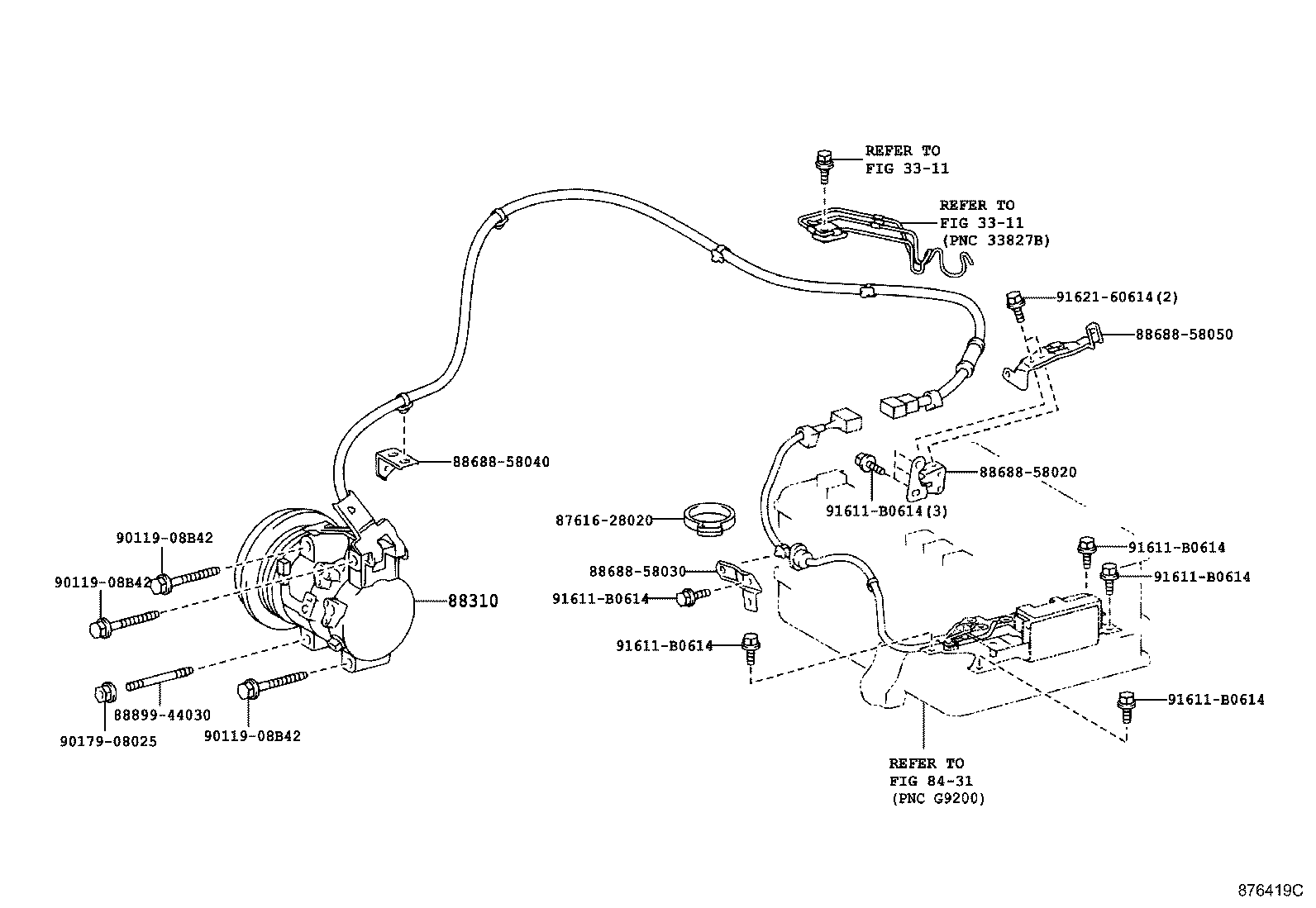

Figure 876419C

876419C 2003-08 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
