Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

11 part groups · 2 illustrations

Illustrations

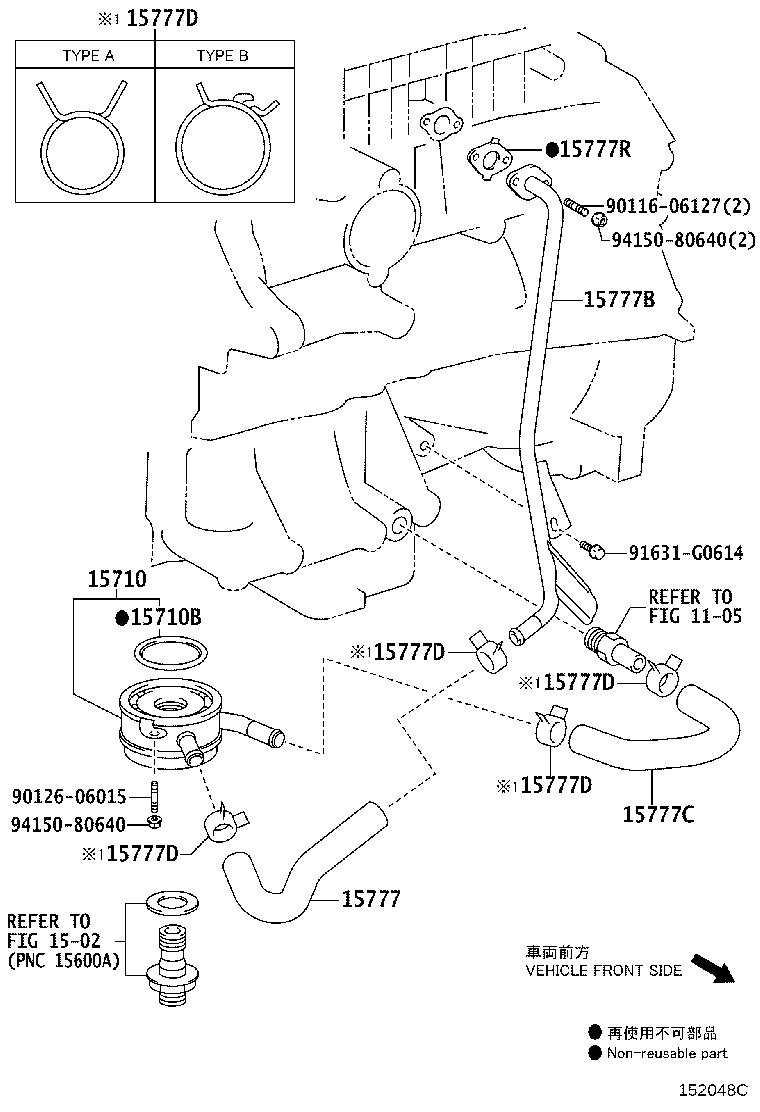

Figure 151085F 151085F 2006-06 → 2012-12 Figure 152048C 152048C 2012-12 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15777 Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15777K Cock Assy, Drain(FOR OIL COOLER HOSE)
15777L Plug,Air(FOR OIL COOLER DRAIN COCK)
15777M Ring, O(FOR OIL COOLER DRAIN COCK)
15777R Gasket(FOR OIL COOLER PIPE UNION BOLT)
15777S Clamp OR Clip, Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
